DIYM327HPW01BK2 MRCOOL Heat Pump

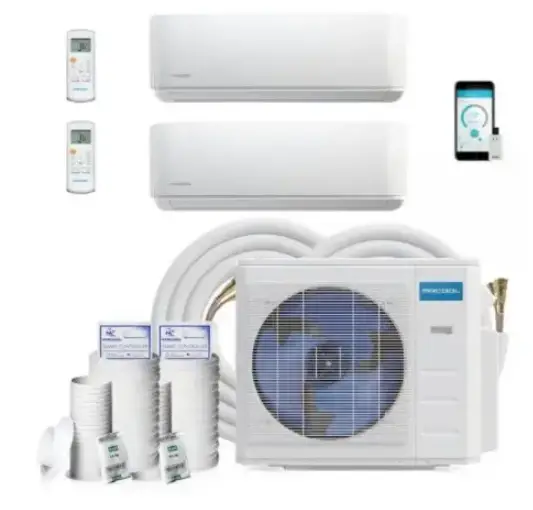

The MRCOOL DIY® Multi-Zone Series ductless mini-split is the only whole-home mini-split solution that you can install yourself. Simple, easy air comfort in up to four zones.
DIY® Quick Connect

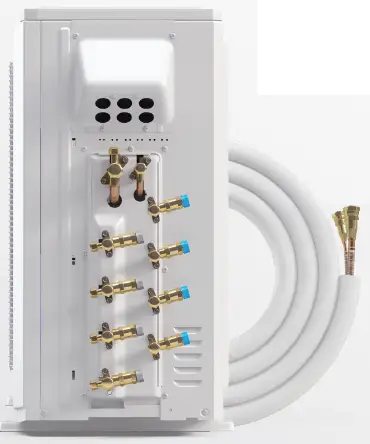

FACTORY-CHARGED LINE SET
The MRCOOL DIY® Quick Connect® Line Set is 100% accurately precharged with R410A refrigerant. This makes installation quick and easy with no vacuum required.
The MRCOOL DIY® Quick Connect® LineSet is intended for use with the MRCOOL® DIY® Single or Multi-Zone Units.

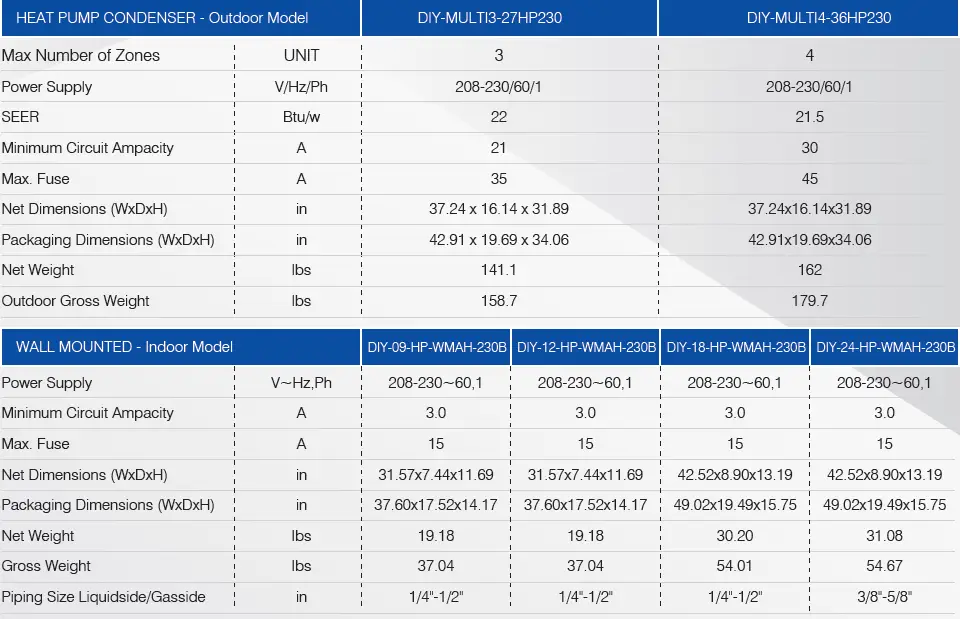

SPECIFICATION
MATCH UPS
| DIY-MULTI3-27HP230 (27K) – 11 COMBINATIONS | |||||
| Two Units | Three Units | ||||
| 9K + 9K | 12K + 12K | 9K + 9K + 9K | 9K + 12K + 12K* | ||
| 9K + 12K | 12K + 18K* | 9K + 9K + 12K* | 12K + 12K + 12K* | ||
| 9K + 18K | 18K + 18K* | 9K + 9K + 18K* | |||
| DIY-MULTI4-36HP230 (36K) – 24 COMBINATIONS | |||||
| Two Units | Three Units | Four Units | |||
| 9K + 18K | 12K + 24K | 9K + 9K + 9K | 9K + 18K + 18K * | 9K + 9K + 9K + 9K | 12K + 12K + 12K + 12K * |
| 9K + 24K | 18K + 18K | 9K + 9K + 12K | 12K + 12K + 12K | 9K + 9K + 9K + 12K * | |
| 12K + 12K | 9K + 9K + 18K | 12K + 12K + 18K * | 9K + 9K + 9K + 18K * | ||
| 12K + 18K | 9K + 9K + 24K * | 12K + 12K + 24K * | 9K + 9K + 12K + 12K * | ||
| 9K + 12K + 12K | 12K + 18K + 18K * | 9K + 9K + 12K + 18K * | |||
| 9K + 12K + 18K * | 9K + 12K + 12K + 12K * | ||||
Note: Size the outdoor condenser unit for the total building load. Size the individual indoor air handler units for individual zone load.
If all indoor units (handlers) run simultaneously, their combined BTU output will not exceed the BTU rating of the outdoor unit (condenser).
ALL MRCOOL® Ductless Minisplits HEAT and COOL Efficiently And Can Be Programmed And Controlled Remotely With Our Smartphone APP, Optional HVAC Ductless Mini-Stat, Or Included Hand-held Remote Control.
Download PDF: DIYM327HPW01BK2 MRCOOL Heat Pump User Guide
