milleteknik A-AL1224ECO01 ECO Mains Failure Alarm Card Installation Guide
ABOUT

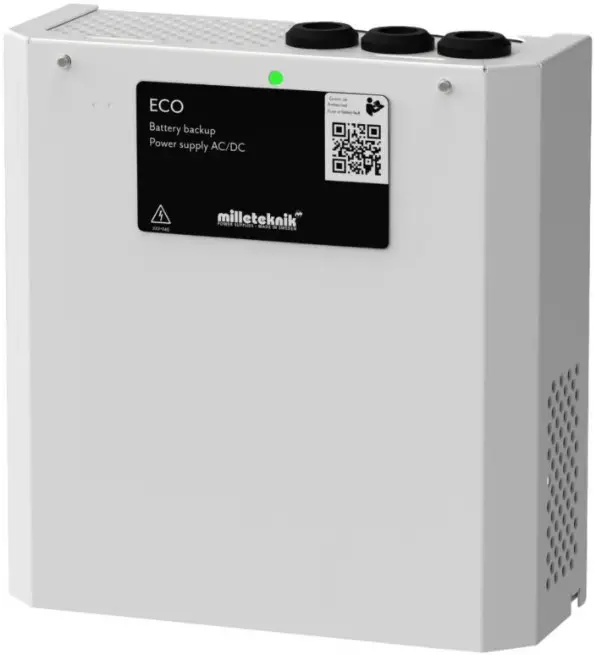

ECO mains failure alarm card is an alarm card for monitoring mains failure. The alarm card can be inserted into 24 V battery backups ECO M and ECO FLX S.
INSTALLATION AND CONNECTION
- Mount the card on the motherboard in the battery backup.
- Connect the mains.

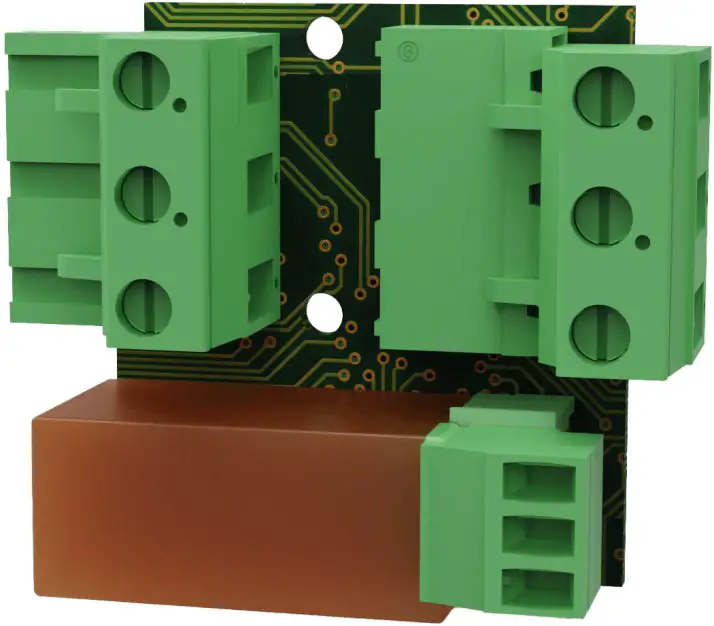

ECO Main failure alarm card

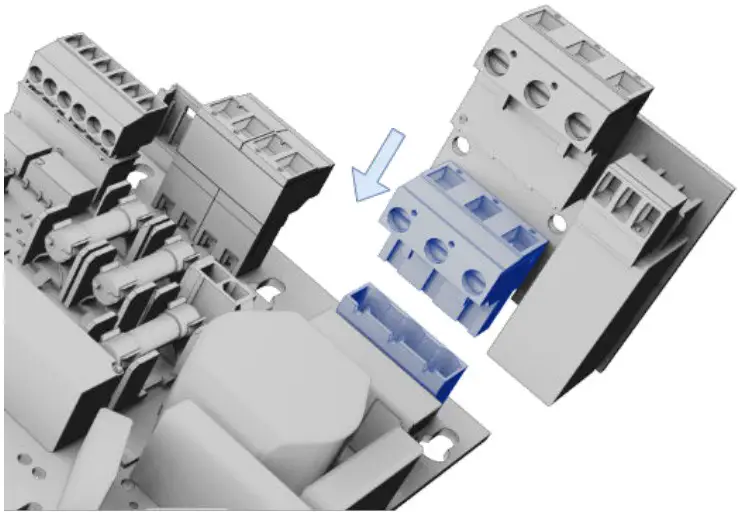

Push the card down onto the motherboard in the battery backup.

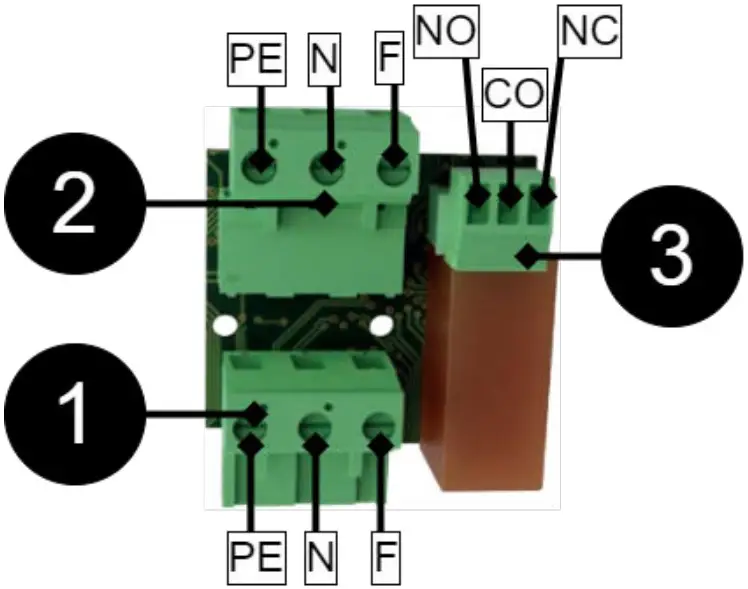

Connect Phase, Neutral and Ground as the picture shows.
| No | Explanation |
| 1 | Terminal that meets motherboard in battery backup, protective earth (PE), Neutral (N), Phase (F). |
| 2 | Terminal for incoming mains, protective earth (PE), Neutral (N), Phase (F). |
| 3 | Alarm output, NO/CO/NC. |
Warning
Do not cross cables – risk of equipment damage
TECHNICAL DATA
| Item number | A-AL1224ECO01 card |
| Product description | Alarm card for ECO M and ECO FLX S. Alarm on changing relay. |
| Measure | 21 x 55 x 42 mm |
| Own energy consumption | N/A |
| Tension, in | 27.3V DC |
| Alarm output: | Mains failure NC/CO/NO |
| Technical data | |
| Recommended environ- ment | Environmental class 1, Indoor, 20% ~ 90% relative humidity |
| The products meet the requirements according to | EMC Directive 2014/30EU, Low Voltage directive: 2014/35/EU CE directive according to 765/2008, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3 -2:2001. Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11. |
| Technical data | |
| Guarantee | 2 years |
Manufactured in Milleteknik’s factory in Partille, Sweden.
This translation is not verified and should be cross referenced with the swedish original before use.
User manual article number: 350-243
This document is subject to change without notice.
All information is published subject to typographical errors.
