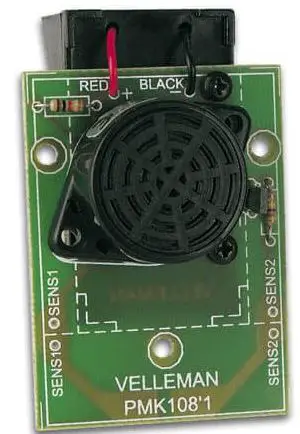

velleman WSAA108 Water Alarm Kit
Product information
- Product Name: Velleman PMK108’1
- Maximum Power: 40W
- Components: 2 Transistors, 3 Buzzers, R1: 10K, R2: 470K
- Sensors: SENS1, SENS2
- Transistor Type: BC517
Product Usage Instructions
- Connect the brown, black, and orange wires to R1 (10K).
- Connect the yellow, purple, and yellow wires to R2 (470K).
- Connect the red and black wires to the sensors (SENS1 and SENS2).
- Connect T1 (BC517) to BUZ1.
- Connect R1 (10K) to BUZ1.
- Connect SV2 to T1 (BC517).
- Connect E1 (9V) to R2 (470K).
- Turn on the device by pressing the START button.
- The device can detect up to two meters using the sensors (SENS1 and SENS2).
- If you need to dispose of the device, do not dispose of it as unsorted municipal waste. It should be disposed by a specialized recycling company or returned to your distributor or local recycling service.

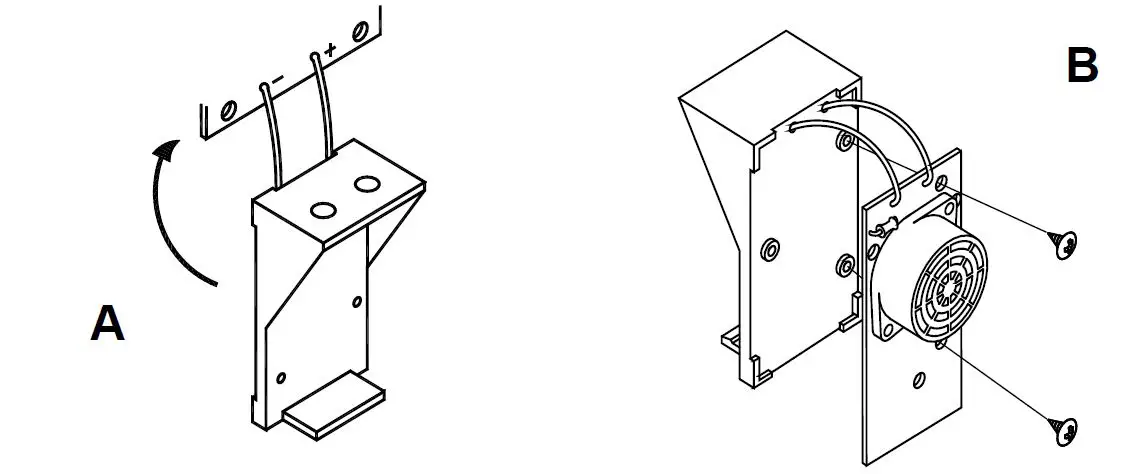

INSTALLATION

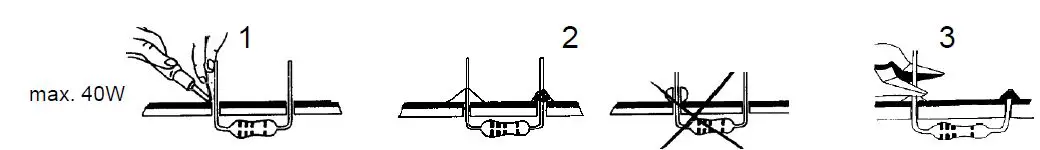

Soldering

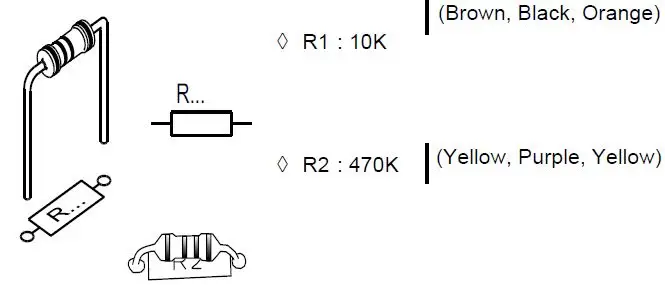

Resistor
Transistor

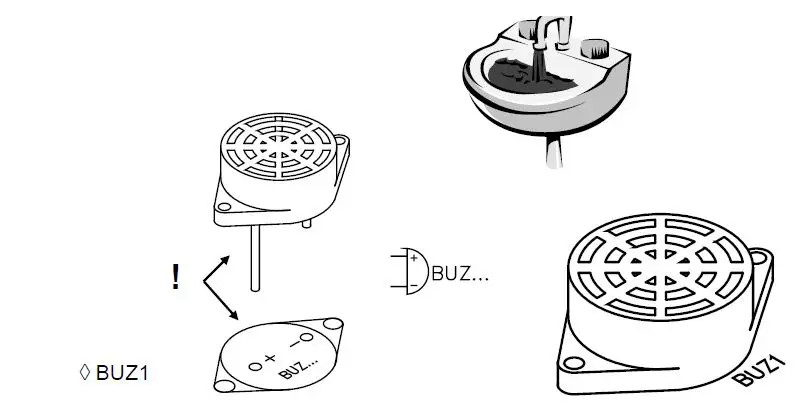

Buzzer

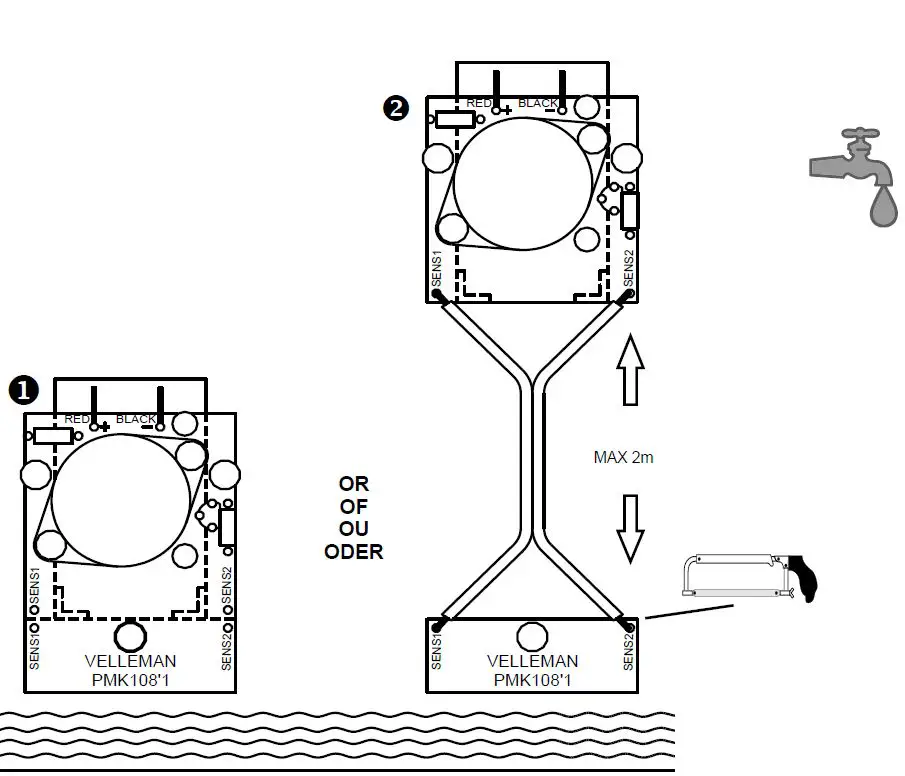

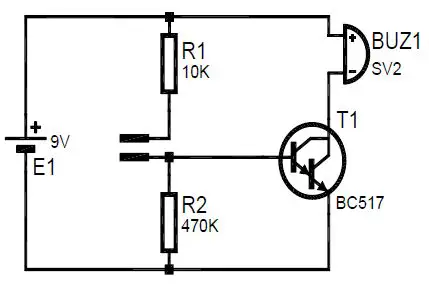

WIRING
TO ALL RESIDENTS OF THE EUROPEAN UNION
Important environmental information about this product This symbol on this unit or the package, indicates that disposal of this unit after its lifecycle could harm the environment. Do not dispose the unit as unsorted municipal waste; it should be disposed by a specialized company for recycling. This unit should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If any doubt contact your local authorities about waste disposal rules.
