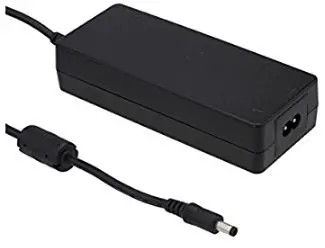

MEAN WELL GSM40A series 40W AC-DC Reliable Green Medical Adaptor
SYMBOLS
Features
- 3 pole AC inlet IEC320-C14, Class I power unit
- Medical safety approved (2 x MOPP) according to
- ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Extremely low leakage current
- No load power consumption<0.15W
- Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
- -30+70C wide range working temperature
- Protections: Short circuit/ Overload/Over voltage
- LED indicator for power on
- Lifetime> 90 K hours
- Various DC plug quick adapter accessories available (Plug kit sold separately.please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Applications
- Mobile clinical workstation
- Oral irrigator
- Portable hemodialysis machine
- Breath Machine
- Medical computer monitor
Description
GSM40A is a highly reliable, 40W single-output green medical adaptor series. This product is a class I power unit(with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 80VAC to 264VAC. The entire series supplies different models with output voltages between 5VDC and 48VDC that can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<904A), fitting the medical devices in direct electrical contact with the patients.
With an efficiency up to 91% and extremely low no-load power consumption below 0.15W, GSM40A is compliant with USA EISA 2007/DoE , Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5.The supreme feature allows the adaptor to save the energy when it is either under operating mode or the standby mode. The entire series utilizes the 94V-0 flame-retardant plastic case. GSM40A is certified for the international medical safety regulations.

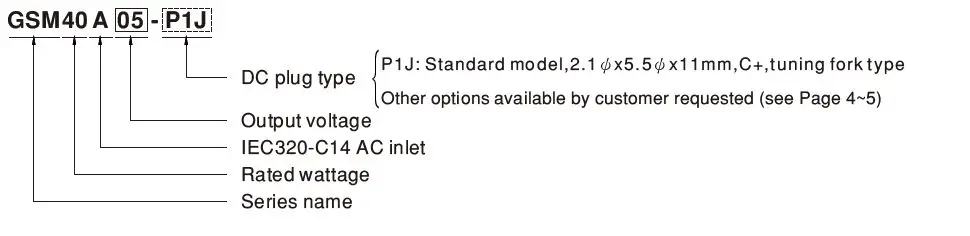

Model Encoding

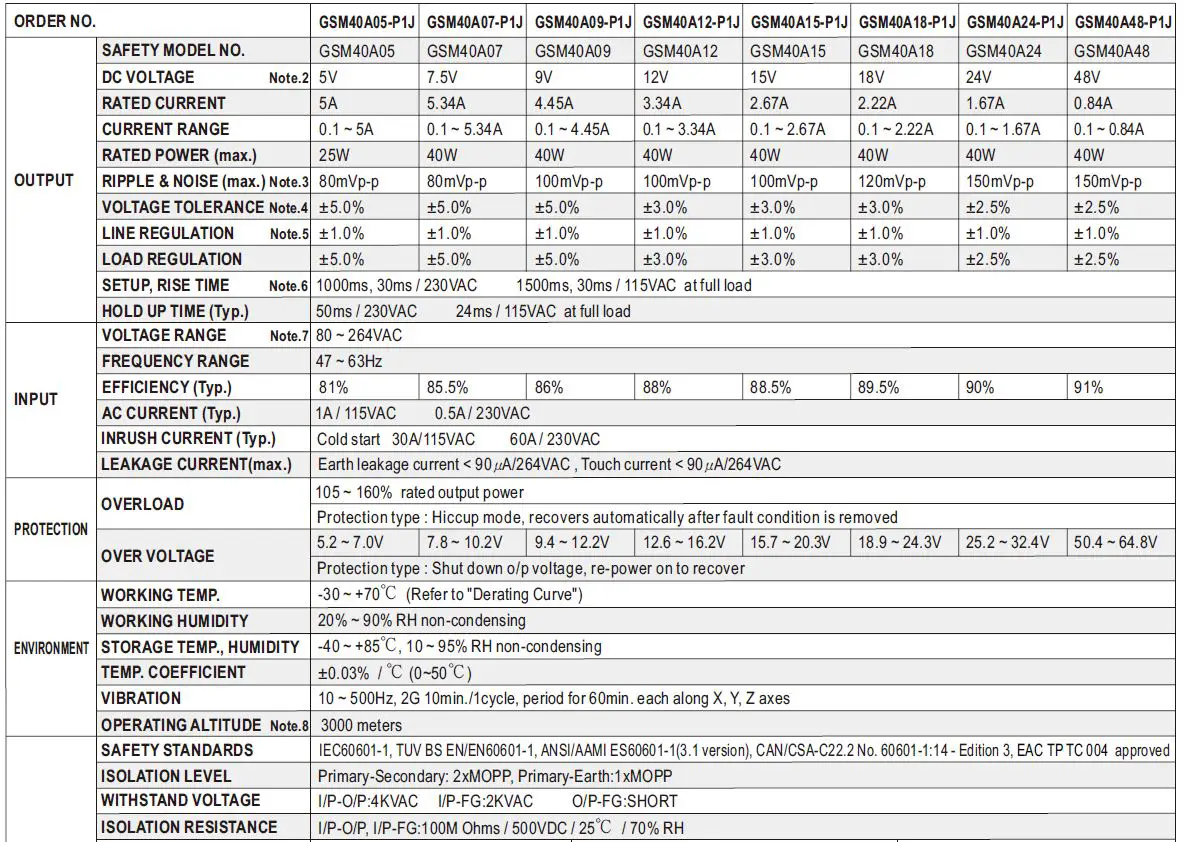

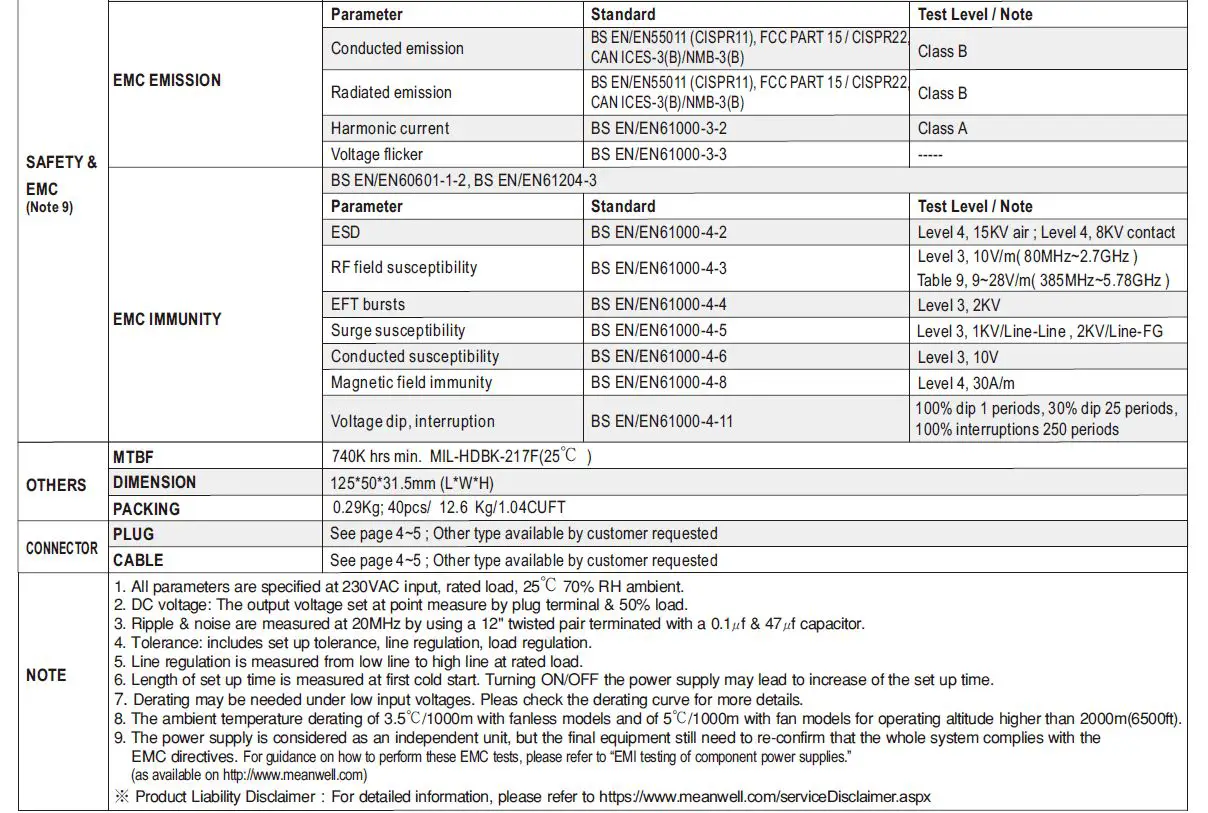

SPECIFICATION

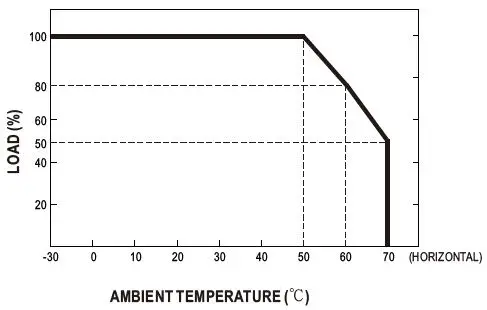

Derating Curve

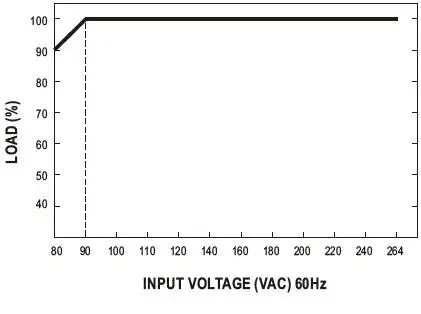

Static Characteristics
Mechanical Specification
Case No. GS60A Unit:mm
- UL2464 16AWG 1000±50mm for 5 ~ 7.5V
- UL1185 16AWG 1000±50mm for 9 ~ 12V
- UL1185 16AWG 1500±50mm for 15 ~ 48V
DC output plug
◎ Standard plug: P1J
DC plug changeable through:
- Customization of the standard part with an optional DC plug according to the table (MOQ applicable)
- Quick adapter accessory (sold separately without MOQ)
Please refer to below table and online selection guide :https://www.meanwell.com/upload/pdf/DC_plug.pdf
Example quick adapter accessory:

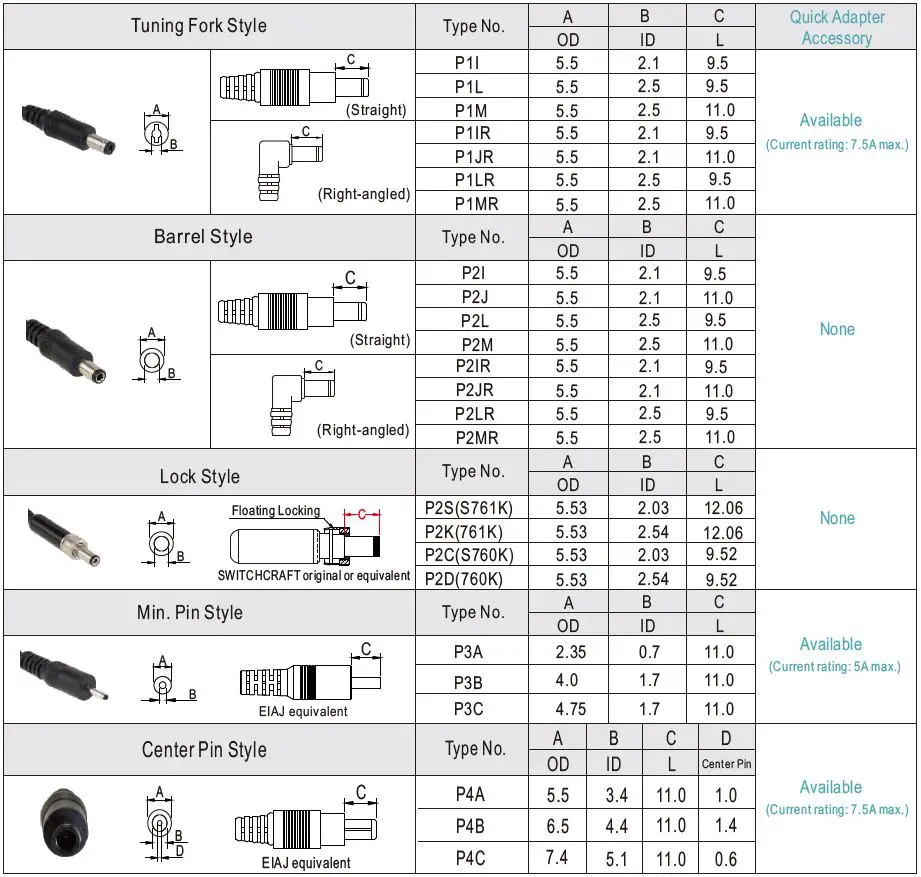

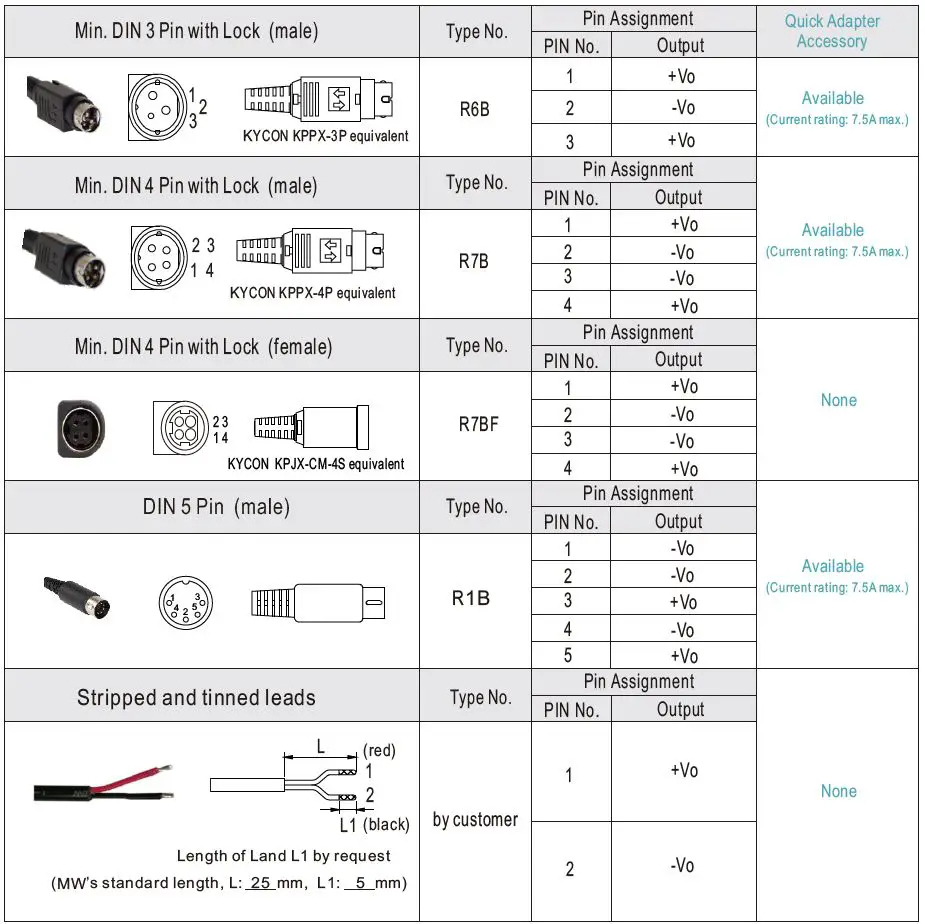

Optional DC plug: (Available in customized cable or quick adapter)
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
