16.8 ~ 30W AC-DC Power Adaptor with Charger Function

Contents hide

5 ■ Mechanical Specification

10 ■ Static Characteristics

11 Documents / Resources

12 Related Posts

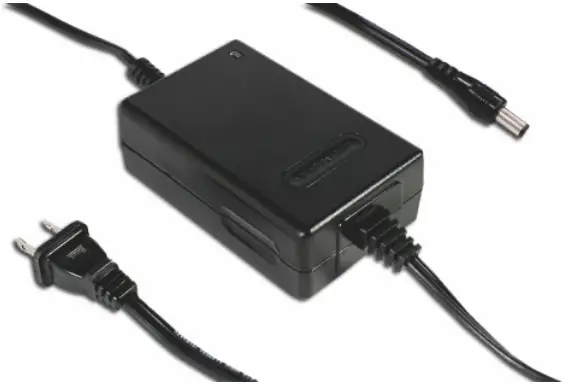

GC30U series

User’s Manual Video

■ Features

Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
Universal AC input / Full range
With USA type 6FT power cord (2pin)
Class II power (without earth pin)
No load power consumption <1.0W

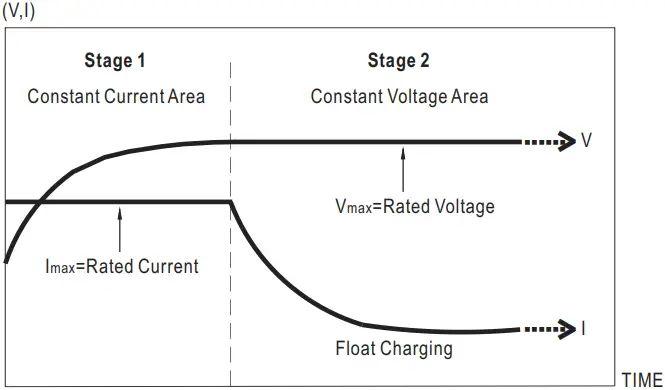

Constant current and voltage(CC,CV mode)
Suitable for continue load
For high surge current equipment
Protections: Short circuit / Overload / Over voltage / Over temp.
2 colors LED indicate for charging status
Fully enclosed plastic case
High reliability
Approvals: UL / CUL / EAC / CB / FCC
2 years warranty

■ GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

SPECIFICATION

ORDER NO.		GC30U-0P1J	GC30U-1P1J	GC30U-11P1J	GC30U-2P1J	GC30U-4P1J	GC30U-5P1J	GC30U-6P1J
OUTPUT	SAFETY MODEL NO.	GC30U-0	GC30U-1	GC30U-11	GC30U-2	GC30U-4	GC30U-5	GC30U-6
	DC VOLTAGE SET AT Note.3	4.2V	5.6V	7.2V	8.4V	14.3V	16.8V	28.6V
	RATED CURRENT	4A	3.99A	3A	3A	2.09A	1.6A	1.04A
	CURRENT RANGE	0 ~ 4A	0 ~ 3.99A	0 ~ 3A	0 ~3A	0 ~ 2.09A	0 ~ 1.6A	0 ~ 1.04A
	RATED POWER	16.8W	22.38W	21.6W	25.2W	30W	27W	30W
	RIPPLE & NOISE (max.) Note.4	50mVp-p	50mVp-p	80mVp-p	80mVp-p	100mVp-p	100mVp-p	150mVp-p
	CHARGING VOLTAGE RANGE Note.5	3.6 ~ 4.4V	5 ~ 5.8V	6.5 ~ 7.5V	7.7 ~ 8.6V	13.5 ~ 14.5V	16 ~ 17V	27.1 ~ 28.8V
	LINE REGULATION Note.6	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	LED INDICATOR	Green LED ON < 100mA, Red LED ON > 250mA
	SETUP, RISE, HOLD UP TIME	200ms, 50ms, 16ms at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	55%	70%	74%	76%	78%	78%	80%
	AC CURRENT	0.7A /100VAC; 0.35A/230VAC
	INRUSH CURRENT (max.)	40A/230VAC
	LEAKAGE CURRENT(max.)	0.25mA /240VAC
PROTECTION	OVERLOAD	90 ~ 110% Constant current mode and over 300% pulsing mode
	OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	110 ~ 135% rated output voltage
	OVER VOLTAGE	Protection type : Clamp by zener diode
	OVER TEMPERATURE	IC1_Tj > 130℃
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

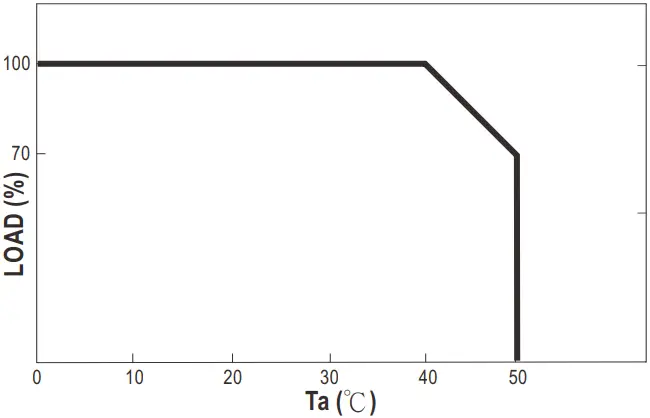

ENVIRONMENT	WORKING TEMP.	0 ~ +50℃(Refer “Derating Curve”)
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03% / ℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL62368-1, CSA22.2, EAC TP TC 004 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Compliance to FCC part 15 Class B, EAC TP TC 020
	EMC IMMUNITY	Compliance to EAC TP TC 020

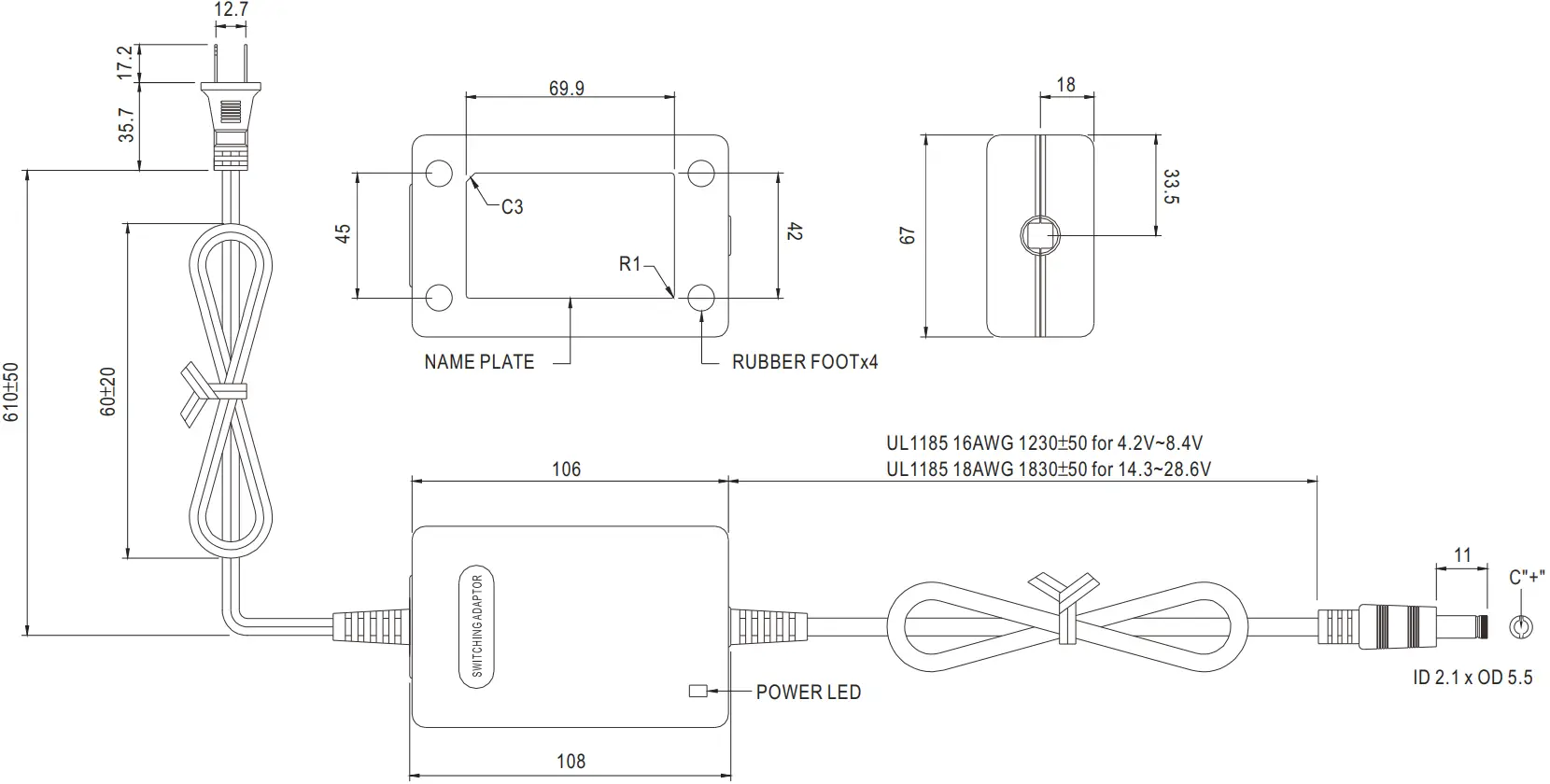

OTHERS	DIMENSION	1086736mm (LWH)
OTHERS	PACKING	405g; 36pcs / 16.5kg / CARTON
CONNECTOR	PLUG	Standard type P1J: 2.1ψ* 5.5ψ* 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CONNECTOR	CABLE	Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
NOTE	Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. All parameters are specified at 115VAC input, rated load, 25ºC 70% RH ambient. DC voltage: The output voltage set at point measure by plug terminal & 0% load. Ripple & noise are measured at 20MHz by using a 12″ twisted pair terminated with a 0.1 uf & 47uf capacitor. Output charging voltage range is measured from 0% to 100% rated load. Line regulation is measured from low line to high line at rated load. Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
