MEAN WELL GST36U series 36W AC-DC Reliable Green Industrial Adaptor Installation Guide

Contents hide

6.2 Static Characteristics

6.3 Mechanical Specification

6.4 DC output plug

7 Installation Manual

8 Documents / Resources

8.1 References

9 Related Posts

Features

Global certificates
Universal AC input / Full range
2 pole USA plug, Class Ⅱ power unit
No load power consumption< 0.075W
Energy efficiency Level Vl
Comply with ElSA 2007/DoE and NRCan
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic cas
Pass LPS
30~+70℃ wide range working temperature
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf )
‧3 years warranty

Applications

Consumer electronic devices
Telecommunication devices
Office facilities
lndustrial equipments

GTIN Code

MW Search: https://www.meanw ell.com/serviceGTlN.aspx

Description

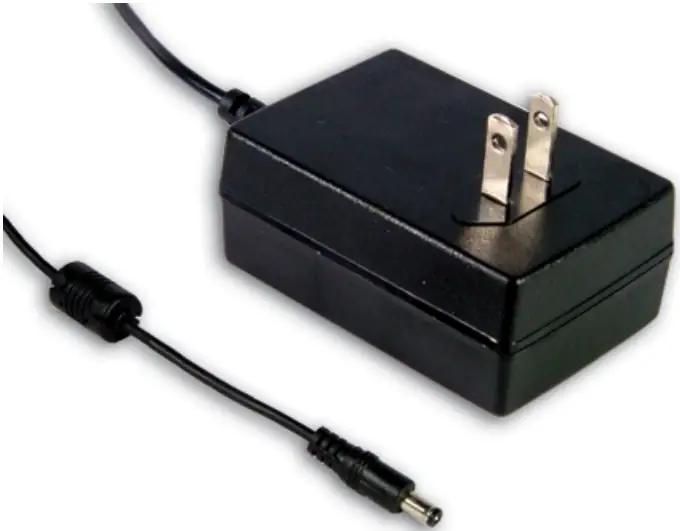

GST36U is a highly reliable, 36W wall-mounted style single-output green adaptor series. This product is a class Ⅱ power unit (no FG), equipped with a 2-Pin standard USA AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDCand 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 90% and the extremely low no-load power consumption below 0.075W, GST36U is compliant with USA ElSA 2007/DoE and Canada NRCan. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST36U is certified for the international safety regulations

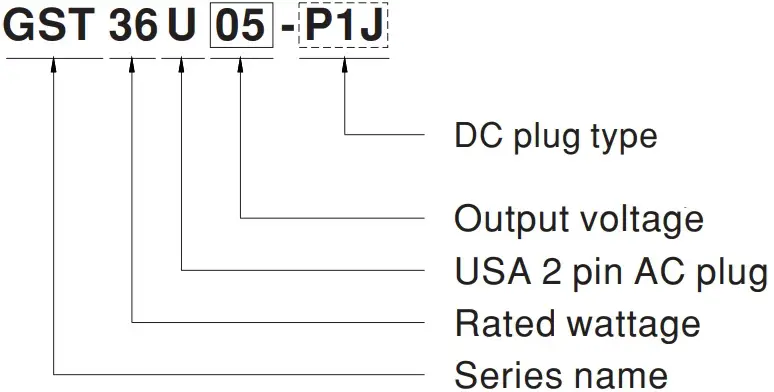

Model Encoding

SPECIFICATION

ORDER NO.		GST36U05-P1J	GST36U09-P1J		GST36U12-P1J	GST36U24-P1J		GST36U48-P1J
OUTPUT	SAFETY MODEL NO.	GST36U05	GST36U09		GST36U12	GST36U24		GST36U48
	DC VOLTAGE Note.2	5V	9V		12V	24V		48V
	RATED CURRENT	4.3A	3.11A		3A	1.5A		0.75A
	CURRENT RANGE	0 ~ 4.3A	0 ~ 3.11A		0 ~ 3A	0 ~ 1.5A		0 ~ 0.75A
	RATED POWER (max.)	21.5W	28W		36W	36W		36W
	RIPPLE & NOISE (max.) Note.3	90mVp-p	90mVp-p		100mVp-p	150mVp-p		200mVp-p
	VOLTAGE TOLERANCE Note.4	±5.0%	±5.0%		±3.0%	±2.0%		±2.0%
	LINE REGULATION Note.5	±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	LOAD REGULATION Note.6	±5.0%	±5.0%		±3.0%	±2.0%		±2.0%
	SETUP, RISE, HOLD UP TIME	1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.7	85 ~ 264VAC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	82%	86%		87.5%	88.5%		90%
	AC CURRENT	0.8A / 115VAC 0.45A / 230VAC
	INRUSH CURRENT (max.)	Cold start 35A / 115VAC 70A / 230VAC
	LEAKAGE CURRENT(max.)	0.25mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 150% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	110 ~ 140% rated output voltage
		Protection type : Clamp by zener diode
ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20% ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	±0.03% / ℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)	SAFETY STANDARDS	UL62368-1, CSA C22.2 No.62368-1, BSMI CNS14336-1, EAC TP TC 004 approved
	WITHSTAND VOLTAGE	I/P-O/P:4242VDC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard			Test Level / Note
		Conducted emission		FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020			Class B
		Radiated emission		FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020			Class B
OTHERS	MTBF	3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	795433mm (LWH)
	PACKING	204.5g; 60pcs/13.3Kg/1.15CUFT
CONNECTOR	PLUG	See page 4~5 ; Other type available by customer requested
	CABLE	See page 4~5 ; Other type available by customer requested
NOTE	All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. Ripple & noise are measured at 20MHz by using a 12″ twisted pair terminated with a 0.1μf & 47μf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. Line regulation is measured from low line to high line at rated load. 6.Load regulation is measured from 10% to 100% rated load. Derating may be needed under low input voltage. Please check the derating curve for more details. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to EMl testing of component power supplies (as available on http://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

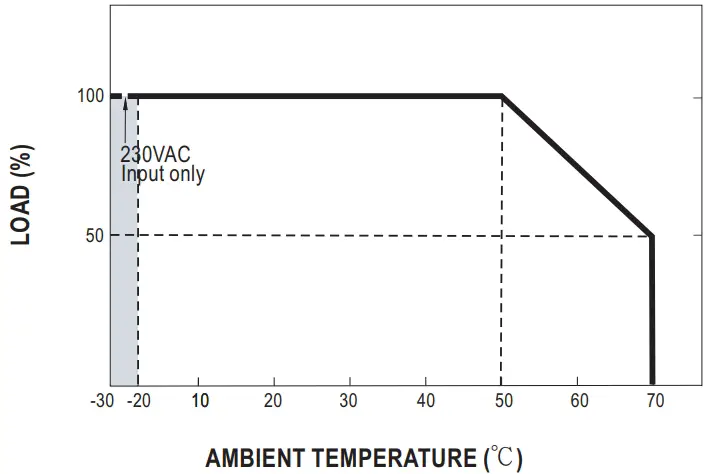

Derating Curve

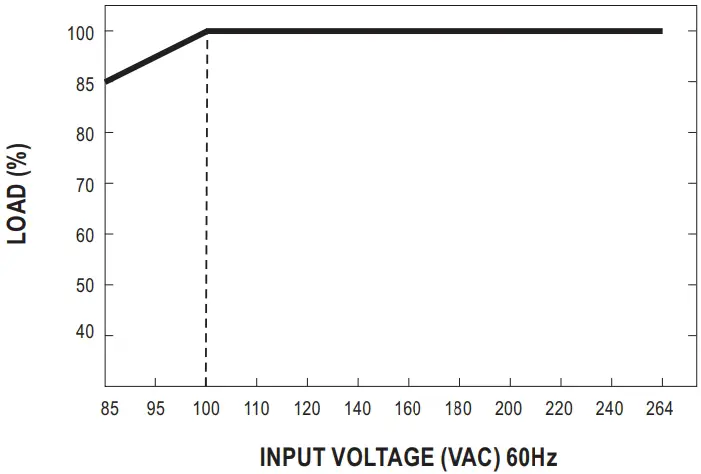

Static Characteristics

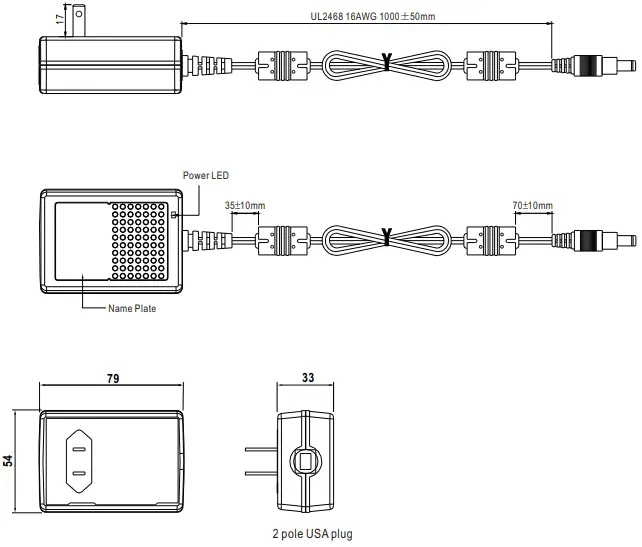

Mechanical Specification

DC output plug

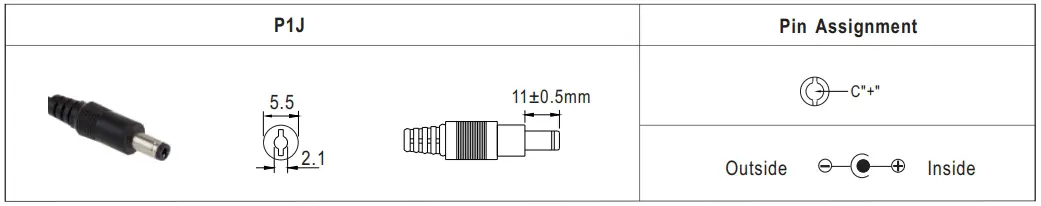

Standard plug: P1J

DC plug changeable through:
1. Customization of the standard part with an optional DC plug according to the table (MOQ applicable)
2. Quick adapter accessory (sold separately without MOQ)
  Please refer to below table and online selection guide : https://www.meanwell.com/upload/pdf/DC_plug.pdf
  Example quick adapter accessory:

Optional DC plug: (Available in customized cable or quick adapter)

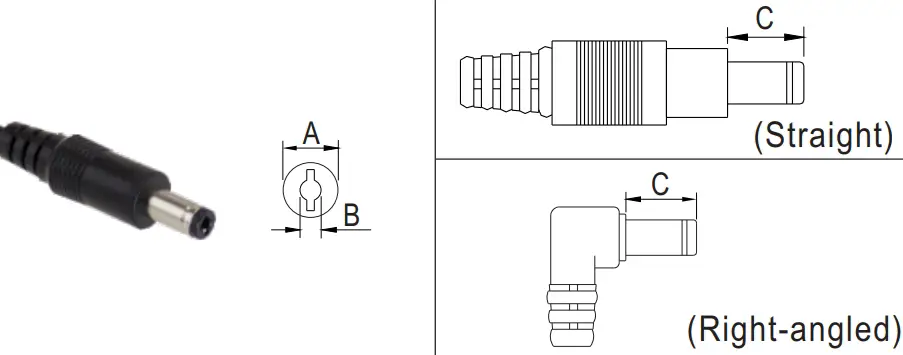

Tuning Fork Style	Type No.	A	B	C	Quick Adapter Accessory
Tuning Fork Style	Type No.	OD	ID	L	Quick Adapter Accessory
	P1I	5.5	2.1	9.5	Available (Current rating: 7.5A max.)
	P1L	5.5	2.5	9.5
	P1M	5.5	2.5	11.0
	P1IR	5.5	2.1	9.5
	P1JR	5.5	2.1	11.0
	P1LR	5.5	2.5	9.5
	P1MR	5.5	2.5	11.0

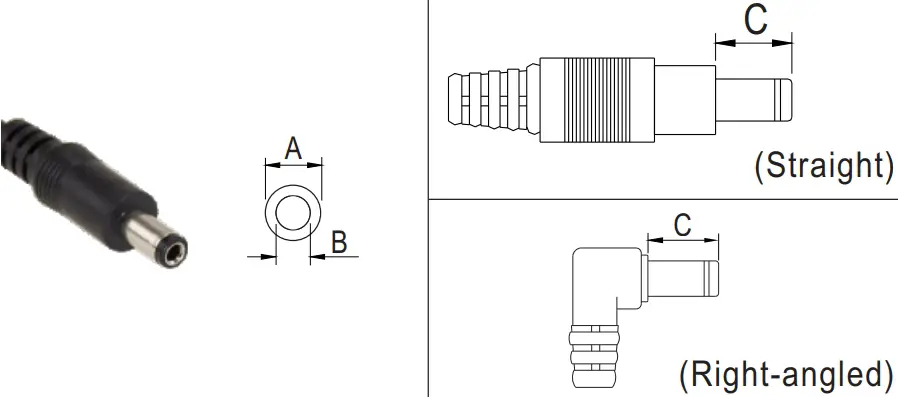

Barrel Style	Type No.	A	B	C	None
Barrel Style	Type No.	OD	ID	L
	P2I	5.5	2.1	9.5
	P2J	5.5	2.1	11.0
	P2L	5.5	2.5	9.5
	P2M	5.5	2.5	11.0
	P2IR	5.5	2.1	9.5
	P2JR	5.5	2.1	11.0
	P2LR	5.5	2.5	9.5
	P2MR	5.5	2.5	11.0

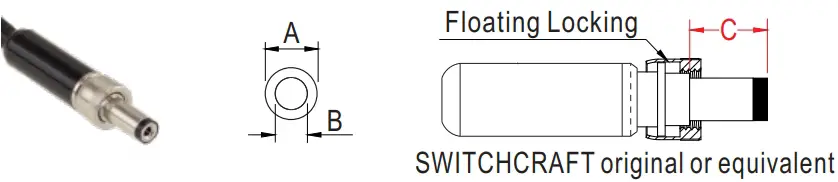

Lock Style	Type No.	A	B	C	None
Lock Style	Type No.	OD	ID	L
SWITCHCRAFT original or equivalent	P2S(S761K)	5.53	2.03	12.06
	P2K(761K)	5.53	2.54	12.06
	P2C(S760K)	5.53	2.03	9.52
	P2D(760K)	5.53	2.54	9.52

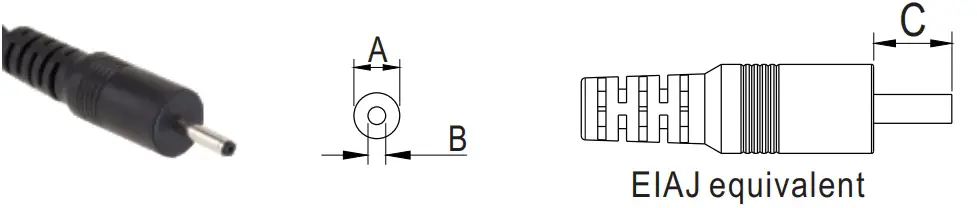

Min. Pin Style	Type No.	A		B		C		Quick Adapter Accessory
		OD		ID		L
	P3A	2.35		0.7		11.0		Available (Current rating: 5A max.)
	P3B	4.0		1.7		11.0
	P3C	4.75		1.7		11.0

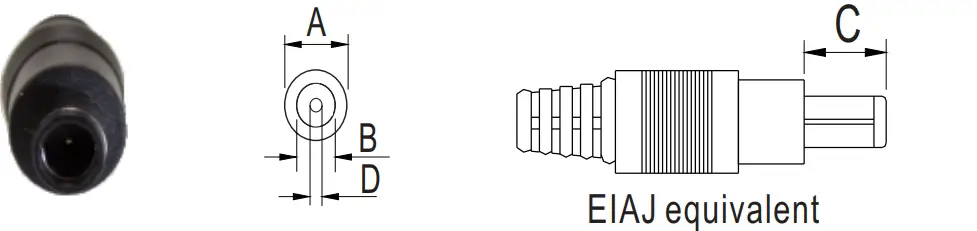

Center Pin Style	Type No.	A	B		C		D	Available (Current rating: 7.5A max.)
		OD	ID		L		Center Pin
	P4A	5.5	3.4		11.0		1.0
	P4B	6.5	4.4		11.0		1.4
	P4C	7.4	5.1		11.0		0.6

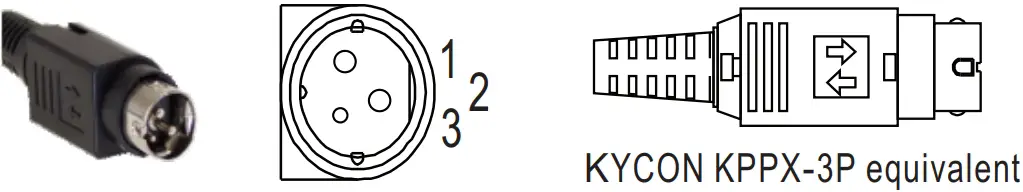

Min. DIN 3 Pin with Lock (male)	Type No.	Pin Assignment						Available (Current rating: 7.5A max.)
		PIN No.		Output
	R6B	1		+Vo
		2		-Vo
		3		+Vo
Min. DIN 4 Pin with Lock (male)	Type No.	Pin Assignment						Available (Current rating: 7.5A max.)
		PIN No.		Output
	R7B	1		+Vo
		2		-Vo
		3		-Vo
		4		+Vo

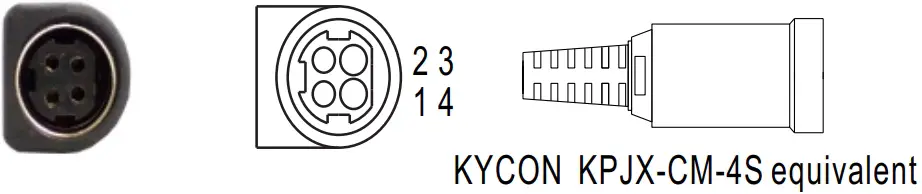

Min. DIN 4 Pin with Lock (female)	Type No.	Pin Assignment						None
		PIN No.		Output
	R7BF	1		+Vo
		2		-Vo
		3		-Vo
		4		+Vo

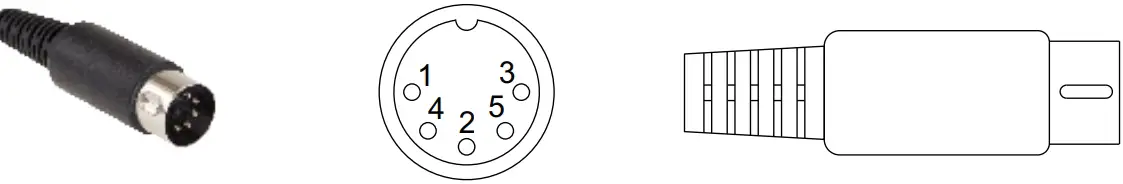

DIN 5 Pin (male)	Type No.	Pin Assignment						Available (Current rating: 7.5A max.)
		PIN No.		Output
	R1B	1		-Vo
		2		-Vo
		3		+Vo
		4		-Vo
		5		+Vo

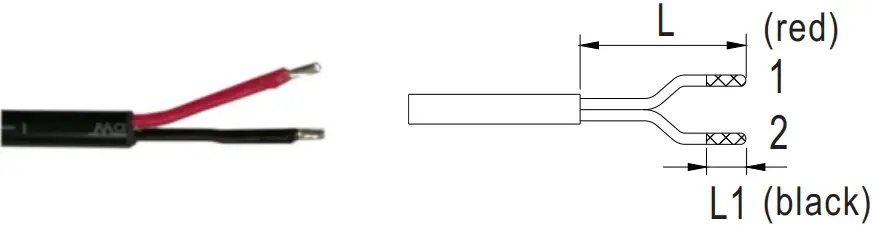

Stripped and tinned leads	Type No.	Pin Assignment						None
		PIN No.		Output
	by customer	1		+Vo
		2		-Vo
