SSPA-24
AC to DC 90W Power Adaptor
User Guide
| Revision | Release Date |
| V1.0 | 2015/05/21 |
Copyright © 2015 IBASE Technology Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, maybe reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC. (“IBASE”).
Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.
Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents and reserves the right to make changes without prior notice.
CHAPTER 1 INTRODUCTION
General Description
The SSPA-24 is an AC to DC 90W power adaptor with an M12 connector and features total IP56 waterproof protection. It comes with 304 stainless steel housing and optional 316 stainless steel, which makes it ideal for food, livestock, chemical, mining, petro and factory automation, or any other industrial applications.
Hardware Specifications
| Specifications —SSPA-24 | |
| Edge I/O | |
| – M23 connector AC input – 4-pin M12 connector DC output (4 pin definition: +/-/G/earth ground) | |
| Power | |
| Power Module | – AC/DC open frame |
| Power Supply | – 24V DC input |
| Construction | |
| Chassis | – 304 stainless steel / 316 stainless steel for option |
| Mounting | – Wall mount |
| Protection Class | – Total IP56 |
| Environmental | |
| Temperature | – Operating: 0°C— 50°C (Max 80W at 50°C) – Storage: -40°C-85°C |
| Humidity | – 10%-90% (non-condensing) |
| Regulation | – RoHS |
| Certification | – CE/FCC class A |
| Accessories | |
| – Wall mount kits | |
| – 1 x power cable M23/3P L=5m | |
| – 1 x power cable M12 4P L=2m | |
| – Power connector for U.S. regulation (optional) | |
| – Power connector for EU regulation (optional) | |
| – Power connector for Australian regulatory (optional) | |
‧This specification is subject to change without prior notice.

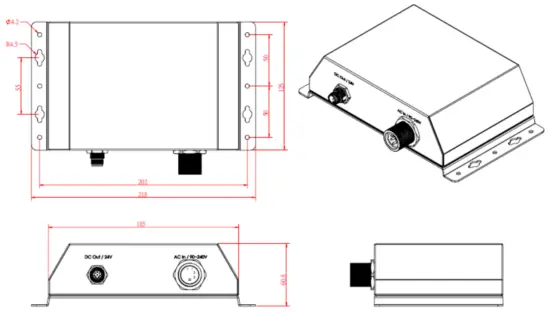

Dimensions

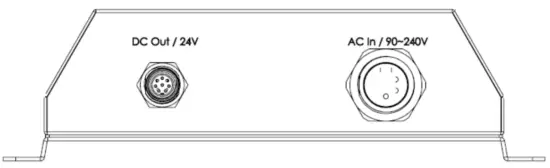

1.4 I/O View
Pin Definition

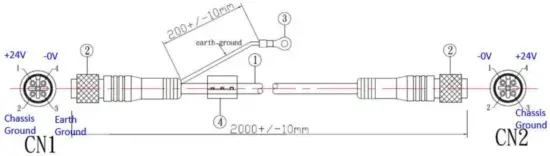

M12 DC power cable

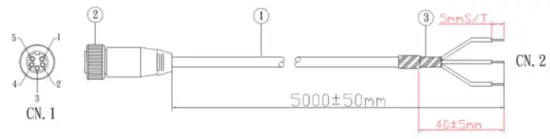

M23 AC power cable
| PINOUT | ||
| CN. I | Wire Color | CN. 2 |
| I | White | L |
| 2 | ||
| 3 | Green | G |
| 4 | Black | N |
| 5 | ||
