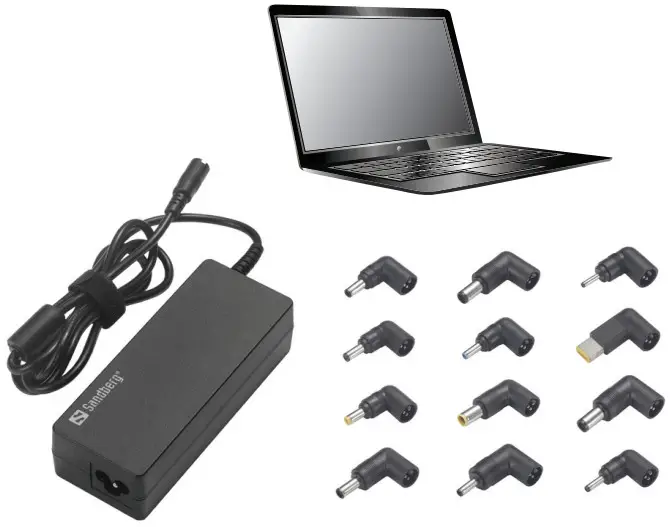

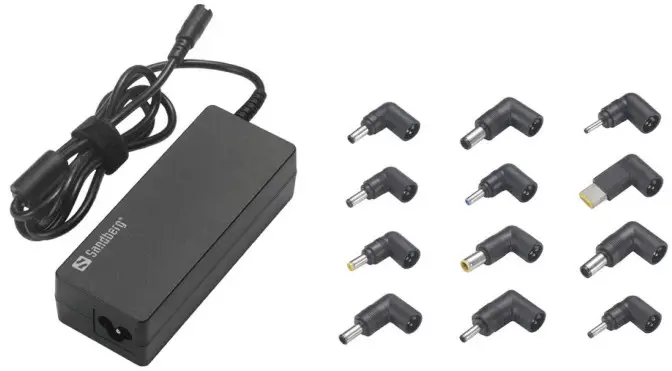

135-78 Laptop AC Adapter
User Guide
Disclaimer:
The use of this product is entirely at the consumer’s own risk.
Sandberg A/S, its dealers and distributors cannot be held liable for any damage to connected equipment, loss of data, etc.
Attention!
- Do not open or repair this device.
- Disconnect the power plug from the mains supply before cleaning the device. Do not clean the device with a liquid cleaner or a spray.
- Keep this device away from liquids, such as water.
- Do not use this device in a damp environment.
- This device must be connected to a cut-off switch.
This device is for indoor use only. Temperature: 0 degress C to 40 degrees C. Humidity: 20% to 80 %.
Important notice:
Make sure the tip is with correct voltage for your PC.
| Tip Code | Tip Size | Compatible Model |
| M5 | 5.5mm*2.5mm | For Toshiba/ASUS/Lenovo/Acer/HP 19V |
| M6 | 5.5mm*3.0mm | For SAMSUNG 19V |
| M7 | 5.5mm*1.7mm | For Acer 19V |
| M8 | 6.5mm*4.4mm | For Sony 19.5V |
| M9 | 7.4mm*5.0mm | For Dell 19.5V |
| M10 | 4.5mm*3.0mm | For HP 19.5V |
| M11 | 7.9mm*5.5mm | For Lenovo/IBM 20V |
| M14 | 4.5mm*3.0mm | For DELL 19.5V |
| M18 | 3.0mm*1.1mm | For Acer/Asus/Samsung 19V |
| M25 | Lenovo square | For Lenovo/IBM 20V |
| M26 | 7.4mm*5.0mm | For HP 19V |
| M27 | 4.0mm*1.7mm | For Lenovo 20V |
Check the specification and dimensions of your laptop’s power DC connector.
Note: Voltage on connecter must match Voltage on original charger.

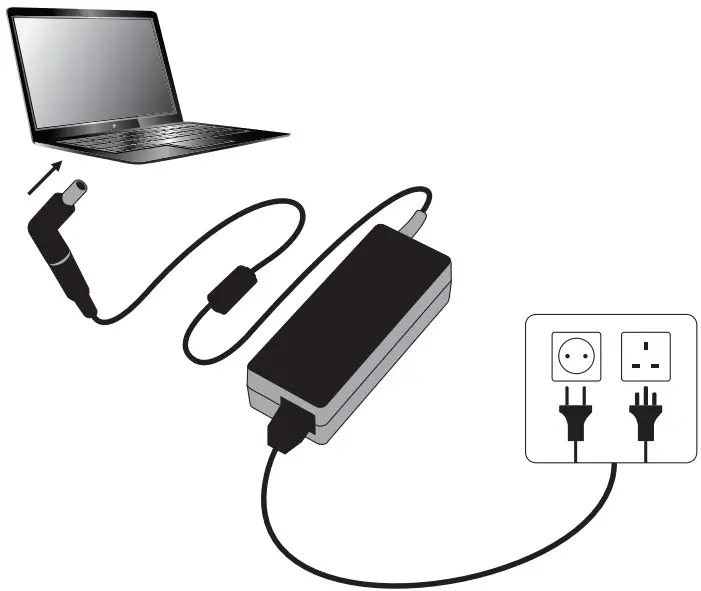

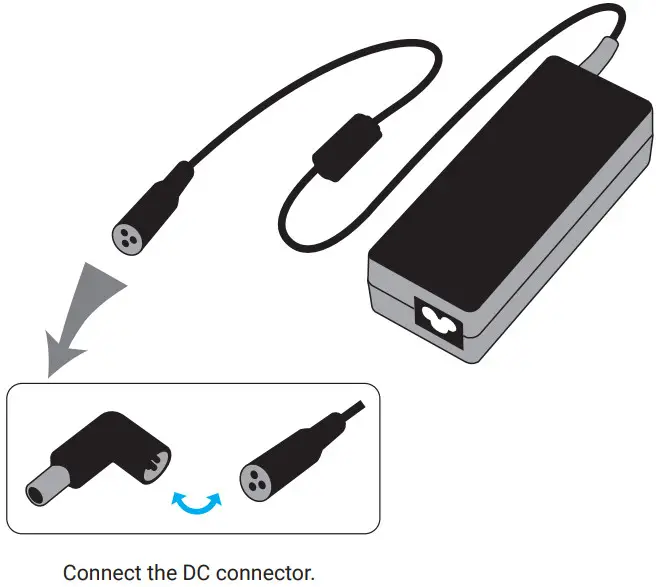

Pick the corresponding DC connector for your laptop.
Support
http://helpdesk.sandberg.world
Warranty
There is a five-year warranty on your Sandberg product.
Please read the warranty terms and register your new Sandberg product at www.sandberg.world/warranty
For information on handling electronic waste, see www.sandberg.world/weee
