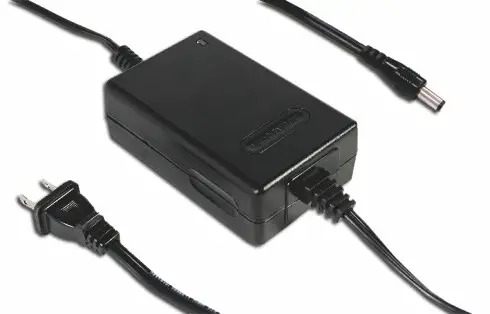

GC30U 16.8 – 30W AC-DC Power Adaptor with Charger Function
User Guide
Features
- Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note. 1)
- Universal AC input / Full range
- 2 pole AC Inlet IEC320-C8
- Class II power (without earth pin)
- No load power consumption <1.0W
- Constant current and voltage(CC,CV mode)
- Suitable for continued load
- For high surge current equipment
- Protections: Short circuit / Overload / Over voltage / Over temp.
- 2 colors of LED indicate for charging status
- Fully enclosed plastic case
- High reliability
- Approvals: UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
- 2 years warranty
https://www.youtube.com/watch?v=ouJ1SBaOALM&list=PLvUyt_OJELVrHoIIRgvHF2NQ-j39-NH-J&index=4
https://www.meanwell.com/Upload/PDF/Adaptor_EN.pdf
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx.
| ORDER NO. | GC30B-OP1J | GC30B-1 P1 J | GC30B-11P1J | GC30B-2P1J | GC30B-4P1J | GC30B-5P1J | GC30B-6P1J | |
| OUTPUT | SAFETY MODEL NO. | GC30B-0 | GC30B-1 | GC30B-11 | GC308-2 | GC3013-4 | GC30B-5 | GC30B-6 |
| DC VOLTAGE SET AT Note.3 | 4.2V | 5.6V | 7.2V | 8.4V | 14.3V | 16.8V | 28.6V | |
| RATED CURRENT | 4A | 3.99A | 3A | 3A | 2.09A | 1.6A | 1.04A | |
| CURRENT RANGE | 0 – 4A | 0 – 3.99A | 0 – 3A | 0 -3A | 0 – 2.09A | 0 – 1.6A | 0 – 1.04A | |
| RATED POWER | 16.8W | 22.38W | 21.6W | 25.2W | 30W | 27W | 30W | |
| RIPPLE & NOISE (max.) Note.4 | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | |
| CHARGING VOLTAGE RANGE Note.5 | 3.6 – 4.4V | 5 – 5.8V | 6.5 – 7.5V | 7.7 – 8.6V | 13.5 -14.5V | 16 -17V | 27.1 – 28.8V | |
| LINE REGULATION Note.6 | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LED INDICATOR | Green LED ON < 100mA, Red LED ON > 250mA | |||||||
| SETUP, RISE, HOLD UP TIME | 200ms, 50ms, 16ms at full load | |||||||
| INPUT | VOLTAGE RANGE | 90 – 264VAC 127 – 370VDC | ||||||
| FREQUENCY RANGE | 47 – 63Hz | |||||||
| EFFICIENCY (Typ.) | 55% 170% | I74% | 176% | 78% | 178% | 80% | ||
| AC CURRENT | 0.7A /100VAC; 0.35A/230VAC | |||||||
| INRUSH CURRENT (max.) | 40A/230VAC | |||||||
| LEAKAGE CURRENT(max.) | 0.25mA/240VAC | |||||||
| PROTECTION | OVERLOAD | 90 -110% Constant current mode and over 300% pulsing mode | ||||||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| OVERVOLTAGE | 110 -135% rated output voltage | |||||||
| Protection type: Clamp by zener diode | ||||||||
| OVER TEMPERATURE | IC1_Tj > 130t | |||||||
| Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| ENVIRONMENT | WORKING TEMP. | 0 – +50t (Refer to output load derating curve) | ||||||
| WORKING HUMIDITY | 20% – 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -20 – +85t , 10 – 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03% / t. (0 – 50t) | |||||||
| VIBRATION | 10 – 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes | |||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368.1, CSA22.2, BS EN/EN62368.1, EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-0/P:3KVAC | |||||||
| ISOLATION RESISTANCE | I/P-0/P:100M Ohms! 500VDC / 25t/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 | |||||||
| OTHERS | DIMENSION | 108*67*36mm (L’APH) | ||||||
| PACKING | 309g; 54pcs / 19kg / CARTON | |||||||
| CONNECTOR | PLUG | Standard type P1J: 2.10 ‘ 5.5(1) ‘ 11mm, tuning fork type center positive for stock; another type available by customer requested | ||||||
| CABLE | Standard type 18Awg UL1185 6ft and 4ft for 4.2V-8.4V output only for stock; another type available by customer requested | |||||||
| NOTE | 1. Moclification for charger specification may be required for different battery specification. Please contact the battery vendor and MEAN WELL for details. 2. AII parameters are specified at 230VAC input, rated load, 25t 70% RH ambient. 3. DC voltage: The output voltage set at point measure by plug terminal & 0% load. 4. Ripple & noise are measured at 20MHz by using a 12″ twisted pair terminated with a 0.1uf & 47uf capacitor. 5. Output charging voltage range is measured from 0% to 100% rated load. 6. Line regulation is measured from low line to high line at rated load. Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.conterviceDisclaimeraspx | |||||||

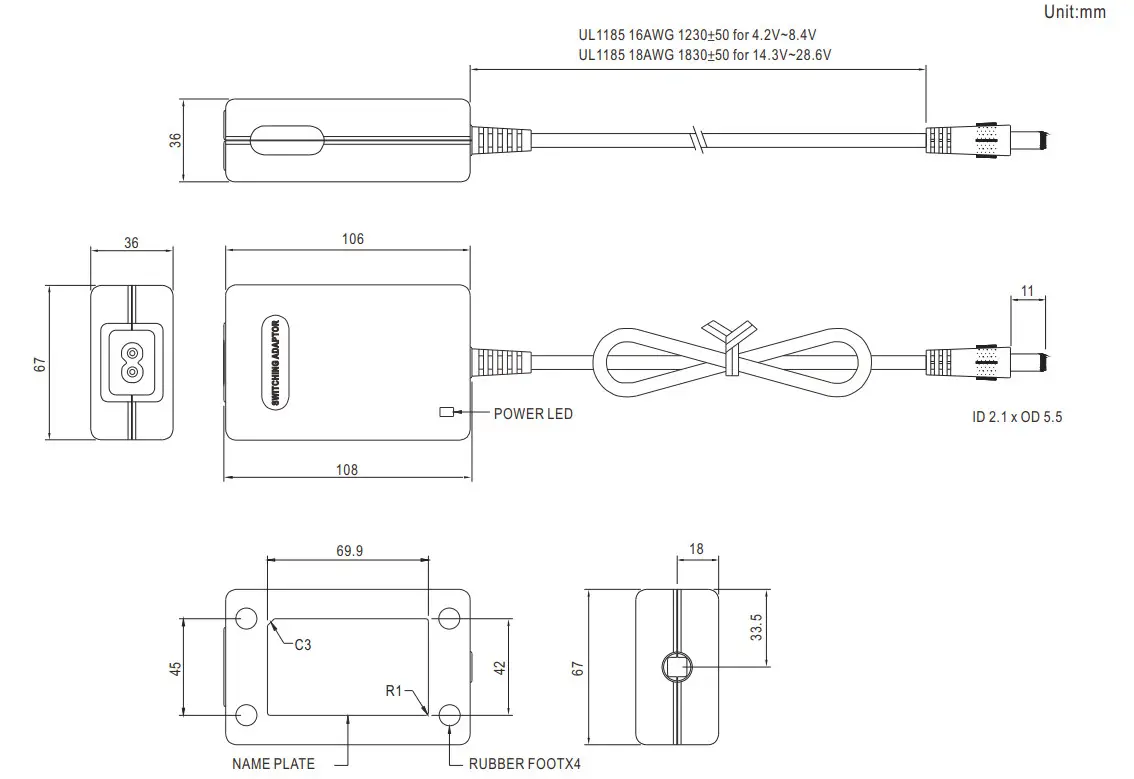

Mechanical Specification

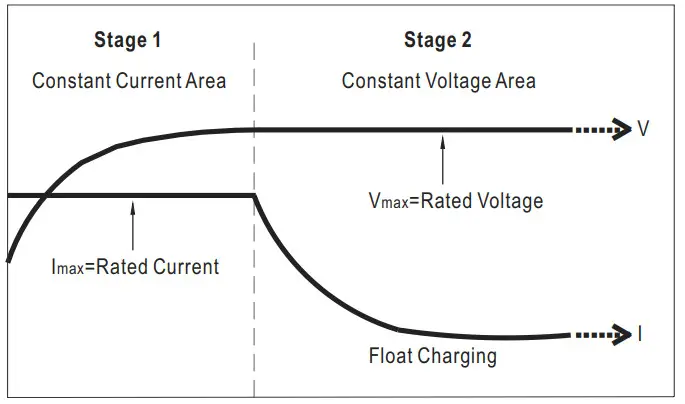

Charging Curve
Suitable for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
LED Display
| LED Status | Load Condition |
| Red | Charging |
| Green | Float Charging |
Plug Assignment
Standard plug: P1J (option)
| P1J | |
| P/N | CENTER |
| OUTPUT | + |

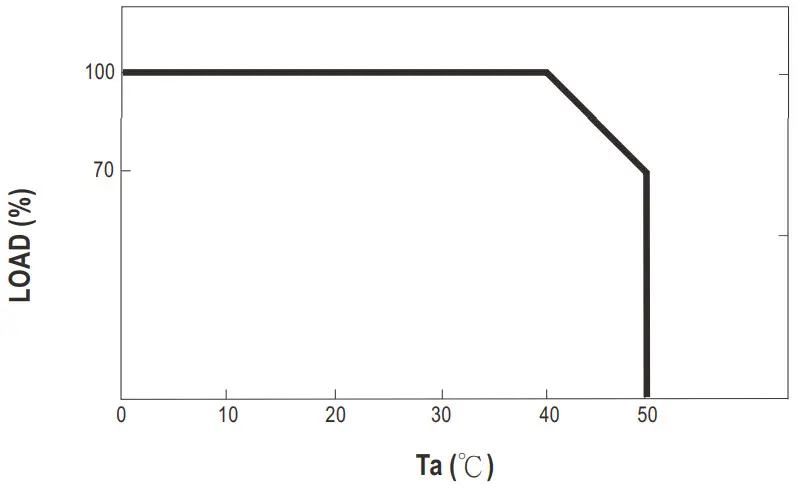

Derating Curve

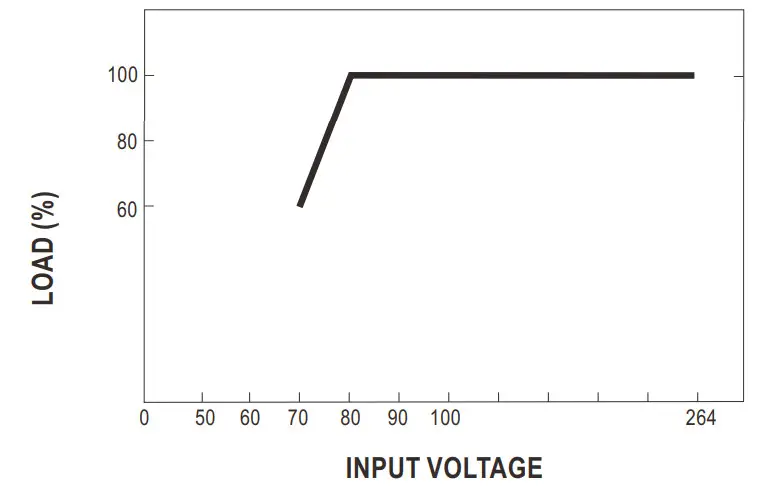

Static Characteristics
