Keuco 59553 010001 Ixmo Thermostatic Shower Mixer Instruction Manual

IXMO
Mounting instruction

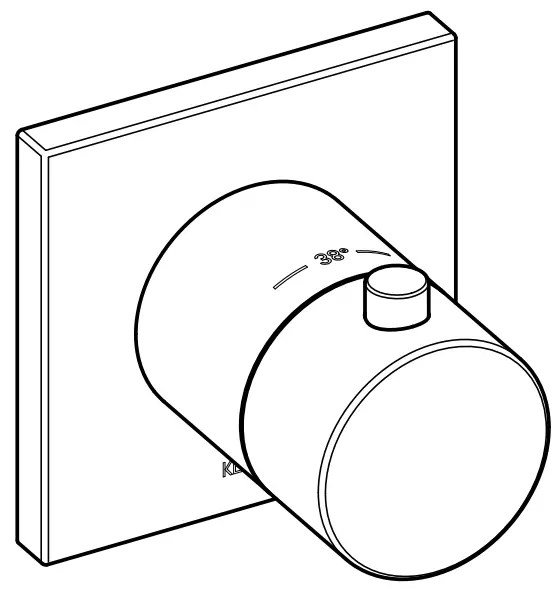

59553 010001 IXMO Thermostatic Shower Mixer

Mounting dimensions

59553 XX000159553 XX0002

Important information, please read!

These instructions are for both the installer for installation and the user for the operation and maintenance of the product. After installation, please hand them over to the user to keep.

Symbols and explanations

	Attention! Warning against bodily injury or damage to property.
	Observe the description!
	Note, tip, or reference
	Correct installation/test of functionality
	Incorrect installation
	Observe installation details
	Cold water
	Hot water
	Water flow
	No water flow
	Optional/accessories

Intended use
Thermostat mixer for use in bathrooms.

Technical specifications

– Flow at 3 bar pressure: approx. 22 l/min

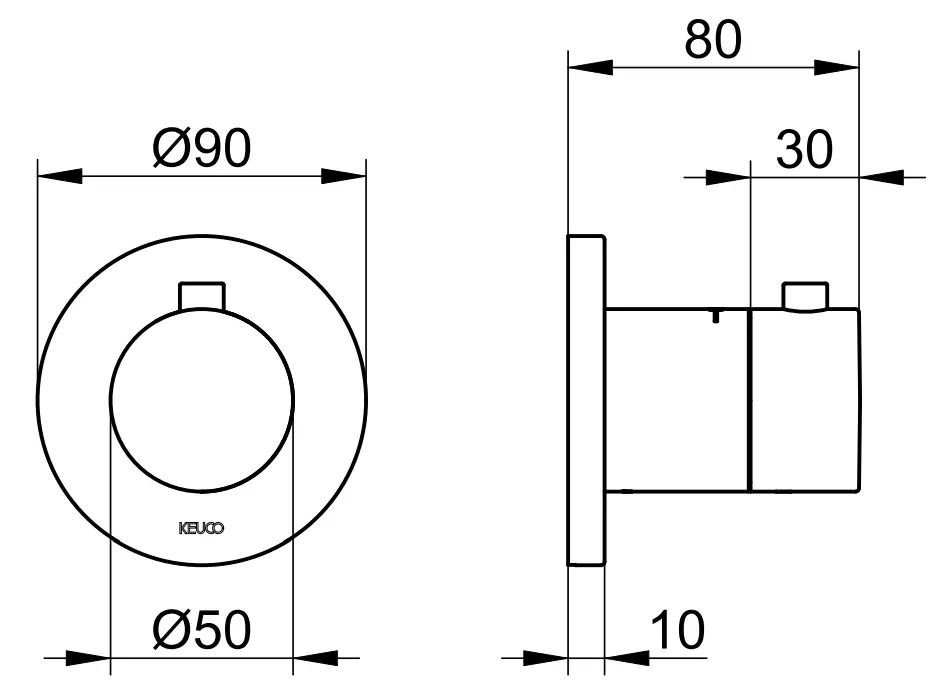

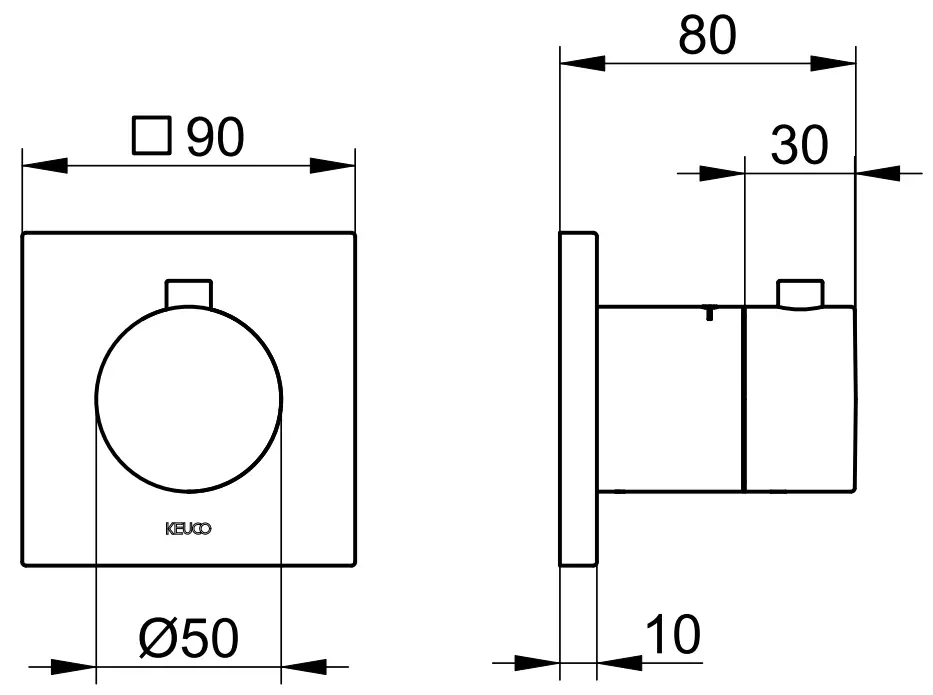

Installation dimensions, refer to page 2

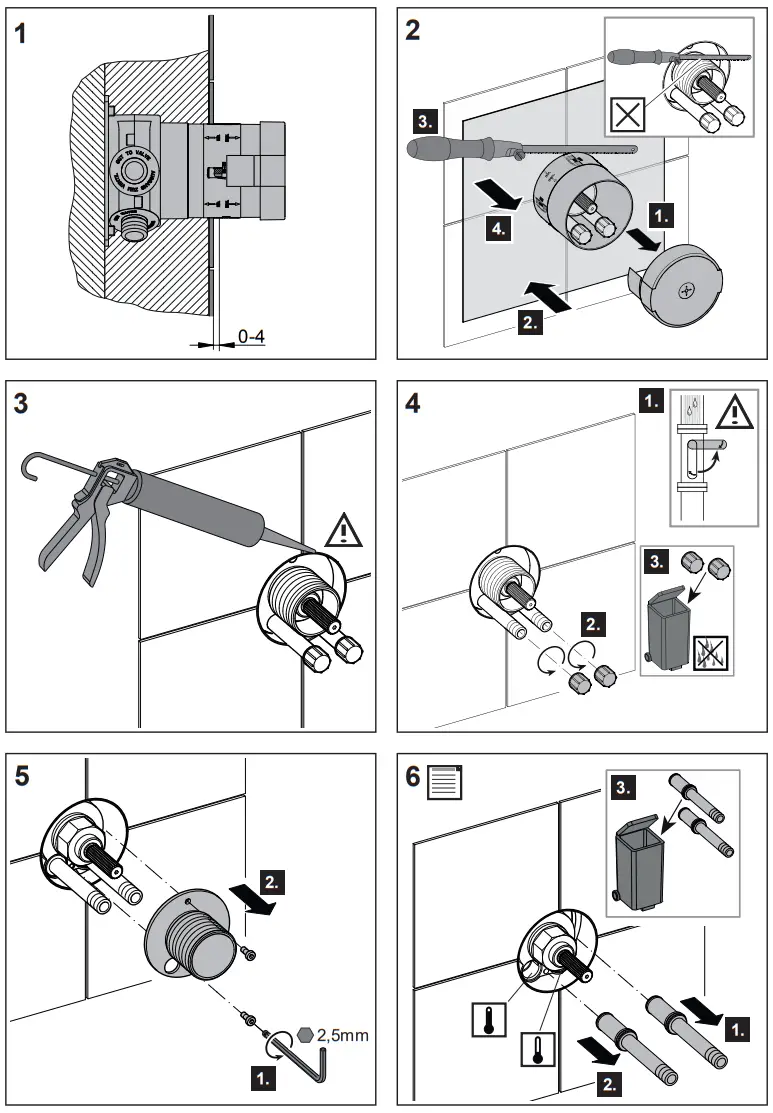

For installation, refer to picture 1 on page 8
Use only neutrally netting silicone.

– For water connection, refer to pictures 6 to 9.
If the water lines are swapped during installation, mount mirror-inversed.
– The grey adjustment sleeve is used when the diff erence between hot and cold water is a minimum of 45° C.

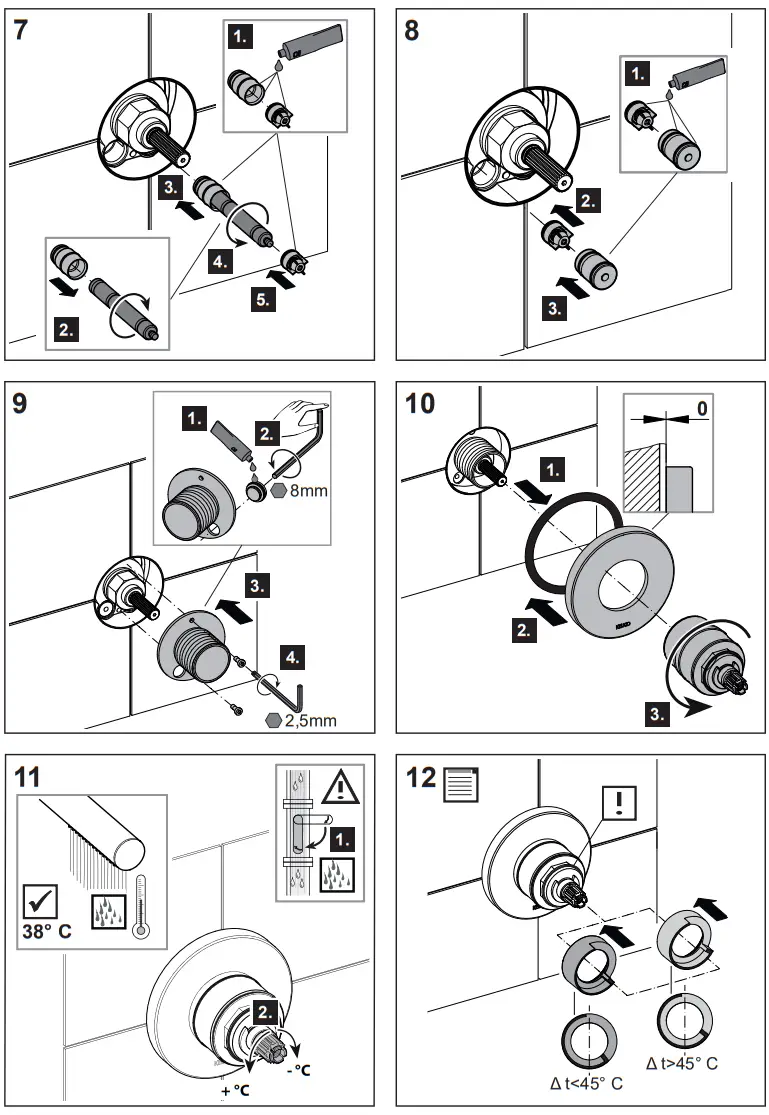

If this is not the case, for example, because of a low supply temperature, the green adjustment sleeve is used; refer to picture 12 on page 9.

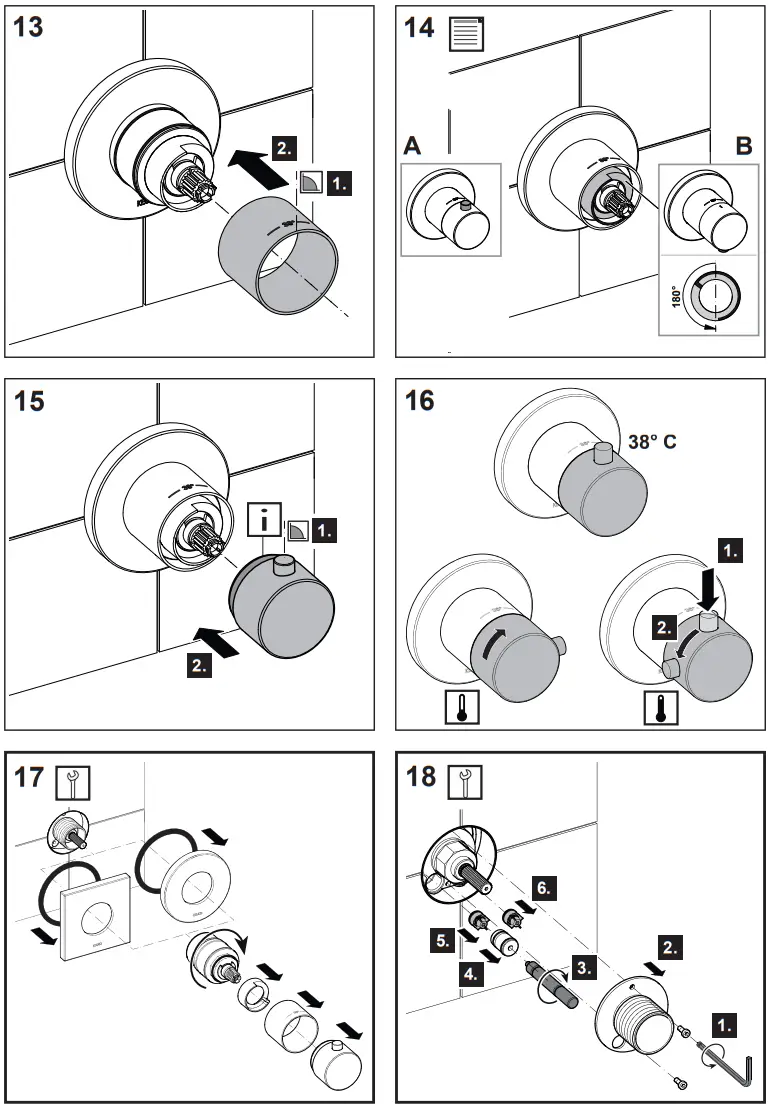

– The standard installation of the handle is done with the button facing upwards; refer to picture 14 on page 10.
– B If the handle is installed with the button facing downwards, the adjustment sleeve must be turned 180°.

The operation, refer to picture 16 on page 10
For servicing, refer to pictures 17 and 18 on page 10
Assemble in reverse order.

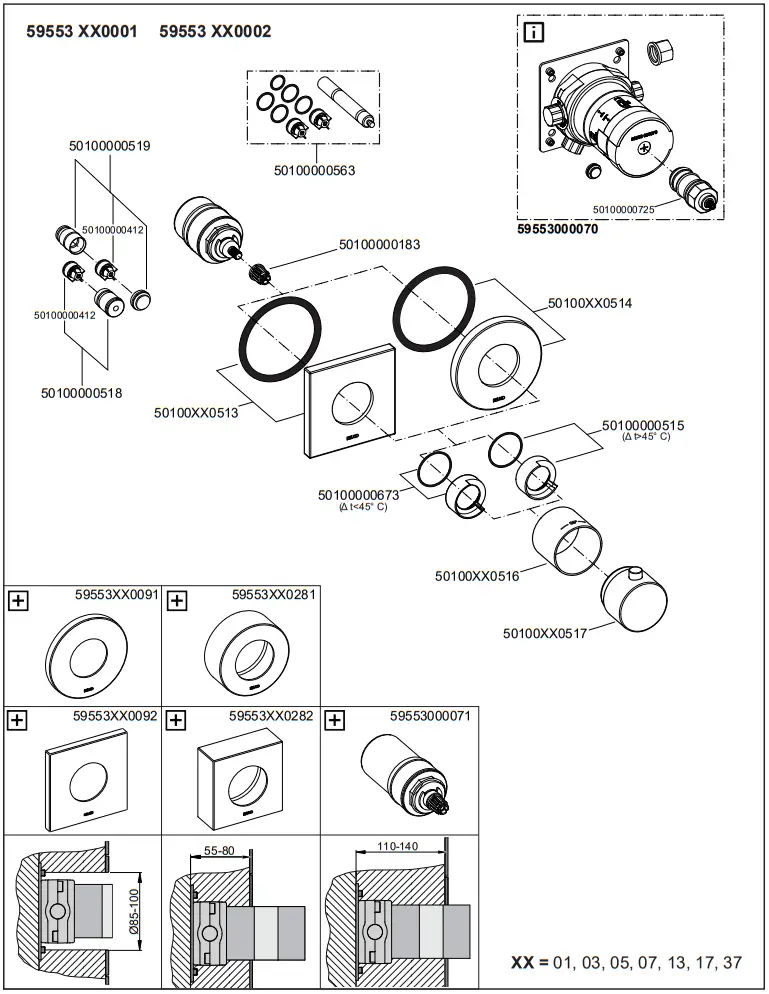

For spare parts with order numbers, refer to page 11
For warranty and care information please refer to the attached warranty and care instructions.
