003927

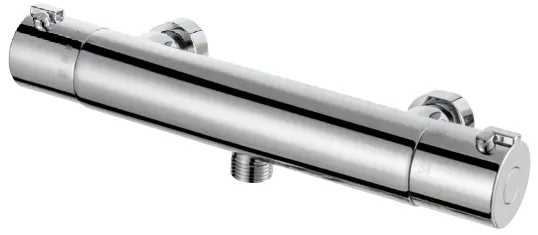

SHOWER MIXER
Operating instructions
(Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

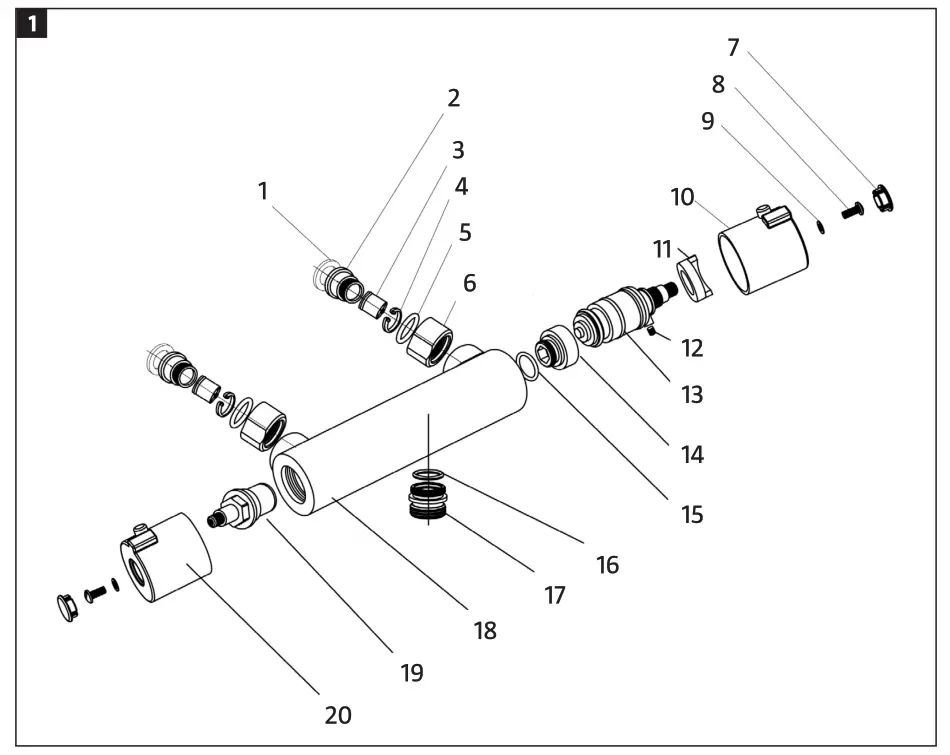

DESCRIPTION
| 1. Washer 2. Non-return valve housing 3. Non-return valve 4. Retaining ring 5. 0-ring 6. Nut 7 Cap 8. Screw 9. Washer 10. Knob | 11. Lock ring 12. Screw 13. Valve 14. Valve housing 15. 0-ring 16. 0-ring 17 Outlet screw 18. Mixer housing 19. Valve 20. Knob FIG. 1 |
INSTALLATION
NOTE:
Make sure to turn the water off first.

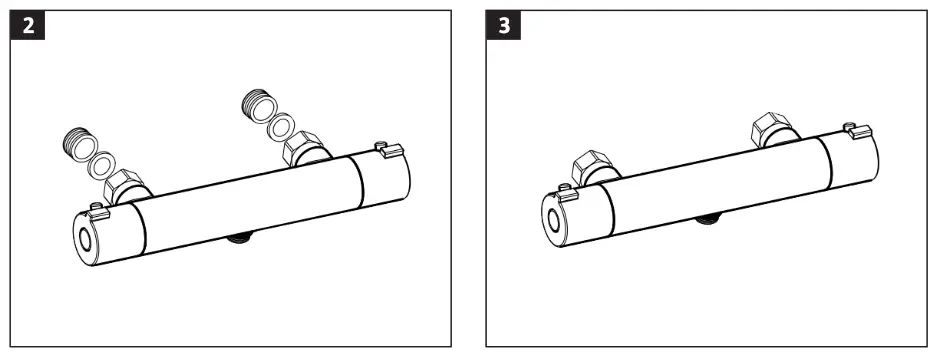

1. Fix the washer on the nut and tighten the nut to the wall.
FIG. 2
2. Tighten the nut firmly.
FIG. 3
Jula reserves the right to make changes.
For the latest version of operating instructions, see
www.jula.com
