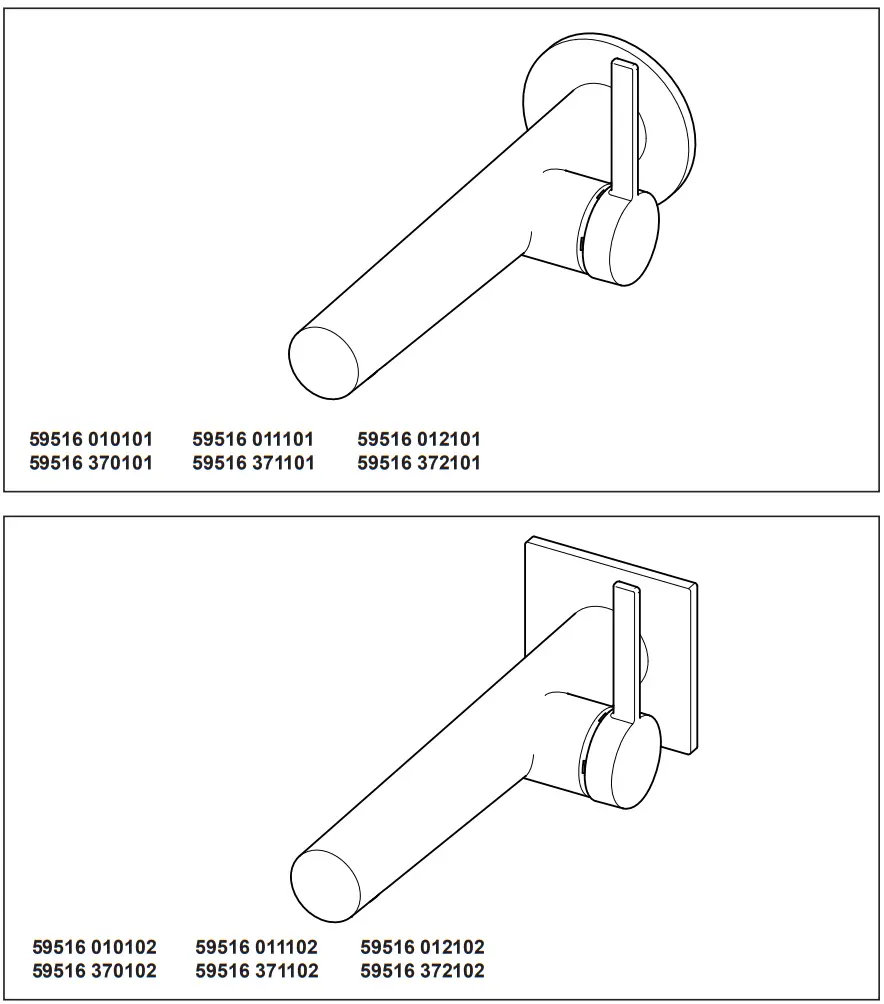

59516 010101 IXMO Pure Single Lever Basin Mixer
Instruction Manual
Mounting instruction

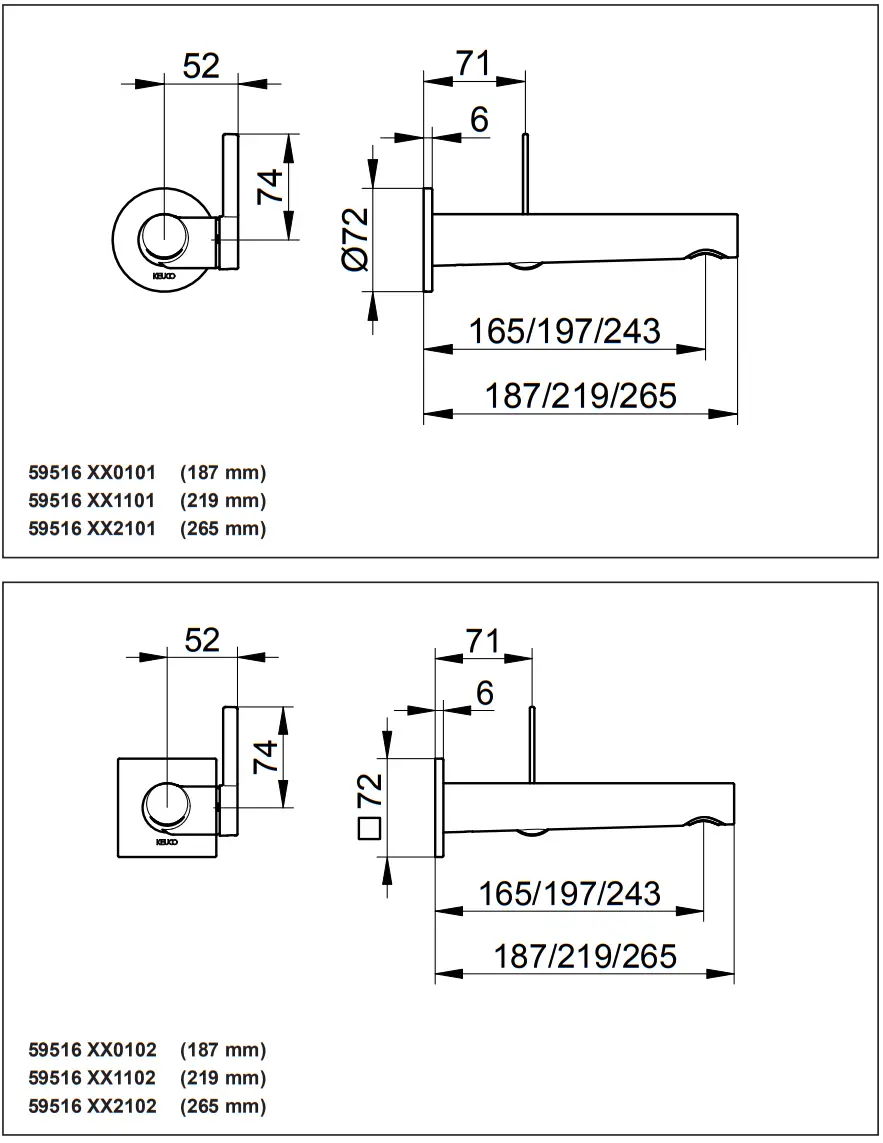

Mounting dimensions
59516 010101 IXMO Pure Single Lever Basin Mixer
Important information, please read!
These instructions are for both the installer for installation and the user for operation and maintenance of the product.
After installation, please hand them over to the user to keep.
Symbols and explanations
Attention! Warning against bodily injury or damage to property.
Note, tip or reference
Incorrect installation
Correct installation/test of functionality Observe installation details
Cold water
Hot water
Water flow
No water flow
Optional/accessories
Intended use
Single lever mixer tap for use in bathrooms and WCs.
Technical specifications
– Flow at 3 bar pressure: ……………..approx. 7.6 l/min
Installation dimensions, refer to page 2

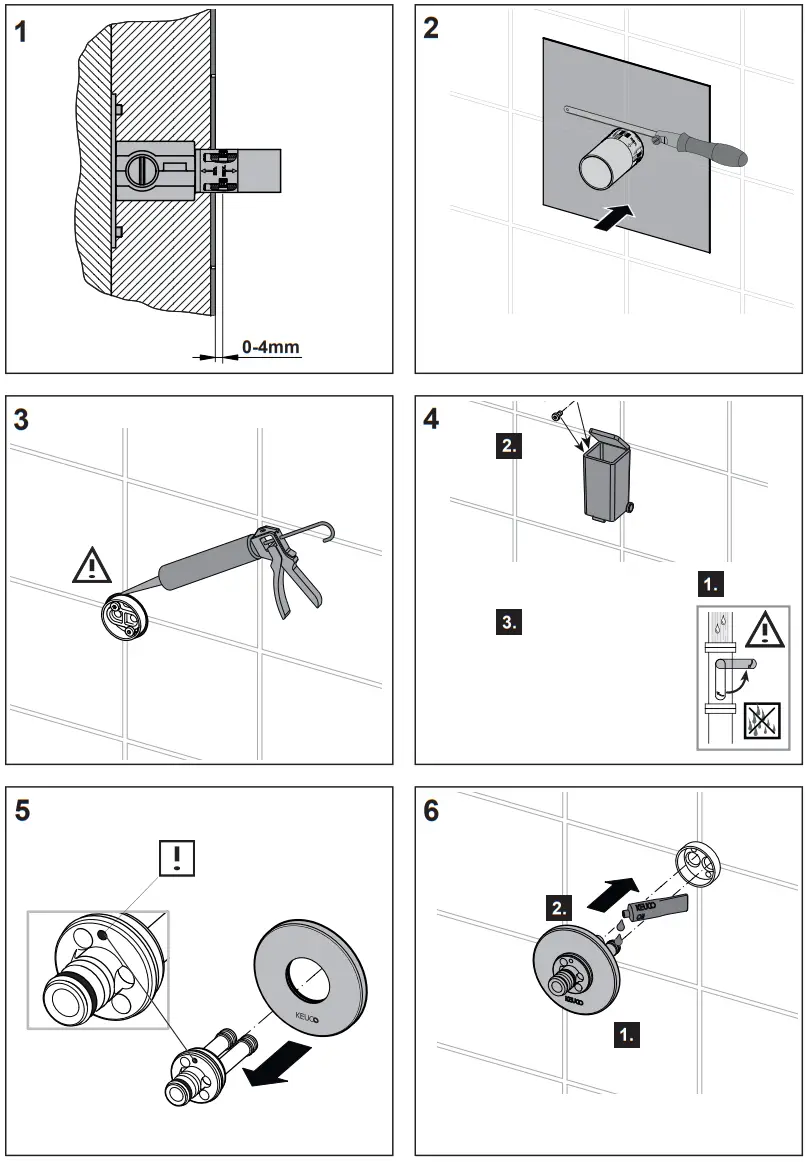

Installation, refer to picture 1 on page 8 Flush potable water pipes thoroughly before and after installation (observe EN 806 and 1717).
Use only neutrally netting silicone.
Operation, refer to picture 9 on page 9
Servicing, see refer to picture 10 and 11 on page 9
Assemble in reverse order.
– Cartridge nut torque:…………………..12-13 Nm
For spare parts with order numbers, refer to page 11. For warranty and care information please refer to the attached warranty and care instructions.

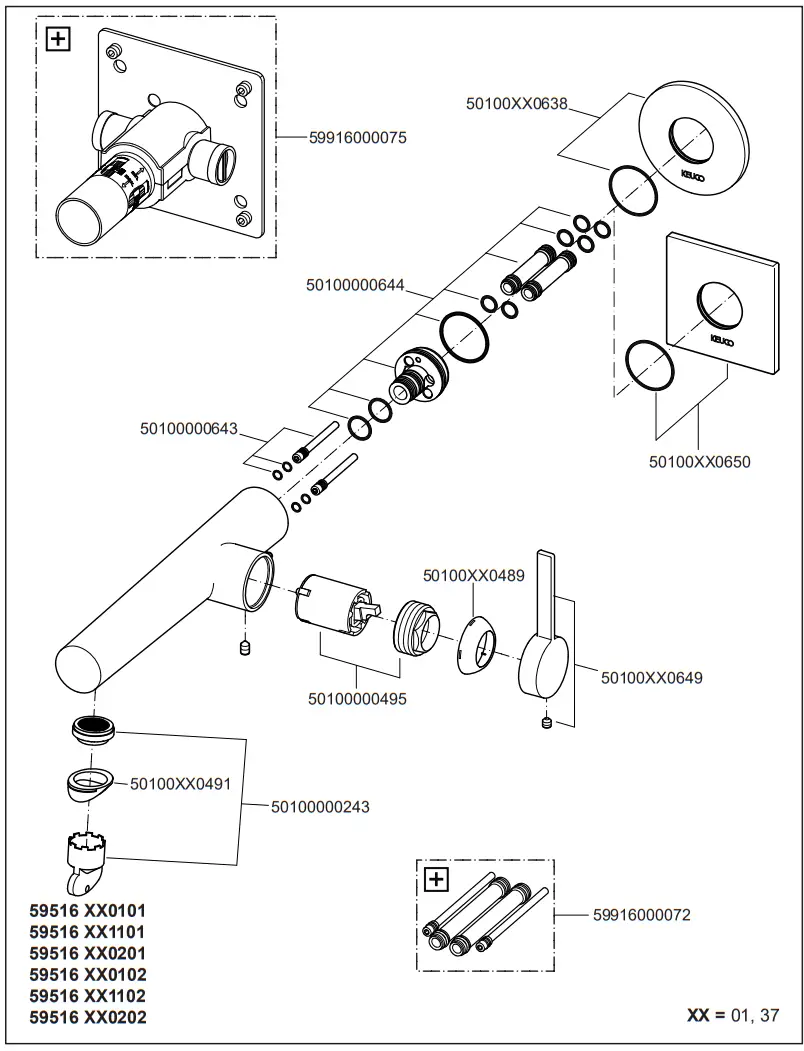

Spare parts
