Instruction Manual

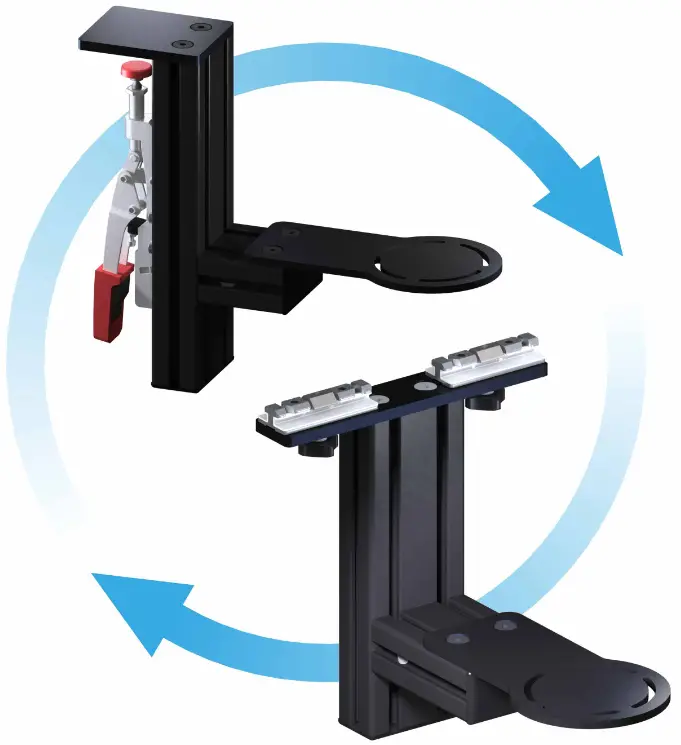

TABLE MOUNT TO RAIL MOUNT CONVERSION
Instruction Manual
GENERAL ASSEMBLY INFO AND HOW TO

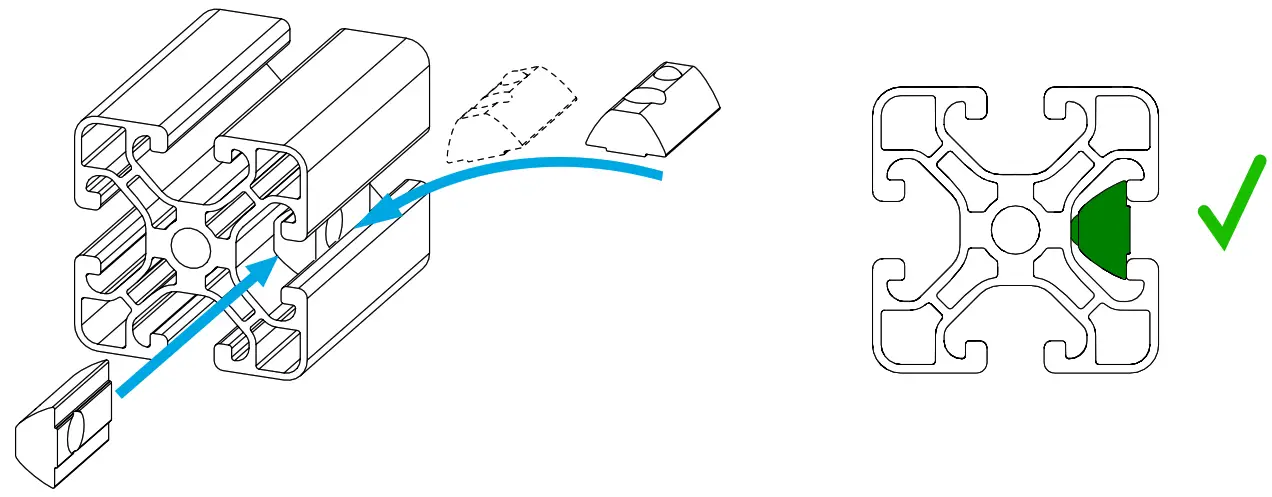

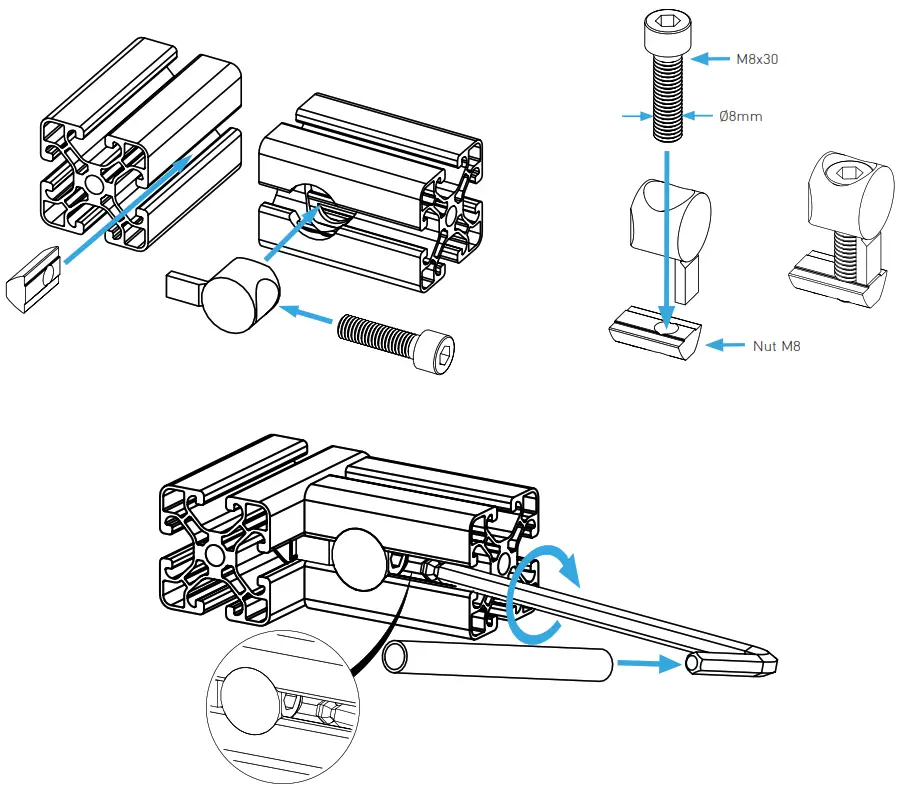

PROFILE NUT

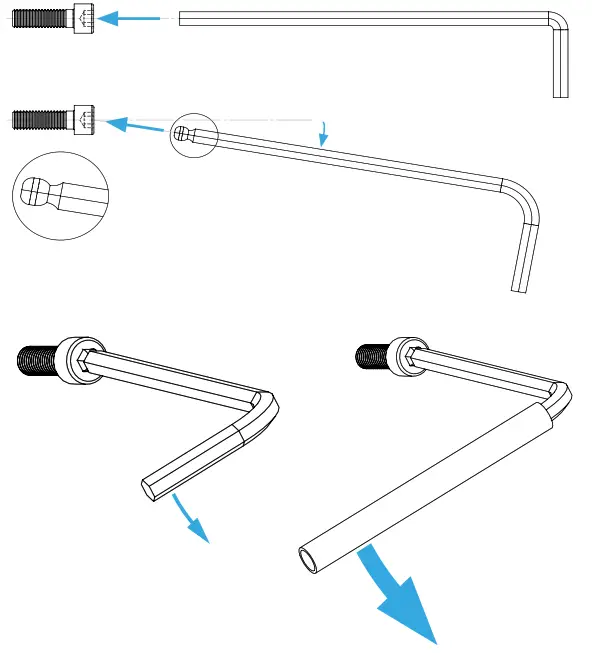

HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED
UNIVERSAL CONNECTOR

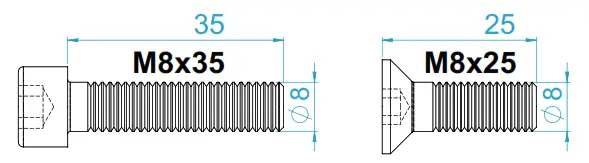

BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm]

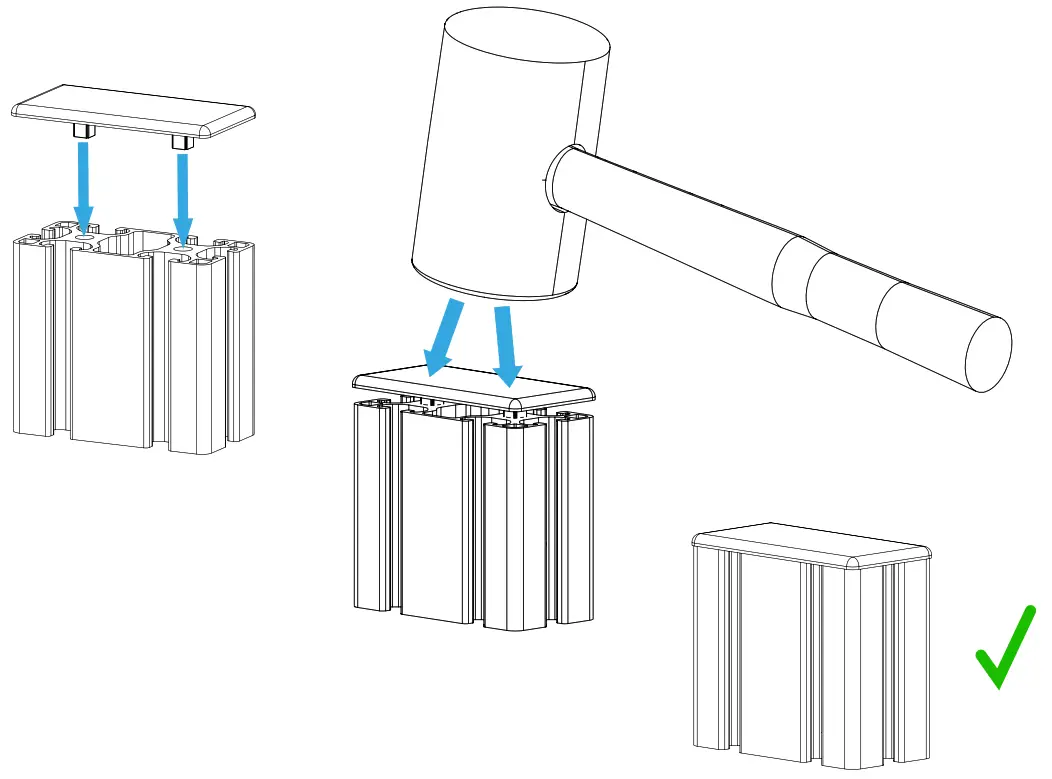

PROFILE CAP ASSEMBLY
PARTS
[dimensions in mm / different scales] No extra or spare parts listed!

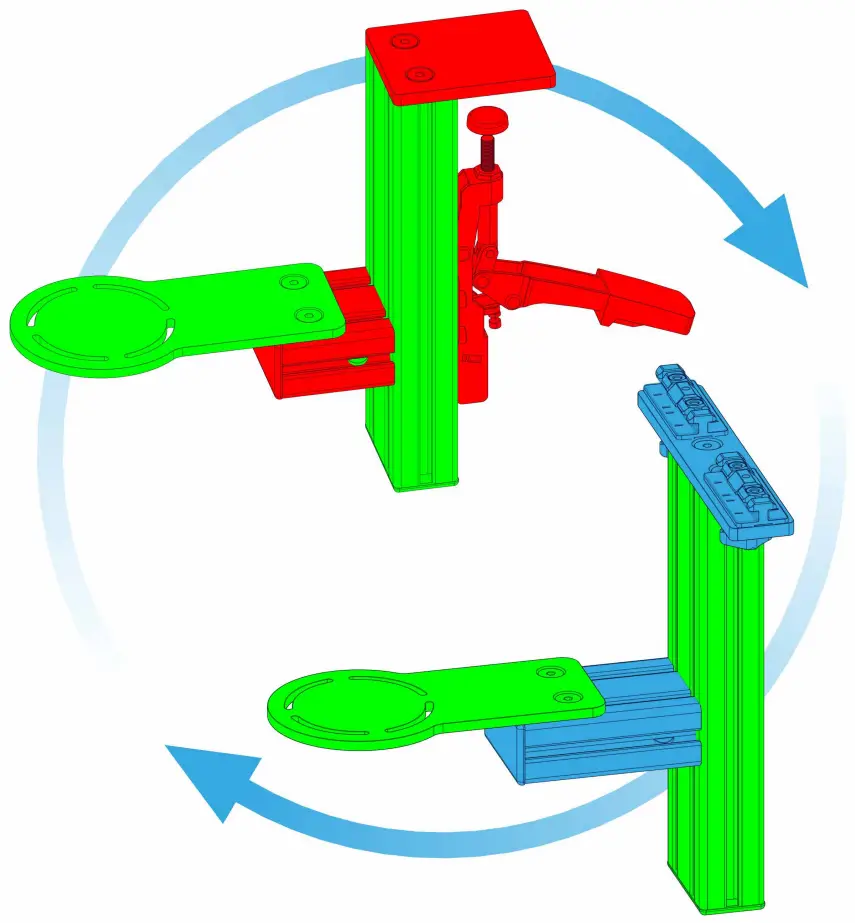

Reused parts in green. The new parts are in blue. Unused parts are in red.
CONVERSION

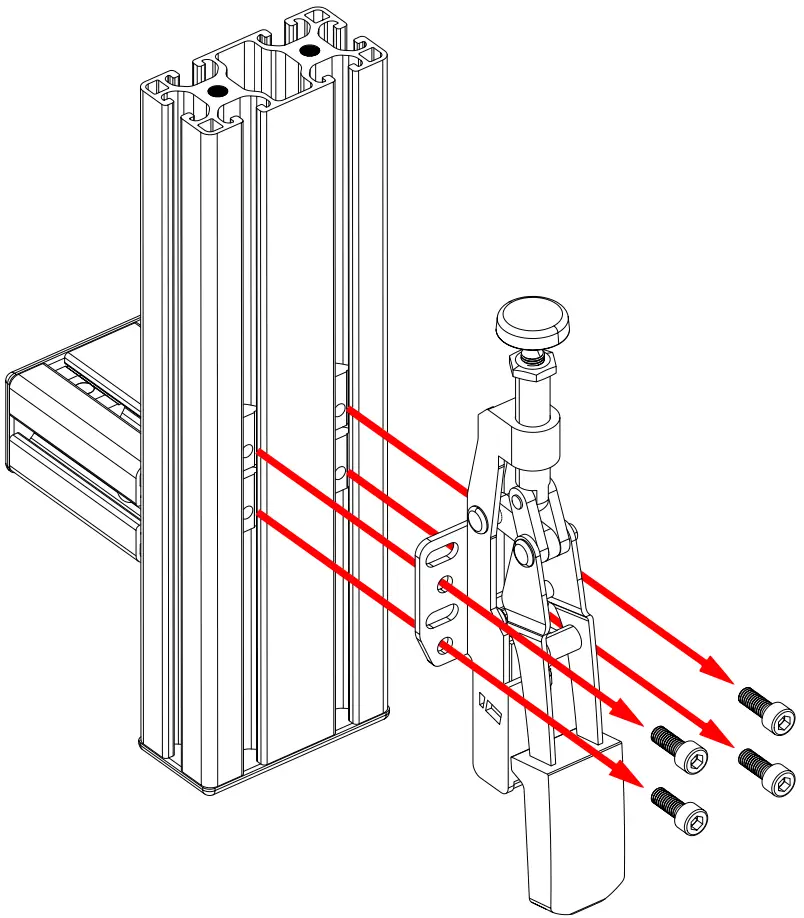

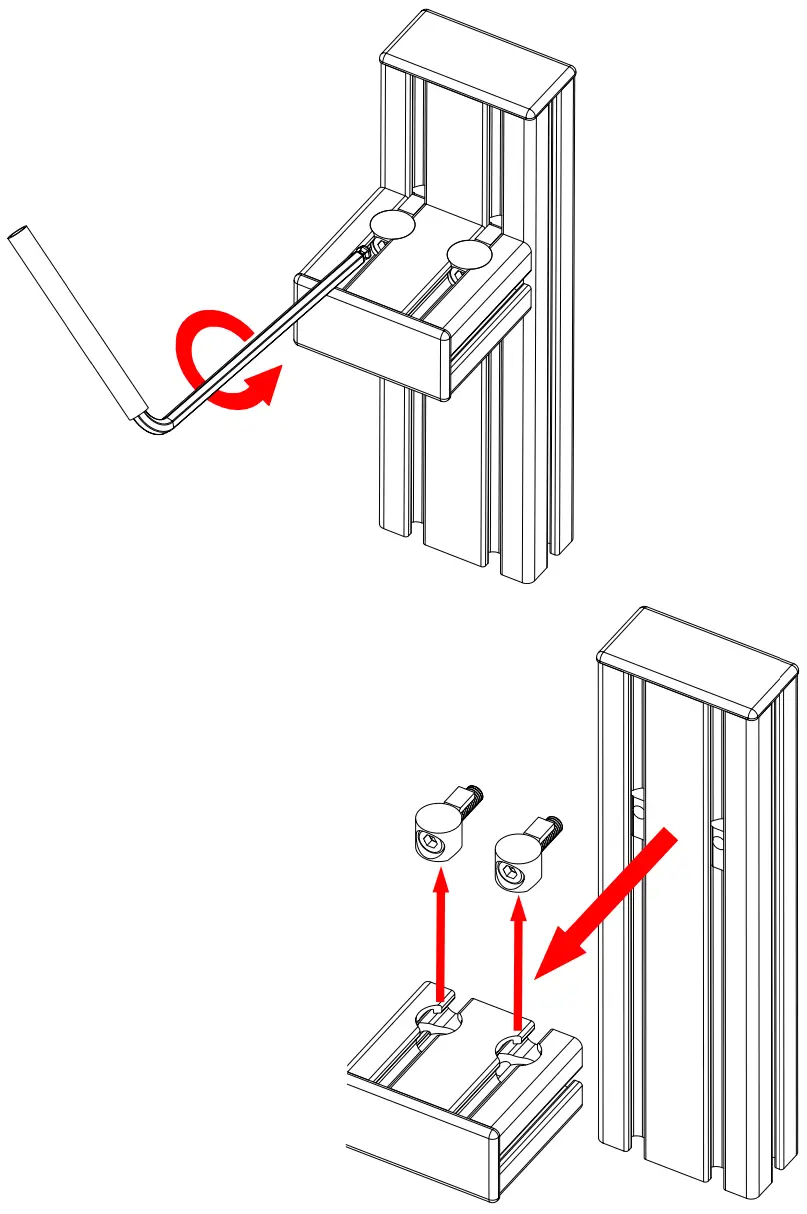

Disassembly of your Table Mount
 |  |

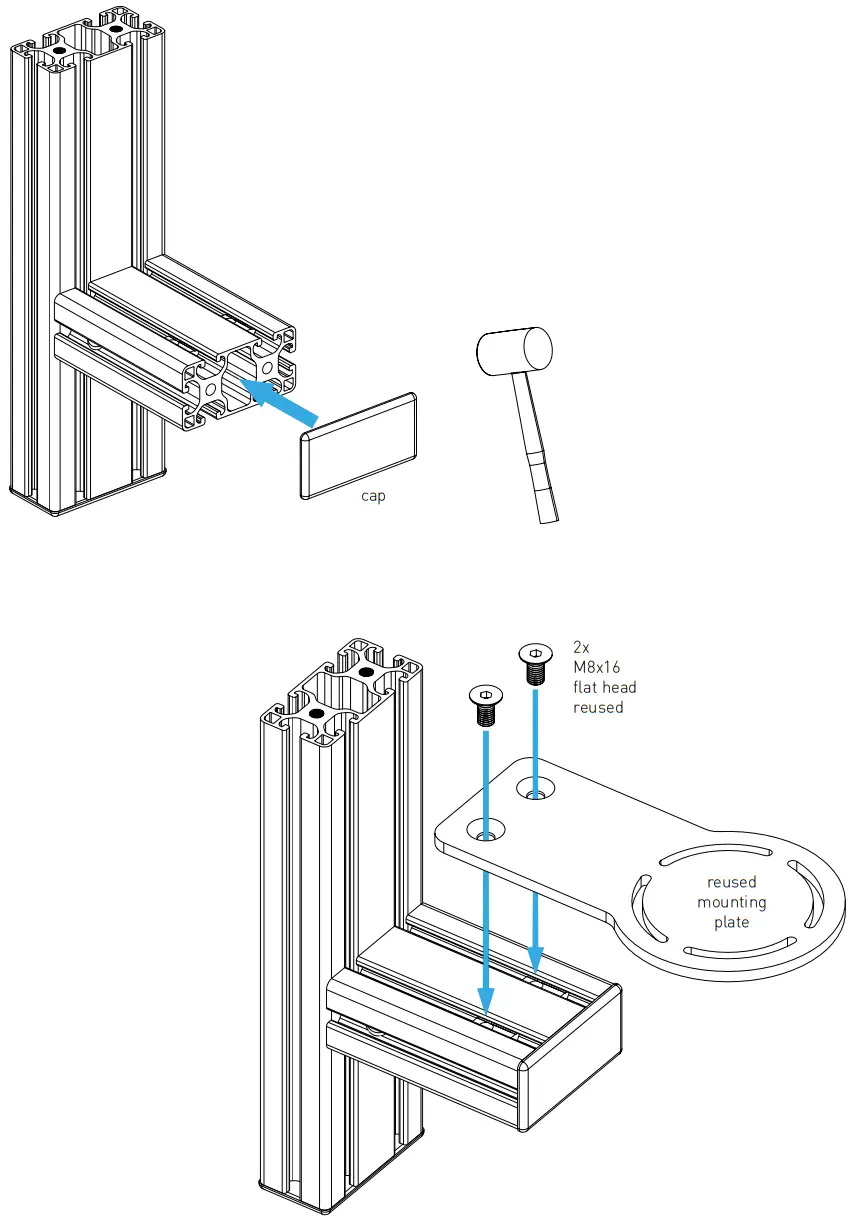

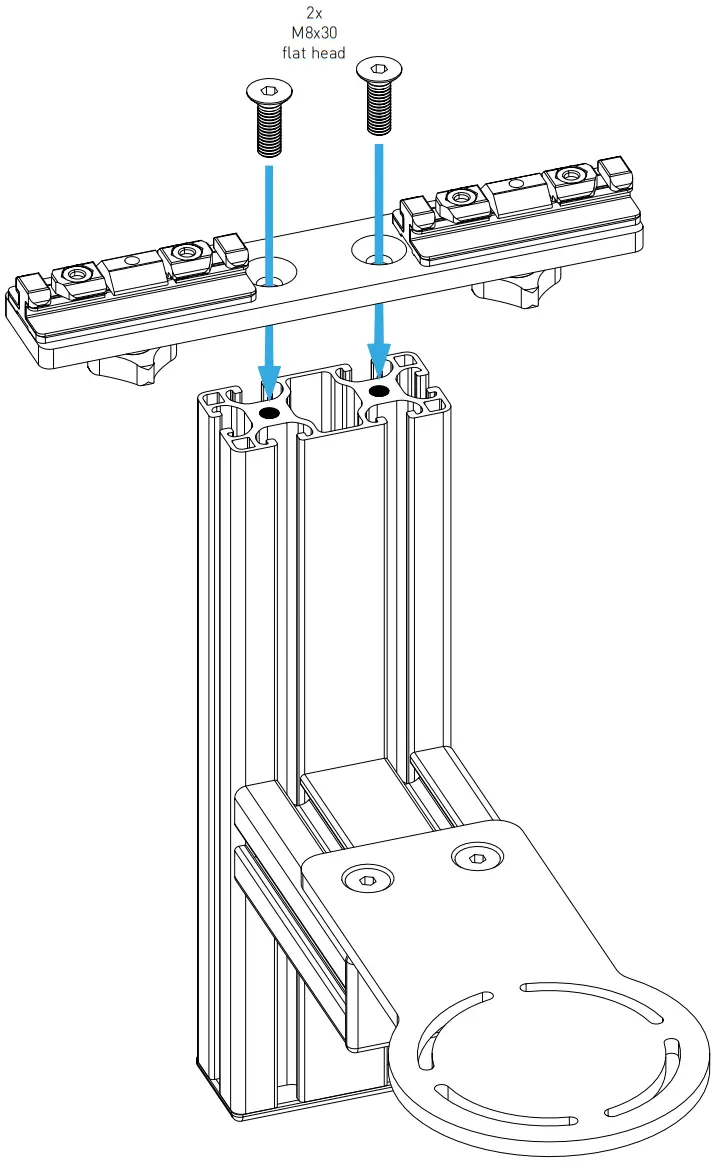

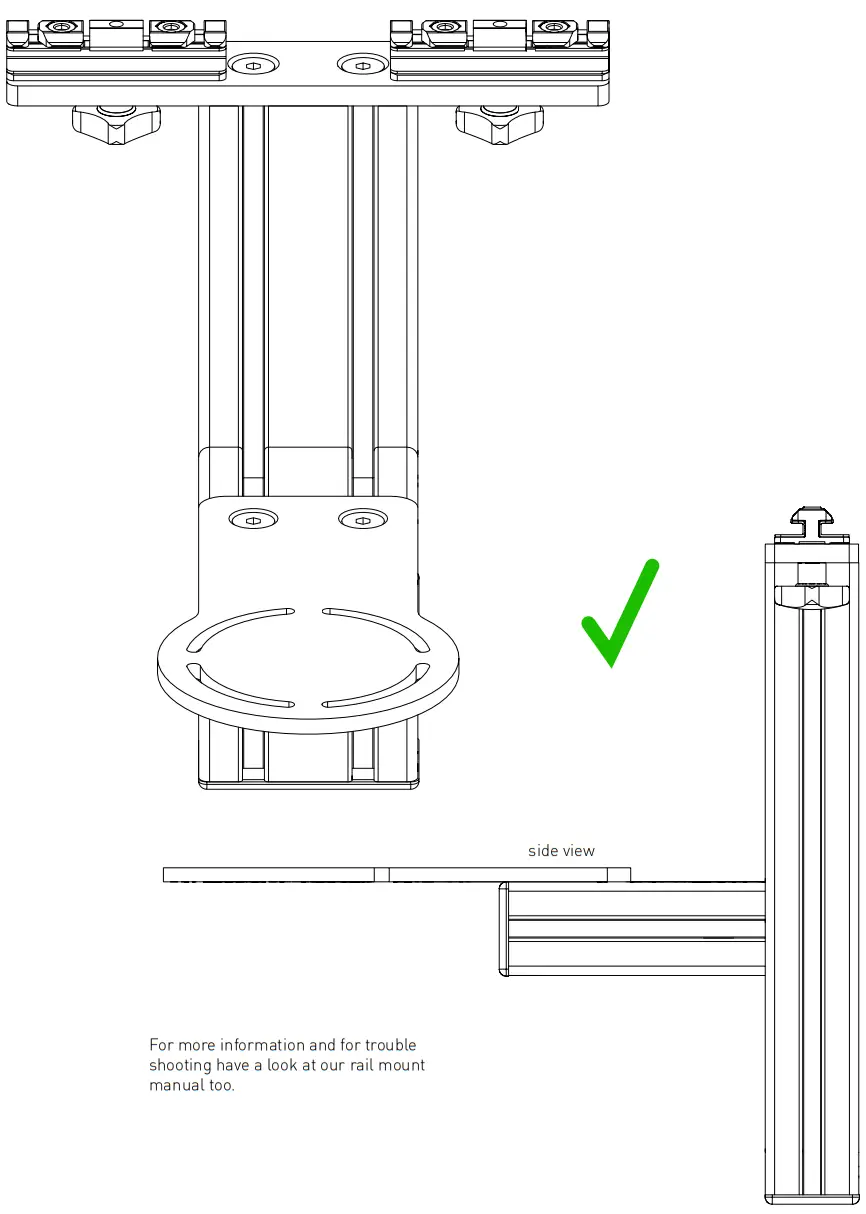

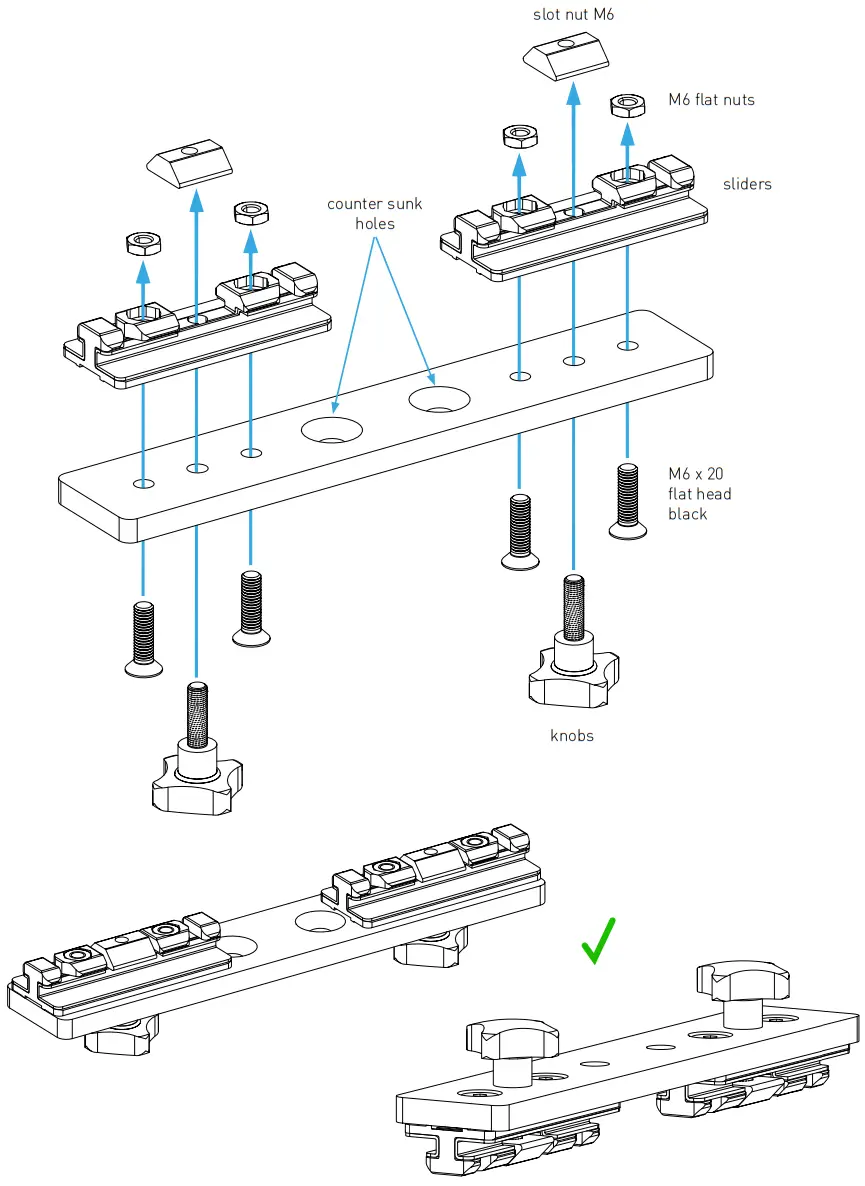

Assembly of the Rail Mount
 |  |
 |  |
WARNING NOTICES
CAUTION! Do not clamp your fingers while attaching the rail mount.
CAUTION! Check before usage if all screws are tightened.
CAUTION! Check before usage that the mounting plate is screwed on tight after making height adjustments.
DANGER: Contains small parts not suitable for children under 3 years.
Only suitable for children over 12 years and adults.
All MONSTERTECH products are hand assembled and quality checked.
The mount is designed for usage only with a computer controller (f.e. joystick or throttle).
We exclude liability if the product is used for purposes other than intended.
MONSTERTECH shall be liable for damage arising from causes other than the detriment to life, body and health only to the extent that such damage arises from wilful misconduct, gross negligence, or the culpable violation of a fundamental contractual obligation on the part of MONSTERTECH or a vicarious agent (e.g. the delivery service) of MONSTERTECH. Any further liability for damages shall be excluded.
If you have safety concerns or questions regarding assembly, contact us at [email protected] or visit www.monstertech.de/en/.
