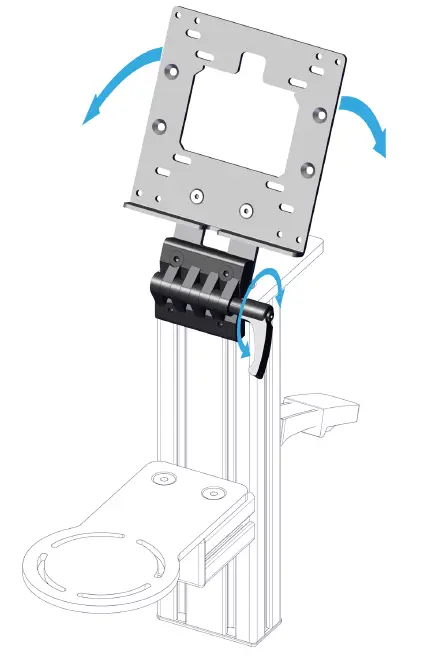

MONSTER 0047 MFD Tablet Mount Center
GENERAL ASSEMBLY INFO AND HOW TO.

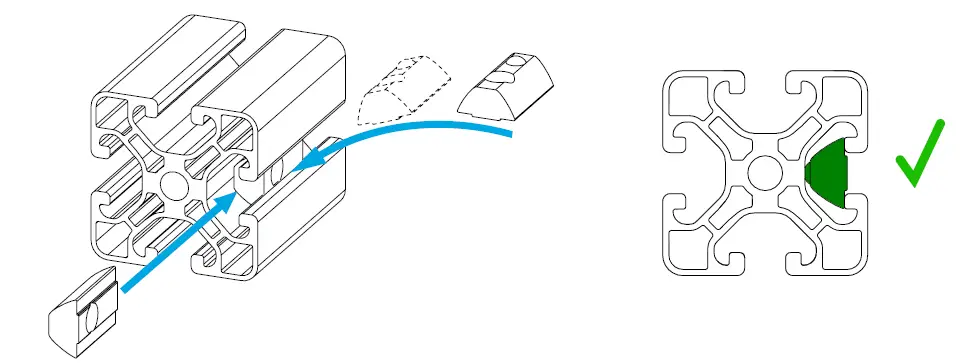

PROFILE NUT
HEX KEY SET WITH BALL HEAD + EXTENSION OR SIMILAR REQUIRED

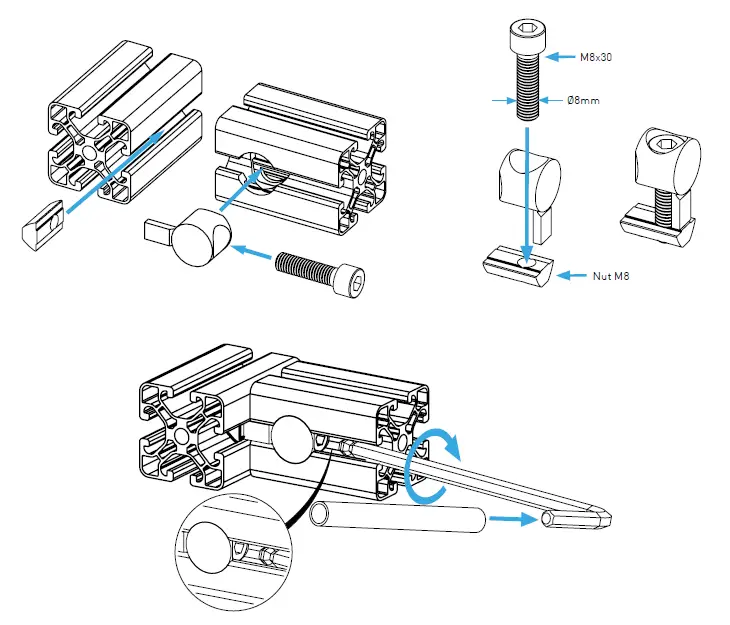

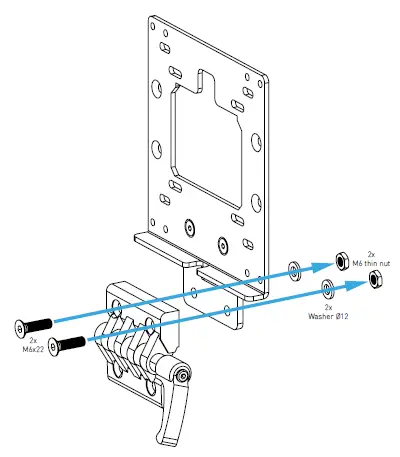

UNIVERSAL CONNECTOR
BOLT DIMENSIONS AND HOW TO MEASURE THEM [mm]

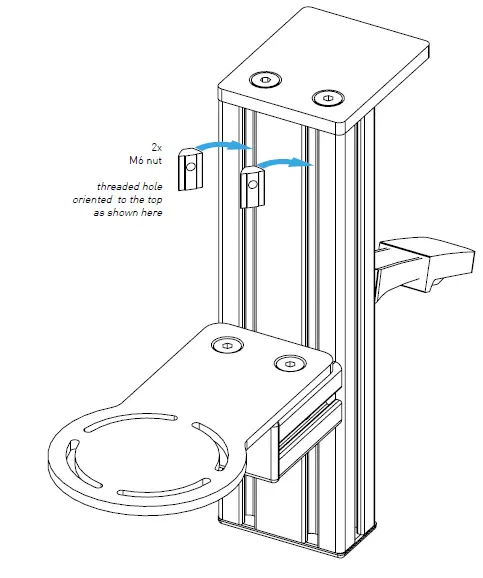

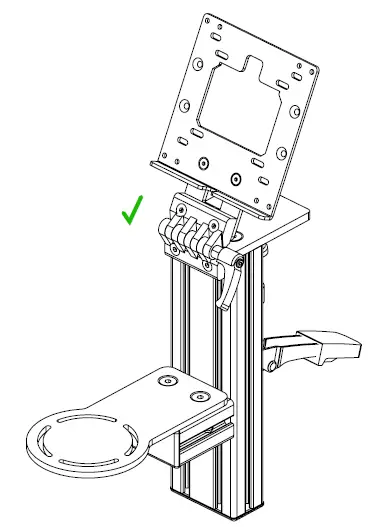

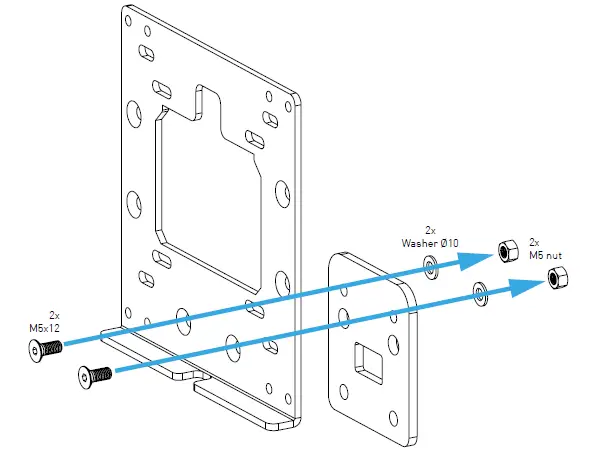

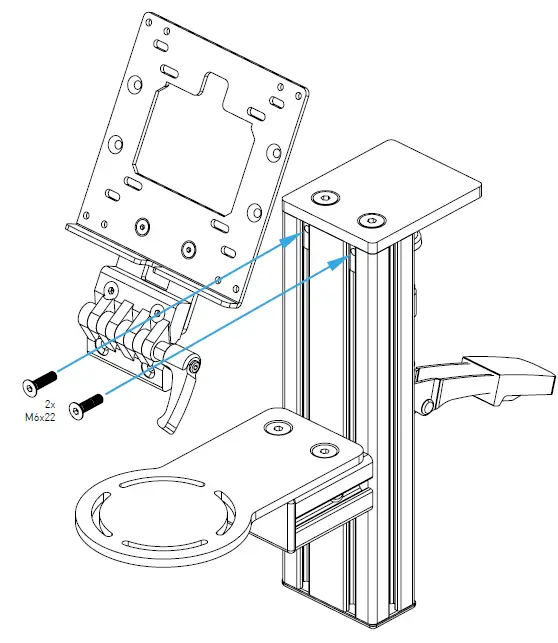

ASSEMBLY

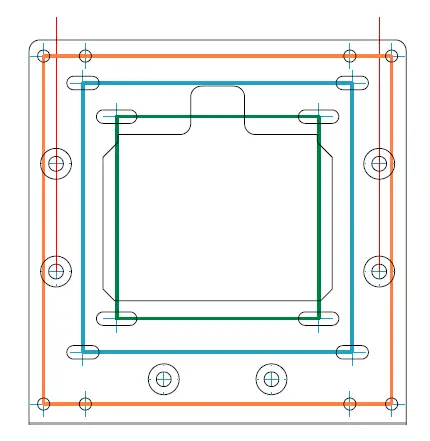

MOUNTABLE DEVICES (Color coded)
- VESA 75: VESA 100
- Logitech G Flight Instrument Panel: Thrustmaster Cougar MFD
- STREAM DECK Mini STREAM DECK Live: Keyboard Clamp
- STREAM DECK XL (with adapter): Tablet or phones

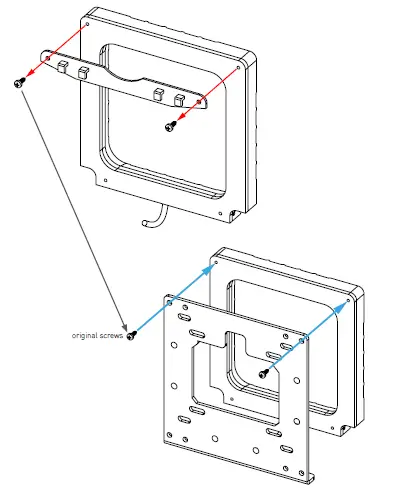

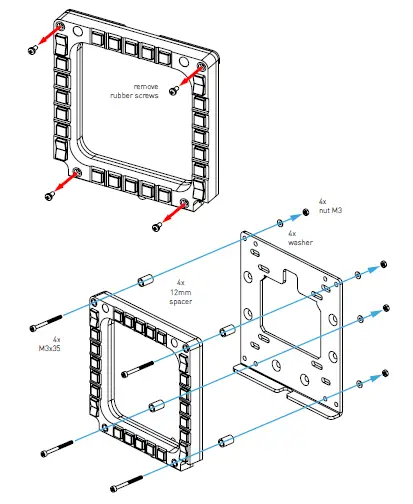

THRUSTMASTER COUGAR MFD
Before this step remove the original bracket (without picture).

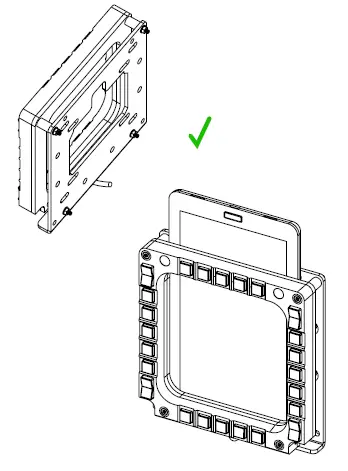

THRUSTMASTER MFD/TABLET COMBO

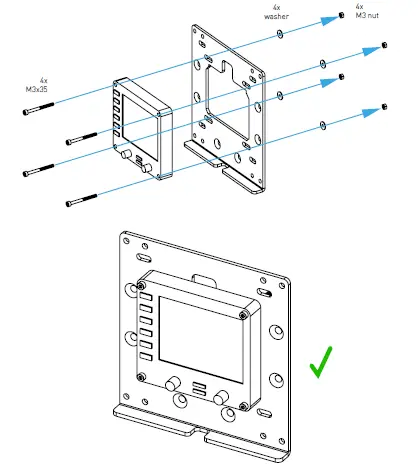

LOGITECH G FLIGHT INSTRUMENT PANEL

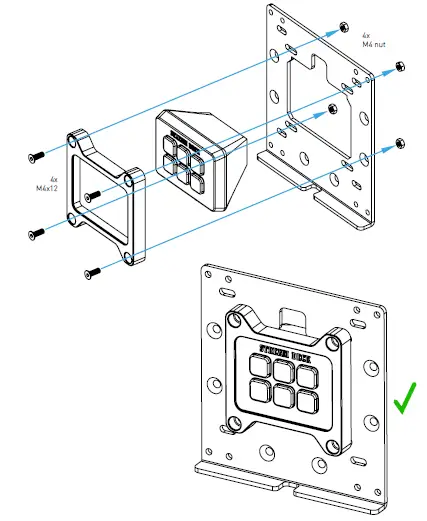

ELGATO STREAM DECK MINI

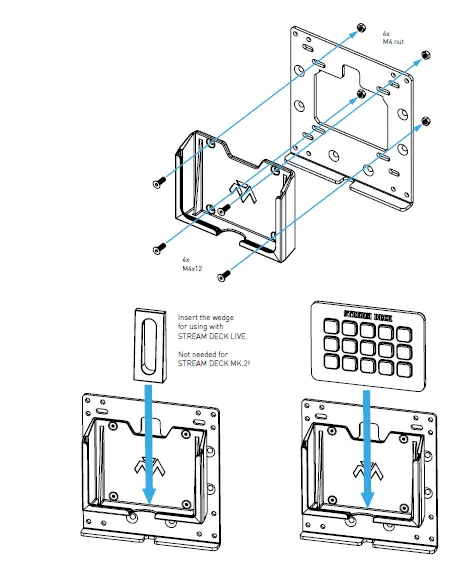

ELGATO STREAM DECK MK.2 / LIVE

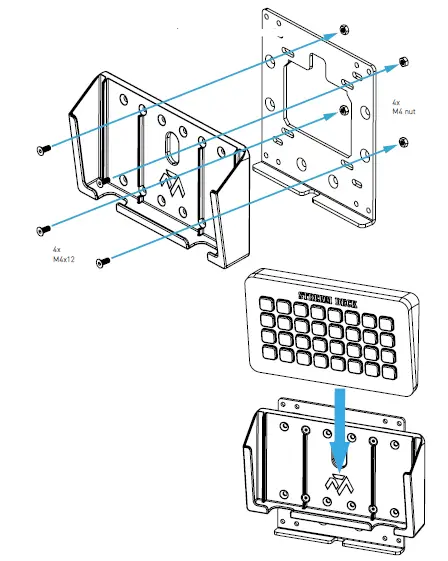

ELGATO STREAM DECK XL

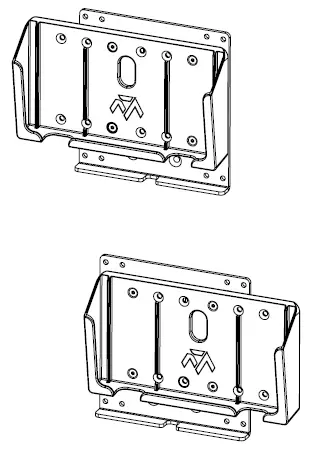

ALTERNATIVE MOUNTING

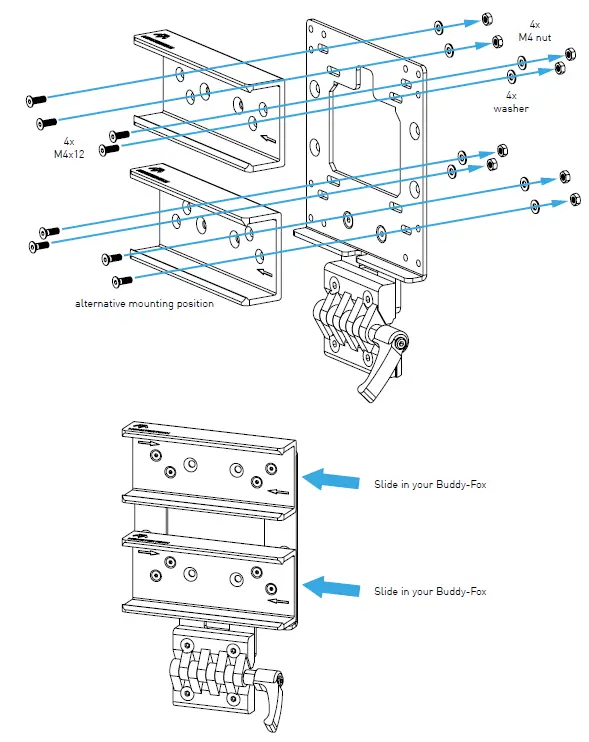

Buddy-Fox UFC for A-10C

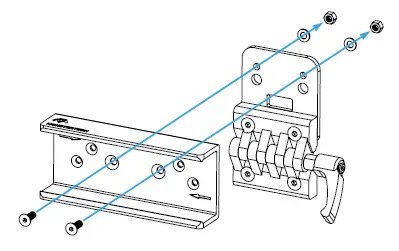

ALTERNATIVE MOUNTING
WARNING NOTICES
CAUTION
- Check before usage if all screws are tightened.
- Check before usage that the mounting plate is screwed on tight after making height adjustments.
DANGER: Contains small parts not suitable for children under 3 years.
- Only suitable for children over 12 years and adults.
- All MONSTERTECH products are hand assembled and quality-checked.
The mount is designed for usage only with a computer controller (f.e. joystick or throttle). We exclude liability if the product is used for purposes other than intended. - MONSTERTECH shall be liable for damage arising from causes other than the detriment to life, body and health only to the extent that such damage arises from wilful misconduct, gross negligence or the culpable violation of a fundamental contractual obligation on the part of MONSTERTECH or a vicarious agent (e.g. the delivery service) of MONSTERTECH. Any further liability for damages shall be excluded.
- If you have safety concerns or questions regarding assembly, contact us under [email protected] or visit www.monstertech.de/en/.
