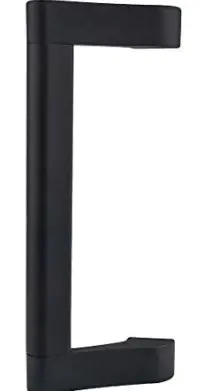

GLOBAL DOOR CONTROL TH1100-STED DU Global Exit Device Pull Handle
FEATURES
TH1100-STED
RIM SURFACE NARROW STILE EXIT DEVICE
- ANSI A156.3 Grade 2
- Narrow stile
- Includes rim cylinder
- UL Listed SA10672 – Panic hardware
- Requires a 2” mounting surface for typical use
- with narrow, medium and wide stile Aluminum, hollow metal or wood doors.
- Non-handed / reversible
- Latch bolt throw ”
- Dogging: Dogging by Hex key in touch bar
- Outside unlatching with standard rim cylinder
- Door Width: Standard units for 36″ and 48″ door widths (can be field sized)
- Can be used on 30″ wide doors
- Finishes: AL, DU
TH1100-STEDCVR
CONCEALED VERTICAL ROD NARROW STILE EXIT DEVICE
- ANSI A156.3 Grade 2
- Narrow stile
- Includes mortise cylinder and cylinder mounting pad with locking ring
- UL Listed SA10672 – Panic hardware
- For use with narrow, medium and wide stile Aluminum doors.
- Non-handed / reversible
- Dogging: Outside unlatching and dogging by cylinder key or dogging by Hex key in touch bar.
- Top Steel toggle latch and bottom Steel rod latch bolt
- Unit uses standard TH1100-BC mortise cylinder
- Mounting pad and locking ring
- Door Width: Standard units for 36″ and 48″ door widths (can be field sized)
- Door Height: up to 7’
- Can be used on 30″ wide doors.
- Finishes: AL, DU
CROSS REFERENCE
| ANSI GRADE | MATERIAL | GLOBAL | INTERN | TELL | S.PARKER | CRL |
| A156.3- Grade 2 | Steel | TH1100-STED | 56105 | NA | NA | 35A |
| A156.3- Grade 2 | Steel | TH1100-STEDCVR | NA | NA | NA | 3347A |

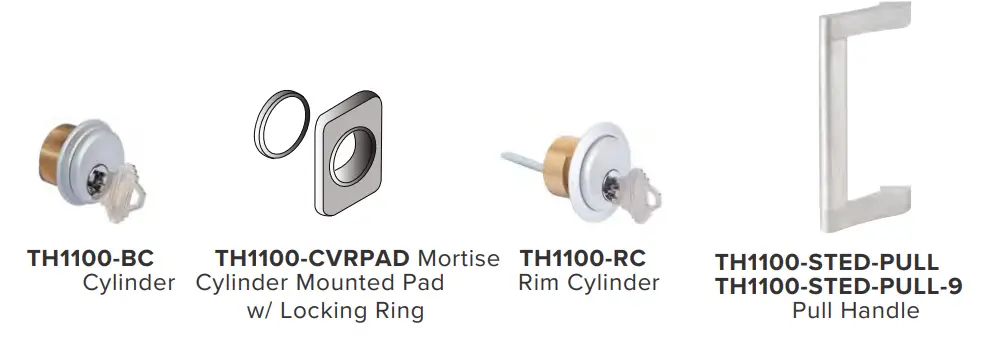

EXIT DEVICE ACCESSORIES
