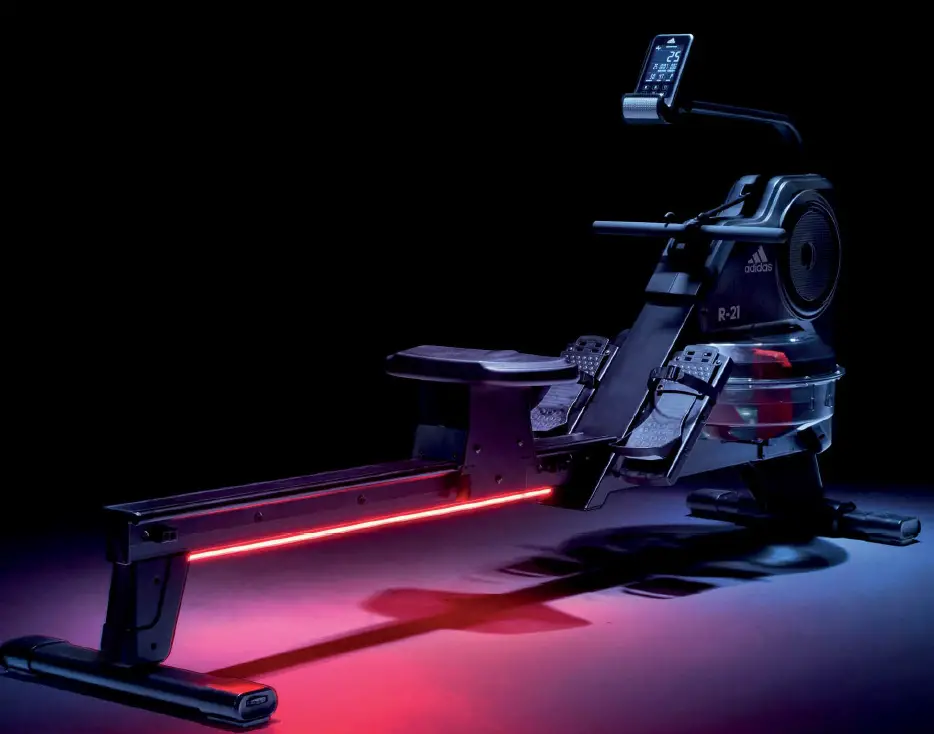

adidas R-21 Water Rower Machine

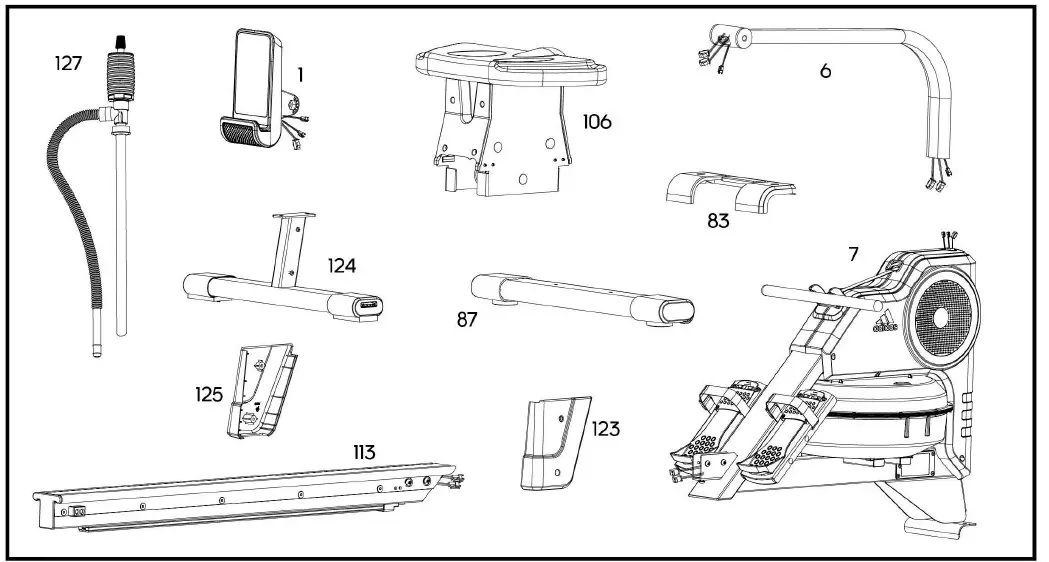

PARTS
HARDWARE PACK

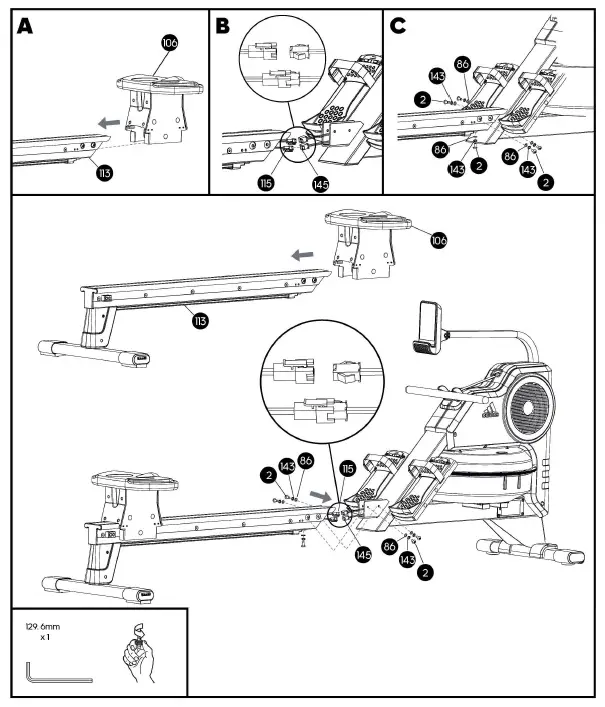

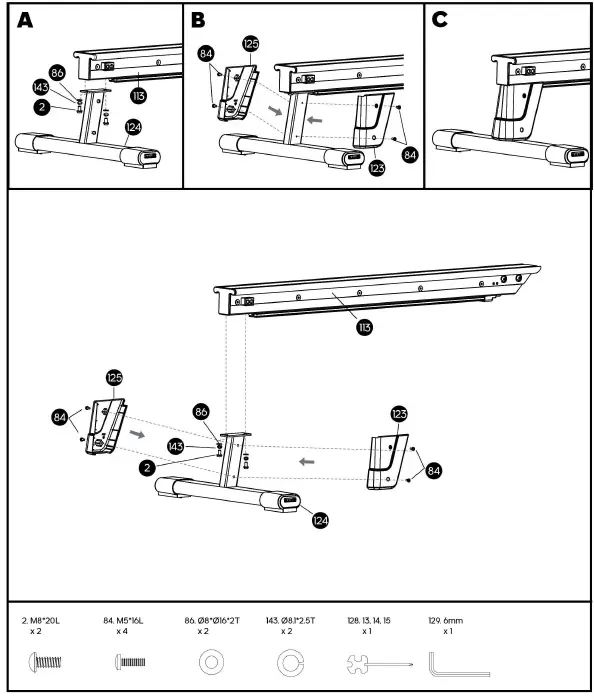

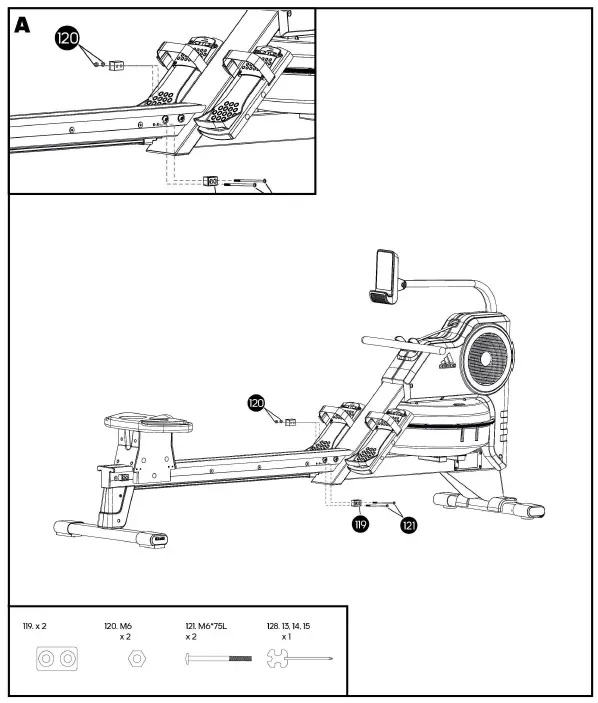

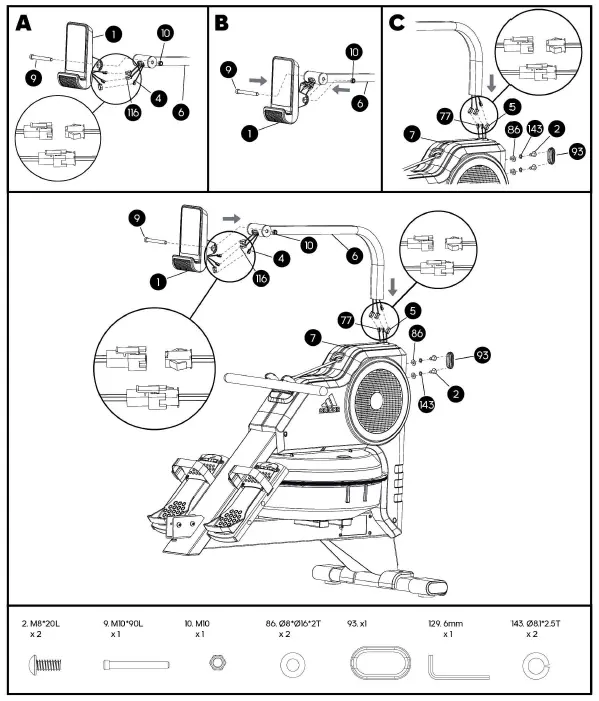

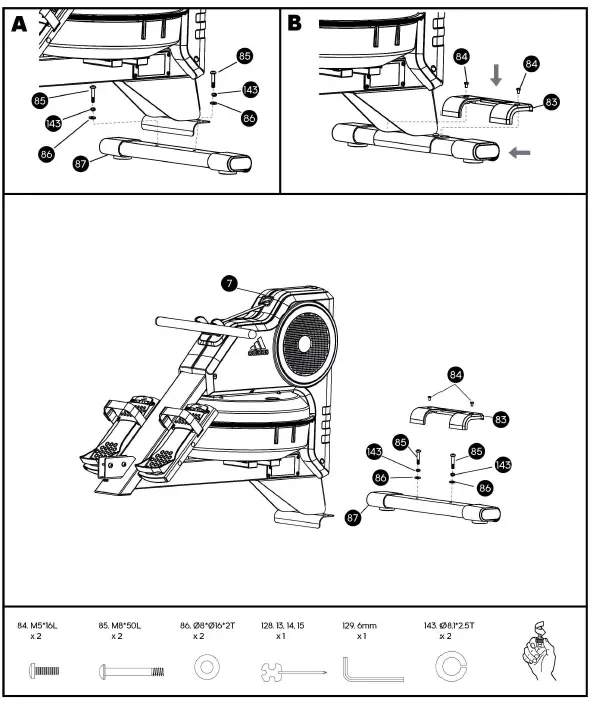

ASSEMBLY INSTRUCTIONS 11ml

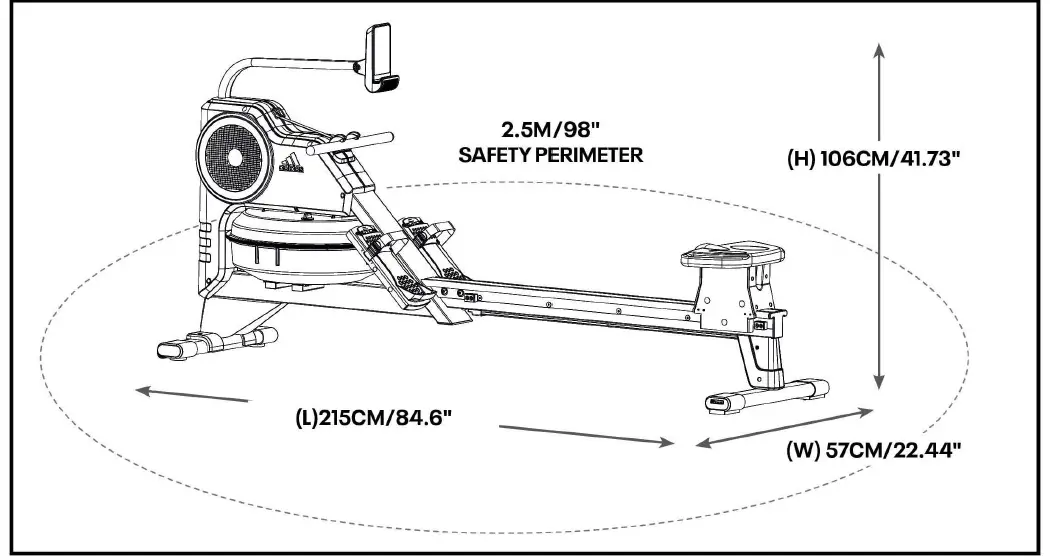

USER INFORMATION

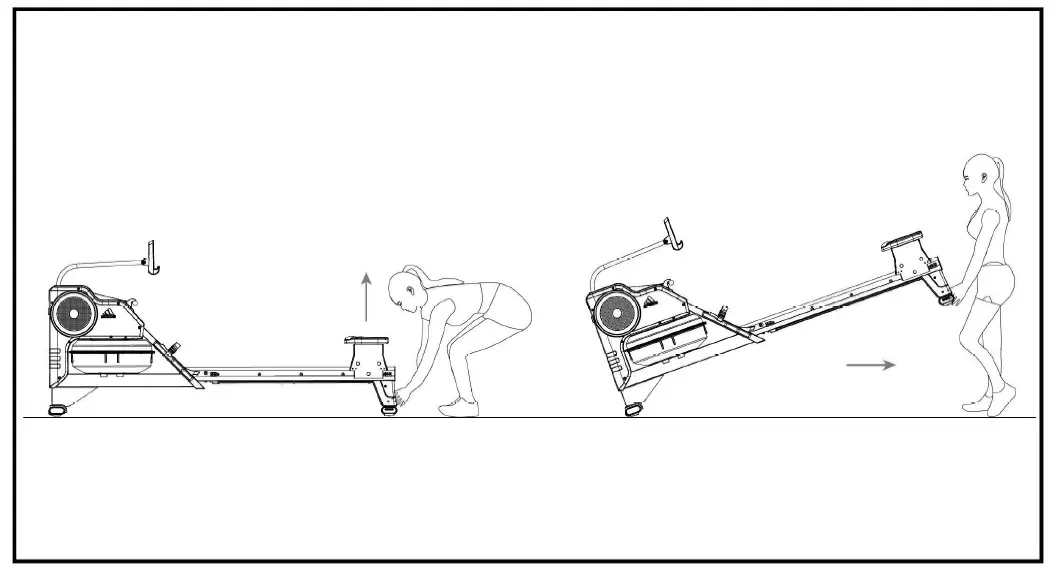

MOVING THE MACHINE

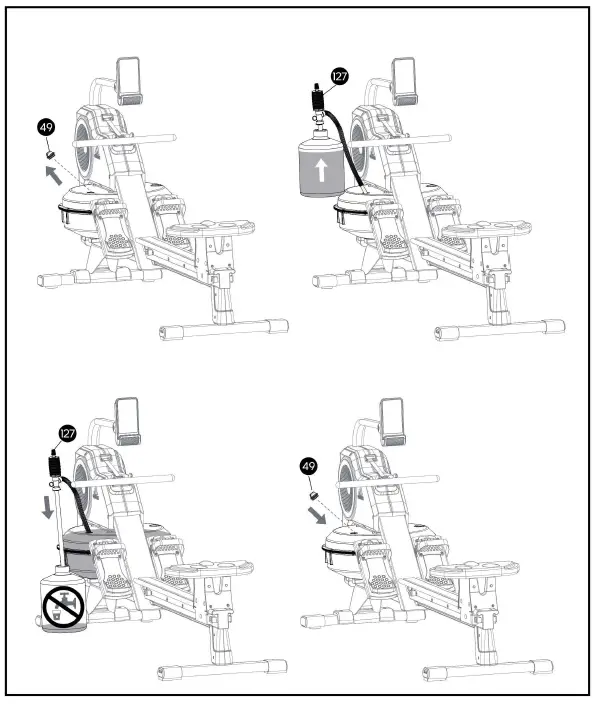

FILLING AND EMPTYING
SERIAL NUMBER

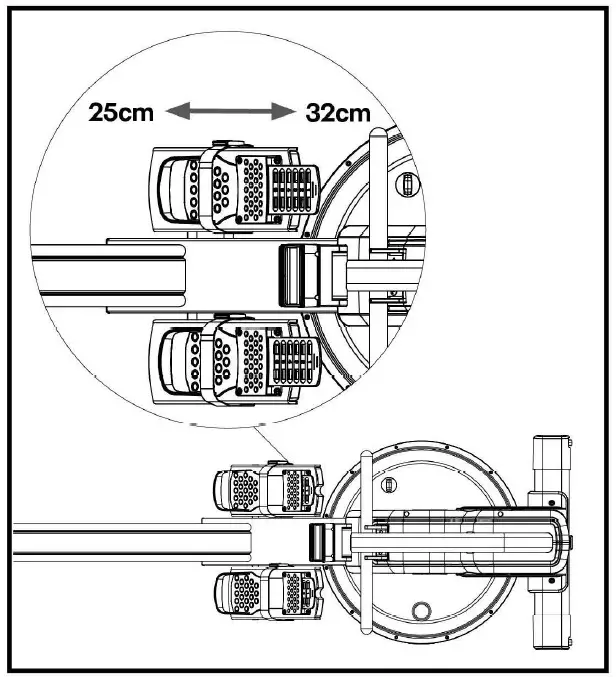

FOOTPLATE

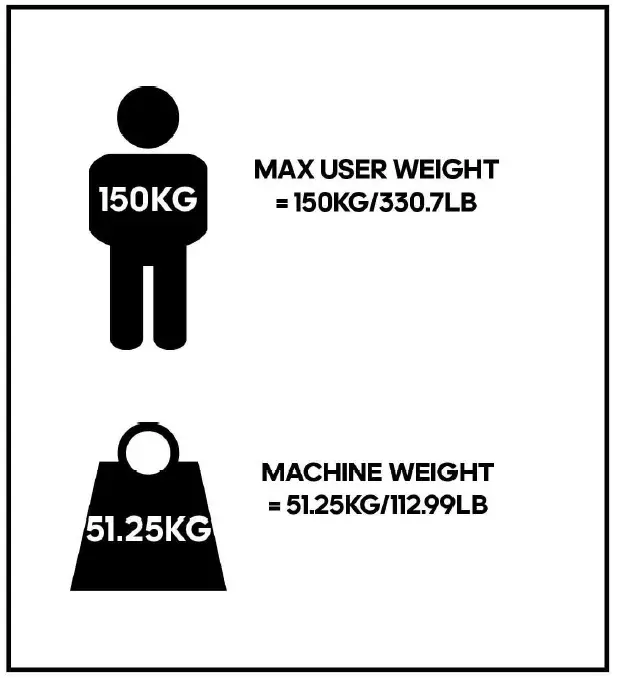

WEIGHT GUIDE

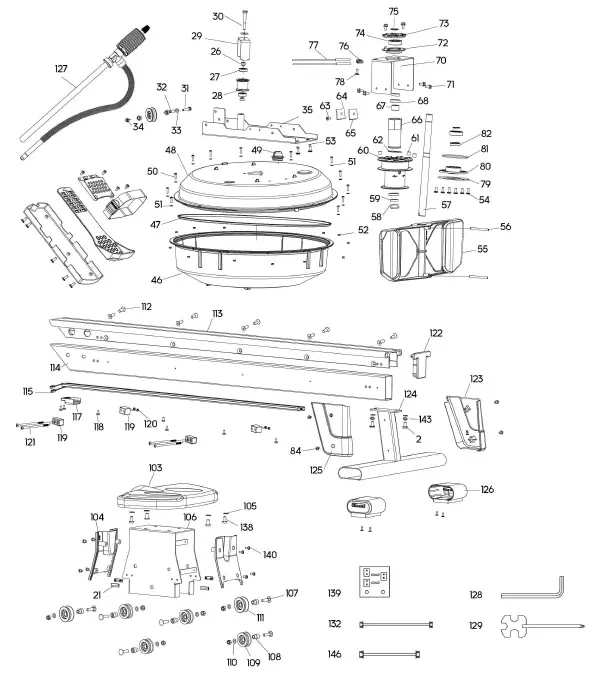

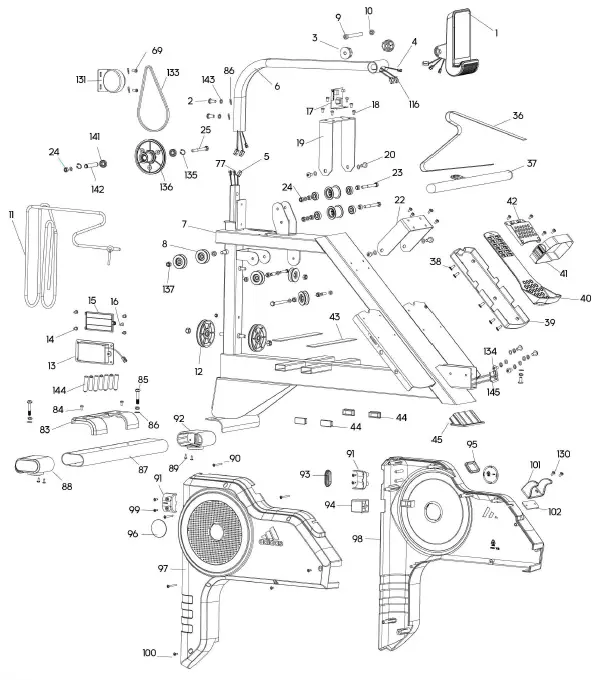

EXPLODED DIAGRAM
PARTS LIST
| NO. | PART DESCRIPTION | QTY |
| I | Console | l |
| 2 | Screw M8*Pl.25*20L | 4 |
| 3 | Bushing cp38.l Black | 2 |
| 4 | Upper connected wire | l |
| 5 | Lower connected wire | l |
| 6 | Upright | l |
| 7 | Frame | l |
| 8 | C2 Roller | 6 |
| 9 | Screw Ml0*90L | l |
| 10 | Nylon nut MlO | l |
| n | Elastic rope | l |
| 12 | Roller | 2 |
| 13 | Batteries box holder | l |
| 14 | Screw M5*12L | 8 |
| 15 | Batteries box cover | l |
| 16 | Screw ST3.9*12L | l |
| 17 | Control board B801-D | l |
| 18 | Screw M6*12L | 8 |
| 19 | Fixing plate | l |
| 20 | Screw M8*Pl.25*16L | 4 |
| 21 | Block (Black) | 4 |
| 22 | Fixing plate | l |
| 23 | Screw M8*Pl.25*60L | 2 |
| 24 | Nylon nut M8*7T | 9 |
| 25 | Screw M8*Pl.25*80L | l |
| 26 | C2 Bushing | 12 |
| 27 | Bearing 6000 2ZZ | 6 |
| 28 | Roller | 3 |
| 29 | U shape holder | l |
| 30 | Screw M8*Pl.25*55L | l |
| 31 | Screw M6’Pl.0*35L | 3 |
| 32 | C2 inner bushing 06*08*20L | 3 |
| 33 | Flat washer 06.5*013*1T | 5 |
| 34 | Nylon nut M6*5.5T | 3 |
| 35 | Water tank holder | l |
| 36 | Pull rope | l |
| NO. | PART DESCRIPTION | QTY |
| 37 | Handlebar | l |
| 38 | Screw M5*10L | 18 |
| 39 | Lower pedal cover | 2 |
| 40 | Pedal adjust pad | 2 |
| 41 | Pedal strap 750*25*1T | 2 |
| 42 | Pedal fixing plate | 2 |
| 43 | EVA pad | 2 |
| 44 | End cap | 4 |
| 45 | End cap | l |
| 46 | Lower cover of water tank | l |
| 47 | Washer | l |
| 48 | Upper cover of water tank | l |
| 49 | Block | l |
| 50 | Screw M4*14 3 | 12 |
| 51 | Flat washer cp4.5’cpll*l.5T | 12 |
| 52 | NylonnutM4 | 12 |
| 53 | 0-Washer cp9*cp5*cp2 | 2 |
| 54 | Screw M6*20L | 8 |
| 55 | CH20 Plate | l |
| 56 | Bolt cp6*60 | 2 |
| 57 | Shaft | l |
| 58 | Wave washer 020.5*030*0.3T | l |
| 59 | U80 Bushing | 2 |
| 60 | Pull wheel | l |
| 61 | Strong magnet 015*4 | 3 |
| 62 | Spring | l |
| 63 | Screw M5*10L | l |
| 64 | Plate | l |
| 65 | Locked block | l |
| 66 | Pl06 Insert S41*9.35L | l |
| 67 | One way ratchet HF2016 | l |
| 68 | Bearing 6804 2RS | 2 |
| 69 | Screw M6’16L | 2 |
| 70 | Reinforced plate | l |
| 71 | ScrewM6*12 | 6 |
| 72 | Lower bearing housing | l |
| NO. | PART DESCRIPTION | QTY |
| 73 | CH20 Upper bearing housing | l |
| 74 | Bearing 6004 2RS | 2 |
| 75 | C-shape clasp 018.5’022.5*1T | 2 |
| 76 | Pl06 Sensor bracket | l |
| 77 | Lower sensor of wire | 2 |
| 78 | Screw M5*10L | l |
| 79 | CH20 Plate cpl00*2T | l |
| 80 | CH20 Bearing house | l |
| 81 | Pl06 gasket cp90*cp50*5.3T | l |
| 82 | TC cp32*cp22*7 | l |
| 83 | Semicircle cover | l |
| 84 | Screw M5*16L | 6 |
| 85 | Screw M8’Pl.25*50L | 2 |
| 86 | Flat washer 08.5*016*2T | 19 |
| 87 | Front stabilizer | l |
| 88 | Front Stabilizer end cap (L) | l |
| 89 | Screw ST4.8*12L | 8 |
| 90 | Screw ST3.9’50L | 4 |
| 91 | Inner cover | 2 |
| 92 | Front Stabilizer end cap (R) | l |
| 93 | Block | l |
| 94 | Front holder | l |
| 95 | Cover sheath | l |
| 96 | Round cover | 2 |
| 97 | Upper cover | l |
| 98 | Lower cover | l |
| 99 | Screw ST3.5’16L | 4 |
| 100 | Screw 3/16″*3/4″ | 4 |
| IOI | Handlebar bracket | l |
| 102 | Fixing plate | l |
| 103 | Seat | l |
| 104 | Slider cover | 2 |
| 105 | Flat washer 06.5*016*2T | 4 |
| 106 | Slider | l |
| 107 | Screw M8’30L | 6 |
| 108 | C2 Roller bushing 016’08.2*18.8L | 6 |
| NO. | PART DESCRIPTION | QTY |
| 109 | Lower Roller | 2 |
| 110 | Flat washer 08’014’1T | 6 |
| Ill | Upper Roller | 4 |
| 112 | Screw M8’Pl.25’16L | 10 |
| 113 | P500 Rail 100’54’1300L | l |
| 04 | Support tube 40’80’2T’l296L(90°,45°)pipe | l |
| 115 | Light -strips | l |
| 116 | Upper sensor wires | 2 |
| 07 | Lights cover | l |
| 118 | Screw M5*16L | 7 |
| 119 | Buffering pad | 4 |
| 120 | NutM6 | 4 |
| 121 | Screw M6*75L | 4 |
| 122 | End cap for rail | l |
| 123 | Lower supporting base cover | l |
| 124 | Rear stabilizer | l |
| 125 | Upper supporting base cover | l |
| 126 | Rear stabilizer end cap | 2 |
| 127 | CH20 Water absorption | l |
| 128 | Harpoon wrench 13.14.15 | l |
| 129 | Hexagon wrench 6mm*30mml*84mml | l |
| 130 | Screw M6*20L | 2 |
| 131 | Generator | l |
| 132 | Battery connection wire | l |
| 133 | Belt | l |
| 134 | Screw M8*Pl.25’20L | l |
| 135 | C-shape clasp 012 | 2 |
| 136 | Driving wheel | l |
| 137 | Nylon nut MlO | 5 |
| 138 | Screw M6*16L | 4 |
| 139 | Lighting PCB | l |
| 140 | Screw M5*12L | 8 |
| 141 | Bearing 6901ZZ | 2 |
| 142 | Bushing 012’08.5*65T | 2 |
| 143 | Spring washer 08.1*2.5T | 11 |
