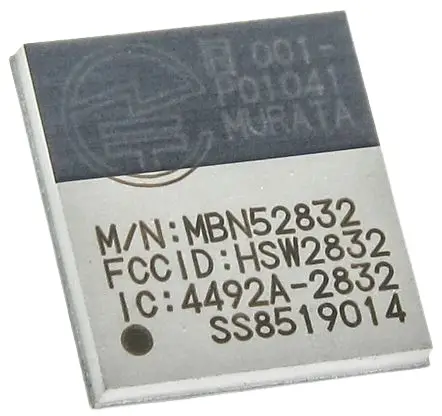

muRata 2DV Bluetooth Low Energy Module
This device is the bluetooth low energy module.
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
- This device complies with part 15 of the FCC Rules. Part 15 Subpart C
- Since there is no space that indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed and must also display a label referring to the enclosed module.
- The modular transmitter is only FCC-authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance with any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.
- The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.
Antenna list.
| Part number | Vendor | Peak Gain(dBi) | Type | Connector |
| Internal Trace Antenna | Murata | +1.0 | λ/4 Monopole | – |
The following information must be indicated on the host device of this module.
- Contains Transmitter Module FCC ID
ID: VPYLBCA1ZZ2DV - Contains FCC ID
ID: VPYLBCA1ZZ2DV
FCC Compliance Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
If it is difficult to describe this statement on the host device due to the size, please describe it in the user’s manual and also either describe it on the device packaging or on a removable label attached to the device.
The following statements must be described on the user manual of the host device of this module
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF energy.
But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from the person’s body.

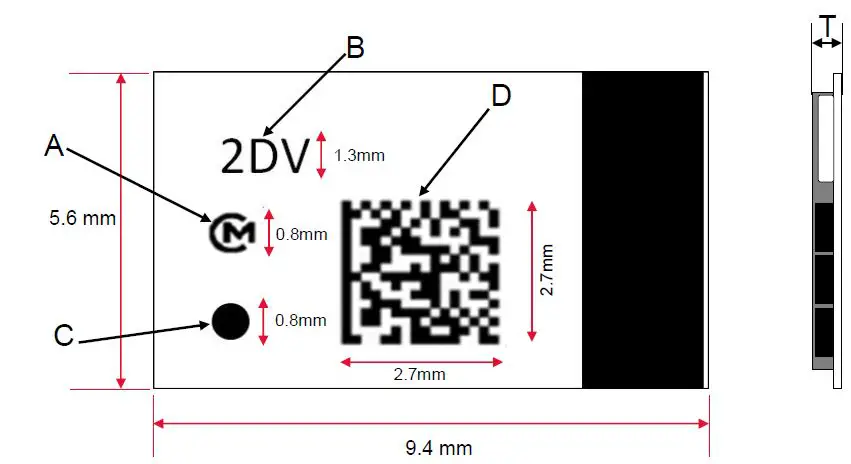

Dimensions, Marking
| marking | Meaning |
| A | Murata Logo |
| B | Module Type |
| C | Pin 1 Marking |
| D | 2D Code |
| Mark | dimensions | Mark | dimensions | Mark | dimensions |
| L | 5.6±0.25 | W | 9.4±0.25 | T | 2.2max |

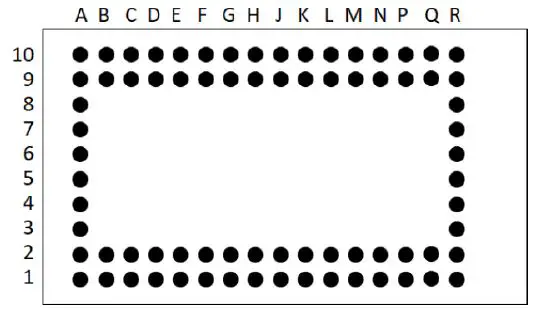

Terminal Configurations
(Top view)
| No | Terminal Name | No | Terminal Name | No | Terminal Name | No | Terminal Name | No | Terminal Name |
| A-1 | GND | C-9 | P1_15 | G-9 | P1_04 | L-9 | P0_31 | Q-9 | GND |
| A-2 | LED_6_P0_28 | C-10 | GND | G-10 | P1_11 | L-10 | P0_11_M33_SWCLK | Q-10 | ANT_OUT |
| A-3 | LED_4_P0_19 | D-1 | P1_13_GPADC_4 | H-1 | P1_12_GPADC_5 | M-1 | P0_09_UART_BOOT_TX | R-1 | GND |
| A-4 | LED_2_P0_21 | D-2 | P1_20 | H-2 | P1_02 | M-2 | P0_26 | R-2 | GND |
| A-5 | LED_1_P0_24 | D-9 | P1_14 | H-9 | P1_04 | M-9 | P0_12_CMAC_SWDIO | R-3 | GND |
| A-6 | LED_5_P0_29 | D-10 | LX | H-10 | P0_02 | M-10 | P0_10_M33_SWDIO | R-4 | GND |
| A-7 | LED_3_P0_20 | E-1 | P1_19_GPADC_7 | J-1 | GND | N-1 | P0_16 | R-5 | GND |
| A-8 | LED_0_P0_13 | E-2 | P1_22 | J-2 | P1_06 | N-2 | P0_07 | R-6 | GND |
| A-9 | GND | E-9 | P1_16 | J-9 | P0_01 | N-9 | GND | R-7 | GND |
| A-10 | GND | E-10 | LY | J-10 | P0_00 | N-10 | GND | R-8 | GND |
| B-1 | USBP_P0_14 | F-1 | P1_09_GPADC_7 | K-1 | P0_08_UART_BOOT_RX | P-1 | P0_06 | R-9 | GND |
| B-2 | LED_7_P0_27 | F-2 | P1_10 | K-2 | P1_00 | P-2 | P0_17 | R-10 | GND |
| B-9 | GND | F-9 | P0_30 | K-9 | P1_03 | P-9 | GND | ||
| B-10 | VBAT | F-10 | P1_17 | K-10 | P1_05 | P-10 | ANT_IN | ||
| C-1 | USBM_P0_15 | G-1 | P1_18_GPADC_6 | L-1 | P0_25_GPADC_1 | Q-1 | ＲＳＴn | ||
| C-2 | P1_21 | G-2 | P1_07 | L-2 | P1_01 | Q-2 | P0_18 |

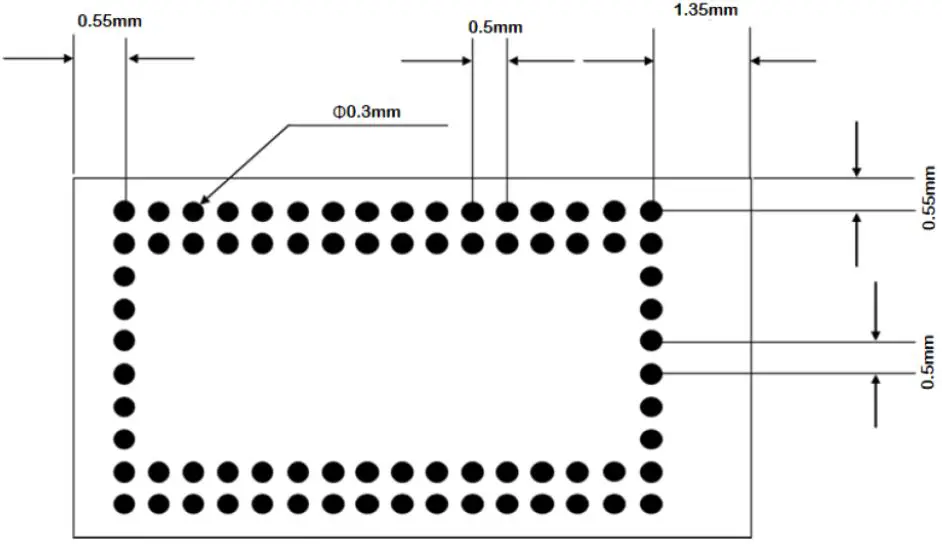

Land Pattern TOP View Recommended

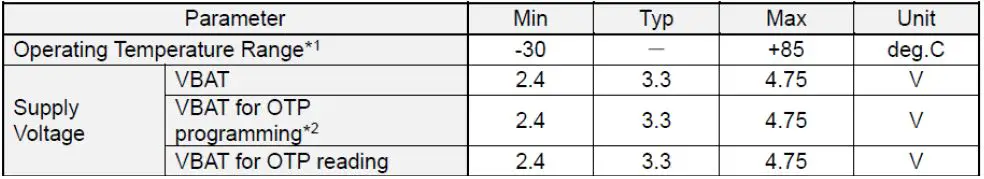

Operating condition
- Please keep derating / margin as much as possible at extreme temperatures.
- The required temperature for programming is between -20°C and 70°C
The output level can be varied by changing the value of the power index within the scope of the application. (power setting: -18, -12, -8, -6, -3, -2, -1, 0, 1.5, 2, 3, 4, 4.5, 5dBm)

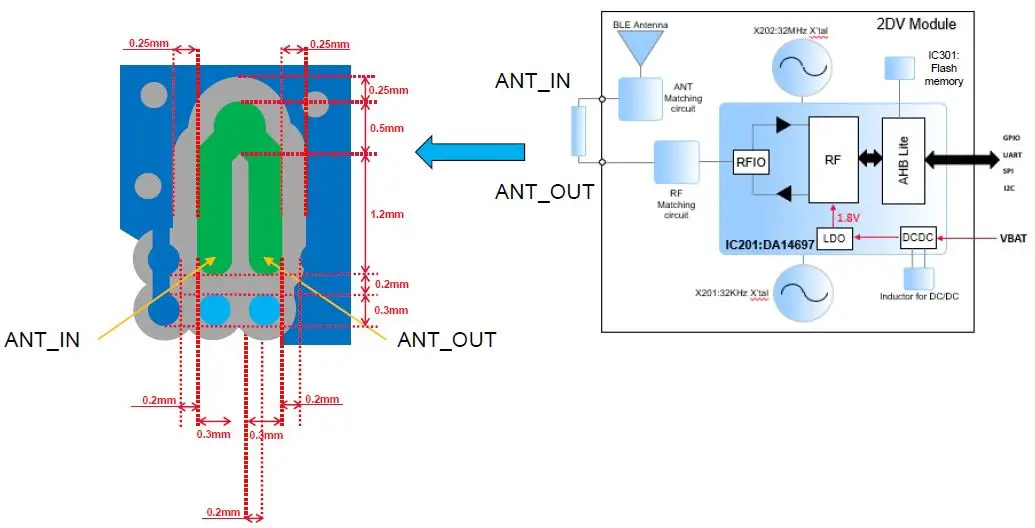

Recommended pattern for antenna part
Recommended pattern (green) between these terminals as follow.
The distance (thickness) between the green pattern and the lower ground is 200 microns. Consideration should be given to changing applications for traces other than the design specified in the manual.
