P960-077 Grid II Mini Pendant Light
Instruction Manual

READ AND SAVE THESE INSTRUCTIONS
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.

HANGING THE FIXTURE

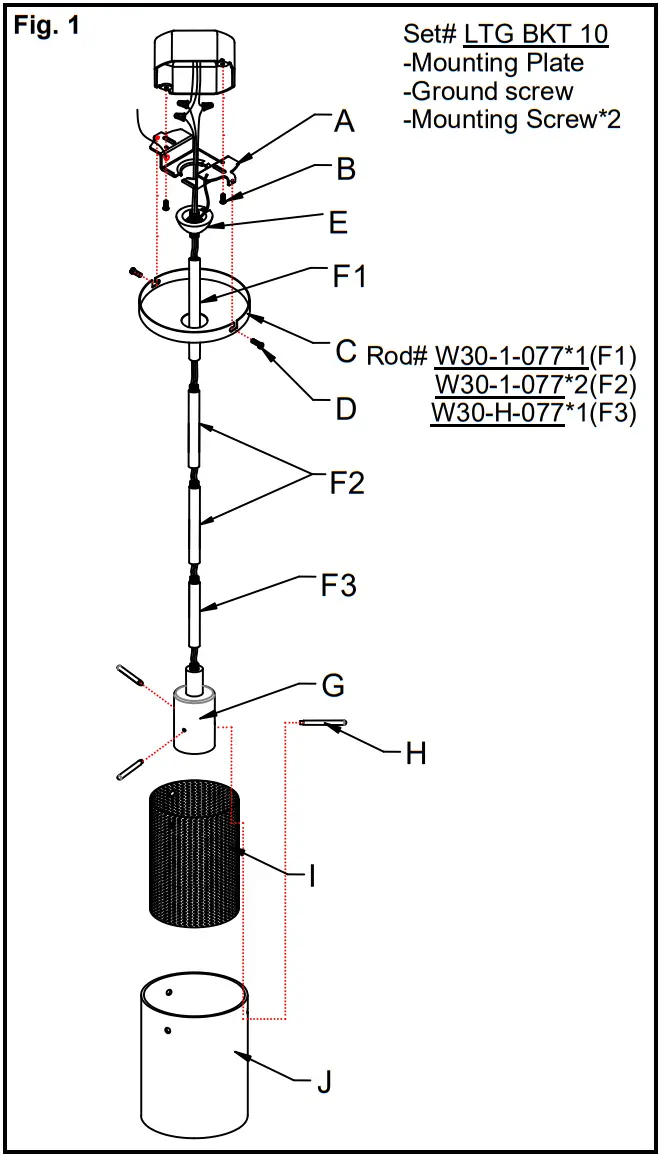

(Fig. 1)

1. Carefully remove the fixture from the carton and check that all parts are included as shown in the illustration.
2. Shut off power at the circuit breaker and remove the old fixture including the mounting hardware.

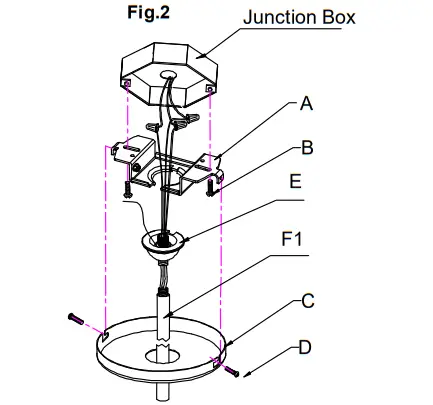

   SUGGESTED INSTALLATION (Fig. 2)
3. Attach the mounting plate (A) to the junction box using screws (B) as shown in Fig. 2.
4. Determine the desired hanging height and thread rods (F1, F2, F3) to the Socket Cup (G). Pass the wires carefully through each rod as you assemble.
5. Place the canopy (C) over the rods (F) and thread the hanger ball (E) to rods (F). Please remove the nipple if installing with one 6” rod only.
6. Install the fixture body into the mounting plate (A) by tilting at a slight angle so that the hanger ball (E) slips into the mounting plate (A) as shown. Align the notch in the hanger ball (E) to the tab on the mounting plate (A) to prevent the fixture from turning.


   CONNECTING THE WIRES

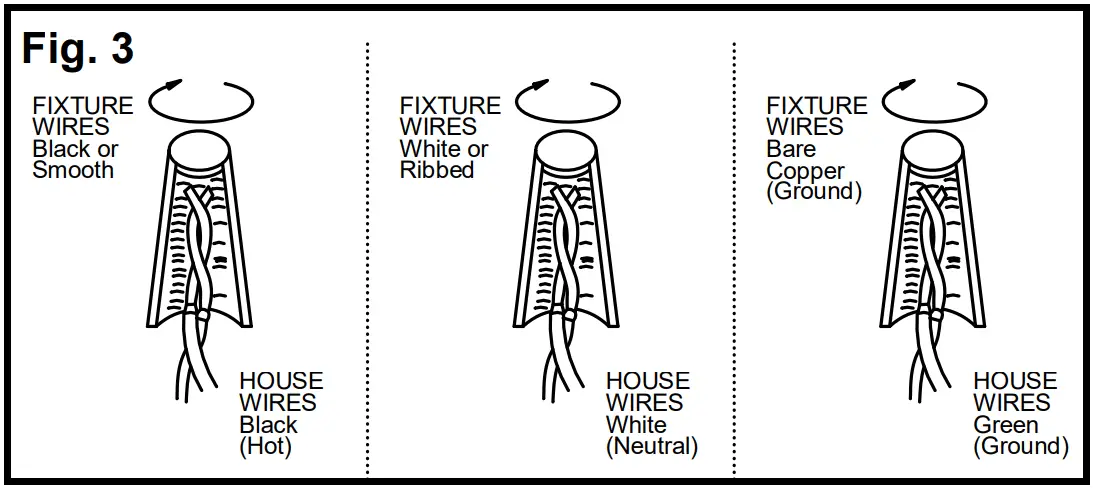

   (Fig. 3)

7. At this point, connect the electrical wires as shown in figure 3, making sure that all wire connectors are secured. If your outlet has a ground wire (green or bare copper), connect the ground wires from the hanger ball and mounting plate to it. Otherwise, connect the ground wire from the hanger ball directly to the mounting plate ground wire and secure with the wire connectors provided. After wires are connected, tuck them carefully into the ceiling junction box.IMPORTANT: FIXTURE SHOULD BE INSTALLED BY A QUALIFIED ELECTRICIAN TO ENSURE PROPER WIRING AND INSTALLATION.


   COMPLETING THE INSTALLATION

   (Fig. 1)

8. Align the canopy (C) over the mounting plate (A) and secure with screws (D).
9. Align the holes on the metal Frame (I) and Glass shade (J) to socket Cup (G), then secure them with studs (H).
10. Install the light bulbs (not included) in accordance with the fixture specifications. (DO NOT EXCEED THE MAXIMUM WATTAGE RATING!)

Your installation is now complete. Return power to the junction box and test the fixture.
Note: Illustration (Fig. 1) on this manual is for installation purposes only. It may or may not be identical to the fixture purchased.

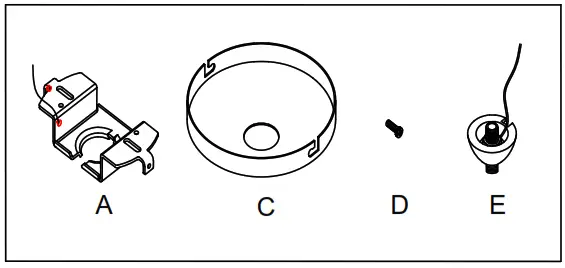

a. Hardware Bag:
A. Mounting Plate*1
C. Canopy*1
D. Screw*2
E. Hanger Ball*1

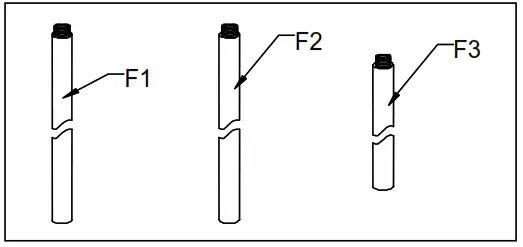

b. Hardware Bag:
F1. ROD 12″*1
F2. ROD 12″*2
F3. ROD 6″*1

LA-2079 E
