Welldana Pza-wtm-s Wall Penetration With Flange Kit Instructions

welldana PZA-WTM-S Wall Penetration with Flange Kit

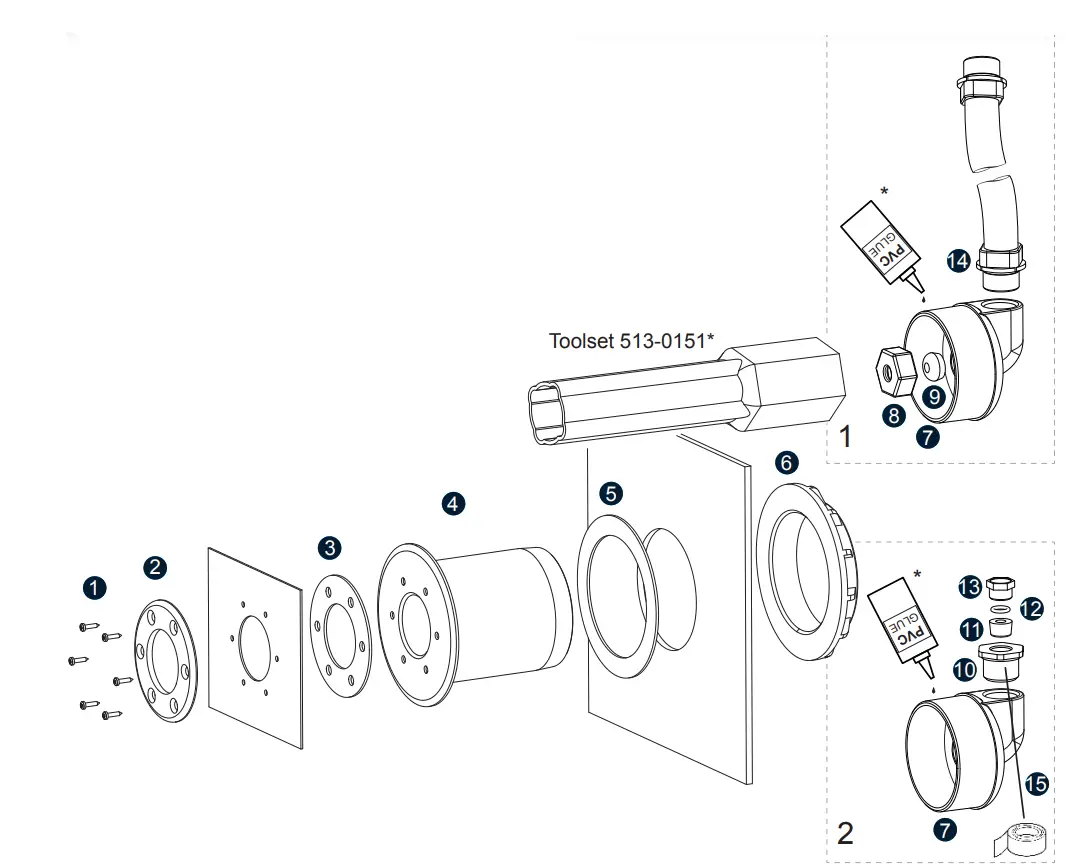

PARTS

1. Screws (6)
2. Liner ring
3. Silicone gasket liner
4. Thinwall wall conduit
5. Silicone gasket wall
6. Wall conduit nut
7. Tail piece
8. Hexagon nut
9. Silicon rubber
10. Plastic nut 1
11. Silicon plug
12. Plastic ring
13. Plastic nut 2
14. Flex tube
15. Apply teflon tape

Glue and tool not included
