welldana PZA-WTM-S Wall Conduits

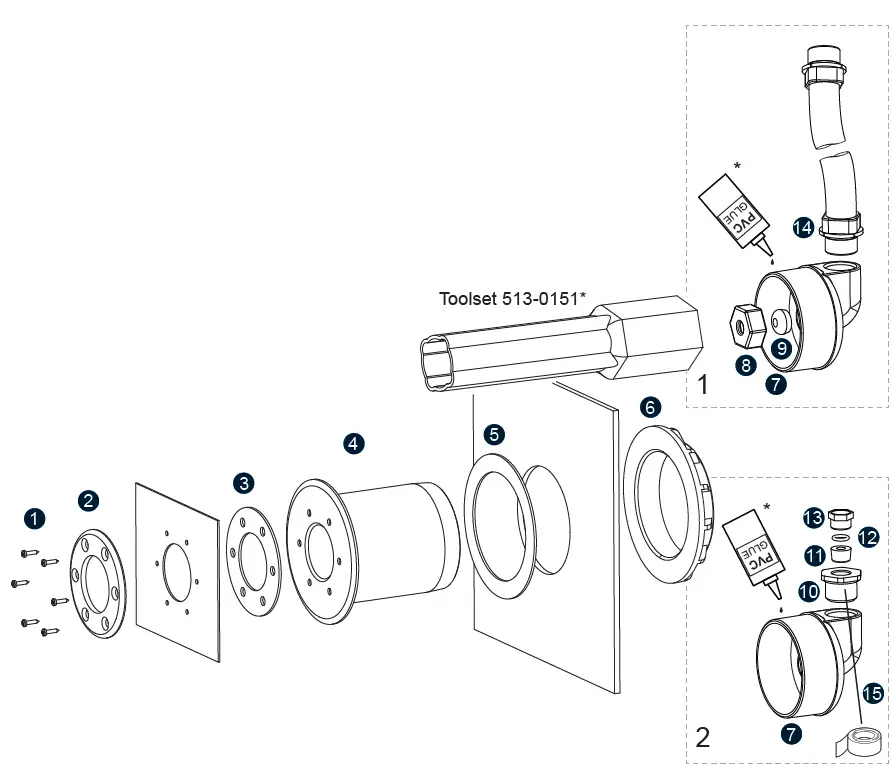

INSTALLATION INSTRUCTIONS

• (*) Glue and tool not included

1. Screws (6)
2. Liner ring
3. Silicone gasket liner
4. Thinwall wall conduit
5. Silicone gasket wall
6. Wall conduit nut
7. Tailpiece
8. Hexagon nut
9. Silicon rubber
10. Plastic nut 1
11. Silicon plug
12. Plastic ring
13. Plastic nut 2
14. Flex tube
15. Apply Teflon tape
