kogan Ultra Low Profile Fixed Wall Mount Installation Guide

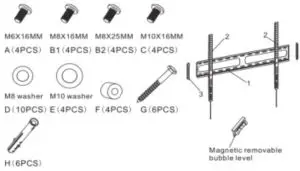

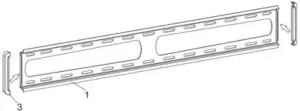

What’s in the Box
Required Tools
You will need a pencil to mark your drill points, a power drill, a tape measure and a phillips head screwdriver.
Installation
- Step 1

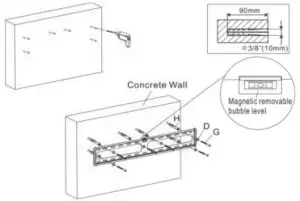

- Step 2A – Solid Concrete Mounting

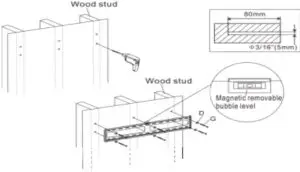

- Step 2B – Wood Stud Mounting

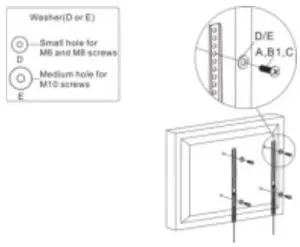

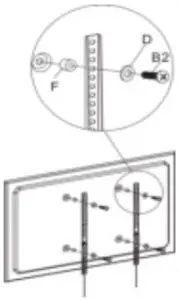

- Step 3A – Attaching Brackets to Screen
For TVs with a Flat Back
For TVs with a curved Back or Obstruction

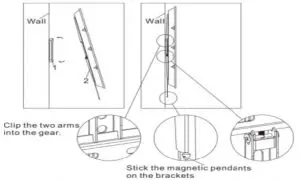

- Step 4 – Hanging TV onto Wall Plate
Press the brackets after you put them onto the wall plate to ensure they lock in position.
Pull the two strings down together to unlock the brackets from the wall plates. You can then take the wall brackets down.
Caution
This product contains small items that could be a choking hazard if swallowed. Keep these items and all packaging away from young children.
- Make sure these instructions are read and completely understood before attempting installation. If you are unsure of any part of this installation, please contact the Kogan.com customer support team or a professional installer.
- The wall or mounting surface must be capable of supporting the combined weight of the mount and the display, otherwise the structure must be reinforced.
- Safety gear, safe working methods and proper tools must be used. A minimum of two people are required for this Installation. Failure to use safety gear and safe working methods may result in property damage, serious injury or death.
- Please check the joints every two months, making sure any loose screws have been retightened.
This product was designed to be installed on wood stud walls or solid concrete walls. Before installation, make sure the wall will support the combined weight of the equipment and hardware. Never exceed the mounts maximum weight load capacity of 60KG, or else it may result in product failure or personal injury.
Note: this product is intended for indoor use only. Use of this product outdoors may lead to product failure or personal injury.
