The Home Depot Bfs.06sq Univ Squ Gas Valve Flange Instruction Manual

The valve is preset at a full BTU rating of 270,000

VALVE SETTING FOR WOOD-BURNING FIREPLACE:

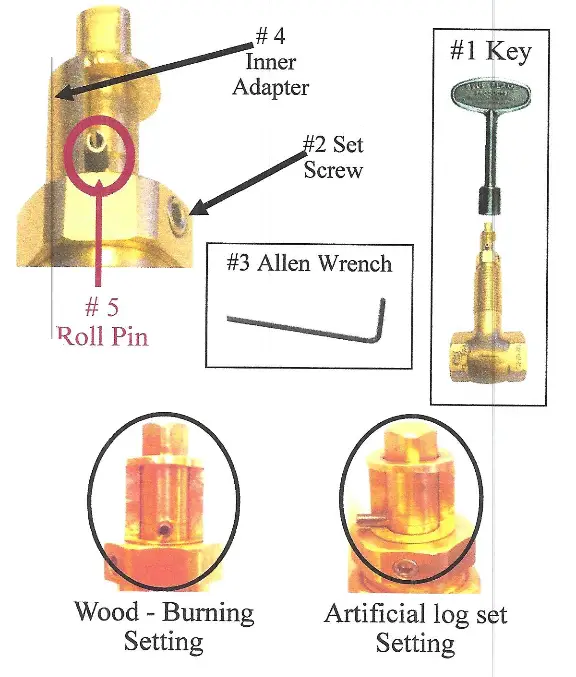

1. Loosen set screw, #2 using Allen Wrench, #3 (included), so the inner adapter, #4 is free.
2. Rotate inner adapter, #4 so the roll pin, #S is in the middle (22,000 Btu/hr-1/4 turn) of the sliced opening of inner adapter #4.
3. Tighten set screw, #2.
4. Once the valve is installed, insert key, #1 and turn counterclockwise

VALVE SETTING FOR SMALL ARTIFICIAL LOG SETS:

1. Loosen the set screw, #2 using Allen Wrench, #3 (included) so the inner adapter, #4 is free.
2. Rotate the inner adapter, #4 counterclockwise, so the roll pin, #5 is at the end (44,000 Btu/hr-1/2 turn) of the sliced opening of the inner adapter, #4.
3. Tighten set screw, #2.
4. Once the valve is installed, insert key, #1 and turn counterclockwise to turn ON and clockwise to turn OFF.

VALVE SETTING FOR FIRE PITS:

1. Loosen the set screw, #2 using Allen Wrench, #3 (included) so the inner adapter, #4 is free for BTU of up to 270,000.
2. Once the valve is installed, insert key, #1 and turn counterclockwise to turn ON and clockwise to turn OFF.

Please note: Each application can vary from fire pit to fire pit, depending on their designs. The valve should be supported and protected from outside elements such as heat, sun, and rain. Installation of the valve should comply with applicable installation codes.

please keep these instructions for future use and future homeowners

www.bluefiarneslore.com
800-321-6566 U.S. Patent 8,282,073
