Dr Pen Ultima M8 Microneedling Pen Professional Wireless Derma Auto Pen Kit User Manual

Dr Pen Ultima M8 Microneedling Pen Professional Wireless Derma Auto Pen Kit

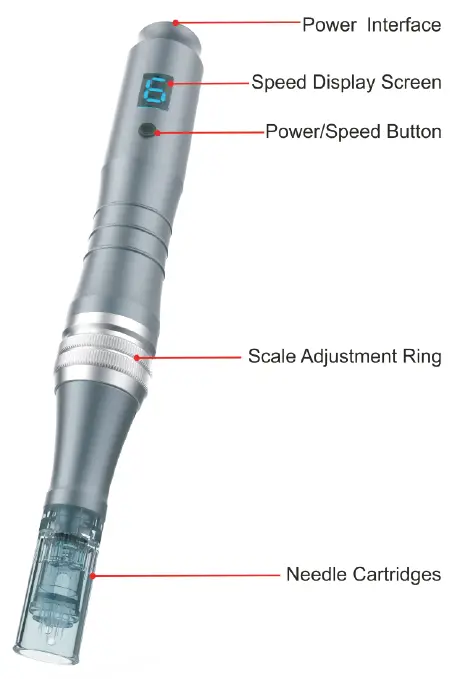

Parts Name

How to operate

Wireless Model: Dr pen M8-W
The instrument used with both built-in battery or AC power

Wired Model: Dr pen M8-C
The instrument used with AC power only

1. Plug in DC adaptor to the jack
2. Plug in DC adaptor to AC outlet
3. To charge the battery:Plug the adapter into an outlet and connect it to the power interface

Preparation

1. Take out needle cartridge in the sterilized packaging
2. Fitting round slot 1 into 2 of machine, push needle cartridge horizontally up to the end.
3. Lock the needle cartridge by turning it to the counterclockwise
4. Turn the needle cartridge clockwise and then push out horizontally if you want to remove it.
5. Start the Dr.pen MB
   Press the power button for 2-3 seconds to start or shut down the device

Attention
In order to protect the instrument well,do not invert the instrument to prevent the liquid backflow

Adjustment of needle length
Adjust the depth of needle by turni ng the scale adjustment ring Turn it clockwise.needle depth will be shorter Turn it counterclockwise,needle depth will be longer

Speed Display

6 Speeds Adjustment
The pen starts from low to high speed The speed changes once each time you press the button

Needle cartridge introduction

Specification

Product name:
Auto-stamp Motorized Meso Machine

• Model name: Dr pen MB
• Adapter: 5V-1000mA
• Package Weight: 312g
• Package Size: 169*123*56mm

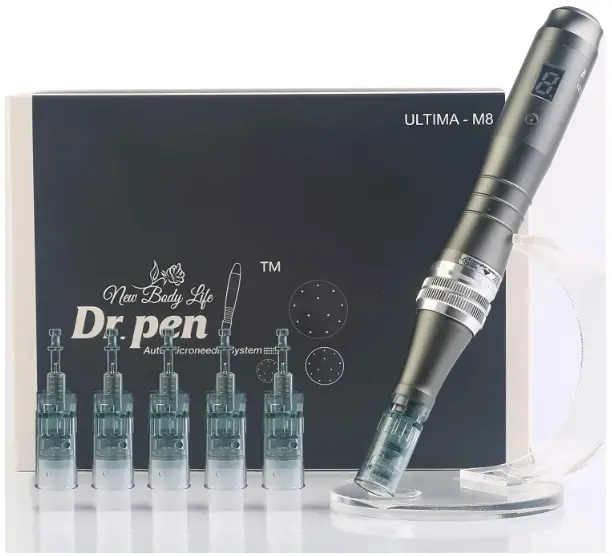

Packing List

• Hand Piece 1 pc
• Adapter 1 pc
• Manual 1 pc
• Power Cable 1 pc
• Needle Cartridge 2 pcs

Warranty

The warranty period of Dr pen MS is 6 month s. We offer repair to our products from the day they are purchased. If any of our products has damages or natural trouble. We offer repair or replacements

General maintenance
Make sure to inspect the device and adapter before use Keep it with its power off. Wipe its surface out with a dry cloth Keep it away from direct sunlight or high tem perature and humidity Do not leave the measurement, repair or alter of the device to non-professional st aff When you use the device which has not been used for a long time, make sure to check if it works properly with safety
