MuxLab 100500 HDMI 1X2 Splitter
Overview
The HDMI 1×2 Splitter (100500) allows one (1) HDMI source to be distributed to up to two (2) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit color and HD audio. The splitter is HDCP 1.3 compliant and features LED diagnostics. Additionally, all HDMI connectors are on the rear panel for neater cabling. Applications include; commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.
Pre-Installation Check

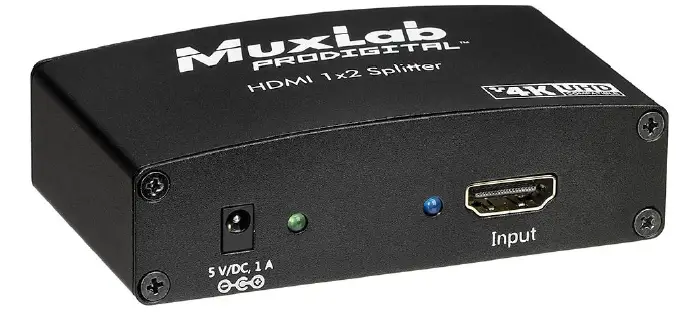

Identify the connectors as indicated on the product
Installation
In order to install the HDMI 1X2 Splitter, please follow the steps below:
- Connect the HDMI video source to the input connector of the splitter.
- Connect the HDMI display equipment(s) to output connector of the splitter.
- Connect the 5 VDC power supply to the splitter first, and then plug the power supply into an AC power outlet.
- Power on the HDMI equipment and verify the image quality.
- The following diagram shows the final configuration.
Troubleshooting
The following tables describe some of the symptoms, probable causes and possible solutions in respect to the installation of the HDMI 1X2 Splitter. If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
| Picture/ Sound | Probable Cause | Possible Solution |
| No Image | Wiring | Check continuity Check correct wiring |
| No Image | Synchronization | Power off the source and the display. Power on the devices. |
| Flickering Image | Synchronization | Check HDMI cable length |
| Choppy Sound | Synchronization | Check HDMI cable length |
| Noise in image | Weak signal | Check HDMI cable length |
| Green or pink hue | Cable | Check HDMI cables and replace. |
Specifications
| Environment | HDMI 1.4 (3D) |
| Devices | DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops |
| Transmission | Transparent to the user |
| Frequency | 25 to 340 MHz |
| Signals | HDMI 1.4 protocol |
| Connectors | HDMI receptacle. |
| LEDs | Power: Green Input & Output Link: Blue |
| Resolution | 480i to 1080p @ 50/60 FPS 1080p @ 24/50/60 FPS 3840 X 2160 @ 24/25/30 FPS VGA to UXGA |
| Color | 8, 10 & 12 bit |
| Audio | LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio |
| HDCP | Revision 1.3 |
| Cable | HDMI Cable |
| Power Supply | 5VDC, 1A, P/N: BI12T-050100I |
| Temperature | Operating: 0° to 40°C Storage: -20° to 60°C Humidity: up to 90% non-condensing |
| Enclosure | Metal enclosure |
| Dimensions | 3.50” x 2.00” x 1.00” 89 mm x 51 mm x 25 mm) |
| Weight | 0.8 lbs (0.36 Kg) |
| Compliance | Regulatory: FCC, CE, RoHS |
| Warranty | 1 year |
| Order Information | 100500 HDMI 1X2 Splitter, UHD-4K (UPC: 627699505007) |
