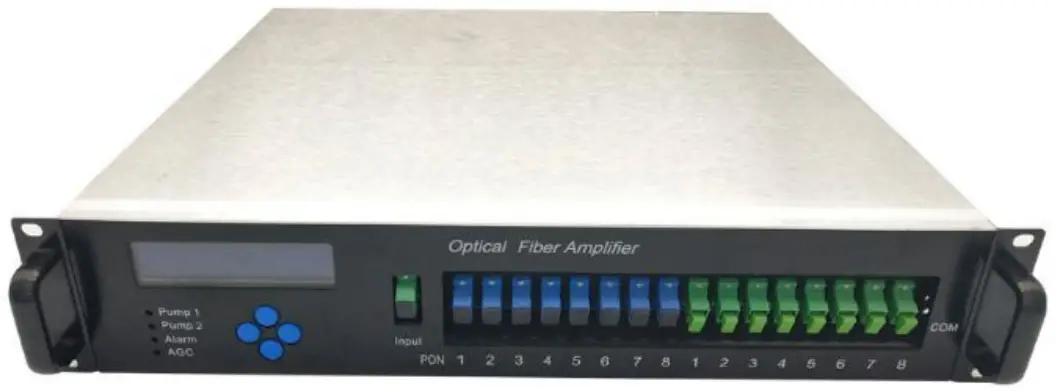

High Power EDFA for FTTH / FTTB
1550nm EDFA
(power supply:48VDC/110VAC/220VAC)
Operating Manual
High power amplifier

Using Safety Precautions

Before installing and using this product, please read the following carefully. The Company does not assume any responsibility for any loss due to security breaches caused.
Lasers and erbium-doped fiber amplifier output power laser radiation is not visible, can not look directly at the device connector end when it works to avoid burning eyes and skin.
Equipment includes precision optics, in order to avoid damage to the severe impact of its constitution, please avoid excessive vibration and impact. Pigtail easily sacrificed, so be careful.
Equipment containing electrostatic sensitive devices, handle it carefully and make sure the ground is good, the power supply is normal.
Attention of optic fiber end face:

1. Before using, please be sure to keep the input and output end face of the optic fiber clean, especially if the output end face is dirt, then it is easy to make the output end face burned and the output power will be decreasing. When cleaning the optical fiber end face or insert patch cords, please turn off the input light first.
2. The correct order of plugging optical port is:
   Inserting: first insert optical patch cord of output port, then insert optical patch cord of input port.
   Pulling out: first pull optical patch cord of input port, then pull optical patch cord of output port.
3. This kind amplifier is a high precision and high stability product, in order to have high stability output power, please use optical patch cord with good quality and which connectors are match with the device to connect with the output port. In principle, the optical patch cord should be as short as possible, and do not let it voluntary movement.

If there are any questions, please contact our company. Do not disassemble the module, otherwise it will cause irreparable damage

Application

• Analog CATV Transmission
• FTTH Optical Access
• Optical Distribution
• Free Space Optical
• R&D and Training

Feature

• High Power：Up to 2W total，1 Unit for 2000～4000 optical node
• Low Noise Figure：Below 5.5dB ( +5dBm input)
• Er Yb co-doped DCF Amplify Technology：Patent Pump Dump Technology
• Low CSO: ＜-70dBc
• 23dBm×N，20dBm×N or 17dBm×N output is optional
• Controllability and maneuverability: Dual CPU to deal Control loop and Communication separately
• High Stability And Reliability：MTTF＞150000 Hours
• Redundancy Hot Swap power module: 110/220VAC and 48VDC can plug Mix
• Perfect Network Interface：Ethernet
• Intelligent Temperature Control System: using a dedicated Temperature control chip which make cooling and power loss reduce 30% than competitors
• Integrated 1310nm，1490nm，1550nm WDM (Optional)
• OEM, Module is available

Description
The product is high output power C-Band Er-Yb co-doped double cladding optical fiber amplifier.
The key components of the product are high reliability multimode PUMP laser and the double cladding optical fiber. A proprietary ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuit insures the high stability and reliability output power, the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and display are intelligent and easy.
This amplifier employ double cladding Erbium Ytterbium co-doped fiber, and employ the high power multimode pump, with a 10 times Conversion efficiency higher than the single mode general technology, and therefore have a lower relative cost and more compact size and lower power consumption, in particular, for FTTH or FTTB or other large distribution system applications.
Employ intelligent temperature control system: (1)Adopt special temperature control circuit，heat radiating and power consumption can be reduced 30%, (2)The professional air flow design can also ensure the best temperature stability, at the same time powerful fan will start when the case temperature is over 45 , meanwhile it will stop as the temperature is under 40 .The technology makes sure the thermal stability of system and fan’s long life. Intelligent network management system. Perfectly network interface: Ethernet network，and the open network management interface ensure the connectivity with all other network management system.
These products are widely used in CATV transmission system and the high power distributing system FTTH requirement. It can be used for CATV analog/digital signal distribution, or match with PON system to construction the triple network integration. (Triple wavelength WDM is optional)

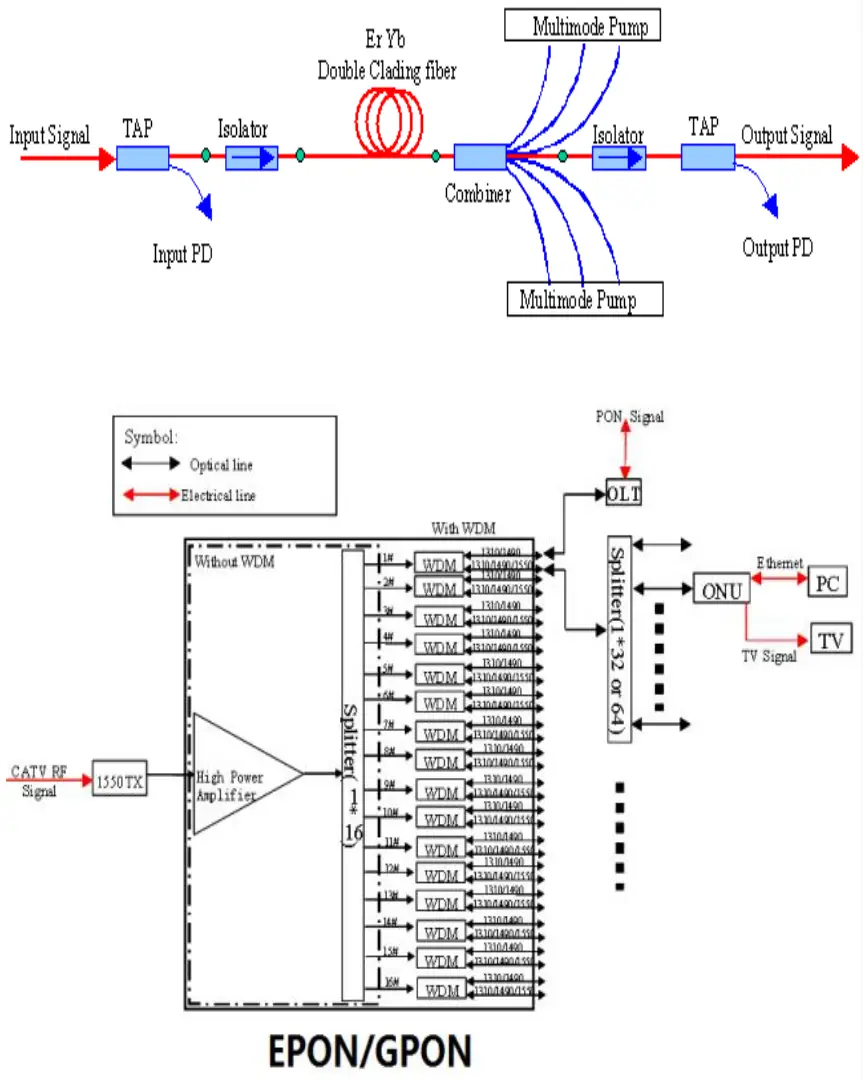

Block Diagram

Optical characteristics

Note 1：Optional
Note 2：Tested at +5dBm Input
Environmental characteristics

Note: No Condensate
Electrical Characteristics

1: 110VAC，220VAC and -48VDC is optional, and duplicate supply is optional.

Starting up

Before starting up, Please check the input voltage to the rated input voltage, grounding is good.
The product adopts independent 220 VAC power supply.
Equipment Powered Instructions
Special Note:

1. The power module must be properly inserted in the device, so it can be supplied power.
2. Do not insert the charged power module into the device directly.

LED/ Key Description
key ： Upper button. Press this button can check each parameter of products from bottom to top.
key ： Down button. Press this button can check each parameter of products from top to bottom.
key ： Menu button. Press it can enter the menu.
key ： Return button. Press it can return to the standby screen。

Display Menu Description

1. Display device start up process when power on：
   High Power Amplifier
2. Press the Menu button to display products model：
   MODEL : EDFA 1550
3. Press the down button to display internal temperature：
   INTERNAL TEMP **℃
4. Press the down button to display the current of pump 1：
   LD1 CURRENT ***MA
5. Press the down key to display the cooling current of pump 1：
   TEC1 CURRENT ***MA
6. Press the down button to display the current of pump 2：
   LD2 CURRENT *.* A
7. Press the down button to display the temperature of pump 2：
   LD2 COOLER **.* ℃
8. Press the down button to display the operating current of pump 3：
   LD3 Current *.* A
9. Press the down button to display the temperature of pump tube 3:
   LD3 COOLER **.*℃
10. Press the down button to display input optical power:
    Input *.**mW *.*dBm
11. Press the down button to display output optical power:
    OUTPUT ***MW **.*DBM
12. Press the down button to display working status:
    AGC   Conerol        ***
    In this screen, press the Menu button to display “ON” opens AGC function . If a high-power pump is damage, the other pump will increase the pumping power automatically to maintain the stability of output power. Press the Return key to display “OFF”, this function is off.
13. Press the down button to display the status of the pump:
    PUMP CONTROL **

In this screen, press the Menu button to display “ON” pump working.
Press the Return key to display “OFF” pumped off.
Indicator

• Pump1： Pump 1 indicator off is normal, pump 1 flashing is alarming.
• Pump2： Pump 2 indicator off is normal, pump 2 flashing is alarming.
• Alarm： Alarm Indicator: input and output light turns red when alarming.
• AGC ： When the AGC function is turned on the light turns green.

Interface

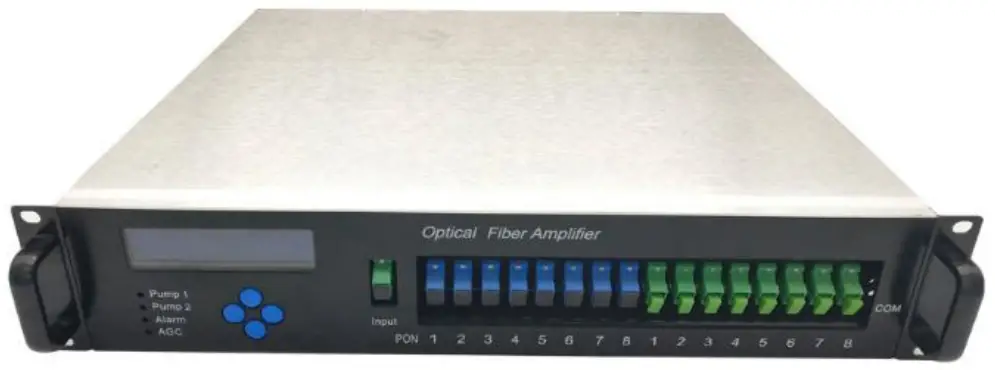

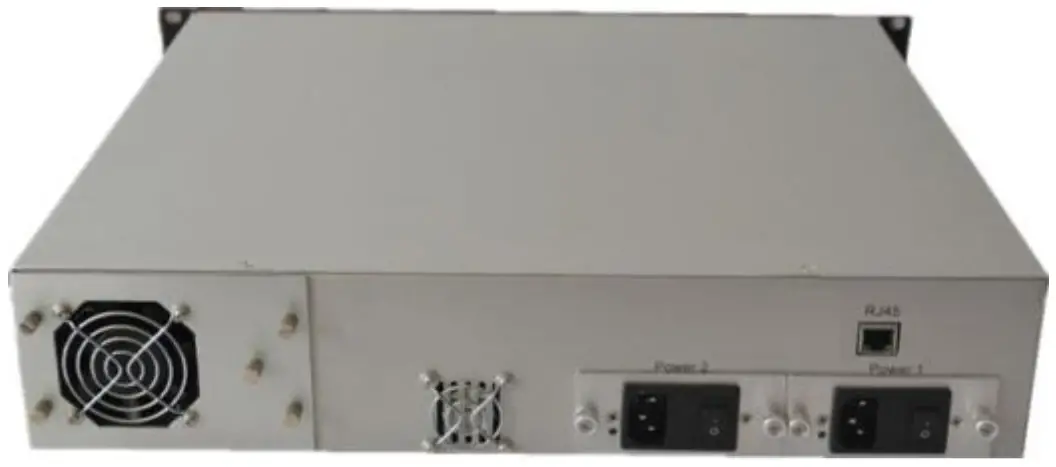

Front-Panel	Back-Panel

Connectors

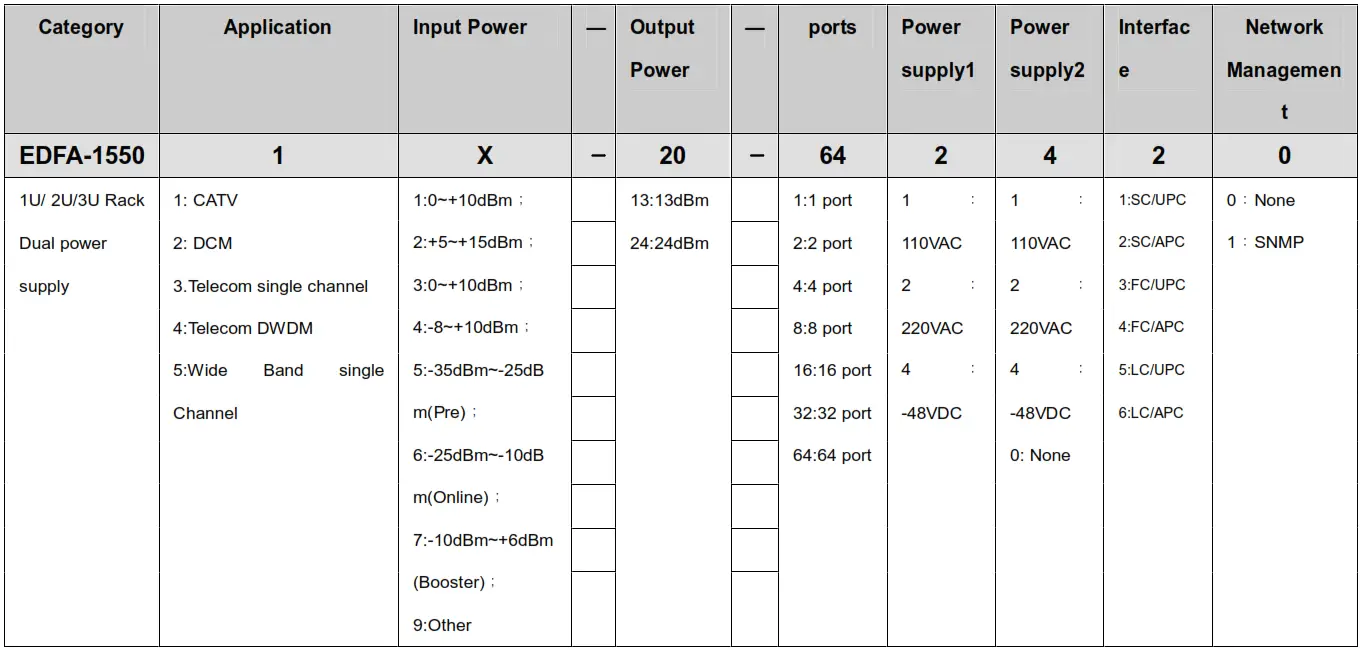

Order Information

Note 1：EDFA-1550 for 1U rack，Maxim ports number： 16（w/ WDM），or 32（w/o WDM）
Note 2：High End configure with SNMP Net management.
Note 3: 2U and 3U rack maxim 64 port with WDM

Laser Safety Information

Class IV laser products.
9μm/125μm single-mode fiber pigtail with connector.
Wavelength=0.90~1.68μm
Maximum Power=10W
