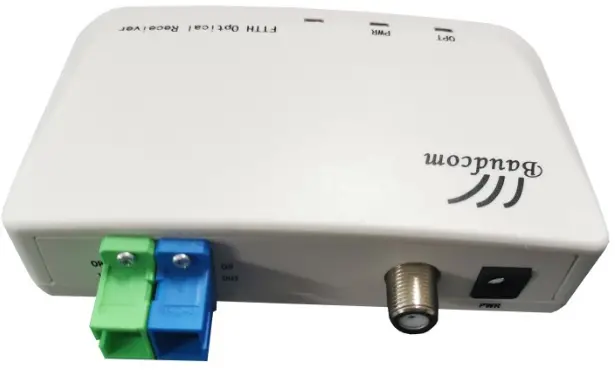

Baudcom BD-OR-SAT-F FTTH WDM Optical Receiver

Introduction

Fiber to the home ( FTTH ) broadband access is the ultimate development goal, BD-OR-SAT-F optical receiver is the target terminal products for this goal. BD-OR-SAT-F device adopts technology of high isolation WDM in order to separate CATV and ONU signal. Further more, it also adopts low optical power receiving and RF-AGC control technique, which could achieve the requirement of ≤-12dBm CATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly , convenience of customers use, which is the ideal receiver equipment for FTTH.

Main Performance Parameters

Item		Unit	Performance Parameter
Optical charact eristic	input wavelength	(nm)	1310/1490,1550
	Output wavelength	(nm)	1310/1490
	operation wavelength	(nm)	1540～1650
	channel separation	(dB)	≥40（1310/1490nm and 1550nm )
	response	(A/W)	≥0.9
	receive power range	(dBm)	+2～-15

	reflection loss	(dB)	≥55
	fiber linker	/	SC/APC
	PON linker	/	SC/UPC
RF charact eristic	Bandwidth/ flatness	MHz/dB	47-1000/≤±1
	output level	dBuv	82±1.5(AGC: -2～-12dBm)
	reflection loss	dB	≥14（75Ω characteristic impedance）
	RF output interface	/	Inch (one way output)
	CNR/MER	dB	≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
	CTB/CSO/HUM	dB	≥65/≥60/≥60(-1dBm receive)
Other require ment	power supply/consum ption	V/W	External AC90～255V→DC5/2
	working/storage temperature	℃	-35～50/-40～75(humidity 5～ 90%)
	size	mm	95×92×23

Direction for Use

Power Input

POWER IN：BD-OR-SAT-F is the external power supply input port, First should be the DC+5 V external voltage stabilizer output line connected to the device POWER IN,than put DC+5V external mano-stat insert 100/240 V,DC5V Face posted power light, show power part is regularly working.

Optical Fiber Input

OPTICAL IN：BD-OR-SAT-F is input interface of optical signal,in optical access should clean APC TOP by alcohol ,than align adapter sunken mouth, fiber mouth march link; when the light receiving power is larger than +2dBm, the yellow indicator lights on, to show the optical signal is too high;when the light receiving power is less than -15dBm, the red indicator lights on, to show the optical signal is too small;if the light receiving power is in the range of +2 ~ -15dBm, the green indicator lights on,to show the optical signal is receiving normally. PON：PON port connect next to ONU，please don’t take off the port cover when no use.

Install Test Matter Need Attention

BD-OR-SAT-F device is indoor type structure,Not to be used in place of harassment by the rain;Packed in the box of the indoor appropriate space,For cooling;The output of the cable shielding network must be grounded,Grounding resistance should be less than 4Ω,The local power supply for electrical shell has to be grounded,Above ground resistance. Tail fiber input and output cable has to be reserved certain use, BD-OR-SAT-F device is with SC/APC,PON link with SC/UPC.
