Optical Single or Dual Triple Receiver
User Manual

Contents hide

1 4011 Optical Single or Dual or Triple Receiver

2 INTRODUCTION

3 INSTALLATION OF THE HARDWARE

4 TECHNICAL SPECIFICATIONS

5 SAFETY INSTRUCTIONS

6 Maintenance

7 CONDITIONS OF WARRANTY

8 Documents / Resources

8.1 References

9 Related Posts

4011 Optical Single or Dual or Triple Receiver

Ref. 4011 – 4012 – 4013

No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission.
Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time.
Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. 8/20
© Unitron NV – Frankrijklaan 27 – B-8970 Poperinge – Belgium
T +32 57 33 33 63 F +32 57 33 45 24
[email protected]
www.unitrongroup.com

INTRODUCTION

Product Description
The optical receiver is developed for the transmission of broadband signals in medium and large Fiber Optic systems. The Optical receiver can convert one, two or three wavelengths. Ref. 4011 (Optical Single Receiver) converts 1550 nm to Satellite or Terrestrial signal. Ref. 4012 (Optical Dual Receiver) converts 1310 + 1330 nm to wideband V/H; ef. 4013 (Optical Triple Receiver) converts 1310 + 1330 + 1550 nm to wideband V/H and Terrestrial signal.

optical input level: -15 to +4 dBm
frequency range: 5 – 2400 MHz
high reception quality even with high split ratios
powering via V or H output (12V – 20V)
AGC to boost signal level
optical wavelengths: 1310nm (V), 1330nm (H), 1550nm (T)
compatible with Johansson wideband Multiswitches
(e.g. 9775, 9754, 9758, 9734, etc.) with double F male adaptors
or jumper cables
up to 128 passive splits

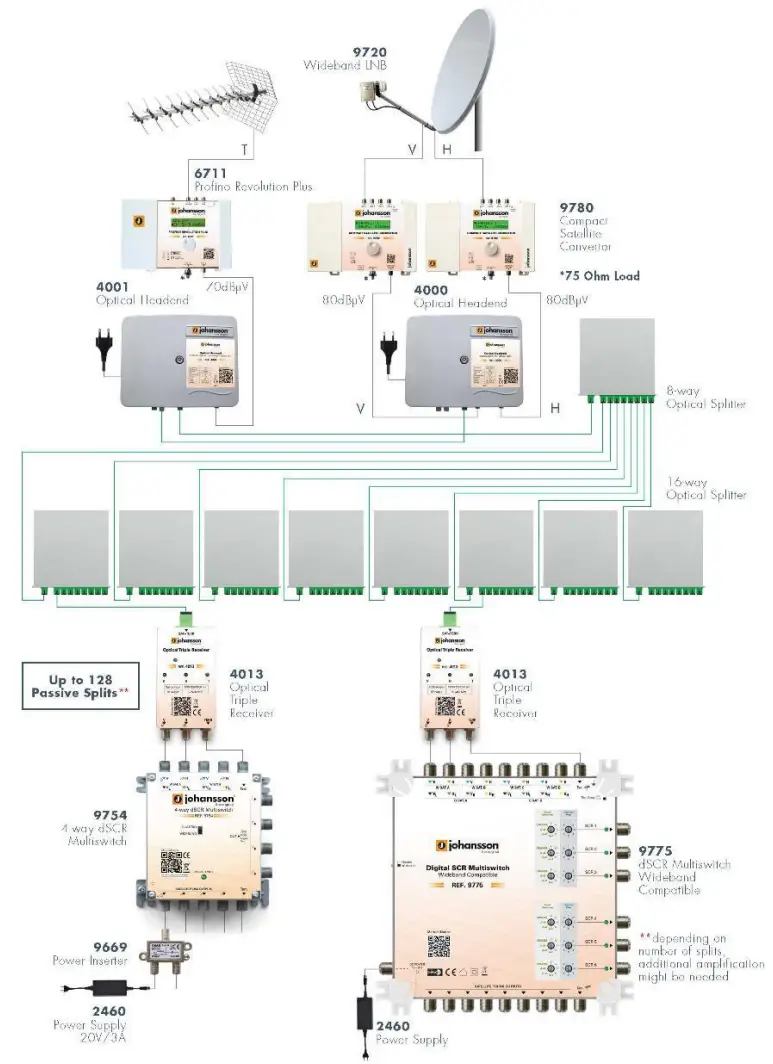

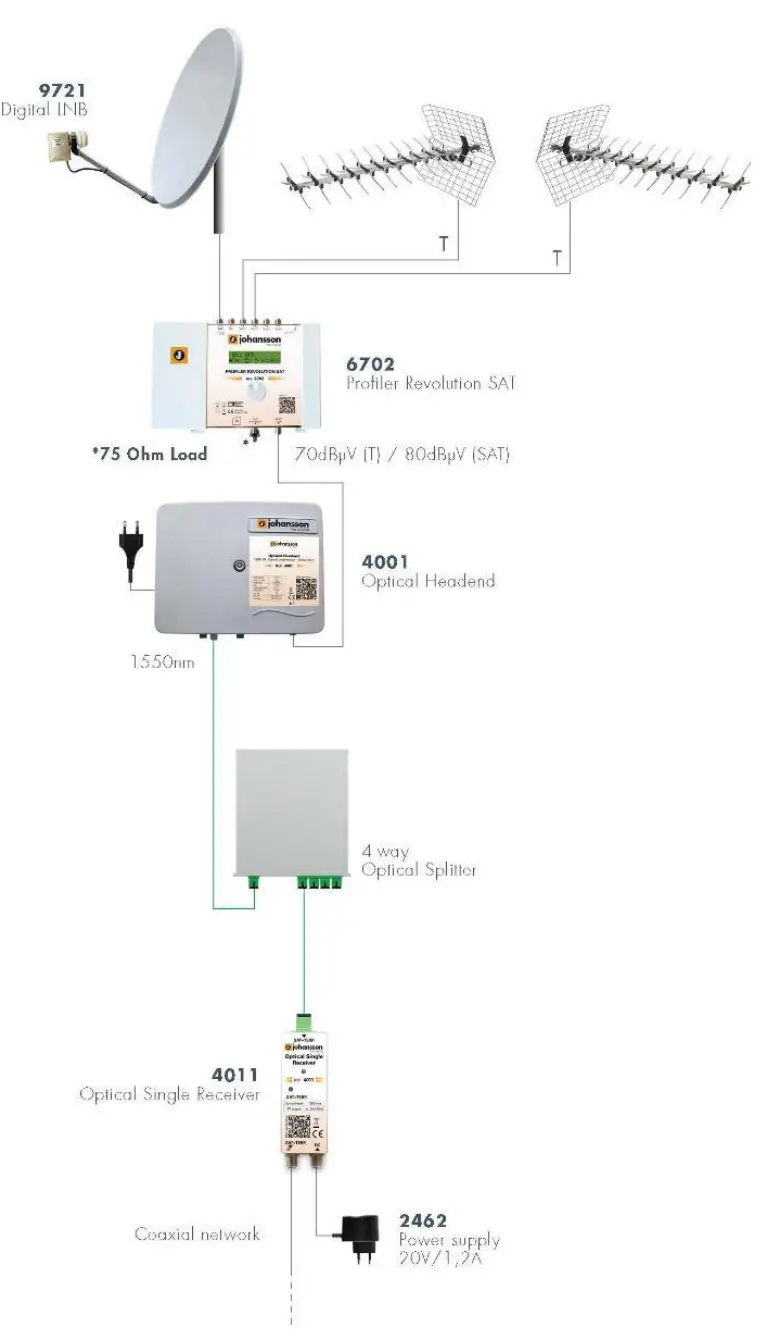

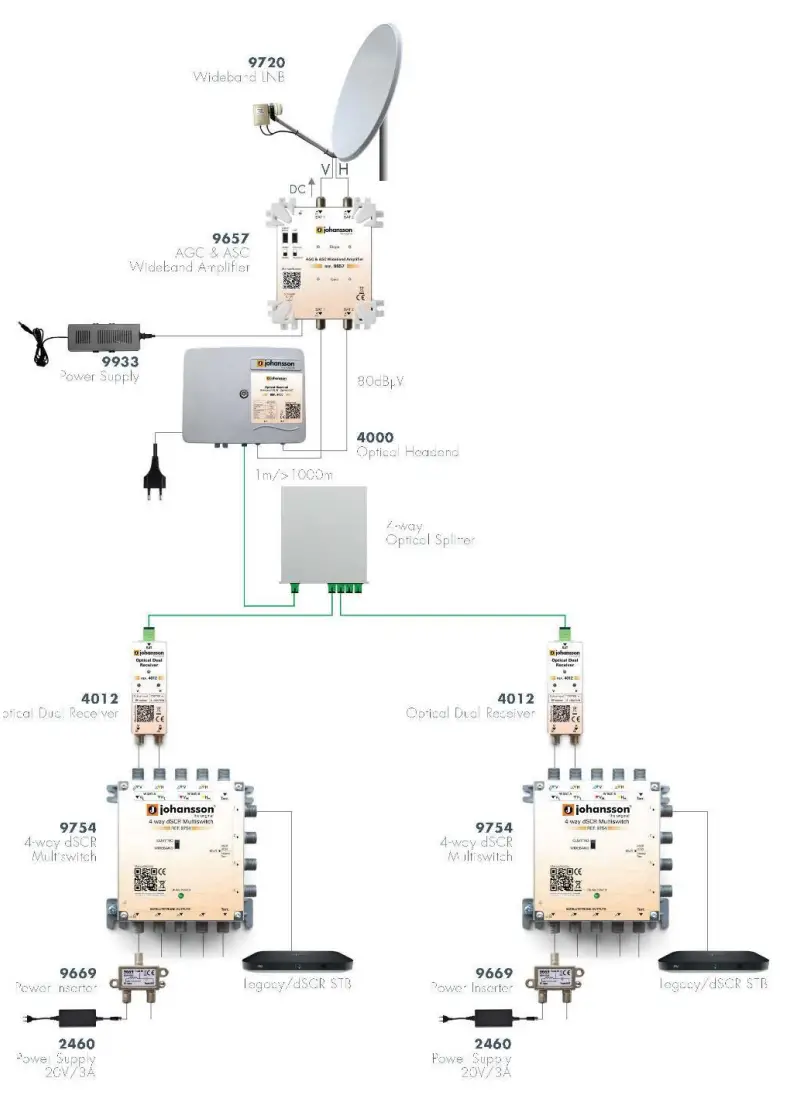

INSTALLATION OF THE HARDWARE

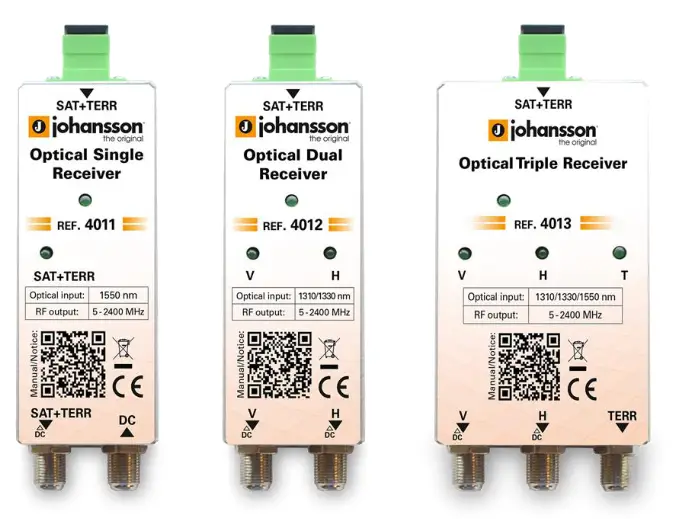

Optical Single/Dual/Triple Receiver (Ref. 4011 – 4012 – 4013)

TECHNICAL SPECIFICATIONS

		4011	4012	4013
Optical inputs	–	1
RF outputs*	–	1	2	3
Optical wavelength	nm	1550	1310 1330	1310 1330 1550
Frequency range TER	MHz	–	–	5 – 1008
Frequency range SAT	MHz	5 – 2400
Optical input level	dBm	– 15 to +4
AGC RF output level	dBµV	80
Signal indicator	–	Green LED per wavelength
Return loss	dB	10
Optical connector	–	SC/APC
RF connectors	–	75 Ohm F type (Female)
Power consumption	W	1	2	3
Power supply	VDC	12 – 20 (via DC port)	12 – 20 (via V or H port)
Power indicator	–	Green LED
Operating temperature range	°C	-20 to +55
Dimensions	mm	36 x 45 x125	36 x 45 x125	56 x 45 x125
Weight	kg	0.110	0.110	0.165

* Unused ports need to be terminated with 75 Ohm DC-blocked terminator

SAFETY INSTRUCTIONS

Read these instructions carefully before connecting the unit.
To prevent fire, short circuit, or shock hazards:

Do not expose the unit to rain or moisture.
Install the unit in a dry location without infiltration or condensation of water.
Do not expose it to dripping or splashing.
Do not place objects filled with liquids, such as vases, on the apparatus.
If any liquid should accidentally falls into the cabinet, disconnect the power plug.

To avoid any risk of overheating:

Install the unit in a well aery location and keep a minimum distance of 15 cm around the apparatus for sufficient ventilation
Do not place any items such as newspapers, tablecloths, or curtains, on the unit that might cover the ventilation holes.
Do not place any naked flame sources, such as lighted candles, on the apparatus
Do not install the product in a dusty place
Use the apparatus only in moderate climates (not in tropical climates)
Respect the minimum and maximum temperature specifications

To avoid any risk of electrical shocks:

Connect apparatus only to socket with protective earth connection.
The mains plug shall remain readily operable
Pull out the power plug to make the different connections of cables
To avoid electrical shock, do not open the housing of the adapter.

Maintenance

Only use a dry soft cloth to clean the cabinet.
Do not use solvent
For repairing and servicing refer to qualified personnel.
Dispose of according to your local authority’s recycling processes.

CONDITIONS OF WARRANTY

Unitron N.V. warrants the product as being free from defects in material and workmanship for a period of 24 months starting from the date of production indicated on it. See note below. If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation.
THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN MATERIAL AND WORKMANSHIP AND DOES NOT COVER DAMAGE RESULTING FROM:

Misuse or use of the product out of its specifications,
Installation or use in a manner inconsistent with the technical or safety standards in force in the country where the product is used,
Use of non-suitable accessories (power supply, adapters…),
installation in a defective system,
External causes beyond the control of Unitron N.V. such as drops, accidents, lightning, water, ﬁre, improper ventilation…

THE WARRANTY IS NOT APPLIED IF

The production date or serial number on the product is illegible, altered, deleted or removed.
The product has been opened or repaired by a non-authorized person.

NOTE
The date of production can be found in the product’s serial number code. The format will either be “YEAR W WEEK” (e.g., 2017W32 = year 2017 week 32) or “YYWW” (e.g., 1732 = year 2017 week 32).
