ThinkSystem Ethernet Adapter Reference
Reference Information
Lenovo offers a broad range of Ethernet adapters from the industry’s leading suppliers. We also offer adapters in a wide range of form factors to take advantage of the capabilities of our servers.

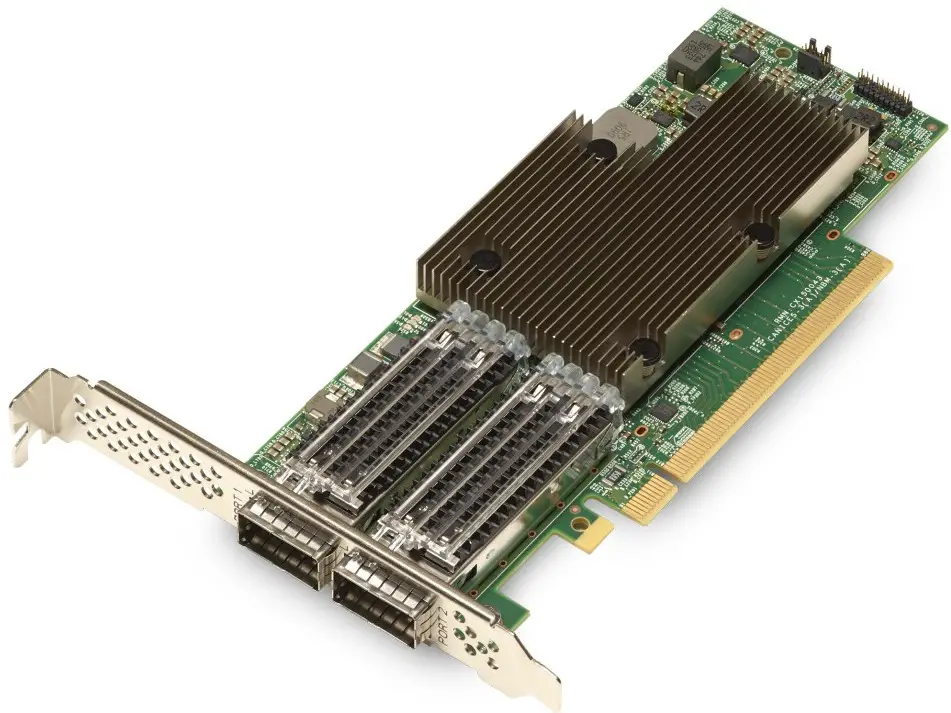

Figure 1. ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter
This document presents a list of all Ethernet adapters currently offered for the ThinkSystem server portfolio and the servers that are supported by each adapter.
For details about these adapters, including technical specifications and operating system support, see the relevant product guides:
https://lenovopress.com/servers/options/ethernet#resource_type=product-guide
PCIe adapters
This section lists the available PCIe adapters:
- PCIe – Gigabit Ethernet
- PCIe – 10Gb Ethernet – 10GBASE-T
- PCIe – 10Gb Ethernet – SFP+
- PCIe – 25Gb Ethernet
- PCIe – 40Gb Ethernet and InfiniBand VPI
- PCIe – 100Gb Ethernet and InfiniBand VPI
- PCIe – 200Gb Ethernet and InfiniBand VPI
- PCIe – OPA adapters
PCIe – Gigabit Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 1. PCIe – Gigabit Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S
Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 7ZT7A00484 | ThinkSystem Broadcom 5719 1GbE RJ45 4-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 7ZT7A00482 | ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00534 | ThinkSystem I350-T2 PCIe 1Gb 2-Port RJ45 Ethernet Adapter | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00535 | ThinkSystem I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
Table 2. PCIe – Gigabit Ethernet (Part 2 of 3)
|
Part Number |
Description | 2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 7ZT7A00484 | ThinkSystem Broadcom 5719 1GbE RJ45 4-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 7ZT7A00482 | ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter | Y | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 7ZT7A00534 | ThinkSystem I350-T2 PCIe 1Gb 2- Port RJ45 Ethernet Adapter | Y | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 7ZT7A00535 | ThinkSystem I350-T4 PCIe 1Gb 4- Port RJ45 Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
Table 3. PCIe – Gigabit Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 |
2S Intel V1 |
Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 7ZT7A00484 | ThinkSystem Broadcom 5719 1GbE RJ45 4- Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 7ZT7A00482 | ThinkSystem Broadcom 5720 1GbE RJ45 2- Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 7ZT7A00534 | ThinkSystem I350-T2 PCIe 1Gb 2-Port RJ45 Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 7ZT7A00535 | ThinkSystem I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | N | N |
PCIe-10Gb Ethernet -10GBASE-T
The following tables list the ThinkSystem servers that are compatible.
Table 4. PCIe – 10Gb Ethernet – 10GBASE-T (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 00MM860 | Intel X550-T2 Dual Port 10GBase-T Adapter | N | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7XC7A05927 | Intel X710-T4 4x10Gb Base-T Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00496 | ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08245 | ThinkSystem Broadcom 57454 10GBASE-T 4-port PCIe Ethernet Adapter | N | Y | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A80266 | ThinkSystem Intel X710-T2L 10GBase-T 2-Port PCIe Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A79699 | ThinkSystem Intel X710-T4L 10GBase-T 4-Port PCIe Ethernet Adapter | N | N | N | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08225 | ThinkSystem QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 5. PCIe – 10Gb Ethernet – 10GBASE-T (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 00MM860 | Intel X550-T2 Dual Port 10GBase-T Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 7XC7A05927 | Intel X710-T4 4x10Gb Base-T Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00496 | ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe
Ethernet Adapter | Y | Y | Y | N | Y | Y | Y | Y | Y | Y | N | N | N | Y | Y | Y | Y | Y | Y |
| 4XC7A08245 | ThinkSystem Broadcom 57454 10GBASE-T 4-port PCIe Ethernet Adapter | Y | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A80266 | ThinkSystem Intel X710-T2L 10GBase-T 2-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A79699 | ThinkSystem Intel X710-T4L 10GBase-T 4-Port PCIe Ethernet Adapter | Y | Y | Y | N | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 4XC7A08225 | ThinkSystem QLogic QL41134 PCIe 10Gb 4-Port Base-T Ethernet Adapter | N | Y | Y | N | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
Table 6. PCIe – 10Gb Ethernet – 10GBASE-T (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00MM860 | Intel X550-T2 Dual Port 10GBase-T Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | N | N |
| 7XC7A05927 | Intel X710-T4 4x10Gb Base-T Adapter | N | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00496 | ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | N | N |
| 4XC7A08245 | ThinkSystem Broadcom 57454 10GBASE-T 4-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80266 | ThinkSystem Intel X710-T2L 10GBase-T 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A79699 | ThinkSystem Intel X710-T4L 10GBase-T 4-Port PCIe Ethernet Adapter | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 4XC7A08225 | ThinkSystem QLogic QL41134 PCIe 10Gb 4- Port Base-T Ethernet Adapter | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | N | N |
PCIe – 10Gb Ethernet – SFP+
The following tables list the ThinkSystem servers that are compatible.
Table 7. PCIe – 10Gb Ethernet – SFP+ (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 00AG570 | Emulex VFA5.2 2×10 GbE SFP+ PCIe Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7XC7A05525 | Intel X710-DA4 4x10Gb SFP+
Adapter | N | N | N | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00493 | ThinkSystem Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00537 | ThinkSystem Intel X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 8. PCIe – 10Gb Ethernet – SFP+ (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 00AG570 | Emulex VFA5.2 2×10 GbE SFP+ PCIe Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 7XC7A05525 | Intel X710-DA4 4x10Gb SFP+
Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00493 | ThinkSystem Emulex OCe14104B-NX PCIe 10Gb 4-
Port SFP+ Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 7ZT7A00537 | ThinkSystem Intel X710-DA2 PCIe 10Gb 2-Port SFP+ Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
Table 9. PCIe – 10Gb Ethernet – SFP+ (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00AG570 | Emulex VFA5.2 2×10 GbE SFP+ PCIe
Adapter | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | Y | N | N | N |
| 7XC7A05525 | Intel X710-DA4 4x10Gb SFP+ Adapter | Y | Y | Y | Y | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00493 | ThinkSystem Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 7ZT7A00537 | ThinkSystem Intel X710-DA2 PCIe 10Gb 2- Port SFP+ Ethernet Adapter | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N |
PCIe – 25Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 10. PCIe – 25Gb Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 01GR250 | Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08238 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | Y | Y | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08316 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter V2 | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80566 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port PCIe
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08295 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A80267 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port PCIe
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08270 | ThinkSystem Marvell QL41232 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08249 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62574 | ThinkSystem Mellanox ConnectX-5 EN 10/25GbE SFP28 2-port PCIe
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62580 | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | N | Y | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A62581 | ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08317 | ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 11. PCIe – 25Gb Ethernet (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 01GR250 | Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 4XC7A08238 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 4XC7A08316 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter V2 | Y | Y1 | Y | N | Y1 | Y | Y | Y1 | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A80566 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port PCIe
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08295 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | N | Y | N |
| 4XC7A80267 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port PCIe
Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 7XC7A05523 | ThinkSystem Intel XXV710- DA2 10/25GbE SFP28 2-Port
PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 4XC7A08270 | ThinkSystem Marvell QL41232 10/25GbE SFP28 2-Port PCIe
Ethernet Adapter | Y | Y | Y | N | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | Y | N | N |
| 4XC7A08249 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | Y | Y | N | Y | Y | N | Y | Y | Y | N | N | N | N | N | N | N | N | N |
| 4XC7A62574 | ThinkSystem Mellanox ConnectX-5 EN 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62580 | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | N | Y | N |
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 4XC7A62581 | ThinkSystem Solarflare X2522- Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N | N | N | Y | N | N | N |
| 4XC7A08317 | ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe
FPGA Adapter | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N | N | N | N | N | N |
- In 1U servers, this adapter requires a full-height bracket and must be installed in a full-height slot. The use of a low-profile bracket and slot is not supported.’
Table 12. PCIe – 25Gb Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 01GR250 | Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | Y | Y | N | N | N | N | Y | Y | N | Y | N | N | N |
| 4XC7A08238 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 4XC7A08316 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter V2 | N | N | N | N | N | N | N | N | N | Y1 | Y | N | N | N | N | N |
| 4XC7A80566 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08295 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
| 4XC7A80267 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7XC7A05523 | ThinkSystem Intel XXV710-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | Y | N | Y | Y | N | N | N | N | Y | Y | N | Y | N | N | N |
| 4XC7A08270 | ThinkSystem Marvell QL41232 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N |
| 4XC7A08249 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62574 | ThinkSystem Mellanox ConnectX-5 EN 10/25GbE SFP28 2-port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
| 4XC7A62580 | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
| 4XC7A62581 | ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
| 4XC7A08317 | ThinkSystem Xilinx Alveo U25 25GbE SFP28 2-Port PCIe FPGA Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
- In 1U servers, this adapter requires a full-height bracket and must be installed in a full-height slot. The use of a low-profile bracket and slot is not supported.
PCIe – 40Gb Ethernet and InfiniBand VPI
The following tables list the ThinkSystem servers that are compatible.
Table 13. PCIe – 40Gb Ethernet and InfiniBand VPI (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 00MM950 | Mellanox ConnectX-4 Lx 1x40GbE QSFP+ Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7XC7A05524 | ThinkSystem Mellanox ConnectX 4 PCIe FDR 1 Port QSFP VPI Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00500 | ThinkSystem Mellanox ConnectX-4 PCIe FDR 2-Port QSFP VPI Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08229 | ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 14. PCIe – 40Gb Ethernet and InfiniBand VPI (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 00MM950 | Mellanox ConnectX-4 Lx 1x40GbE QSFP+ Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 7XC7A05524 | ThinkSystem Mellanox ConnectX 4 PCIe FDR 1 Port QSFP VPI
Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00500 | ThinkSystem Mellanox ConnectX- 4 PCIe FDR 2-Port QSFP VPI
Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 4XC7A08229 | ThinkSystem Mellanox ConnectX- 5 Ex 25/40GbE 2-port Low-Latency Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
Table 15. PCIe – 40Gb Ethernet and InfiniBand VPI (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00MM950 | Mellanox ConnectX-4 Lx 1x40GbE QSFP+ Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
| 7XC7A05524 | ThinkSystem Mellanox ConnectX 4 PCIe FDR 1 Port QSFP VPI Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
| 7ZT7A00500 | ThinkSystem Mellanox ConnectX-4 PCIe FDR 2-Port QSFP VPI Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
| 4XC7A08229 | ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
PCIe – 100Gb Ethernet and InfiniBand VPI
The following tables list the ThinkSystem servers that are compatible.
Table 16. PCIe – 100Gb Ethernet and InfiniBand VPI (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 00MM960 | Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI
Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4C57A08980 | Mellanox ConnectX-5 EDR IB VPI Dual-port x16 PCIe 3.0 HCA | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08297 | ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4
Ethernet Adapter | N | N | N | N | N | Y | Y | N | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08248 | ThinkSystem Mellanox ConnectX-6 Dx 100GbE QSFP56 2-port PCIe 4
Ethernet Adapter | N | Y | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4C57A14177 | ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 1-port
PCIe VPI Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N | N |
| 4C57A14178 | ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 2-port
PCIe VPI Adapter | N | Y | N | N | N | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N | N |
| 4XC7A76757 | ThinkSystem Xilinx Alveo U50 Data Center Accelerator Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 17. PCIe – 100Gb Ethernet and InfiniBand VPI (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 00MM960 | Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI
Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y |
| 4C57A08980 | Mellanox ConnectX-5 EDR IB VPI Dual-port x16 PCIe 3.0 HCA | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08297 | ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4
Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08248 | ThinkSystem Mellanox ConnectX- 6 Dx 100GbE QSFP56 2-port
PCIe 4 Ethernet Adapter | Y | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | N | Y | N |
| 4C57A14177 | ThinkSystem Mellanox ConnectX- 6 HDR100/100GbE QSFP56 1-
port PCIe VPI Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | Y | N | N | N | Y | Y | Y | Y | Y | Y |
| 4C57A14178 | ThinkSystem Mellanox ConnectX- 6 HDR100/100GbE QSFP56 2-
port PCIe VPI Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | Y | Y | Y | Y |
| 4XC7A76757 | ThinkSystem Xilinx Alveo U50 Data Center Accelerator Adapter | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N | N | N | N | N | N | N |
Table 18. PCIe – 100Gb Ethernet and InfiniBand VPI (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00MM960 | Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y | N | N | N |
| 4C57A08980 | Mellanox ConnectX-5 EDR IB VPI Dual-port x16 PCIe 3.0 HCA | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08297 | ThinkSystem Broadcom 57508 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08248 | ThinkSystem Mellanox ConnectX-6 Dx 100GbE QSFP56 2-port PCIe 4 Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | Y | N | N | N | N |
| 4C57A14177 | ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 1-port PCIe VPI
Adapter | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y | N | N | N |
| 4C57A14178 | ThinkSystem Mellanox ConnectX-6 HDR100/100GbE QSFP56 2-port PCIe VPI
Adapter | N | N | N | N | N | N | N | N | N | Y | Y | Y | Y | N | N | N |
| 4XC7A76757 | ThinkSystem Xilinx Alveo U50 Data Center Accelerator Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
PCIe – 200Gb Ethernet and InfiniBand VPI
The following tables list the ThinkSystem servers that are compatible.
Table 19. PCIe – 200Gb Ethernet and InfiniBand VPI (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 4C57A15326 | ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4
VPI Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | N | N |
| 4C57A14179 | ThinkSystem Mellanox HDR/200GbE 2x PCIe Aux Kit | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | N |
Table 20. PCIe – 200Gb Ethernet and InfiniBand VPI (Part 2 of 3)
|
Part Number |
Description | 2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 4C57A15326 | ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe
4 VPI Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | Y | N | N | N | Y | Y | Y | N | N | N |
| 4C57A14179 | ThinkSystem Mellanox HDR/200GbE 2x PCIe Aux Kit | N | Y | Y | Y | N | N | N | Y | Y | N | Y | N | N | Y | Y | Y | N | N | N |
Table 21. PCIe – 200Gb Ethernet and InfiniBand VPI (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 4C57A15326 | ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI
Adapter | N | N | N | N | N | N | N | N | N | Y | Y | Y | N | N | N | N |
| 4C57A14179 | ThinkSystem Mellanox HDR/200GbE 2x PCIe Aux Kit | N | N | N | N | N | N | N | N | N | Y | Y | Y | N | Y | N | N |
PCIe – OPA adapters
The following tables list the ThinkSystem servers that are compatible.
Table 22. PCIe – OPA adapters (Part 1 of 3)
| 00WE027 | 00WE023 |
Part Number | |
| Intel OPA 100 Series Single-port PCIe
3.0 x16 HFA | Intel OPA 100 Series Single-port PCIe
3.0 x8 HFA |
Description | |
| N | N | SE350 (7Z46 / 7D1X) |
Edge |
| N | N | SE450 (7D8T) | |
| N | N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | N | ST250 V2 (7D8G / 7D8F) | |
| N | N | SR250 V2 (7D7R / 7D7Q) | |
| N | N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | N | SR655 V3 (7D9F / 7D9E) | |
| N | N | SR645 V3 (7D9D / 7D9C) | |
| N | N | SR665 V3 (7D9B / 7D9A) | |
| N | N | SR675 V3 (7D9Q / 7D9R) | |
| N | N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | N | SR650 V3 (7D75 / 7D76) | |
| N | N | SR850 V3 (7D97 / 7D96) | |
| N | N | SR860 V3 (7D94 / 7D93) | |
| N | N | SD665 V3 (7D9P) |
Dense V3 |
| N | N | SD665-N V3 (7DAZ) | |
| N | N | SD650 V3 (7D7M) | |
| N | N | SD650-I V3 (7D7L) | |
Table 23. PCIe – OPA adapters (Part 2 of 3)
| 00WE027 | 00WE023 |
Part Number | |
| Intel OPA 100 Series Single-port PCIe 3.0 x16 HFA | Intel OPA 100 Series Single-port PCIe 3.0 x8 HFA |
Description | |
| N | N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | N | SR630 V2 (7Z70 / 7Z71) | |
| N | N | SR650 V2 (7Z72 / 7Z73) | |
| Y | N | SR670 V2 (7Z22 / 7Z23) | |
| N | N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | N | SR655 (7Y00 / 7Z01) | |
| N | N | SR655 Client OS | |
| N | N | SR645 (7D2Y / 7D2X) | |
| N | N | SR665 (7D2W / 7D2V) | |
| Y | N | SD630 V2 (7D1K) |
Dense V2 |
| Y | N | SD650 V2 (7D1M) | |
| Y | N | SD650-N V2 (7D1N) | |
| N | N | SN550 V2 (7Z69) | |
| N | N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | N | SR860 V2 (7Z59 / 7Z60) | |
| Y | Y | SR950 (7X11 / 7X12) |
8S |
| Y | Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | Y | SR850P (7D2F / 2D2G) | |
| Y | Y | SR860 (7X69 / 7X70) | |
Table 24. PCIe – OPA adapters (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00WE023 | Intel OPA 100 Series Single-port PCIe 3.0 x8 HFA | N | N | N | N | N | N | N | N | N | Y | Y | N | Y | N | N | N |
| 00WE027 | Intel OPA 100 Series Single-port PCIe 3.0 x16 HFA | N | N | N | N | N | Y | Y | N | N | Y | Y | Y | Y | N | N | N |
OCP adapters
This section lists the available OCP adapters: OCP – Gigabit Ethernet
- OCP – Gigabit Ethernet
- OCP – 10Gb Ethernet – 10GBASE-T
- OCP – 25Gb Ethernet
- OCP – 100Gb Ethernet
OCP – Gigabit Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 25. OCP – Gigabit Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 4XC7A08235 | ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08277 | ThinkSystem Intel I350 1GbE RJ45 4- port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| BMHE | ThinkEdge SE450 Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 26. OCP – Gigabit Ethernet (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 4XC7A08235 | ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter | N | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08277 | ThinkSystem Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| BMHE | ThinkEdge SE450 Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 27. OCP – Gigabit Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 4XC7A08235 | ThinkSystem Broadcom 5719 1GbE RJ45 4- port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08277 | ThinkSystem Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHE | ThinkEdge SE450 Intel I350 1GbE RJ45 4-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
OCP – 10Gb Ethernet – 10GBASE-T
The following tables list the ThinkSystem servers that are compatible.
Table 28. OCP – 10Gb Ethernet – 10GBASE-T (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 4XC7A08239 | ThinkSystem Broadcom 57416
10GBASE-T 2-port + 5720 1GbE 2- port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08236 | ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08240 | ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08278 | ThinkSystem Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A80268 | ThinkSystem Intel X710-T4L 10GBase-T 4-Port OCP Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08310 | ThinkSystem Marvell QL41132 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHF | ThinkEdge SE450 Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 29. OCP – 10Gb Ethernet – 10GBASE-T (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 4XC7A08239 | ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE
2-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08236 | ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08240 | ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08278 | ThinkSystem Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A80268 | ThinkSystem Intel X710-T4L 10GBase-T 4-Port OCP Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08310 | ThinkSystem Marvell QL41132 10GBASE-T 2-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| BMHF | ThinkEdge SE450 Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 30. OCP – 10Gb Ethernet – 10GBASE-T (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 4XC7A08239 | ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08236 | ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08240 | ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08278 | ThinkSystem Intel X710-T2L 10GBASE-T 2- port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80268 | ThinkSystem Intel X710-T4L 10GBase-T 4- Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08310 | ThinkSystem Marvell QL41132 10GBASE-T 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHF | ThinkEdge SE450 Intel X710-T2L 10GBASE- T 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
OCP – 25Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 31. OCP – 25Gb Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 4XC7A08237 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port OCP
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | N | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08242 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80567 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port OCP
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08294 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A80269 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port OCP
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| 4XC7A08246 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62582 | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | N | N | N | N | Y | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N |
| BMHG | ThinkEdge SE450 Intel E810-DA2 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHD | ThinkEdge SE450 Mellanox CX6 Lx 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | Y | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 32. OCP – 25Gb Ethernet (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 4XC7A08237 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port OCP
Ethernet Adapter | N | Y | Y | Y | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08242 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP
Ethernet Adapter | N | Y | Y | N | Y | Y | Y | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A80567 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port OCP
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08294 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A80269 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port OCP
Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| 4XC7A08246 | ThinkSystem Mellanox ConnectX- 4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter | N | Y | Y | N | Y | Y | N | Y | Y | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62582 | ThinkSystem Mellanox ConnectX- 6 Lx 10/25GbE SFP28 2-Port
OCP Ethernet Adapter | N | Y | Y | Y | Y | Y | N | Y | Y | N | N | N | N | Y | Y | N | N | N | N |
| BMHG | ThinkEdge SE450 Intel E810-DA2 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHD | ThinkEdge SE450 Mellanox CX6 Lx 10/25GbE SFP28 2-Port OCP
Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 33. OCP – 25Gb Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 4XC7A08237 | ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08242 | ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80567 | ThinkSystem Broadcom 57504 10/25GbE SFP28 4-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08294 | ThinkSystem Intel E810-DA2 10/25GbE SFP28 2-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A80269 | ThinkSystem Intel E810-DA4 10/25GbE SFP28 4-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A08246 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 4XC7A62582 | ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHG | ThinkEdge SE450 Intel E810-DA2 10/25GbE SFP28 2-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| BMHD | ThinkEdge SE450 Mellanox CX6 Lx 10/25GbE SFP28 2-Port OCP Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
OCP – 100Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 34. OCP – 100Gb Ethernet (Part 1 of 3)
| 4XC7A08243 |
Part Number | |
| ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter |
Description | |
| N | SE350 (7Z46 / 7D1X) |
Edge |
| N | SE450 (7D8T) | |
| N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | ST250 V2 (7D8G / 7D8F) | |
| N | SR250 V2 (7D7R / 7D7Q) | |
| Y | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| Y | SR655 V3 (7D9F / 7D9E) | |
| Y | SR645 V3 (7D9D / 7D9C) | |
| Y | SR665 V3 (7D9B / 7D9A) | |
| Y | SR675 V3 (7D9Q / 7D9R) | |
| Y | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| Y | SR650 V3 (7D75 / 7D76) | |
| Y | SR850 V3 (7D97 / 7D96) | |
| Y | SR860 V3 (7D94 / 7D93) | |
| N | SD665 V3 (7D9P) |
Dense V3 |
| N | SD665-N V3 (7DAZ) | |
| N | SD650 V3 (7D7M) | |
| N | SD650-I V3 (7D7L) | |
Table 35. OCP – 100Gb Ethernet (Part 2 of 3)
| 4XC7A08243 |
Part Number | |
| ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP
Ethernet Adapter |
Description | |
| N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | SR630 V2 (7Z70 / 7Z71) | |
| N | SR650 V2 (7Z72 / 7Z73) | |
| N | SR670 V2 (7Z22 / 7Z23) | |
| N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | SR655 (7Y00 / 7Z01) | |
| N | SR655 Client OS | |
| N | SR645 (7D2Y / 7D2X) | |
| N | SR665 (7D2W / 7D2V) | |
| N | SD630 V2 (7D1K) |
Dense V2 |
| N | SD650 V2 (7D1M) | |
| N | SD650-N V2 (7D1N) | |
| N | SN550 V2 (7Z69) | |
| N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | SR860 V2 (7Z59 / 7Z60) | |
| N | SR950 (7X11 / 7X12) |
8S |
| N | SR850 (7X18 / 7X19) |
4S V1 |
| N | SR850P (7D2F / 2D2G) | |
| N | SR860 (7X69 / 7X70) | |
Table 36. OCP – 100Gb Ethernet (Part 3 of 3)
| 4XC7A08243 |
Part Number | |
| ThinkSystem Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter |
Description | |
| N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | ST250 (7Y45 / 7Y46) | |
| N | SR150 (7Y54) | |
| N | SR250 (7Y52 / 7Y51) | |
| N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| N | SR530 (7X07 / 7X08) | |
| N | SR550 (7X03 / 7X04) | |
| N | SR570 (7Y02 / 7Y03) | |
| N | SR590 (7X98 / 7X99) | |
| N | SR630 (7X01 / 7X02) | |
| N | SR650 (7X05 / 7X06) | |
| N | SR670 (7Y36 / 7Y37) | |
| N | SD530 (7X21) | Dense V1 |
| N | SD650 (7X58) | |
| N | SN550 (7X16) | |
| N | SN850 (7X15) | |
Flex System mezzanine adapters
This section lists the available Flex System mezzanine adapters:
- Flex – 10Gb Ethernet
- Flex – 25Gb Ethernet
- Flex – 50Gb Ethernet
Flex – 10Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 37. Flex – 10Gb Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 00AG540 | Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 00AG590 | Flex System CN4054S 4-port 10Gb Virtual Fabric Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 38. Flex – 10Gb Ethernet (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 00AG540 | Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter | N | N | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N | N |
| 00AG590 | Flex System CN4054S 4-port 10Gb Virtual Fabric Adapter | N | N | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N | N |
Table 39. Flex – 10Gb Ethernet (Part 3 of 3)
| 00AG590 | 00AG540 |
Part Number | |
| Flex System CN4054S 4-port 10Gb Virtual Fabric Adapter | Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter |
Description | |
| N | N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | N | ST250 (7Y45 / 7Y46) | |
| N | N | SR150 (7Y54) | |
| N | N | SR250 (7Y52 / 7Y51) | |
| N | N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| N | N | SR530 (7X07 / 7X08) | |
| N | N | SR550 (7X03 / 7X04) | |
| N | N | SR570 (7Y02 / 7Y03) | |
| N | N | SR590 (7X98 / 7X99) | |
| N | N | SR630 (7X01 / 7X02) | |
| N | N | SR650 (7X05 / 7X06) | |
| N | N | SR670 (7Y36 / 7Y37) | |
| N | N | SD530 (7X21) | Dense V1 |
| N | N | SD650 (7X58) | |
| Y | Y | SN550 (7X16) | |
| Y | Y | SN850 (7X15) | |
Flex – 25Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 40. Flex – 25Gb Ethernet (Part 1 of 3)
| 4XC7A08315 |
Part Number | |
| ThinkSystem Mellanox ConnectX-4 Lx 25Gb 2-port Mezz Adapter |
Description | |
| N | SE350 (7Z46 / 7D1X) |
Edge |
| N | SE450 (7D8T) | |
| N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | ST250 V2 (7D8G / 7D8F) | |
| N | SR250 V2 (7D7R / 7D7Q) | |
| N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | SR655 V3 (7D9F / 7D9E) | |
| N | SR645 V3 (7D9D / 7D9C) | |
| N | SR665 V3 (7D9B / 7D9A) | |
| N | SR675 V3 (7D9Q / 7D9R) | |
| N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | SR650 V3 (7D75 / 7D76) | |
| N | SR850 V3 (7D97 / 7D96) | |
| N | SR860 V3 (7D94 / 7D93) | |
| N | SD665 V3 (7D9P) |
Dense V3 |
| N | SD665-N V3 (7DAZ) | |
| N | SD650 V3 (7D7M) | |
| N | SD650-I V3 (7D7L) | |
Table 41. Flex – 25Gb Ethernet (Part 2 of 3)
| 4XC7A08315 |
Part Number | |
| ThinkSystem Mellanox ConnectX- 4 Lx 25Gb 2-port Mezz Adapter |
Description | |
| N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | SR630 V2 (7Z70 / 7Z71) | |
| N | SR650 V2 (7Z72 / 7Z73) | |
| N | SR670 V2 (7Z22 / 7Z23) | |
| N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | SR655 (7Y00 / 7Z01) | |
| N | SR655 Client OS | |
| N | SR645 (7D2Y / 7D2X) | |
| N | SR665 (7D2W / 7D2V) | |
| N | SD630 V2 (7D1K) |
Dense V2 |
| N | SD650 V2 (7D1M) | |
| N | SD650-N V2 (7D1N) | |
| Y | SN550 V2 (7Z69) | |
| N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | SR860 V2 (7Z59 / 7Z60) | |
| N | SR950 (7X11 / 7X12) |
8S |
| N | SR850 (7X18 / 7X19) |
4S V1 |
| N | SR850P (7D2F / 2D2G) | |
| N | SR860 (7X69 / 7X70) | |
Table 42. Flex – 25Gb Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 4XC7A08315 | ThinkSystem Mellanox ConnectX-4 Lx 25Gb 2-port Mezz Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y |
Flex – 50Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 43. Flex – 50Gb Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 7XC7A05843 | ThinkSystem QLogic QL45212 Flex 50Gb 2-Port Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7XC7A05845 | ThinkSystem QLogic QL45262 Flex 50Gb 2-Port Ethernet Adapter with iSCSI/FCoE | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 44. Flex – 50Gb Ethernet (Part 2 of 3)
|
Part Number |
Description |
2S Intel V2 |
AMD V1 |
Dense V2 | 4S V2 |
8S |
4S V1 | |||||||||||||
| ST650 V2 (7Z75 / 7Z74) | SR630 V2 (7Z70 / 7Z71) | SR650 V2 (7Z72 / 7Z73) | SR670 V2 (7Z22 / 7Z23) | SR635 (7Y98 / 7Y99) | SR655 (7Y00 / 7Z01) | SR655 Client OS | SR645 (7D2Y / 7D2X) | SR665 (7D2W / 7D2V) | SD630 V2 (7D1K) | SD650 V2 (7D1M) | SD650-N V2 (7D1N) | SN550 V2 (7Z69) | SR850 V2 (7D31 / 7D32) | SR860 V2 (7Z59 / 7Z60) | SR950 (7X11 / 7X12) | SR850 (7X18 / 7X19) | SR850P (7D2F / 2D2G) | SR860 (7X69 / 7X70) | ||
| 7XC7A05843 | ThinkSystem QLogic QL45212 Flex 50Gb 2-Port Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N | N |
| 7XC7A05845 | ThinkSystem QLogic QL45262 Flex 50Gb 2-Port Ethernet Adapter with iSCSI/FCoE | N | N | N | N | N | N | N | N | N | N | N | N | Y | N | N | N | N | N | N |
Table 45. Flex – 50Gb Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 7XC7A05843 | ThinkSystem QLogic QL45212 Flex 50Gb 2- Port Ethernet Adapter | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y |
| 7XC7A05845 | ThinkSystem QLogic QL45262 Flex 50Gb 2- Port Ethernet Adapter with iSCSI/FCoE | N | N | N | N | N | N | N | N | N | N | N | N | N | N | Y | Y |
ML2 adapters
This section lists the available ML2 adapters:
- ML2 – Gigabit Ethernet
- ML2 – 10Gb Ethernet – SFP+
- ML2 – 25Gb Ethernet
- ML2 – Gigabit Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 46. ML2 – Gigabit Ethernet (Part 1 of 3)
| 7ZT7A00536 |
Part Number | |
| ThinkSystem Intel I350-T4 ML2 1Gb 4-Port RJ45 Ethernet Adapter |
Description | |
| N | SE350 (7Z46 / 7D1X) |
Edge |
| N | SE450 (7D8T) | |
| N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | ST250 V2 (7D8G / 7D8F) | |
| N | SR250 V2 (7D7R / 7D7Q) | |
| N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | SR655 V3 (7D9F / 7D9E) | |
| N | SR645 V3 (7D9D / 7D9C) | |
| N | SR665 V3 (7D9B / 7D9A) | |
| N | SR675 V3 (7D9Q / 7D9R) | |
| N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | SR650 V3 (7D75 / 7D76) | |
| N | SR850 V3 (7D97 / 7D96) | |
| N | SR860 V3 (7D94 / 7D93) | |
| N | SD665 V3 (7D9P) |
Dense V3 |
| N | SD665-N V3 (7DAZ) | |
| N | SD650 V3 (7D7M) | |
| N | SD650-I V3 (7D7L) | |
Table 47. ML2 – Gigabit Ethernet (Part 2 of 3)
| 7ZT7A00536 |
Part Number | |
| ThinkSystem Intel I350-T4 ML2 1Gb 4-Port RJ45 Ethernet Adapter |
Description | |
| N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | SR630 V2 (7Z70 / 7Z71) | |
| N | SR650 V2 (7Z72 / 7Z73) | |
| N | SR670 V2 (7Z22 / 7Z23) | |
| N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | SR655 (7Y00 / 7Z01) | |
| N | SR655 Client OS | |
| N | SR645 (7D2Y / 7D2X) | |
| N | SR665 (7D2W / 7D2V) | |
| N | SD630 V2 (7D1K) |
Dense V2 |
| N | SD650 V2 (7D1M) | |
| N | SD650-N V2 (7D1N) | |
| N | SN550 V2 (7Z69) | |
| N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | SR860 V2 (7Z59 / 7Z60) | |
| Y | SR950 (7X11 / 7X12) |
8S |
| Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | SR850P (7D2F / 2D2G) | |
| Y | SR860 (7X69 / 7X70) | |
Table 48. ML2 – Gigabit Ethernet (Part 3 of 3)
| 7ZT7A00536 |
Part Number | |
| ThinkSystem Intel I350-T4 ML2 1Gb 4-Port RJ45 Ethernet Adapter |
Description | |
| N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | ST250 (7Y45 / 7Y46) | |
| N | SR150 (7Y54) | |
| N | SR250 (7Y52 / 7Y51) | |
| N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| N | SR530 (7X07 / 7X08) | |
| N | SR550 (7X03 / 7X04) | |
| N | SR570 (7Y02 / 7Y03) | |
| Y | SR590 (7X98 / 7X99) | |
| Y | SR630 (7X01 / 7X02) | |
| Y | SR650 (7X05 / 7X06) | |
| N | SR670 (7Y36 / 7Y37) | |
| N | SD530 (7X21) | Dense V1 |
| N | SD650 (7X58) | |
| N | SN550 (7X16) | |
| N | SN850 (7X15) | |
ML2 – 10Gb Ethernet – SFP+
The following tables list the ThinkSystem servers that are compatible.
Table 49. ML2 – 10Gb Ethernet – SFP+ (Part 1 of 3)
| 01CV770 |
Part Number | |
| Emulex VFA5.2 ML2 2×10 GbE SFP+
Adapter and FCoE/iSCSI SW |
Description | |
| N | SE350 (7Z46 / 7D1X) |
Edge |
| N | SE450 (7D8T) | |
| N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | ST250 V2 (7D8G / 7D8F) | |
| N | SR250 V2 (7D7R / 7D7Q) | |
| N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | SR655 V3 (7D9F / 7D9E) | |
| N | SR645 V3 (7D9D / 7D9C) | |
| N | SR665 V3 (7D9B / 7D9A) | |
| N | SR675 V3 (7D9Q / 7D9R) | |
| N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | SR650 V3 (7D75 / 7D76) | |
| N | SR850 V3 (7D97 / 7D96) | |
| N | SR860 V3 (7D94 / 7D93) | |
| N | SD665 V3 (7D9P) |
Dense V3 |
| N | SD665-N V3 (7DAZ) | |
| N | SD650 V3 (7D7M) | |
| N | SD650-I V3 (7D7L) | |
Table 50. ML2 – 10Gb Ethernet – SFP+ (Part 2 of 3)
| 01CV770 |
Part Number | |
| Emulex VFA5.2 ML2 2×10 GbE SFP+
Adapter and FCoE/iSCSI SW |
Description | |
| N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | SR630 V2 (7Z70 / 7Z71) | |
| N | SR650 V2 (7Z72 / 7Z73) | |
| N | SR670 V2 (7Z22 / 7Z23) | |
| N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | SR655 (7Y00 / 7Z01) | |
| N | SR655 Client OS | |
| N | SR645 (7D2Y / 7D2X) | |
| N | SR665 (7D2W / 7D2V) | |
| N | SD630 V2 (7D1K) |
Dense V2 |
| N | SD650 V2 (7D1M) | |
| N | SD650-N V2 (7D1N) | |
| N | SN550 V2 (7Z69) | |
| N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | SR860 V2 (7Z59 / 7Z60) | |
| Y | SR950 (7X11 / 7X12) |
8S |
| Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | SR850P (7D2F / 2D2G) | |
| Y | SR860 (7X69 / 7X70) | |
Table 51. ML2 – 10Gb Ethernet – SFP+ (Part 3 of 3)
| 01CV770 |
Part Number | |
| Emulex VFA5.2 ML2 2×10 GbE SFP+ Adapter and FCoE/iSCSI SW |
Description | |
| N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | ST250 (7Y45 / 7Y46) | |
| N | SR150 (7Y54) | |
| N | SR250 (7Y52 / 7Y51) | |
| N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| Y | SR530 (7X07 / 7X08) | |
| Y | SR550 (7X03 / 7X04) | |
| Y | SR570 (7Y02 / 7Y03) | |
| Y | SR590 (7X98 / 7X99) | |
| Y | SR630 (7X01 / 7X02) | |
| Y | SR650 (7X05 / 7X06) | |
| N | SR670 (7Y36 / 7Y37) | |
| N | SD530 (7X21) | Dense V1 |
| N | SD650 (7X58) | |
| N | SN550 (7X16) | |
| N | SN850 (7X15) | |
ML2 – 25Gb Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 52. ML2 – 25Gb Ethernet (Part 1 of 3)
| 7ZT7A00507 | 00MN990 |
Part Number | |
| ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-Port ML2
Ethernet Adapter | Mellanox ConnectX-4 Lx 10/25GbE SFP28 1-port ML2 Adapter |
Description | |
| N | N | SE350 (7Z46 / 7D1X) |
Edge |
| N | N | SE450 (7D8T) | |
| N | N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | N | ST250 V2 (7D8G / 7D8F) | |
| N | N | SR250 V2 (7D7R / 7D7Q) | |
| N | N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | N | SR655 V3 (7D9F / 7D9E) | |
| N | N | SR645 V3 (7D9D / 7D9C) | |
| N | N | SR665 V3 (7D9B / 7D9A) | |
| N | N | SR675 V3 (7D9Q / 7D9R) | |
| N | N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | N | SR650 V3 (7D75 / 7D76) | |
| N | N | SR850 V3 (7D97 / 7D96) | |
| N | N | SR860 V3 (7D94 / 7D93) | |
| N | N | SD665 V3 (7D9P) |
Dense V3 |
| N | N | SD665-N V3 (7DAZ) | |
| N | N | SD650 V3 (7D7M) | |
| N | N | SD650-I V3 (7D7L) | |
Table 53. ML2 – 25Gb Ethernet (Part 2 of 3)
| 7ZT7A00507 | 00MN990 |
Part Number | |
| ThinkSystem Mellanox ConnectX- 4 Lx 10/25GbE SFP28 2-Port ML2
Ethernet Adapter | Mellanox ConnectX-4 Lx 10/25GbE SFP28 1-port ML2
Adapter |
Description | |
| N | N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | N | SR630 V2 (7Z70 / 7Z71) | |
| N | N | SR650 V2 (7Z72 / 7Z73) | |
| N | N | SR670 V2 (7Z22 / 7Z23) | |
| N | N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | N | SR655 (7Y00 / 7Z01) | |
| N | N | SR655 Client OS | |
| N | N | SR645 (7D2Y / 7D2X) | |
| N | N | SR665 (7D2W / 7D2V) | |
| N | N | SD630 V2 (7D1K) |
Dense V2 |
| N | N | SD650 V2 (7D1M) | |
| N | N | SD650-N V2 (7D1N) | |
| N | N | SN550 V2 (7Z69) | |
| N | N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | N | SR860 V2 (7Z59 / 7Z60) | |
| Y | Y | SR950 (7X11 / 7X12) |
8S |
| Y | Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | Y | SR850P (7D2F / 2D2G) | |
| Y | Y | SR860 (7X69 / 7X70) | |
Table 54. ML2 – 25Gb Ethernet (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 00MN990 | Mellanox ConnectX-4 Lx 10/25GbE SFP28 1- port ML2 Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
| 7ZT7A00507 | ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-Port ML2 Ethernet Adapter | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
LOM adapters
This section lists the available LOM adapters:
- LOM – Gigabit Ethernet
- LOM – 10Gb Ethernet – 10GBASE-T
- LOM – 10Gb Ethernet – SFP+
LOM – Gigabit Ethernet
The following tables list the ThinkSystem servers that are compatible.
Table 55. LOM – Gigabit Ethernet (Part 1 of 3)
|
Part Number |
Description |
Edge | 1S Intel V2 |
AMD V3 |
Intel V3 |
Dense V3 | |||||||||||||
| SE350 (7Z46 / 7D1X) | SE450 (7D8T) | ST50 V2 (7D8K / 7D8J) | ST250 V2 (7D8G / 7D8F) | SR250 V2 (7D7R / 7D7Q) | SR635 V3 (7D9H / 7D9G) | SR655 V3 (7D9F / 7D9E) | SR645 V3 (7D9D / 7D9C) | SR665 V3 (7D9B / 7D9A) | SR675 V3 (7D9Q / 7D9R) | SR630 V3 (7D72 / 7D73) | SR650 V3 (7D75 / 7D76) | SR850 V3 (7D97 / 7D96) | SR860 V3 (7D94 / 7D93) | SD665 V3 (7D9P) | SD665-N V3 (7DAZ) | SD650 V3 (7D7M) | SD650-I V3 (7D7L) | ||
| 7ZT7A00544 | ThinkSystem 1Gb 2-port RJ45 LOM | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
| 7ZT7A00545 | ThinkSystem 1Gb 4-port RJ45 LOM | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N | N |
Table 56. LOM – Gigabit Ethernet (Part 2 of 3)
| 7ZT7A00545 | 7ZT7A00544 |
Part Number | |
| ThinkSystem 1Gb 4-port RJ45 LOM | ThinkSystem 1Gb 2-port RJ45 LOM |
Description | |
| N | N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | N | SR630 V2 (7Z70 / 7Z71) | |
| N | N | SR650 V2 (7Z72 / 7Z73) | |
| N | N | SR670 V2 (7Z22 / 7Z23) | |
| N | N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | N | SR655 (7Y00 / 7Z01) | |
| N | N | SR655 Client OS | |
| N | N | SR645 (7D2Y / 7D2X) | |
| N | N | SR665 (7D2W / 7D2V) | |
| N | N | SD630 V2 (7D1K) |
Dense V2 |
| N | N | SD650 V2 (7D1M) | |
| N | N | SD650-N V2 (7D1N) | |
| N | N | SN550 V2 (7Z69) | |
| N | N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | N | SR860 V2 (7Z59 / 7Z60) | |
| Y | Y | SR950 (7X11 / 7X12) |
8S |
| Y | Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | Y | SR850P (7D2F / 2D2G) | |
| Y | Y | SR860 (7X69 / 7X70) | |
Table 57. LOM – Gigabit Ethernet (Part 3 of 3)
| 7ZT7A00545 | 7ZT7A00544 |
Part Number | |
| ThinkSystem 1Gb 4-port RJ45 LOM | ThinkSystem 1Gb 2-port RJ45 LOM |
Description | |
| N | N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | N | ST250 (7Y45 / 7Y46) | |
| N | N | SR150 (7Y54) | |
| N | N | SR250 (7Y52 / 7Y51) | |
| N | N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| N | Y | SR530 (7X07 / 7X08) | |
| N | Y | SR550 (7X03 / 7X04) | |
| N | Y | SR570 (7Y02 / 7Y03) | |
| N | Y | SR590 (7X98 / 7X99) | |
| Y | Y | SR630 (7X01 / 7X02) | |
| Y | Y | SR650 (7X05 / 7X06) | |
| N | N | SR670 (7Y36 / 7Y37) | |
| N | N | SD530 (7X21) | Dense V1 |
| N | N | SD650 (7X58) | |
| N | N | SN550 (7X16) | |
| N | N | SN850 (7X15) | |
LOM – 10Gb Ethernet – 10GBASE-T
The following tables list the ThinkSystem servers that are compatible.
Table 58. LOM – 10Gb Ethernet – 10GBASE-T (Part 1 of 3)
| 7ZT7A00549 | 7ZT7A00548 |
Part Number | |
| ThinkSystem 10Gb 4-port Base-T LOM | ThinkSystem 10Gb 2-port Base-T LOM |
Description | |
| N | N | SE350 (7Z46 / 7D1X) |
Edge |
| N | N | SE450 (7D8T) | |
| N | N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | N | ST250 V2 (7D8G / 7D8F) | |
| N | N | SR250 V2 (7D7R / 7D7Q) | |
| N | N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | N | SR655 V3 (7D9F / 7D9E) | |
| N | N | SR645 V3 (7D9D / 7D9C) | |
| N | N | SR665 V3 (7D9B / 7D9A) | |
| N | N | SR675 V3 (7D9Q / 7D9R) | |
| N | N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | N | SR650 V3 (7D75 / 7D76) | |
| N | N | SR850 V3 (7D97 / 7D96) | |
| N | N | SR860 V3 (7D94 / 7D93) | |
| N | N | SD665 V3 (7D9P) |
Dense V3 |
| N | N | SD665-N V3 (7DAZ) | |
| N | N | SD650 V3 (7D7M) | |
| N | N | SD650-I V3 (7D7L) | |
Table 59. LOM – 10Gb Ethernet – 10GBASE-T (Part 2 of 3)
| 7ZT7A00549 | 7ZT7A00548 |
Part Number | |
| ThinkSystem 10Gb 4-port Base-T LOM | ThinkSystem 10Gb 2-port Base-T LOM |
Description | |
| N | N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | N | SR630 V2 (7Z70 / 7Z71) | |
| N | N | SR650 V2 (7Z72 / 7Z73) | |
| N | N | SR670 V2 (7Z22 / 7Z23) | |
| N | N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | N | SR655 (7Y00 / 7Z01) | |
| N | N | SR655 Client OS | |
| N | N | SR645 (7D2Y / 7D2X) | |
| N | N | SR665 (7D2W / 7D2V) | |
| N | N | SD630 V2 (7D1K) |
Dense V2 |
| N | N | SD650 V2 (7D1M) | |
| N | N | SD650-N V2 (7D1N) | |
| N | N | SN550 V2 (7Z69) | |
| N | N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | N | SR860 V2 (7Z59 / 7Z60) | |
| Y | Y | SR950 (7X11 / 7X12) |
8S |
| Y | Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | Y | SR850P (7D2F / 2D2G) | |
| Y | Y | SR860 (7X69 / 7X70) | |
Table 60. LOM – 10Gb Ethernet – 10GBASE-T (Part 3 of 3)
| 7ZT7A00549 | 7ZT7A00548 |
Part Number | |
| ThinkSystem 10Gb 4-port Base-T LOM | ThinkSystem 10Gb 2-port Base-T LOM |
Description | |
| N | N | ST50 (7Y48 / 7Y50) | 1S Intel V1 |
| N | N | ST250 (7Y45 / 7Y46) | |
| N | N | SR150 (7Y54) | |
| N | N | SR250 (7Y52 / 7Y51) | |
| N | N | ST550 (7X09 / 7X10) | 2S Intel V1 |
| N | Y | SR530 (7X07 / 7X08) | |
| N | Y | SR550 (7X03 / 7X04) | |
| N | Y | SR570 (7Y02 / 7Y03) | |
| N | Y | SR590 (7X98 / 7X99) | |
| Y | Y | SR630 (7X01 / 7X02) | |
| Y | Y | SR650 (7X05 / 7X06) | |
| N | N | SR670 (7Y36 / 7Y37) | |
| N | N | SD530 (7X21) | Dense V1 |
| N | N | SD650 (7X58) | |
| N | N | SN550 (7X16) | |
| N | N | SN850 (7X15) | |
LOM – 10Gb Ethernet – SFP+
The following tables list the ThinkSystem servers that are compatible.
| 7ZT7A00547 | 7ZT7A00546 |
Part Number | |
| ThinkSystem 10Gb 4-port SFP+ LOM | ThinkSystem 10Gb 2-port SFP+ LOM |
Description | |
| N | N | SE350 (7Z46 / 7D1X) |
Edge |
| N | N | SE450 (7D8T) | |
| N | N | ST50 V2 (7D8K / 7D8J) | 1S Intel V2 |
| N | N | ST250 V2 (7D8G / 7D8F) | |
| N | N | SR250 V2 (7D7R / 7D7Q) | |
| N | N | SR635 V3 (7D9H / 7D9G) |
AMD V3 |
| N | N | SR655 V3 (7D9F / 7D9E) | |
| N | N | SR645 V3 (7D9D / 7D9C) | |
| N | N | SR665 V3 (7D9B / 7D9A) | |
| N | N | SR675 V3 (7D9Q / 7D9R) | |
| N | N | SR630 V3 (7D72 / 7D73) |
Intel V3 |
| N | N | SR650 V3 (7D75 / 7D76) | |
| N | N | SR850 V3 (7D97 / 7D96) | |
| N | N | SR860 V3 (7D94 / 7D93) | |
| N | N | SD665 V3 (7D9P) |
Dense V3 |
| N | N | SD665-N V3 (7DAZ) | |
| N | N | SD650 V3 (7D7M) | |
| N | N | SD650-I V3 (7D7L) | |
Table 62. LOM – 10Gb Ethernet – SFP+ (Part 2 of 3)
| 7ZT7A00547 | 7ZT7A00546 |
Part Number | |
| ThinkSystem 10Gb 4-port SFP+ LOM | ThinkSystem 10Gb 2-port SFP+ LOM |
Description | |
| N | N | ST650 V2 (7Z75 / 7Z74) |
2S Intel V2 |
| N | N | SR630 V2 (7Z70 / 7Z71) | |
| N | N | SR650 V2 (7Z72 / 7Z73) | |
| N | N | SR670 V2 (7Z22 / 7Z23) | |
| N | N | SR635 (7Y98 / 7Y99) |
AMD V1 |
| N | N | SR655 (7Y00 / 7Z01) | |
| N | N | SR655 Client OS | |
| N | N | SR645 (7D2Y / 7D2X) | |
| N | N | SR665 (7D2W / 7D2V) | |
| N | N | SD630 V2 (7D1K) |
Dense V2 |
| N | N | SD650 V2 (7D1M) | |
| N | N | SD650-N V2 (7D1N) | |
| N | N | SN550 V2 (7Z69) | |
| N | N | SR850 V2 (7D31 / 7D32) | 4S V2 |
| N | N | SR860 V2 (7Z59 / 7Z60) | |
| Y | Y | SR950 (7X11 / 7X12) |
8S |
| Y | Y | SR850 (7X18 / 7X19) |
4S V1 |
| Y | Y | SR850P (7D2F / 2D2G) | |
| Y | Y | SR860 (7X69 / 7X70) | |
Table 63. LOM – 10Gb Ethernet – SFP+ (Part 3 of 3)
|
Part Number |
Description | 1S Intel V1 | 2S Intel V1 | Dense V1 | |||||||||||||
| ST50 (7Y48 / 7Y50) | ST250 (7Y45 / 7Y46) | SR150 (7Y54) | SR250 (7Y52 / 7Y51) | ST550 (7X09 / 7X10) | SR530 (7X07 / 7X08) | SR550 (7X03 / 7X04) | SR570 (7Y02 / 7Y03) | SR590 (7X98 / 7X99) | SR630 (7X01 / 7X02) | SR650 (7X05 / 7X06) | SR670 (7Y36 / 7Y37) | SD530 (7X21) | SD650 (7X58) | SN550 (7X16) | SN850 (7X15) | ||
| 7ZT7A00546 | ThinkSystem 10Gb 2-port SFP+ LOM | N | N | N | N | N | Y | Y | Y | Y | Y | Y | N | N | N | N | N |
| 7ZT7A00547 | ThinkSystem 10Gb 4-port SFP+ LOM | N | N | N | N | N | N | N | N | N | Y | Y | N | N | N | N | N |
Product families related to this document are the following:
- 1 Gb Ethernet Connectivity
- 10 Gb Ethernet Connectivity
- 100 Gb Ethernet Connectivity
- 25 Gb Ethernet Connectivity
- 40 Gb Ethernet Connectivity
- Ethernet Adapters
- InfiniBand & Omni-Path Adapters
Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only the Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service. Lenovo may have patents or pending patent applications covering the subject matter described in this document. The furnishing of this document does not give you any license to these patents.
You can send license inquiries, in writing, to:
- Lenovo (United States), Inc. 8001 Development Drive Morrisville, NC 27560 U.S.A.
- Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION ”AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow disclaimers of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary. Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.
© Copyright Lenovo 2023. All rights reserved.
This document, LP1594, was created or updated on December 15, 2022.
Send us your comments in one of the following ways
- Use the online Contact Us review form found at: https://lenovopress.lenovo.com/LP1594
- Send your comments in an e-mail to: [email protected]
- This document is available online at: https://lenovopress.lenovo.com/LP1594.
Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at
https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
Flex System
ThinkEdge®
ThinkSystem®
The following terms are trademarks of other companies:
Intel® is a trademark of Intel Corporation or its subsidiaries. Other company, product, or service names may be trademarks or service marks of others.
FAQ’s
Speed: As discussed in the above What is Ethernet section, high data transfer speed is the primary benefit of Ethernet. A wireless connection may be flexible but cannot offer the required data transfer speeds. Here ethernet allows you to achieve incredible data transfer speeds of up to 100 Gbps.
A USB-C to Ethernet adapter is a small device that allows you to connect your computer to an Ethernet network. It works by plugging into your computer’s USB-C port and then connecting to an Ethernet cable. The adapter will then provide your computer with a connection to the Internet.
Use this adapter to instantly connect to a 10/100 Mbps network from the USB port on your desktop or laptop computer. Note: The driver software must be installed before you connect the adapter.
To make a good decision, you can think about the 3 C’s: Compatibility, Capacity, and Cost. The table below gives an overview of the different Plugable USB-Ethernet adapters and their compatibility with different operating systems.
An Ethernet cable may slow your connection if it’s the wrong type. For example, never use a CAT 5 cable if your internet connection is 200 Mbps or faster. A damaged Ethernet cable can also slow your connection.
Most ethernet adapters have different speeds based on the type of port they plug into, and choosing the right adapter for you depends on what you plan to do with your connection.
From Ethernet adapters to network interface card options and more, network adapters allow devices to connect to a local computer network through either WiFi (wireless) or Ethernet (wired) formats.
A powerline adaptor connects your computer to the internet by using your home’s electrical wiring. With a powerline adaptor, you can truly get the best of both worlds. A powerline adaptor is sometimes called a powerline-Ethernet adaptor because it still uses an Ethernet cable, just in a more limited capacity.
To check its status, right-click your computer’s network adapter then select Properties. Once the adapter is enabled, there would be a This device is working properly notification if the adapter is working properly.
Yes. If you need to connect to a wired LAN or router or modem but you do not have an Ethernet port, you can use a USB to Ethernet adapter.
Like any other device in a computer, you cannot use your Ethernet adapter, or network card, unless you install a device driver for it.
Download this PDF Link: Lenovo 4XC7A08277 ThinkSystem Ethernet Adapter Reference User Guide
