The Broadcom 57416 10Gb BASE-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in PCIe low-profile, OCP 3.0, or ML2 form factor for use in Lenovo ThinkSystem servers. The following figure shows the ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter.

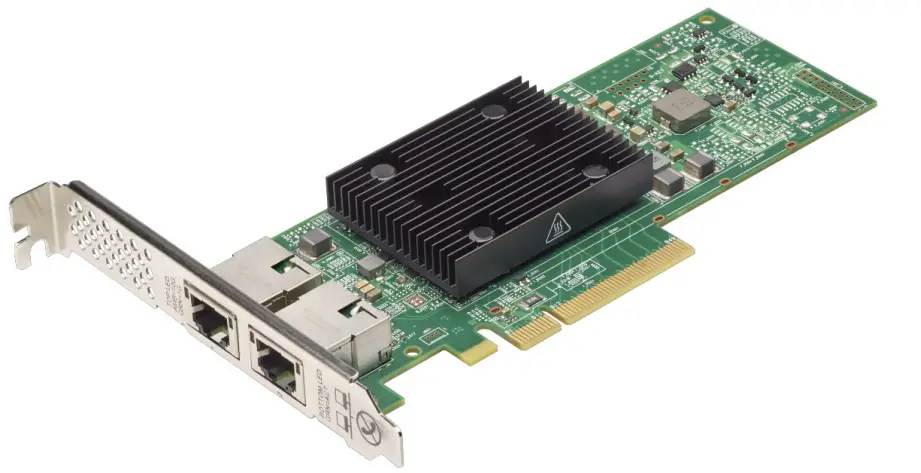

ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter

Did you know?

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling. The OCP and ML2 adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server’s onboard service processor. This support enables sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.

Part number information

The following table provides the ordering information.

Table 1. Ordering information

Note: The PCIe and ML2 adapters were previously named the ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter and ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter, respectively.

The adapter option part numbers include the following items:

• One Ethernet adapter with RJ45 connectors
• PCIe adapters: Full-height (3U) bracket attached with low-profile (2U) bracket included in the box
• Installation and warranty documentation

The following figure shows the ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE 2-port OCP Ethernet Adapter, 4XC7A08239. This adapter has two ports that connect to the 5720 Gigabit Ethernet controller also on the adapter (ports 1 & 2 – left-most ports), and two ports that connect to the 57416 10Gb Ethernet controller on the adapter (ports 3 & 4 – right-most ports).

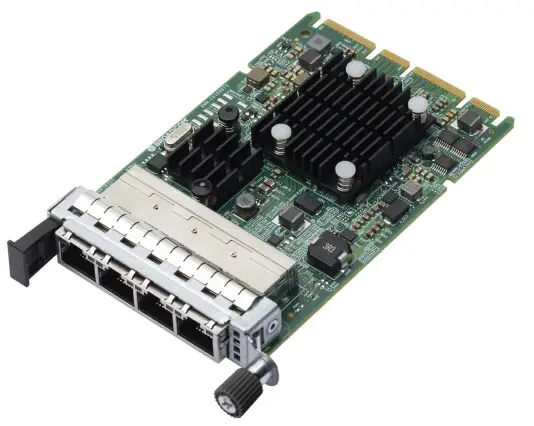

Figure 2. ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE 2-port OCP Ethernet Adapter

Network cabling requirements

The network cables that can be used with the adapters are as follows:

• 10GBASE-T
  • UTP Category 7 (100 m maximum)
  • UTP Category 6a (100 m maximum)
  • UTP Category 6 (55 m maximum)

The following table lists the supported Category 6 (CAT 6) cables.

Table 2. CAT6 cables

Specifications

The adapters have the following specifications:

• Dual-channel 10 Gbps Ethernet controller connected to two RJ45 ports
  • 10GBASE-T IEEE 802.3an support
  • 1000BASE-T IEEE 802.3ab support
• Based on the BCM57416 controller
• Adapter 4XC7A08239 also includes a Broadcom 5720 Gigabit Ethernet controller connected to two additional RJ45 ports
  • Ports 1 & 2 are connected to the 5720 Gigabit controller
  • Ports 3 & 4 are connected to the 57416 10 Gbps controller
• Supports IPv4 and IPv6
• Broadcom TruFlow flow processing engine
• PCI Express 3.0 x8 host interface
• Form factor:
  • PCIe low-profile form factor (7ZT7A00496)
  • OCP 3.0 form factor (4XC7A08236 and 4XC7A08239 )
  • ML2 form factor (7ZT7A00497)

Virtualization features

• SR-IOV support with up to 128 VFs
• VXLAN, NVGRE, Geneve, GRE encapsulation and decapsulation vSwitch acceleration
• Multiqueue, NetQueue, and VMQ
• Tunnel-aware stateless offloads
• Message Signal Interrupts (MSI-X) support

Ethernet and NIC features:

• IPv4 and IPv6 offloads
• TCP, UDP, and IP checksum offloads Large Send Offload (LSO)
• Large Receive Offload (LRO)
• TCP Segmentation Offload (TSO) Receive-side Scaling (RSS)
• Transmit-side Scaling (TSS)
• VLAN insertion/removal
• Interrupt coalescing
• Jumbo frames up to 9 KB
• Network boot-PXE, UEFI
• iSCSI boot
• Data Plan Development Kit (DPDK) support

Remote Direct Memory Access (RDMA):

• Supports RDMA over converged Ethernet (RoCE) specifications

Data Center Bridging / Converged Enhanced Ethernet (DCB/CEE):

• Hardware Offloads of Ethernet TCP/IP
• 802.1Qbb Priority Flow Control (PFC)
• 802.1 Qaz Enhanced Transmission Selection (ETS)
• 802.1 Qaz Data Center Bridging Exchange (DCBX)

Management:

• SMBus 2.0
• MCTP over SMBus
• NC-SI support (ML2 and OCP adapters; for 4XC7A08239, NC-SI can be configured on any one of the four ports)

The following figure shows the 2-port 10GBASE-T OCP 3.0 adapter.

Figure 3. ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 3. Server support (Part 1 of 3)

Table 4. Server support (Part 2 of 3)

Table 5. Server support (Part 3 of 3)

Operating system support

The following tables list the supported operating systems for the two adapters:

• ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter, 7ZT7A00496
• ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter, 4XC7A08236
• ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE 2-port OCP Ethernet Adapter, 4XC7A08239

Tip: These tables are automatically generated based on data from Lenovo ServerProven.

Table 6. Operating system support for ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter, 7ZT7A00496 (Part 1 of 3)

Table 7. Operating system support for ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter, 7ZT7A00496 (Part 2 of 3)

1. The OS is not supported with EPYC 7003 processors.
2. ISG will not sell/preload this OS, but compatibility and cert only.

Table 8. Operating system support for ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter, 7ZT7A00496 (Part 3 of 3)

Table 9. Operating system support for ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter, 4XC7A08236

1. The OS is not supported with EPYC 7003 processors.
2. ISG will not sell/preload this OS, but compatibility and cert only.

Table 10. Operating system support for ThinkSystem Broadcom 57416 10GBASE-T 2-port + 5720 1GbE 2-port OCP Ethernet Adapter, 4XC7A08239

1. The OS is not supported with EPYC 7003 processors.
2. ISG will not sell/preload this OS, but compatibility and cert only.

Physical specifications

The adapters have the following physical specifications:
The PCIe low profile adapter has the following specifications (approximate, without bracket):

• Length: 168 mm (6.6 in.)
• Width: 69 mm (2.7 in.)
• Height: 15 mm (0.6 in.)

The OCP adapters have the following dimensions:

• Width: 76 mm (3 in.)
• Depth: 115 mm (4.5 in.)

The ML2 adapter has the following physical specifications:

• Height: 69 mm (2.7 in.)
• Length: 168 mm (6.6 in.)
• Width: 17 mm (0.7 in.)

Operating environment

These adapters are supported in the following environment:

• Storage temperature: -40°C to 65°C
• Storage humidity: 5% to 95% non-condensing

Warranty

One-year limited warranty. When installed in a supported Lenovo server, these cards assume the servers’s base warranty and any warranty upgrade.

Agency approvals

The adapters conform to the following standards:

• CE/European Union EN60950-1
• UL/USA UL60950-1
• CTUVus UL
• Canada: CSA 22.2 No. 950
• Taiwan: CNS14336 Class A
• EN55022:2010 + *AC:2011 Class A
• EN55024 Class A
• FCC CFR47, Part 15 Class A
• Canada: ICES-003 Class A
• Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A
• South Korea: MIC RRL KN22 Class A
• South Korea: KN24 (ESD)
• Japan: VCCI V-3 04/2014
• EN55024:2010 Air/Direct discharge

Related publications

For more information, see the following documents:

• Lenovo ThinkSystem network adapter summary
  https://lenovopress.com/lp0765-networking-options-for-thinksystem-servers
• Lenovo server options product page
  https://www.lenovo.com/us/en/data-center/options/
• Lenovo ServerProven compatibility information for network adapters:
  http://www.lenovo.com/us/en/serverproven
• 10Gb Top-of-rack switch publications – Lenovo Press
  https://lenovopress.com/networking/tor/10gb

Related product families

Product families related to this document are the following:

• 10 Gb Ethernet Connectivity
• Ethernet Adapters
