Lenovo ThinkSystem Solarflare X2522-Plus 10 25GbE SFP28 Ethernet Adapter

The ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is a highperformance 25 GbE adapter that is designed for high-performance electronic trading environments and cloud and enterprise data centers. It is suitable for applications such as artificial intelligence, big data, analytics, machine learning, storage, and telco applications.

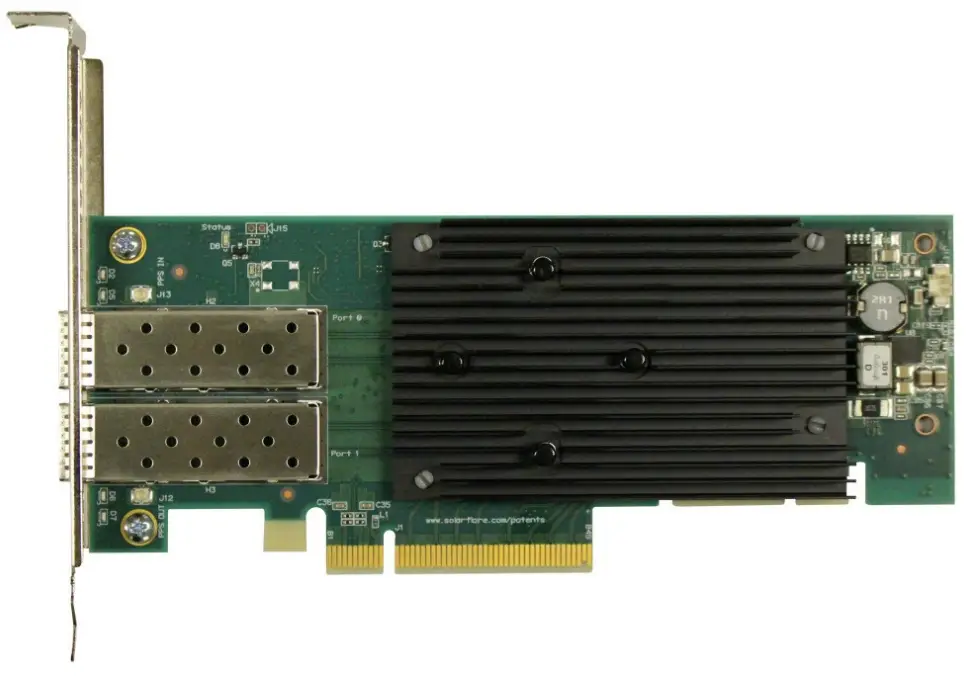

The following figure shows the ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter.

Figure 1. ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter

Did you know?
Extremely low latency and high throughput enables the Solarflare X2522-Plus adapter to provide real-time packet and flow information to thousands of virtual NICs. This combination of ultra-high bandwidth, ultra-low latency, ultra-scale connectivity, and packet telemetry allows the adapter to scale with each server or virtual machine.

Part number information

The following table provides the ordering part numbers and feature codes for the Solarflare X2522 adapter.

Table 1. Ordering information

The option part numbers includes the following items:

• One Ethernet adapter
• Full-height (3U) bracket attached with low-profile (2U) bracket included in the box
• Documentation

Note: The adapter ships without any SFP28 transceivers or direct attach cables. These items must be ordered separately as listed in the following section.

Supported transceivers and cables

The Solarflare X2522 adapter has empty SFP28 cages for connectivity. The adapter either supports connections to a 10 Gb or 25 Gb switch or can share a connection to a 100 Gb switch using a 4:1 breakout cable.

The following table lists the supported transceivers.

Table 2. Transceivers

25Gb transceivers: When installed in the Solarflare X2522 Ethernet adapter, the supported 25Gb transceiver will currently only operate at 25Gb/s speeds.

The following table lists the supported fiber optic cables and Active Optical Cables.

Table 3. Optical cables

The following table lists the supported direct-attach copper (DAC) cables.

Table 4. Copper cables

Features

Key features and benefits:

• Sub-microsecond latency
• Near-zero jitter
• Highly scalable
• Predictable, deterministic system performance
• High message rates
• Precision Time Stamping for accurate synchronization
• NVMe/TCP storage ready
• SolarCapture Pro network performance monitoring

The Solarflare X2522 adapter supports the Onload kernel bypass application acceleration and DPDK services which deliver superior small packet performance with sub-microsecond hardware latency, essential for electronic trading environments.

Onload dramatically accelerates and scales network-intensive workloads such as in-memory databases, software load balancers, and web servers. With Onload, data centers can support 4X or more users on their cloud network while delivering improved reliability, enhanced quality of service (QoS), and a higher return on investment, without modification to existing applications.

In addition, the X2522 adapter supports the precision time protocol (PTP) fabric service for apps that require synchronized time stamping of packets down to single-digit nanosecond resolution.

SolarCapture Pro packet capture software enables the X2522 adapter to capture and time stamp packets in hardware, persist packet to disk, and replay packets streams. This feature provides the essential ingredient for corporate data centers to run applications such as high-precision network performance monitoring, analysis, and regulatory compliance.

The X2522 adapter is ideal for scale-out cloud, web, and CDN application environments. Use cases include software- defined networking (SDN), network functions virtualization (NFV), web content optimization, DNS acceleration, web firewalls, load balancing, NoSQL databases, caching tiers (Memcached), web proxies, video streaming, and storage networks.

X2522 adapters speed up TCP, unicast, multicast and UDP traffic for a wide variety of trading applications.
The X2522 is ideal for electronic trading environments, from mission-critical exchange gateways and matching engines on the financial exchange side, to feed handlers, order routing, algorithmic trading engines, messaging applications, order execution, data distribution and client communications on the trading side.

Specifications

The Solarflare X2522-Plus adapter has the following specifications:

• Adapter hardware
  • PCIe Gen 3.1 x8 host interface
  • Two SFP28 cages
• NIC capabilities
  • MSI-X support
  • Interrupt coalescing
  • 2×10/25G 64-byte line rate
• Virtualization
  • Linux Multi-queue
  • VMware NetQueue
  • SR-IOV (Linux/VMware): hardware capability – 240 functions
  • 2,048 guest OS protected vNICs
  • Full hardware switch fabric in silicon capable of steering any flow based on Layer 2 to Layer 4 protocols, between physical and virtual interfaces
  • VXLAN, NVGRE, and GENEVE tunneling offloads; adaptable to custom overlays
  • VLAN and VLAN Q-in-Q insertion/stripping
• Manageability and Remote Boot
  • PXE and UEFI
  • MCTP PCIe VDM
• Management and Utilities
  • Ethtool support
  • vCenter plug-in
  • Solarflare boot manager
• Stateless Offloads
  • TCP/UDP Checksum Offload (CSO)
  • TCP Segmentation Offload (TSO)
  • Generic Segmentation Offload (GSO)
  • Large Send Offload (LSO)
  • Large Receive Offload (LRO)
  • Receive Side Scaling (RSS)
• Network Acceleration
  • Data Plane Development Kit (DPDK) Poll Mode Driver – Packet
  • Onload – TCP/UDP
  • TCPDirect – TCP/UDP
• Time Synchronization and Hardware Timestamping
  • On-board Stratum 3 compliant oscillator
  • Solarflare software PTP Daemon delivers enhanced stability and clock synchronization accuracy and can be used to synchronize the adapter clock to external time source
• Traffic Engineering
  • XtremePacket Engine for dedicated parsing, filtering, and flow steering
  • TCP/UDP/IP, MAC, VLAN, RSS filtering
  • Accelerated Receive Flow Steering (ARFS)
  • Transmit Packet Steering
• Ethernet Standards
  • IEEE 802.3-2012 Ethernet base standard, including 802.3bx
  • IEEE 802.3-2015 Ethernet flow control
  • IEEE 802.3ad, 802.1AX link aggregation
  • IEEE 802.1Q, 802.1P VLAN tags and priority
  • IEEE 1588-2008 PTPv2
  • Jumbo frame support (9000 bytes

Server support

The following tables list the ThinkSystem servers that are compatible.

Table 5. Server support (Part 1 of 2)

Table 6. Server support (Part 2 of 2)

Operating system support

The following table lists the supported operating systems for the adapter.

Tip: This table is automatically generated based on data from Lenovo ServerProven.

Table 7. Operating system support for ThinkSystem Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter, 4XC7A62581

1. RHEL7.8 Not support with EPYC 7003 processors. Not support with EPYC 7003 processors
2. RHEL7.9 Not support with EPYC 7003 processors. Not support with EPYC 7003 processors
3. RHEL8.2 Not support with EPYC 7003 processors. Not support with EPYC 7003 processors
4. Not support with EPYC 7003 processors
5. 1. RHEL7.8 Not support with EPYC 7003 processors. 2. Option Not support with EPYC 7003 processors.
6. 1. RHEL7.9 Not support with EPYC 7003 processors. 2. Option Not support with EPYC 7003 processors.
7. 1. RHEL8.2 Not support with EPYC 7003 processors. 2. Option Not support with EPYC 7003 processors.

Physical specifications

The adapter has a Low Profile form factor with the following dimensions:

• Length: 168 mm (6.6 in.)
• Height: 69 mm (2.7 in.)

Operating environment

The Solarflare X2522 adapter is supported in the following environment:

• Temperature
  • Operating: 0°C to 55 °C (32 °F to 131 °F)
  • Storage: -40 °C to 65 °C (-40 °F to 149 °F)
• Humidity
  • Operating: 10% to 80%
  • Storage: 5% to 90%

Warranty

One-year limited warranty. When installed in a supported server, these adapters assume the server’s base warranty and any warranty upgrade.

Agency approvals

The adapter conforms to the following standards:

• FCC, UL, CE
• RoHS – complies with EU directive 2011/65/EU

Related publications

For more information, see the following resources:

• Networking Options for ThinkSystem Servers
  https://lenovopress.com/lp0765-networking-options-for-thinksystem-servers
• Xilinx XtremeScale product page for the Solarflare X2522 adapter
  https://www.xilinx.com/products/boards-and-kits/x2-series.html
• Lenovo ServerProven compatibility information
  http://www.lenovo.com/us/en/serverproven
