Lenovo ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters

Product Guide

The ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor. They offer TruFlow™ intelligent flow processing and supports advanced networking technologies including RoCE v1/2, SDN, NFV and virtualization.

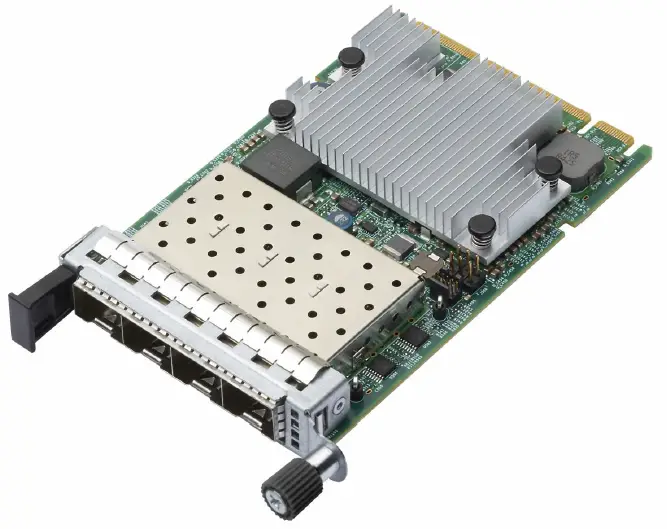

The following figure shows the 4-port OCP adapter.

Figure 1. ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP Ethernet Adapter

Did you know?
These adapters support 10 Gb or 25 Gb Ethernet switches, including the ThinkSystem NE2572 RackSwitch 25 Gb Ethernet switch. Alternatively, with suitable breakout cables, you can connect four 25 Gb adapters or ports to a single 100 GbE switch port such as the ThinkSystem NE10032 RackSwitch to maximize the investment of your 100Gb switch.

Part number information
The ordering information is listed in the following table.

Table 1. Ordering information

The V2 adapter, 4XC7A08316, offers improved electrostatic discharge (ESD) support over the existing adapter, 4XC7A08241; No functional change. The adapters, when shipped as a stand-alone option part number, includes the following items:

• One Broadcom adapter
• PCIe adapters: Full-height (3U) bracket attached with low-profile (2U) bracket included in the box
• Documentation flyer

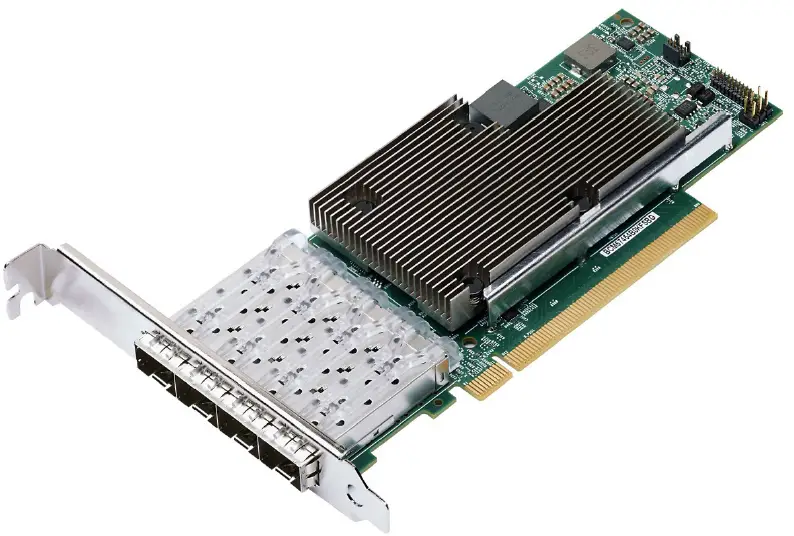

The following figure shows the ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter.

Figure 2. ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter

Supported transceivers and cables
The adapters have empty SFP28 cages for connectivity. The adapters either support a connection to a 10 Gb or 25 Gb switch or can share a connection to a 100 Gb switch using a 4:1 breakout cable.
The following table lists the supported transceivers.

Table 2. Transceivers

Not supported in the OCP adapter due to thermal restrictions; use 4TC7A69045 instead. The following table lists the supported fiber optic cables and Active Optical Cables.
Table 3. Optical cables

The following table lists the supported direct-attach copper (DAC) cables.

Table 4. Copper cables

Features

The adapters have the following features:

• Broadcom TruFlow technology integrates flow processing to provide hardware assisted processing of traffic flows with data path Acceleration. TruFlow enables efficient network flow processing and increases Virtual Machine density by offloading the server CPU to improve application performance.
• Broadcom adapters are the industry’s most secure Ethernet solution, leveraging Broadcom’s BroadSAFE® technology to provide unparalleled platform security via Silicon Root of Trust. Broadcom is the first Ethernet Adapter vendor to store authentication key and code in silicon to protect clients from maliciously modified firmware.
• The adapters support both RoCEv1 and RoCEv2 simultaneously. RoCE (RDMA over Converged Ethernet) allows Remote Direct Memory Access (RDMA) traffic to be communicated over Converged Ethernet using Data Center Bridging (DCB). Broadcom’s Smart Congestion Control provides consistent and predictable performance for real world workloads plus scaling for heavily loaded network traffic making it ideal for clients looking for deterministic low latency.
• Support for Data Center Bridging (DCB), including IEEE 802.1Qbb Priority based Flow Control
  (PFC), 802.1Qaz Enhanced Transmission Selection (ETS), and 802.1Qau Quantized Congestion Notification (QCN) capabilities. DCB technology allows the device to provide lossless data delivery, prioritize low latency traffic, and share bandwidth among data center physical links.
• Support for SR-IOV to allow I/O transactions to bypasses hypervisors, which reduces latency by removing data copies and context switches between VM address space and hypervisor address space, when transmitting or receiving data over the network. The implementation supports 802.1Qbg Edge Virtual Bridging (EVB)

Specifications

The adapters have the following technical specifications:

• Based on the Broadcom BCM57454 (4-port) controller
• PCIe 3.0 x16 host interface
• OCP adapters are designed to the Open Compute Project (OCP) NIC 3.0 (version 0.85) with the primary connector (4C+ OCP)
• Supports Message Signal Interrupt (MSI-X)
• Fully compliant with the SFF-8402 standard
• Up to four SFP28 external connectors supporting a transceiver, direct-attach copper (DAC) cable or active optical cable (AOC).
• Support for PXE boot, UEFI and iSCSI boot
• Support for Wake on LAN (WOL) (OCP adapter only)
• Function-Level Reset (FLR) support
• Network Controller Sideband Interface (NC-SI)
• PCIe-based UART and KCS
• SMBus 2.0
• Networking Features
  • Jumbo frames (up to 9600-Byte)
  • 3x flow control
  • Link Aggregation (802.3ad)
  • Virtual LANs-802.1q VLAN tagging
  • Configurable Flow Acceleration
  • Advanced Congestion Avoidance
  • IEEE 1588 and Time Sync
  • Forward Error Correction Clause 74, Clause 91 support over 25 Gbps
• Performance Features
  • 30M Packet Per Second
  • Low latency
  • Bidirectional wire speed throughput
• Stateless Offload Features
  • IPv4 and IPv6 offloads
  • TCP, UDP, IPv4, IPv6 checksum offload Large Send Offload (LSO)
  • Receive Segment Coalescing
  • TCP Segmentation offload (TSO)
  • Large Receive Offload (LRO)
  • Generic Receive Offload
  • Receive Side Scaling (RSS)
  • Transmit Side Scaling (TSS)
  • Header-Payload Split
  • Accelerated Received Flow Steering (RFS)
• Virtualization
  • vSwitch Acceleration
  • NetQueue, VMQueue, and Multiqueue SR-IOV with up to 1K virtual functions (VFs). VXLAN-aware stateless offloads
  • NVGRE-aware stateless offloads
  • Geneve-aware stateless offloads
  • IP-in-IP-aware stateless offloads
  • GRE-aware (encap/decap) stateless offloads
  • Stateless Transport Tunneling
  • Edge Virtual Bridging (EVB)
  • Per Virtual Function (VF) statistics
  • VF Receive-Side Scaling (RSS)/Transmit-Side Scaling (TSS)
• RDMA over Converged Ethernet (RoCE)
  • RoCEv1 and RoCEv2
  • Data Center Bridging with RoCE
  • Reliable Connection Queue Pair
  • Unreliable Datagram Queue Pair
  • Raw Ethertype Queue Pair
  • Up to 1 million Queue Pairs
  • Up to 64K Shared Receive Queues
  • Up to 1 million Completion Queues
  • Up to 1 million Memory Regions and Memory Windows
  • Up to 1 million Protection Domains
  • Up to 250 outstanding RDMA Reads or Atomics per Queue Pair Congestion Avoidance (hardware-based flows tracking and rate adjustment) Fast Memory Register
  • Linux OFED 3.5 and later
  • MS-Windows Network Direct Kernel Provider Interface and SMBDirect MS-Windows Network Direct Service Provider Interface
• Integrated Flow Processing
  • 1 million+ Exact Match Flows
  • Exact Match Flow Lookup
  • Wildcard Match Flow Lookup
  • VLAN insertion/deletion
  • NAT/NAPT
  • Tunnel Encapsulation/De-capsulation Flow tracking and aging
  • Mirroring
  • Metering
  • Flow counters/statistics
  • Custom tunnel header support
• Data Center Bridging
  • Priority-based flow control (PFC; IEEE 802.1Qbb)
  • Enhanced transmission selection (ETS; IEEE 802.1Qaz) Quantized Congestion Notification (QCN; IEEE 802.1Qau)
  • Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz) Up to 8 traffic classes per port; fully DCB compliant per 802.1Qbb
• Manageability
  • TruManage Technology based on Distributed Management Task Force (DMTF) standards and protocols, support for SMASH2.0, WS-Man, and IPMI2.0/DCMI1.5
  • Management Component Transport Protocol (MCTP) – MCTP over SMBus and MCTP over PCIe VDM
• Power Saving
  • ACPI compliant power management
  • PCI Express Active State Power Management (ASPM) PCI Express eCLKREQ support
  • PCI Express unused lane powered down
  • Ultra low-power mode
  • Energy Efficient Ethernet (IEEE Std 802.3az-2010) Power Management (PM) Offload

Server support
The following tables list the ThinkSystem servers that are compatible.

Table 5. Server support (Part 1 of 2)

In 1U servers, this adapter requires a full-height bracket and must be installed in a full-height slot.The use of a low-profile bracket and slot is not supported.

Table 6. Server support (Part 2 of 2)

In 1U servers, this adapter requires a full-height bracket and must be installed in a full-height slot.The use of a low-profile bracket and slot is not supported.

Operating system support

The following tables list the supported operating systems:

• ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter, 4XC7A08241
• ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter V2, 4XC7A08316
• ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP Ethernet Adapter, 4XC7A08242

Tip: These tables are automatically generated based on data from Lenovo ServerProven.

Table 7. Operating system support for ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter, 4XC7A08241

Table 8. Operating system support for ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter V2, 4XC7A08316

ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters

Table 9. Operating system support for ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port OCP Ethernet Adapter, 4XC7A08242

Physical specifications

The PCIe adapter has the following dimensions:

• Length: 167 mm (6.6 in.)
• Height: 63 mm (2.5 in)

The OCP adapter has the following dimensions:

• Width: 76 mm (3 in.)
• Depth: 115 mm (4.5 in.)

Operating environment

The adapters are supported in the following environment:

• Temperature (operating): 0 to 55 °C (32 to 131 °F)
• Temperature (storage): -40 to 65 °C (-40 to 149 °F)
• Humidity: 5 to 95% non-condensing

Warranty

One-year limited warranty. When installed in a supported server, these adapters assume the server’s base warranty and any warranty upgrade.

Agency approvals
The adapters conform to the following standards:

• EN 55022:2010 + AC:2011 Class B (CE EU) EN 55024 Class B (EU)
• CFR47, Part 15 Class B (USA FCC) ICES-003 Class B (Canada)
• CNS13438 Class B (BSMI Taiwan)
• RRL KN22 Class B (S. Korea)
• KN24 (ESD) (S. Korea)
• V-3 / 2014 / 04 (VCCI Japan)
• EN 60950-1
• UL 60950-1
• CTUVus UL
• CSA 22.2 No. 950 CNS14336 Class B
• ICES 003
• UL 1977 (connector safety)
• UL 796 (PCB wiring safety)
• UL 94 (flammability of parts)

Related publications

For more information, see the following resources:

Networking Options for ThinkSystem Servers
https://lenovopress.com/lp0765-networking-options-for-thinksystem-servers
Lenovo ServerProven compatibility information:
http://www.lenovo.com/us/en/serverproven/

Related product families

Product families related to this document are the following:

• 25 Gb Ethernet Connectivity
• Ethernet Adapters
