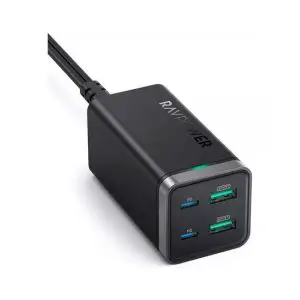

RP-PC136 RAVPower PD Pioneer 65W 4-Port Desktop Charger

Thanks for purchasing RAVPower products. Please read this User Guide thoroughly before use of the product and retain it for future reference.

Contents hide

1 Package Contents

2 Product Diagram

3 Specifications

4 Using Your Desktop Charger

5 Caution

6 Warranty

7 FCC Compliance

8 Documents / Resources

9 Related Posts

Package Contents

1 x AC Input Cable
1 x Thank You Card
1 x User Guide

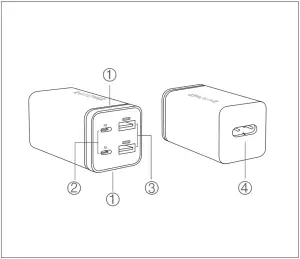

Product Diagram

➀ LED Indicator
➁ PD Ports
➂ iSmart Ports
➃ AC Input

Specifications

Model	RP-PC136
Input	100 ~ 240V ~ 50/60Hz 1.5A
PD Output	5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A, 65W Max Each Port
iSmart Output	5V 3A, 9V 2A, 12V 1.5A 18W Max Each Port
Total Output	65W

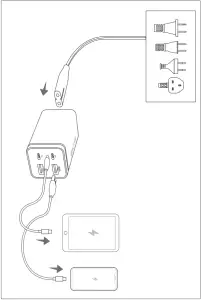

Using Your Desktop Charger

Connect the desktop charger to a power outlet with the included AC input cable, then connect your device to the desktop charger with the USB charging cable.
Charging will start automatically.
Unplug the charging cable once charging is completed.

Note:

The USB charging cable is not included in the package.
The LED indicator will keep on once connected to a power outlet.

Caution

	Do not expose to liquids
	Don’t dismantle
	Avoid dropping.
	Keep away from extreme temperature
	Not a toy. Keep out of reach of children.
	Dispose the product as per local law and regulations

Warranty

	18 Month Warranty .
	Life-time Support.

Note: This warranty is void if the defect is caused by

	Damage caused by force majeure
	Accidental damage, misuse, abuse, neglect.
	Improper repair or alteration by unauthorized persons.
	Expired warranty period.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE Compliance
DO not to dispose of product as unsorted municipal waste and to collect such WEEE separately, for proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Please contact your local authority for further details of your nearest designated collection station.

E-mail: [email protected]

MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co., Ltd.
Address: Floor 7, Building E, Galaxy World Phase II, Shenzhen, China
Learn more about the EU Declaration of Conformity:
https://www.ravpower.com/pages/user-manual
