Ravpower Pd Pioneer 20000mah 18w 3-port Power Bank User Guide (+ PDF)

Model	RP-PB172
PD Input	5V2A, 9V2A, 12V1.5A
Input (IN 1)	5V2A, 9V24,12V 1.54
Input (IN 2)	5V2.1A
PD Output	5V3A, 9V2A, 12V1.5A
QC Output	5V3A, 9V2A, 12V1.5A
iSmart Output	5V2.4A
Total Output	5V3A Max
Rated Capacity	5500mAh/66Wh (12V1.5A)

Before First Use

· Please pay attention to the symbols and indicators for proper use.
· It is recommended to fully charge the unit before ﬁrst use.

Using Your Power Bank

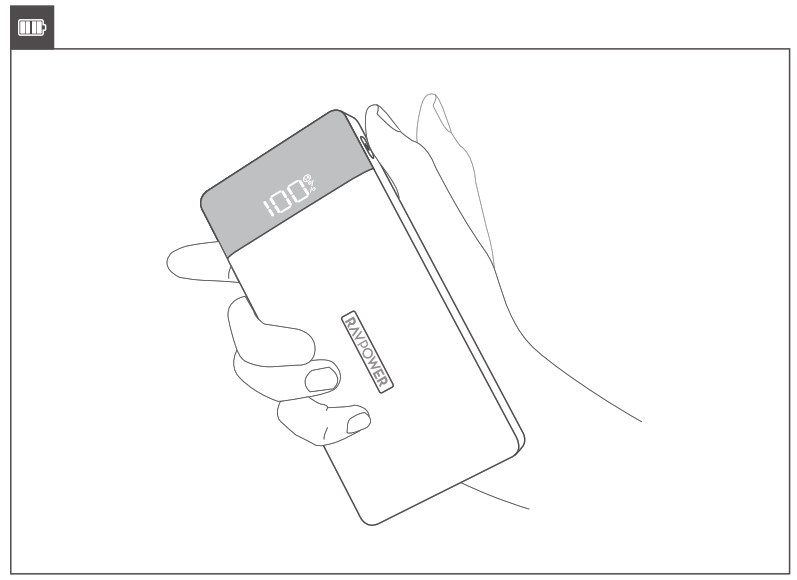

Press the Power Button to check the battery level.

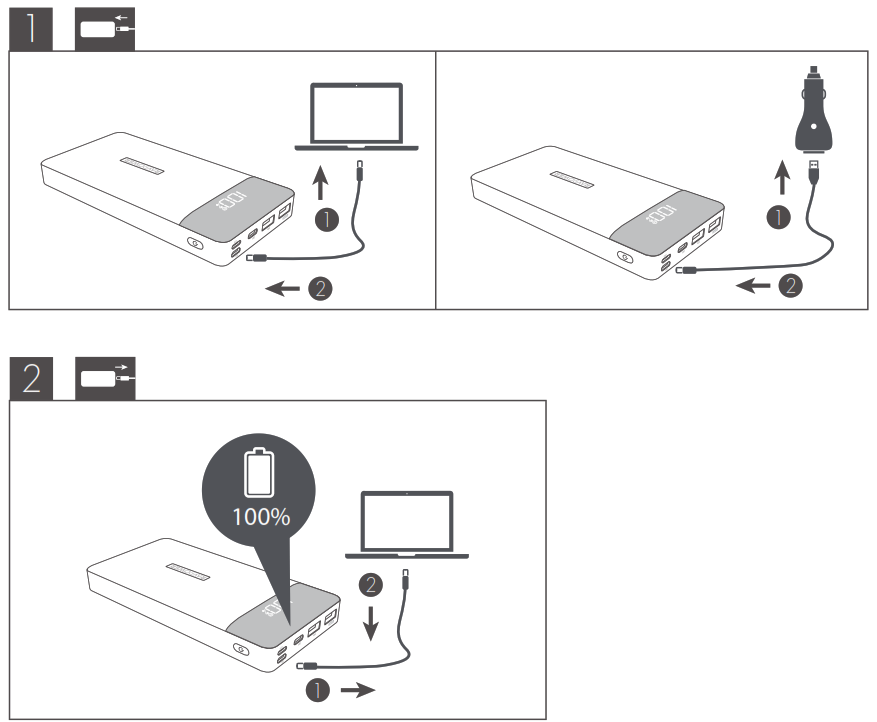

Charging Your Power Bank

1. Charge the power bank via the Micro USB port, USB-C Port, or the Lightning Port.
2. Unplug the charging cable when charging has been completed.

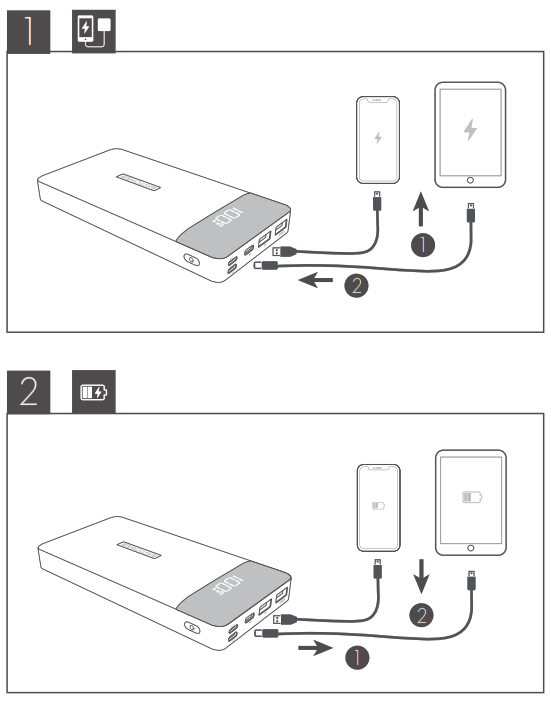

Charging Your Device

1. Connect your device to the power bank via the iSmart port, QC port or the USB-C port accordingly.
2. Charging will start automatically.
Note: Unplug the charging cable when charging has completed.

www.ravpower.com

EUROPE
E-mail:
[email protected](UK)

EU Importer: ZBT International Trading GmbH
Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland

NORTH AMERICA
E-mail: [email protected](US)
[email protected](CA)
Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
US Distributor: SUNVALLEYTEK INTERNATIONAL INC.
Address: 46724 Lakeview Blvd, Fremont, CA 94538

MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co., Ltd.
Address: 333 Bulong Road, Shenzhen, China, 518129
Learn more about the EU Declaration of Conformity:
https://www.ravpower.com/downloads-PR-PB172-CE-Cert.html

Caution

· Use RAVPower original or authorized cable only.
· Recharge the power bank once every six months when not in use.
· Keep away from liquids. Stop using if it is wet to avoid fire hazards, battery leakage, electric shock or explosion.
· Keep away from high temperatures.
· Never try to dismantle, repair or refit this unit by yourself.
· Do not knock this product. Avoid dropping.
· Do not clean this unit with soap or another detergent to avoid damaging.
· Stop using immediately if deformation, breakage, overheating or abnormal odor occurs.
· Keep away from flammables, smoke and heat surface.
· Keep out of reach of children.
· Dispose this product as per local law and regulations.

Warranty

· 18 Month Warranty.
· Lifetime Support.
Note: This warranty is void if the defect is caused by
· Damage caused by force majeure.
· Accidental damage, misuse, abuse, neglect.
· Improper repair or alteration by unauthorized persons.
· Expired warranty period.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation.

WEEE Compliance
DO not to dispose of product as unsorted municipal waste and to collect such WEEE separately, for proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Please contact your local authority for further details of your nearest designated collection station.
