KOVOL Sprint 120W PD 4-Port GaN Desktop Charger
Thank you for purchasing a Kovol product. Please read this guide thoroughly before use of the product and retain it for future reference.

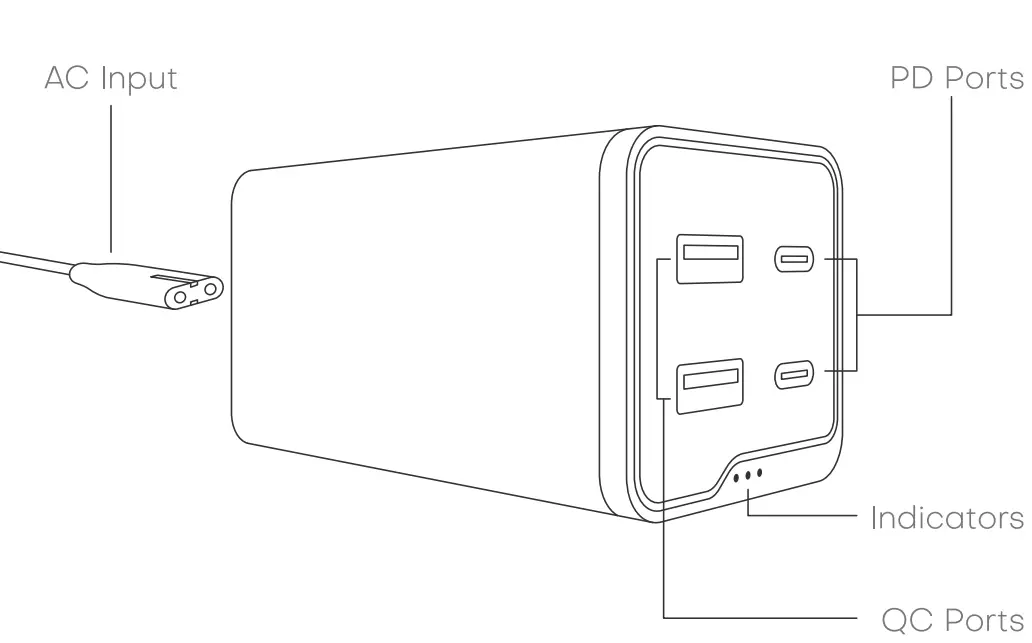

PRODUCT DIAGRAM
PACKAGE CONTENTS
1 x Kovol Desktop Charger (KV-PC001)
1 x AC Input Cable
1 x Thank You Card
1 x User Guide

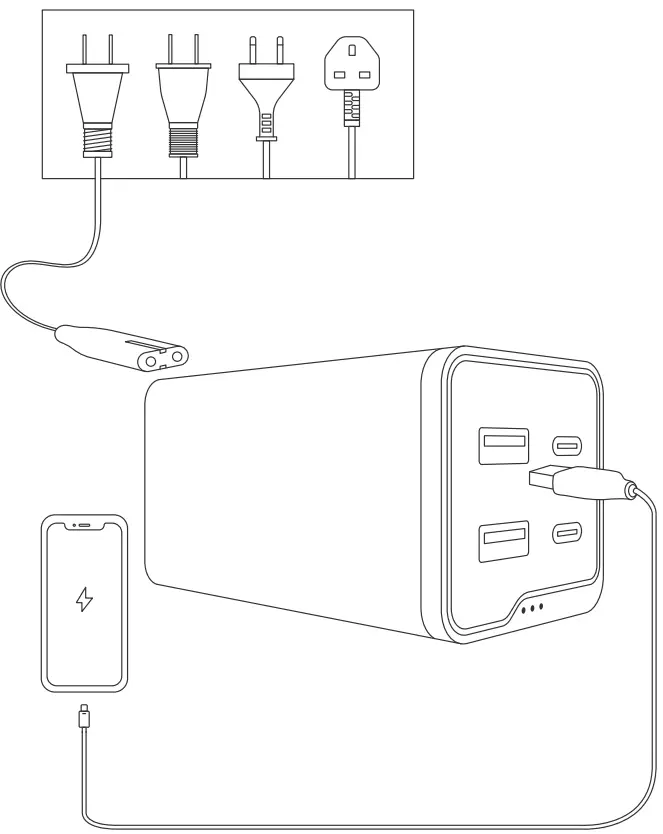

Using Your Desktop Charger
- Connect the desktop charger too power outlet with the included AC input coble, then connect your device to the desktop charger with the USB charging coble.
- Charging will start automoticolly.
- Unplug the charging coble once charging is completed
Note: The LED indicator will keep on once connected to o power outlet.
SPECIFICATIONS
| Model | KV-PC001 |
| Input | 100-240V – S0/60Hz 2.SA Max. |
| PD Output | 5V-3A, 9V-3A, 15V-3A, 20V-5A, 100W Mox. each port |
| QC Output | 5V-3A, 9V-2A, 12V-l5A, 18W Max. each port |
| Total Output | 120W Max. |
Caution
- Do not expose to liquids
- Don’t disassemble
- Avoid dropping
- Keep away from extreme temperatures
- Keep out of reach of children
- Dispose of the product as per local low and regulations
Warranty
- 12-month warranty, plus an extra 12 months upon product registration on www.kovolinc.com
- Life-time technical support
Note:
This warranty is void under these conditions:
- Damage caused by force majeure
- Accidental damage, misuse, abuse. neglect
- Warranty period expired
www.kovolinc.com
Asia Pacific
Email: [email protected]
JP Importer: iill’l~f±;:t,.:;:z 7 D – 1/-t> / t/
Address: T1 20- 0012]:J[mtBJE.lllz:.#2-16-4-509
Company: IVONTEK LIMITED
Address: Flot27 Queensgate House Hereford Road LONDON E3 2FN
North America
Email [email protected]
US Distributor: KOVOL INC
Address: 1312 17th St Suite 210. Denver, CO 80202, United States
Manufacturer: KOVOL INC
Address: 1312 17th St Suite 210, Denver, CO 80202, United States
MADE IN CHINA KV-PC001_V1.
