Kogan 30w Gan Dual Port Charger Kadpgan30wa User Guide

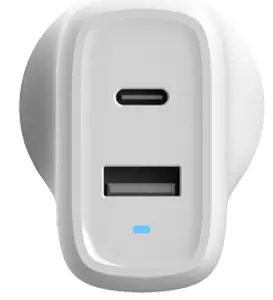

kogan 30W Gan Dual Port Charger KADPGAN30WA

SAFETY & WARNINGS

• Read all instructions before use and retain this user guide for future reference.
• Ensure the charger is only used in power outlets with a voltage range of 100~240V.
• Unplug the charger after use.
• Do not use this charger with any electrical device that does not match the specifications outlined in this user guide.
• It is normal for the charger to feel warm during use.
• Keep the charger away from fire and other sources of heat,
• Do not immerse the charger in water or any other liquids.
• Do not clean the charger using any harsh detergents or solvents.

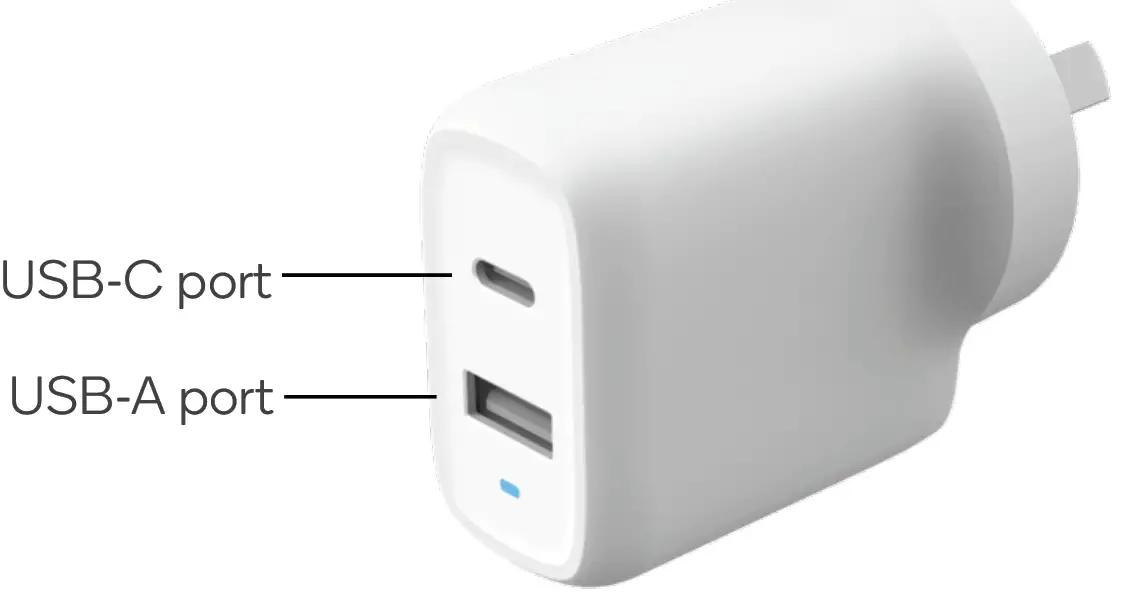

OVERVIEW

OPERATION

This charger is equipped with both a USB-A and USB-C port. It is compatible with a number of different USB protocols (Laptop, smartphone, tablet etc.).
Before charging your device first ensure that it matches the specifications outlined in this user guide.

Charging Your Device

1. Plug the charger into a power outlet.
2. Connect your electronic device to either the USB-A or USB-C port (depending on your device) using a USB cable.
3. Disconnect your device once it is fully charged.

Note: This charger features under/over-current, over-temperature and short-circuit protection. If your device isn’t charging, unplug it and check whether the device is compatible with this charger before trying again.

SPECIFICATIONS

Input                                               100-240VAC 50/60Hz
Total power                                      30W
USB-C output (single port)              5V/3A, 9V/3A, 15V/2A, 20V/1.5A
USB-C output (dual port)                5V/3A
USB-A output (single port)              3.6V-6V/3A, 6V-9V/3A, 9V-12V/2.5A
USB-A output (dual port)                5V/3A, A+C total 5V/5A
Operating temperature range           0 – 25°C
Storage temperature range              -20 – 85°C
Operating humidity                         20% – 90% RH
Storage humidity                             5% – 95% RH
Over current protection                  Yes
Short circuit protection                   Yes
Over temperature protection          Yes
Over voltage Protection                 Yes
Ripple and noise (USB-A)             ≤200mV @5V 9V 12V
Ripple and noise (USB-C)              ≤200mV @5V 9V 15V 20V
Turn on delay time                         3s max
Rise time                                        20mS
Efficiency (USB-A)                    ≥81.4% @5V
≥86.7% @9V
≥86.7% @12V
Efficiency (USB-C)
≥81.4% @5V
≥86.7% @9V
≥86.7% @15V
≥86.7% @20V
Dimensions                                     73.5 x 48.5 x 27.7mm
Certification                                    SAA, C-TICK, CE, FCC

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require,
head online to help.kogan.com
