Choetech Pd8008 100w Desktop Gan Charger User Manual

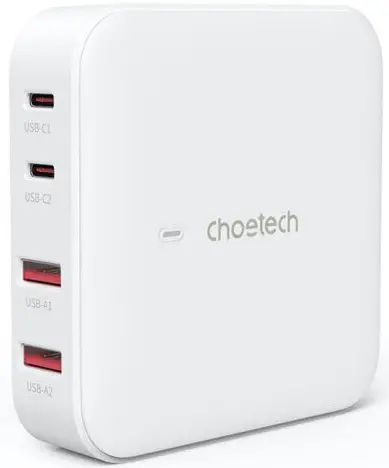

Choetech PD8008 100W Desktop GaN Charger User Manual

Introductions

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.

✉ www.alza.co.uk/kontakt
✆ +44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

Package List

• 1 x 100W Desktop GaN Charger
• 1 x User Manual

Specifications

• Interface
  2 x USB-C, 2 x USB-A
• Input
  100-240V ~ 50/60Hz, 2.5A Max
• Output
  USB-C1: 5.0V 3.0A, 9.0V 3.0A,
  12.0V 3.0A, 15.0V 3.0A,
  20.0V 5.0A (100W Max)
  USB-C2: 5.0V 3.0A, 9.0V 3.0A,
  12.0V 3.0A, 15.0V 3.0A,
  20.0V 5.0A (100W Max)
  USB-A1: 4.5V 5.0A, 5.0V 4.5A,
  9.0V 2.0A, 12.0V 1.5A (22.5W Max)
  USB-A2: 4.5V 5.0A, 5.0V 4.5A,
  9.0V 2.0A, 12.0V 1.5A (22.5W Max)
  USB-C1 + USB-C2: 65W + 30W (95W Max)
  USB-A1 + USB-A2: 5.0V 4.5A (22.5W)
  USB-C1/C2 + USB-A1/A2: 65W + 18W (83W
  Max)
  USB-C1 + USB-C2 + USB-A1/USB-A2: 45W
  + 30W + 18W (93W Max)
  USB-C2 + (USB-A1 + USB-A2): 65W +
  22.5W (87.5W Max)
  USB-C1 + USB-C2 + (USB-A1 + USB-A2):
  45W + 30W + 22.5W (97.5W Max)
• Total Output
  100W (Max)

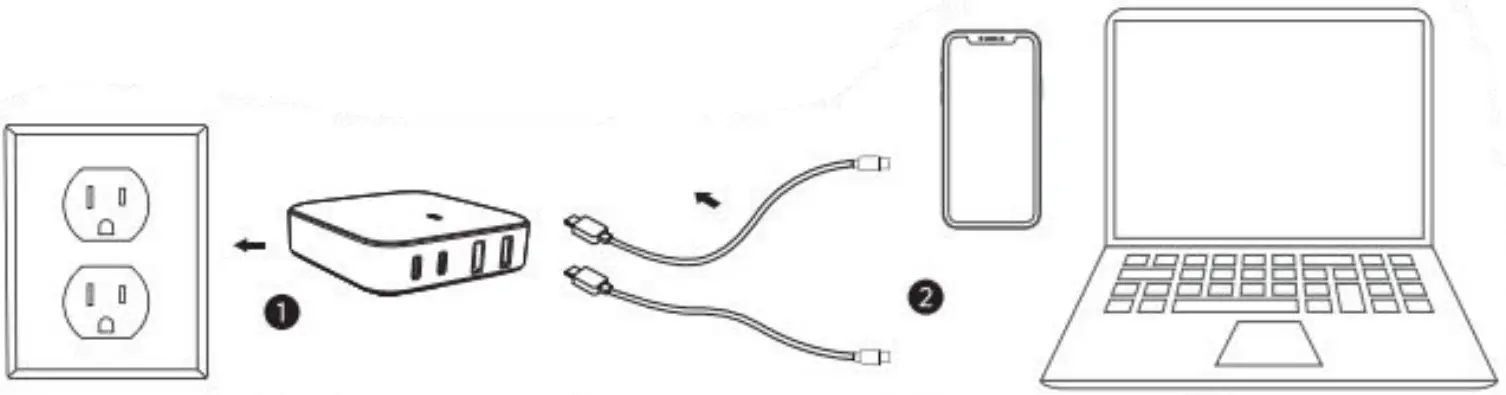

How to use

1. Connect the power supply
2. Charge to computer, phones and tablets

Attention

1. To ensure the best performance, we strongly recommend using the original or certified fast charging cables.
2. Please not expose this charger to rain or excessive moisture.
3. Please not use or store this charger in extreme temperatures.
4. Please not drop, knock or disassemble this charger.

EU Declaration of Conformity

This equipment is in compliance with the essential requirements and other relevant provisions of EU directives.
