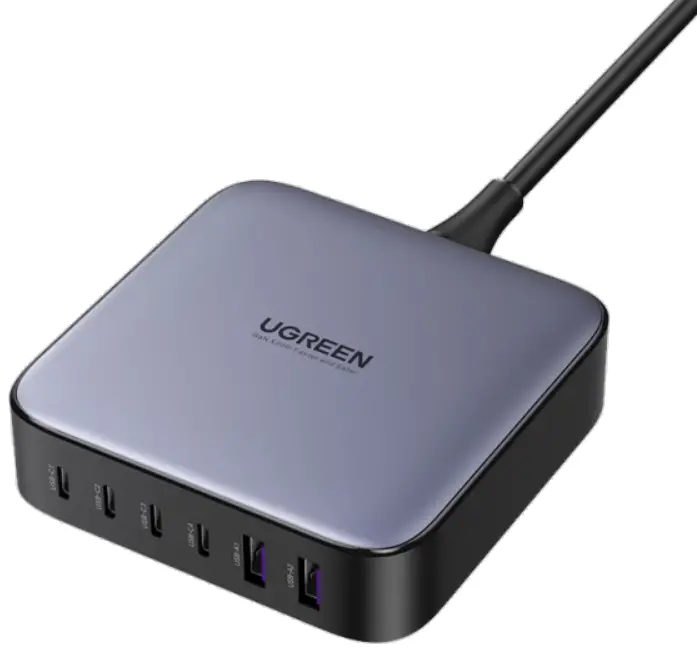

UGREEN CD271 GaN 200W Desktop Charger

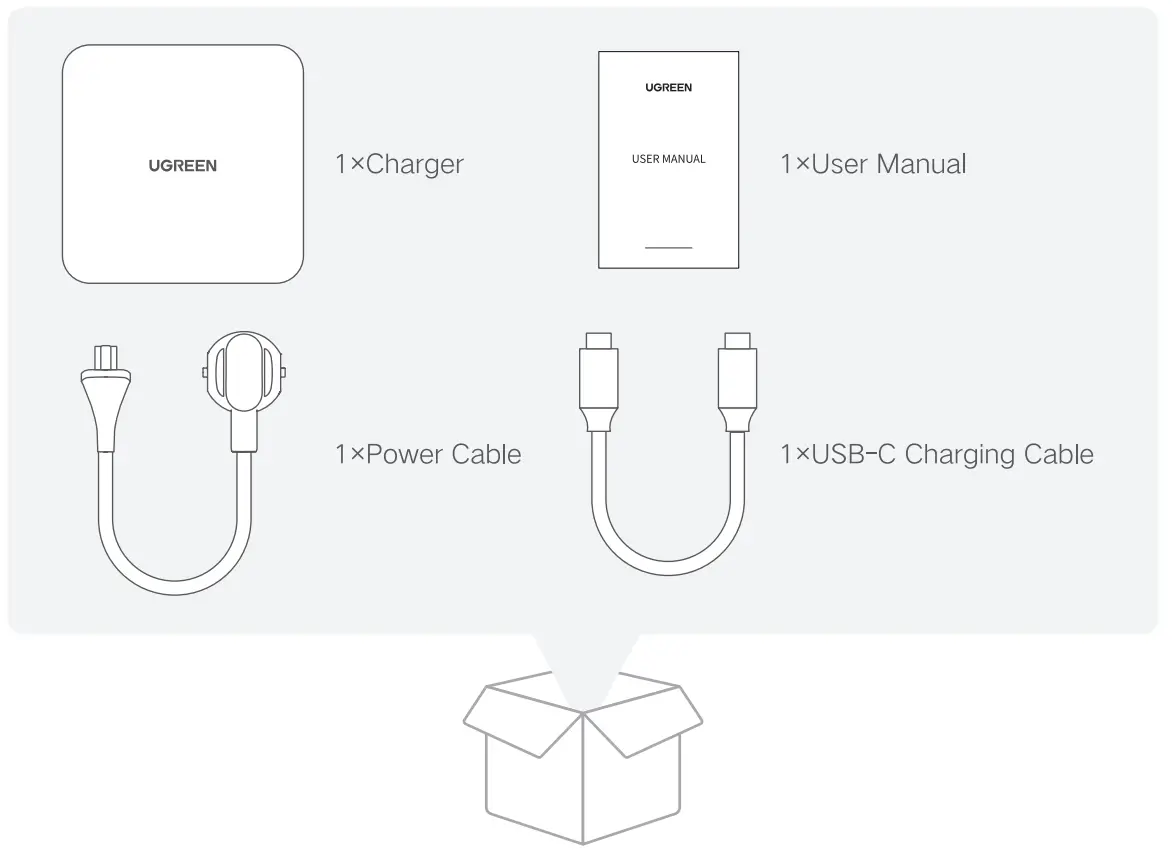

Package Contents

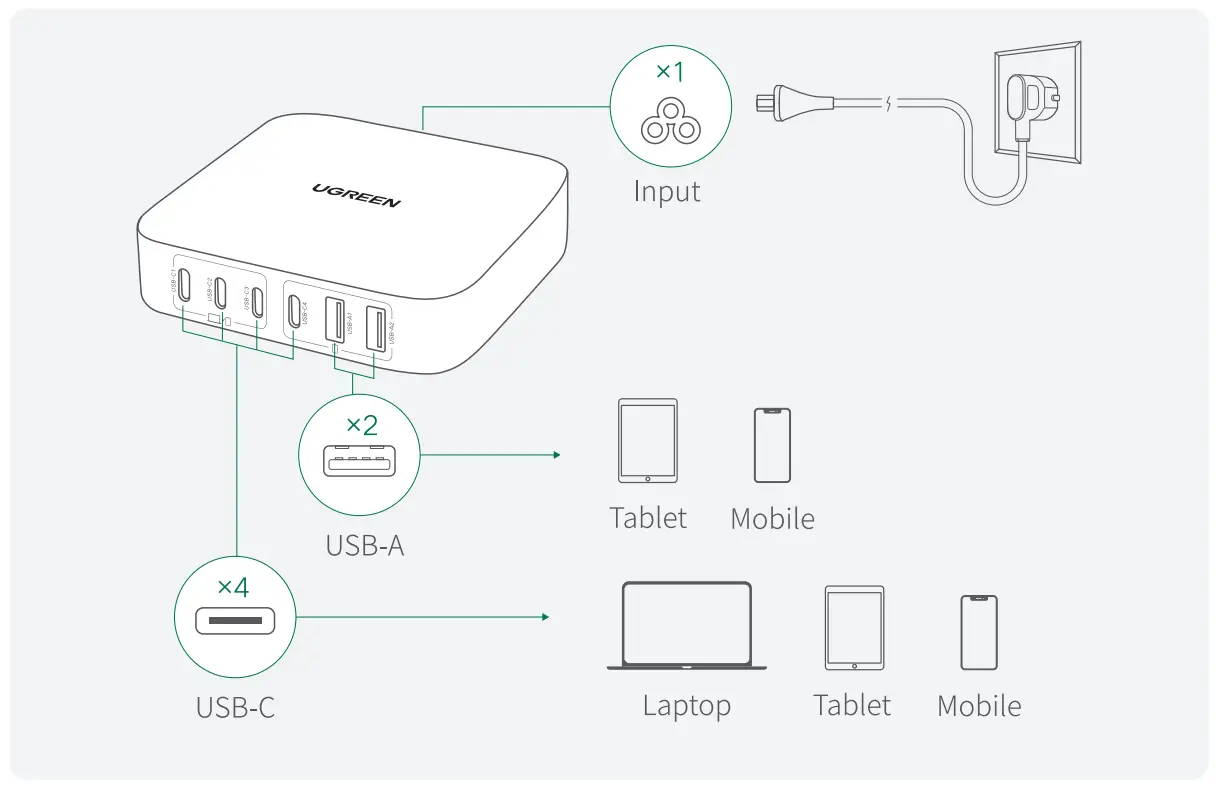

How It Works
Notice: Unplug the charger from power socket when not in use.
- his product is available in devices that are compatible with specified charging protocols.
- Do not expose the product to fire or charge it next to areas which may become hot.
- Do power the product with specified charging current.
- Do not expose to any liquids or operate in humid environments.
- For the purpose of troubleshooting, please contact UGREEN after-sales service for removal. Keep out of reach of children.
- Disposal of the product separately from household waste, following local regulations.
- This charger will conduct temperature detection when it is in a full-load condition to ensure a safe charging experience; when the temperature reaches the preset upper limits, the total output power will be reduced to around 165W, and it will resume to 200W when the temperature falls to the preset lower limits.
Specifications
GaN 200W Desktop Charger
| Input | 100-240V-50/60Hz 2.5A Max |
| USB-C1 /C2 Output | 5.0V= 3.0A/9.0V= 3.0A/ 1 2.0V= 3.0A/ 15.0V = 3.0A/ 20.0V= 5.0A/ 3.3-21.0V= 3.0A 100.0W Max |
| USB-C3/C4 Output | 5.0V= 3.0A/9.0V= 3.0A/ 1 2.0V= 3.0A/15.0V = 3.0A/ 20.0V= 3.25A/ 3.3-21.0V= 3.0A 65.0W Max |
| USB-A1 /A2 Output | 5.0V= 2.0A 10.0W Max |
| Total Output Power | 200.0W Max |
Power Cable
| Cable Core Size | 3×0.75mm 2 |
| Rated Current | 2.5A |
| Rated Voltage | 250V- |
| Cable Length | 2m/ 6.56 ft |
