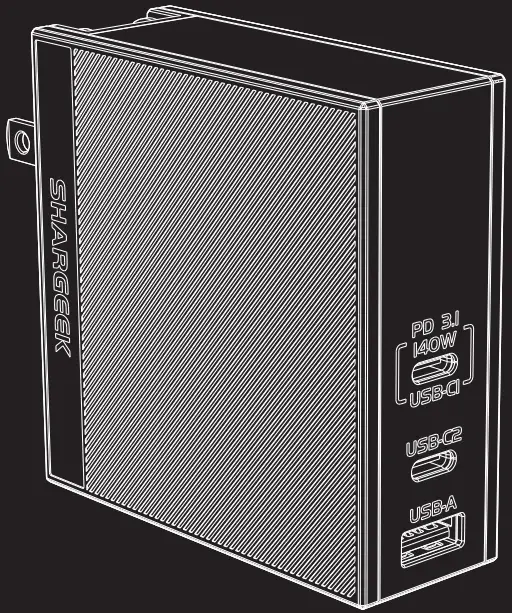

S140U 140W PD3.1 GaN Charger
User Manual
Description
S140U is a 140W travel charger adopting industry leading GaN (Gallium Nitride) technology. Though S140U is designed to be ultra-compact and travel-friendly, it is able to provide 140W Power Delivery output. 3140U equips with 2 USB-C ports and a USB-A port, supports a wide range of fast-charging protocols such as PD3.1, PPS(5A),QC5.0, QC3.0, SCP, FCP,AFC,APLLE2.4 and PE+. 3140U can provide 140W (28V= 5A) power from USB-C1 port, enabling PD charging the latest MacBook Pro and for most laptops. Moreover S140U provides independent charging functionality even if multiple devices are plugged in. A combination of multiple built-in safety circuits work together to provide ultimate protection on charging.
Specifications
NAME: SHARGEEK S140
MATERIAL: PC
DIMENSIONS: 73x 73 x28 mm
MODEL: S140U
COLOR: ORANGE
WEIGHT: 255g
Output Interface: USB-A x 1, USB-C x 2
Input: 100-240V’ 50/60Hz 2A Max
USB-C1 Output: 5V/9V/12V/15V
3A,20V/28V5A (140W Max)
USB-C2 Output: 5V/9V/12V/15V3A,20V5A (100W Max)
USB-A Output: 5V/9V3A, 12V2.5A, 20V1.5A (30W Max)
USB-C1+USB-C2 Output: 100W+20W
USB-C1+USB-A Output: 100W+18W
USB-C2+USB-A Output: 5V 4A
USB-C1+USB-C2+USB-A Output: 100W+20W(5V 4A)
Total Output: 140W Max
Operational Information
When using your charger:
- Ambient Temperature during use of the appliance: 0°C-35°C
- Storage temperature range:-20°C∼40°.
DO NOT use in tropical areas.
DO NOT use at altitudes more than 2000m above sea level.
DO NOT use outdoors.- DO NOT use power cables with poor quality for charging.
DO NOT use in tropical areas.
DO NOT use at altitudes more than 2000m above sea level.
DO NOT use outdoors.
According to USB Power Delivery Specification, if the charging current is larger than 3A, you must use USB-C E-Marker cables to guarantee the charging safety.
If a new device is plugged into the charger during the charging process, the charger will turn off and turn on the power outputting order to redistribute the power among different ports. During this process, you may hear a tone from your connected device(s), and the charger itself may also make a sound which is normal.
Attention
If there is a product defect, you can return the product for either a refund, replacement or repair as per the terms below. You will need to provide proof of purchase to initiate a warranty request.
Definition of Product Defect
| Product Name | Defects covered under warranty |
| SHAEGEEK S140 | • Flaws in product structure or material resulting in cracks • Plug is loose and cannot be inserted into the socket • Unable to charge |
Warranty Terms
| Warranty Items | Customer Services |
| Refund | You can return your charger for a full refund within 7 days of receipt of delivery |
| Replacement | You can return your charger for a replacement within 15 days of receipt of delivery |
| Repair | You can return your charger for repair service within 1 year of receipt of delivery |
The warranty does NOT apply to:
- Defects or damages caused by intentional acts, unauthorized repair, misuse, negligence, liquid, or improper use of accessories.
- Product defect or failure that occurs outside of the timing in the Warranty Terms Section.
- Damages caused by force majeures. Any defect or problem not included in the Definition of Product Defect
- Section.
Important Safety Information
Please read following safety instructions before using your charger:
- Do NOT put your charger in heat, direct sunlight or next to strong electromagnetic fields.
- Do NOT put your charger near open flames or in other harsh conditions.
- Do NOT open the charger’ s housing unless you’ re a qualified professional.
- Do NOT touch the charger during charging process – it may get hot. Though the product itself complies with safety regulations, the surface temperature can rise up to 70°C due to compact, high power-density design.
- Do NOT throw, hit, drop or allow any substantial impact to your charger.
- If any kinds of liquid gets into your charger, allow it to dry naturally before using it.
Improper use may cause injury, property damage, and may ham yourself. Shagreen is not responsible or liable for any damage or harm incurred because of user’s failure to follow the instructions list in this manual.
Support
Visit our website at https://www.shargeek.com
Please read this manual carefully and keep it for future reference.
Declaration of Hazardous Substances
This table is complied according to Standard SJ/T 11364 and uses the limits implied in GB/T 26572. The information contained in the table below is based on testing data provided by the supplier, and is in compliance with RoHS.
| PART NAME | TOXIC AND HAZARDEOUS SUBSTANCE AND ELEMENTS | |||||
| Pb | Ng | Cd | Cr6+ | PBB | PBDE | |
| PCB | X | O | O | O | O | O |
| Plastics | O | O | O | O | O | O |
| Metals | X | O | O | O | O | O |
| Components | O | O | O | O | O | O |
O: The amount of this hazardous substance in all the homogenous materials used for this part is below the limit.
X: The amount of this hazardous substance in at least one of the homogeneous materials used for this part is above the limit.
Warning: Failure to follow the instructions in this manual could result in fire, electric shock, injury, or property damage.
