3mk Gan-2a3c-140-w Hyper Charger 140w User Manual

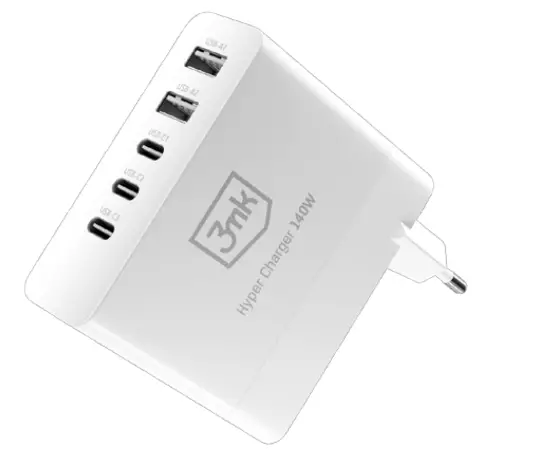

Hyper Charger 140W
User Manual

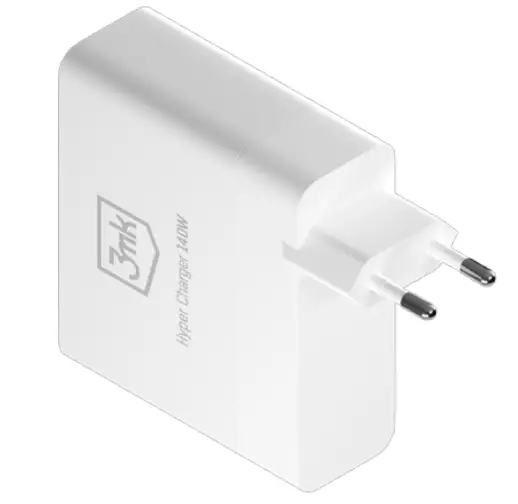

PRODUCT INSTRUCTION

This product is a GaN 140W intelligent fast charging charger.
3xUSB-C 2xUSB-A output, built-in PD intelligent identification chip, Compatible with mainstream fast charging protocols, supporting PPS, pd3.0, qc4 +, qc3.0, qc2.0,SCP,  FCP, AFC, etc. It can be compatible with the mainstream smart phone tablet and other.

SPECIFICATION

Name: Hardy Charger for Apple
Model: GaN-2A3C-140-W’
Input: 100−240V ～50 / 60Hz 1.5A 140W MAX
Total Output Power: 140W MAX Output:
USB-C1/C2/C3:5/9/12/15V 3A,20V 5A
USB-A1/A2:5/9/12/20V 3A
USB-C1/C2+C2/C3:95W+45W
USB-A1+A2:12W+12W
USB-C1/C2/C3+A1/A2:100W+36W
USB-C1/C2/C3+A1+A2:100W+12W
USB-C1+C2+C3:65W+45W+30W
USB-C1/C2+C2/C3+A1/A2:65W+45W+25W
USB-C1/C2+C2/C3+A1+A2:65W+45W+12W+12W
USB-C1+C2+C3+A1/A2:65W+30W+20W+25W
USB-C1+C2+C3+A1+A2:65W+30W+20W+12W+12W
Material: PC fireproof material
Size: L 115 x W 30 x H 85mm
Weight: 267g

WARNINGS

1. Do not store the product in the environment of high temperature, strong light and strong magnetic field, and do not place it in the fire source, etc other harsh environment to avoid thermal combustion or electric shock.
2. In case of over-voltage, over-current or over temperature during charging, the charger will stop automatically Charge to avoid injury. When it returns to normal state, charging will continue.
3. Do not dismantle, repair or transform by yourself.
4. Do not touch the power adapter with wet hands or diffuse it in water or other liquids.
5. Do not use the power adapter for products higher than the output range of this product to avoid electrical shock, combustion or damage to components.

DISPOSAL AND RECYCLING INFORMATION

This symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designed by local  authoritaries at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and  the environment.
Declaration of Conformity (DoC):
Hareby 3mk Protection Sp. z o.o., declares that this products is in compliance with essential requirements and other provisions of the directive 2014/53/EU.
