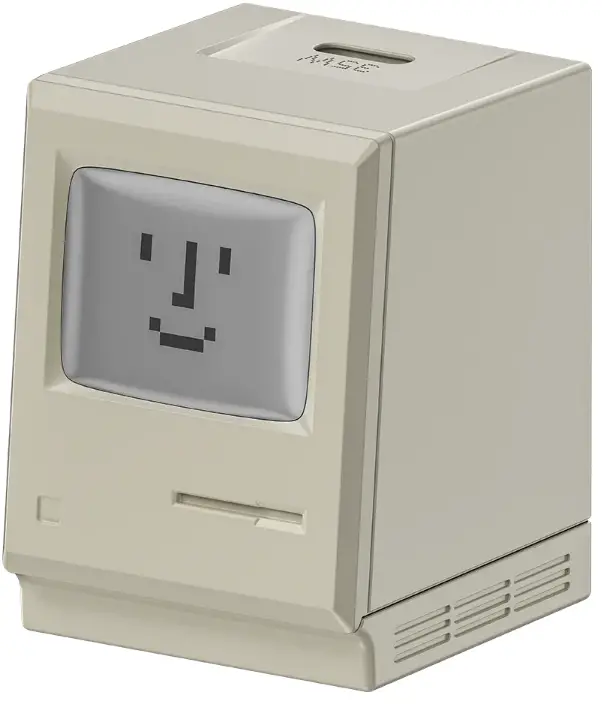

SHARGEEK S035U Retro 35W GaN Charger User Manual

Specification

Input:	100-240V – 50/60 Hz, 1.0A (Max)
Output:	5.0V/9.0V—3.0A,  12.0V—2.92A15.0V-2.33A, 20.0V-1.75A
	PPS: 3.3V-11.0V      3.0A (33W)
Size:	33x35x44mm (approx.)
Weight:	55g

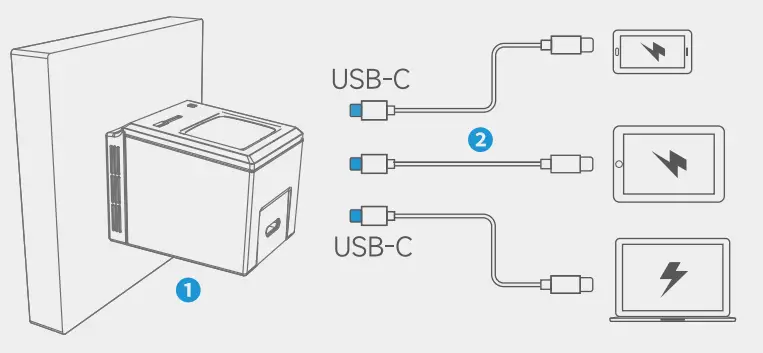

Using Your Product

1. Plug in the charger to an AC power source (either a wall outlet or a power strip).
2. Connect your portable device to the USB power port with a suitable charging cable according to the type of your device.
3. Refer to the color of charger’s indicator to check the charging status:
   •  White (Idle / Not Charging)
   •  Yellow (Normal Charging)
   •  Blue (Fast Charging)
   •  Green (Super Charging)

Attention

A\ [1] Read all the instructions before using this product.

• The product is designed for use with IT equipments only.
• The maximum ambient temperature during use of the appliance must not exceed 25°C.
• Naked flame sources, such as candles, must not be placed on the product.
• The disconnection from line voltage is made by AC plug.
• In case of broken plugs, the product must be disposed of.
• If you want to clean the product, only use a dry cloth or brush.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• The power supply is not intended to be repaired by service personnel in case of failure or component defect (the product can be disposed of).
• Do not use the product in overload conditions despite the OLP (Over Load Protection) function.

 For the fastest and safest charge, use a SHARGEEK® cable (please contact our sales for suggestions), your device’s original cable or another certified cable (such as MFi).

Notice

Declaration of Conformity

Hereby, SHARGEEK declares that the product type SO35U is in compliance with Directive 2014/30/EU.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio / TV technician for help.

Declaration of Confirmity

Hereby, SHARGEEK declares that the product type SO35U is in compliance with Directive 2014/35/EU & 2014/30/EU & 2011/65/EU & 2009/125/EC & 2019/1782/EU. You can contact SHARGEEK for the full text of the EU declaration of conformity.

Warranty

A limited 18-month* warranty applies to all SHARGEEK products purchased from SHARGEEK official store or authorized sellers. We provide lifetime technical support. Please feel free to contact us if you run into any problems.

NOTE:

Please note that your rights under applicable law governing the sale of consumer goods remain unaffected by the warranties given in this Limited Warranty. The warranty can either be Refund, Replacement or Repair based on different situations. The warranty does not cover defects or damages caused by accident, improper care, improper use, negligence or excessive ware and tear. SHARGEEK warrants that this product is free from defects in material and workmanship for a period of 18 months from the date of purchase.

Contact US

 [email protected]
 [email protected] (For Amazon customers only)
 https://www.shargeek.com/contact-us

www.shargeek.com
Made in China

Indoor use only.
It is only suitable for safe use in areas below 2000m above sea level.
This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
