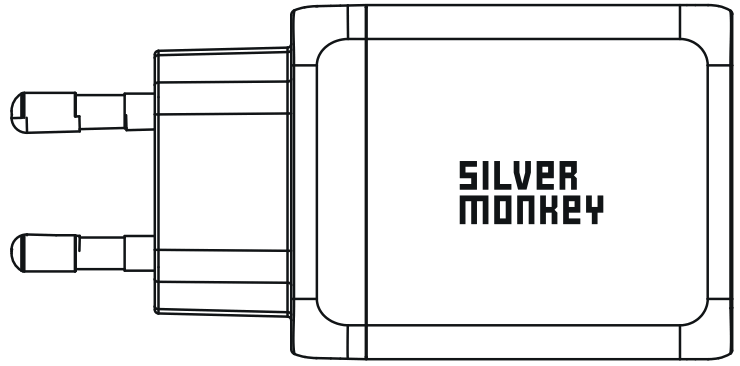

Charger GAN
User Manual
QC-GAN65
Before using the product, please read the user manual carefully. Keep it for future reference.
SAFETY INFORMATION
- Use the charger only for its intended purpose.
Incorrect use may involve risks, for example: explosion, fire or other hazard. - Avoid direct contact of the product with a heat source, sunlight, corrosive substances, dust and moisture.
- The charger case may become warm during use. This is normal and not a product defect.
- Do not try to open and repair this product yourself.
- Do not drop or subject the charger to physical shock.
- Do not place any heavy objects on it.
- Clean the product with a soft, clean and dry cloth.
- If the product stops working properly – please contact us.
WHAT YOU’LL FIND IN THE PACKAGE
– 65 W charger
* User’s guide

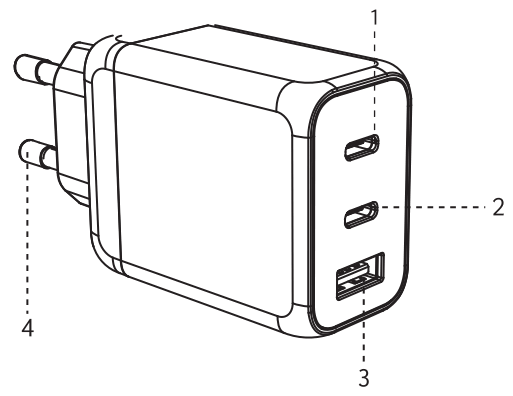

PURPOSE AND CONSTRUCTION OF THE CHARGER
This charger is designed for electronic devices with a maximum power of 65 W. Thanks to it, you can charge several devices at the same time. Number of connected devices may affect charging speed.
- USB-C” (1) output
- USB-C” (2) output
- USB-A output
- Plug 1
HOW TO USE THE CHARGER
- Connect the cable that fits your charger.
- Plug the charger into a wall socket.
- Connect the device you want to charge with the cable to the charger.
SPECIFICATION
| Input | AC 100 – 240 V – 1.5 A; 50 – 60 Hz |
| USB-C (1) or USB-C (2) output | 3.3 – 11 V =3 A, 5 V – 3 A, 9 V. 3 A, |
| 12 V . 3 A, 15 V . 3 A, 20 V = 3.25 A (max 65 W) | |
| USB-A output | 4,5 V = 5 A. 5 V – 4.5 A, 9 V -3 A. 12 V = 2.5 A, 20 V .1.5 A (max 30 W) |
| USB-C (1) | 45 W + 18 W (max 63 W) |
| + USB-C (2) output | USB-A (1) or USB-C (2) output: |
| 5 V =3 A, 9 V = 2 A | |
| 12 V = 1.5 A | |
| USB-C (1) | 45 W + 18 W |
| + USB-A output | (max 63 W) |
| USB-C (2) + USB-A output | 5 V – 3 A (max 2.4 A output) (max 15) |
| USB-C (1) + USB-C (2) + USB-A output | 45 W + 5 V – 3 A |
| Security mechanisms | Short circuit protection and overvoltage at the output. |
DISPOSAL AND THE EU COMPLIANCE STATEMENT
We, as the manufacturer of this equipment, declare that it meets the rules of the appropriate EU directives. If you need a copy of the EU Declaration of Conformity – contact us.
Do not throw this equipment out with other household waste. This equipment is made from materials that may be harmful to the environment and human health, if the product is disposed of in the wrong way. When you need to throw away an old product, take it to a designated collection point.
We have used double insulation in this product.
This reduces the risk electric shock and does not require connecting the housing to the ground.
We have designed this product for use in closed rooms – on example at home – where it is not exposed to weather conditions.
USB Type-C” and USB-C* trademarks are registered by USB Implementers Forum.
