Dimension Guide
Bottom freezer refrigerator
Model:
EBB3462K-H

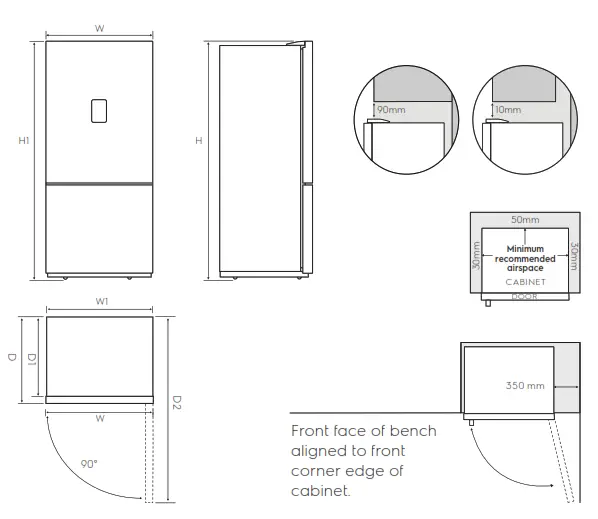

EBB3462K-H Bottom Freezer Refrigerator
Minimum Recommended Airspaces
Allow a minimum of 10mm clearance above the hinge cover.
If you do not have a cupboard with allowance for air flow above the refrigerator, the recommended clearance area on top increases to 90mm.
Please note: Doorsare designedto sit proud of cabinetry (not flush).
When positioned in a corner area, spacing of at least 350mm on the hinge side will allow the doors to open enough to enable the removal of bins and shelves.
| Bottom Freezer refrigerator models: | Door width (W) | Total depth (D) | Maximum height (H) | Cabinet width (W1) | Cabinet depth (D1) | Depth door open (D2) | Cabinet height (H1) |
| EBB3462K-H | 598 | 650 | 1646 | 595 | 586 | 1200 | 1630 |
Important! Please ensure that the access to your kitchen (including doorways, corridors, island benches, etc) allows sufficient clearance to move your fridge into position.
Please note! Dimensions to be used as a guide only. All customers MUST refer to the user manual supplied with the product for detailed installation instructions.
