SHARGEEK SG-065 65W Travel Charger User Manual

Contents hide

1 Description

2 Specifications

3 Attention

4 Important Safety Information

5 Support

6 Declaration of Hazardous Substances

7 Documents / Resources

7.1 References

8 Related Posts

Description

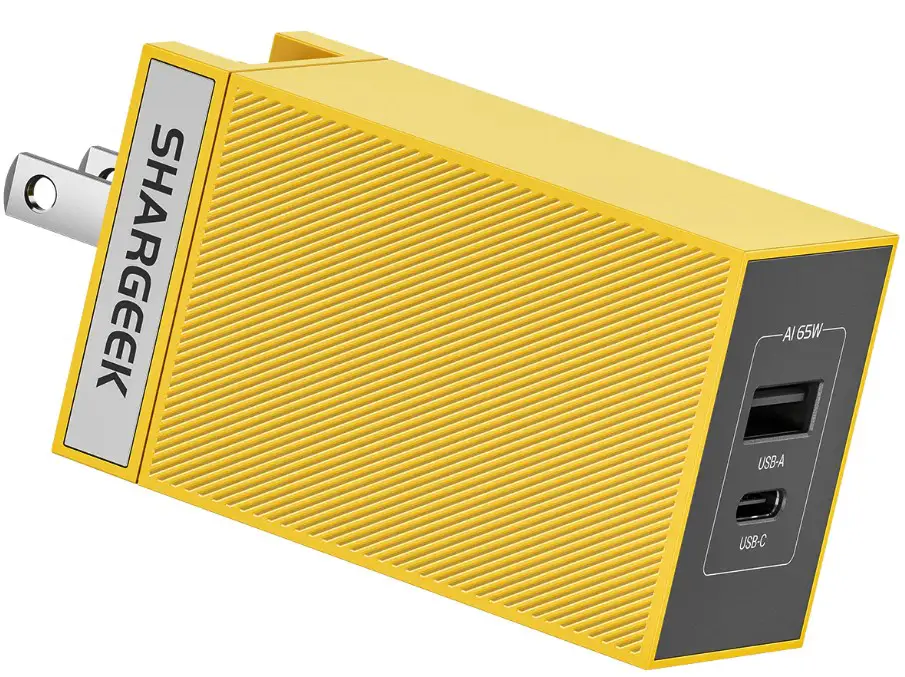

SG-065 is a 65W travel charger adopting industry leading GaN (Gallium Nitride) technology. Though SG-065 is designed to be ultra-compact and travel-friendly, it is able to provide 65W Power Delivery output.SG-065 equips with USB-C ports and a USB-A port, each port supports a wide range of fast-charging protocols such as QC4+, PD3.0, QC3.0, SCP, FCP, USB-C , enabling PD charging for most laptops. Morever,SG-065 provides independent charging functionality even if multiple devices are plugged in.

A combination of multiple built-in safety circuits work together to provide ultimate protection on charging

Specifications

NAME: Shargeek GaN Charger SG-065
MODEL: SG-065
COLOR: YELLOW
DIMENSIONS: 49.5×29×40.7 mm
Material: PC
Weight: 145g
Model: SG-065
Interface type: USB-A×1, USB-C×1
Input: AC 100-240V~50/60Hz,1.5A Max
USB-C Output: 5V/9V/12V/15V⎓3A,20V⎓3.25A(65W Max)
USB-A Output: 5V⎓3A，9V⎓2A,12V⎓1.5A（18W Max）

USB-C+USB-A Total Output: 45W+18W（63W Max）

Package contains: Charger×1, Instructions×1,
Conversion plug×1
www.shargeek.com
Made in China.

When using your charge

Ambient Temperature during use of the appliance: 0°C~35°C
Storage temperature range: -20°C~40°C
DO NOT use at altitudes more than 2000m above sea level.
DO NOT use outdoors.
DO NOT use power cables with poor quality for charging.

According to USB Power Delivery Specification, if the charging current is larger than 3A, you must use USB-C E-Marker cables to guarantee the charging safety

If a new device is plugged into the charger during the charging process, the charger will turn off and turn on the power output in order to redistribute t e
power among different ports. During this process, you may hear a tone from your connected device(s), and the charger itself may also make a sound which is normal.

Attention

If there is a product defect, you can return the product for either a refund, replacement or repair as per the terms below. You will need to provide proof of purchase to initiate a warranty request.

Definition of Product Defect

Product Name	Defects covered under warranty
ShargeSeGk-G06a5N Charger	Flaws in product structure or material resulting in cracks Plug is loose and cannot be inserted into the socket Unable to charge

Warranty Terms

Warranty Items	Customer Services
Refund	charger for a full refund within 7 days of
Replacement	You can return your charger for a replacement within 15 days of receipt of delivery
Repair	You can return your charger for repair service within 1 year of

The warranty does NOT apply

Defects or damages caused by intentional acts, unauthorized repair, misuse, negligence, liquid, or improper use of accessories.
Product defect or failure that occurs outside of the timing in the Warranty Terms Section.
Damages caused by force majeures. Any defect or problem not included in the Definition of Product Defect
Section.

Important Safety Information

Please read following safety instructions before using your charger:

Do NOT put your charger in heat, direct sunlight or next to strong electromagnetic fields.
Do NOT put your charger near open flames or in other harsh condistions.
Do NOT open the charger’s housing unless you’re a qualified professionalDo
NOT touch the charger during charging process – it may get hot. Though the product itself complies with safety regulations, the surface temperature can rise up to 70°C due to compact, high power-density design.
Do NOT throw, hit, drop or allow any substantial impact to your charger.
If any kinds of liquid gets into your charger, allow it to dry naturally before using it.

Improper use may cause injury, property damage, and may harm yourself. Shargeek is not responsible or liable for any damage or harm incurred because of user’s failure to follow the instructions list in this manual.
