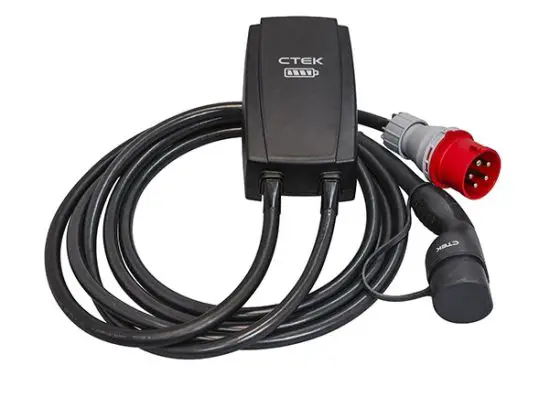

CTEK Njord Go Portable Charger

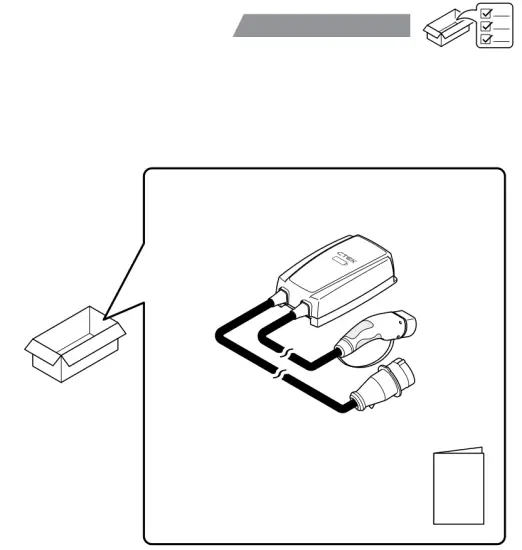

Package Content

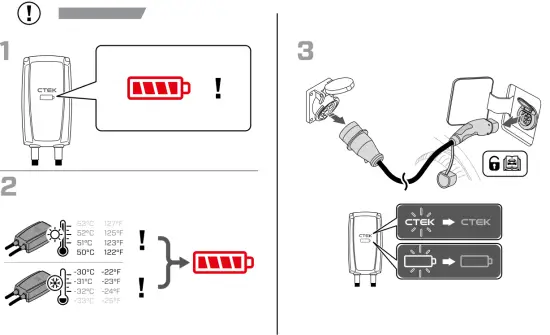

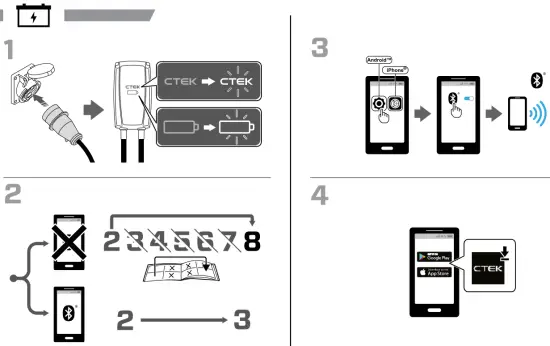

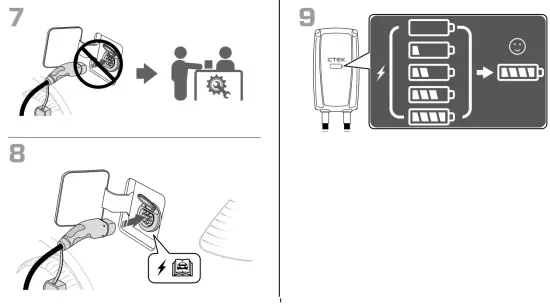

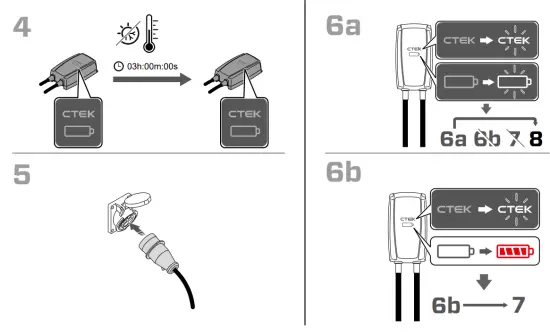

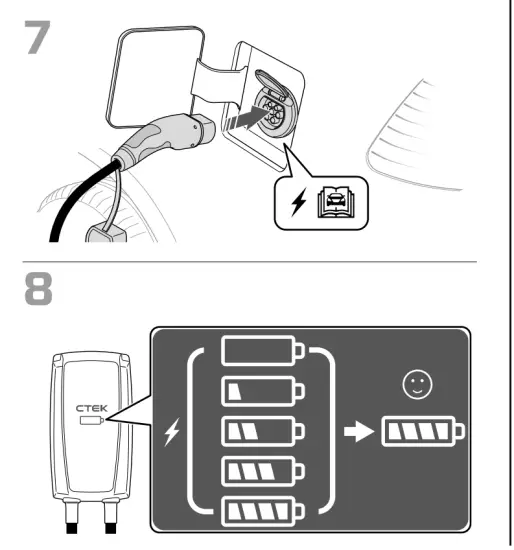

Charging

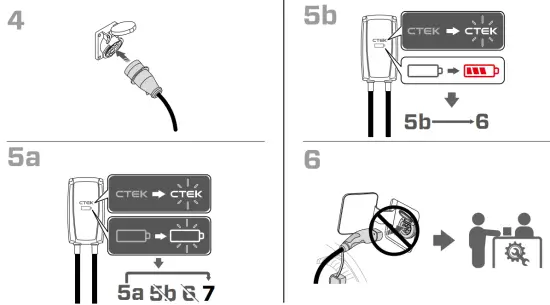

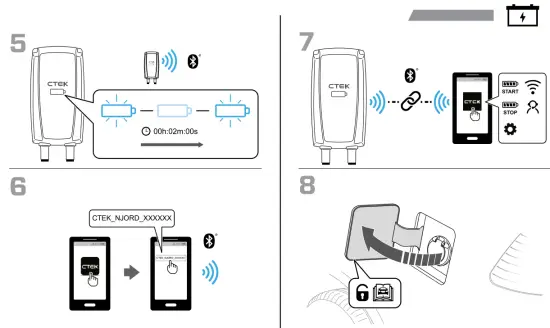

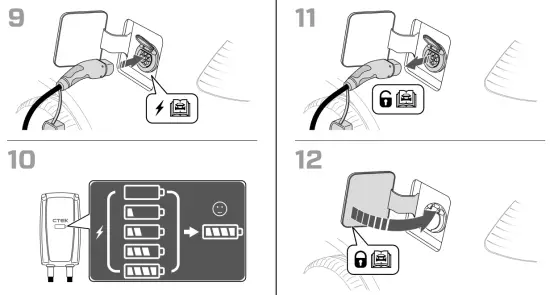

Operation
Safety Instructions
Technical Data
TECHNICAL DATA | |
| Charging method | Mode 2 |
| Charger category | AC charging |
| Vehicle connection | Type 2 |
| Mains socket | CEE 16 A / 400 V 5P |
| Number of phases | Three phase |
| Charging current | 6 A – 16 A |
| Charging power | 1.4 kW – 11 kW |
| Humidity | 0-95% |
| Cooling | Natural convection |
| Earth fault circuit breaker | Earth fault current 30 mA AC, 6 mA DC |
| Energy meter | Yes, internal |
| Location | Portable (wall mounting kit available asaccessories), wall mounted (with special kit) |
| Cover, dimensions | 140 × 250 × 80 mm |
| Cover, material | Plastic, metal |
| Cover, color Black | Length of charging cable 5 m |
| The length of the mains cable is 1.5 m | Net weight (unit with cables) approx. 4 kg |
| Packaging weight | about 5 kg |
| Packaging dimensions (L × W × H) | 365 × 340 × 120 mm |
| User interface | LED interface |
| Connections | Bluetooth® wireless technology, Wi-Fi |
| Communication protocol | OCPP 1.6 |
| Apps support | Smartphone screen, CTEK app for Android and iOS |
| Nominal frequency, fn | 50 Hz |
| Nominal scattering factor, RDF | 1 |
| Nominal insulation voltage, Ui | 400 V |
| Nominal holding voltage at shock, Uimp | 4 kV |
| Nominal surge current, Ipk | 6 kA |
| Nominal short-term current, Icw | 6 kA |
| Maximum future short-circuit current, Icp | 6 kA |
| Surge category | III |
| Degree of pollution | 3 |
| External mechanical impact | IK10 |
| Intended for use in EMC environment | B |
| Intended use | Private use |
| Ambient temperature during operation andstorage temperature | -30 ºC to +50 ºC |
ECHNICAL DATA FOR RCD
| |
| Nominal closing and breaking capacity, Im | 200 A |
Overcurrent And Short-circuit Protection
Technical data | |
| Rated current, In | Rated current, In |
| Characteristics | C |
| Nominal short-circuit capacity, Icn | 6 kA |
| Nominal breaking capacity in the event of a short circuit, Ics | 7.5 kA |
| Energy passed through, I2t | 36,000 A2s |

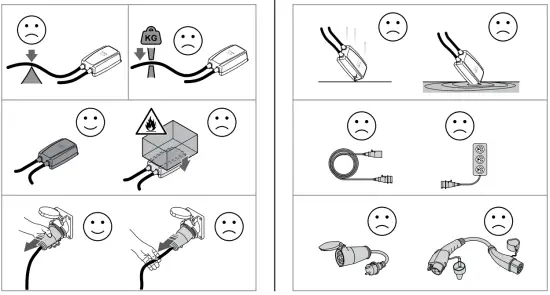

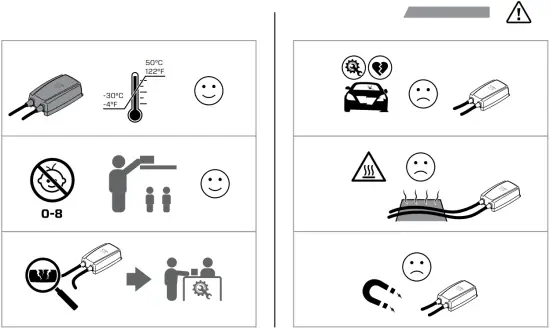

Security
- Read and follow the instructions in the document before installing and uses the product.
- The installation of the CEE socket must comply with local safety regulations.
- Do not use adapters or adapters according to the requirements of standard IEC61851 conversion adapters with this product.
- This charging station has no ventilated charge.
Bluetooth®
The word mark and logos Bluetooth® are registered trademarks belonging to Bluetooth SIG, Inc. and any use of such marks of CTEK takes place under license. Other brands and trade names belong to respective owners.
Limited warranty
CTEK provides a limited warranty on the original product buyer. The warranty period is linked to the product. The guarantee can not be transferred. The guarantee applies to manufacturing and material defects. The warranty expires again the product has been handled carelessly or repaired by someone other than CTEK or its authorized representatives. CTEK does not provide any warranty other than this limited warranty and is not liable for costs other than those mentioned above, ie no costs for consequential damages. CTEK makes no guarantees other than this.
National restrictions on use
The product is intended for use by the general public. The product is intended for sites with both restricted and unrestricted access. Note that local regulations may apply.
For use in the following regions only: CZ, DK, DE, UK, ES, FI, FR, EL, IS, NL, NO, PL and SE.
Revisions
Modifications to the product may cause altered maintenance work. The descriptions and specifications in this manual were correct at the time of printing. To be sure the maintenance instructions are complete and updated You always read the manual that is published on our website.
