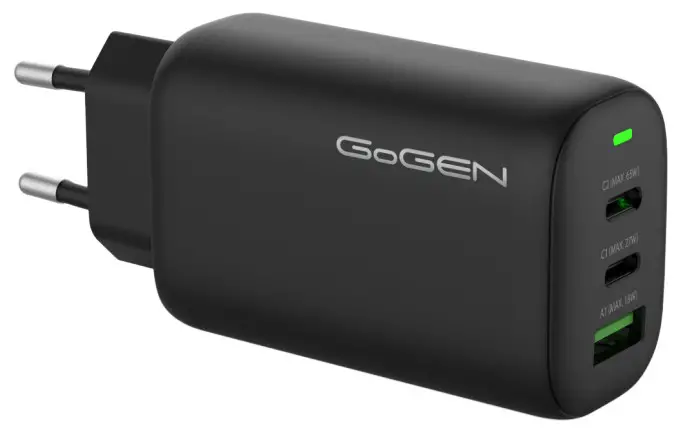

ACH PD365 Mains Charger
User Manual
Charging adapter
| A | Manufacturer’s name or trademark, business ‘ registration number and address | ETA a.s., namesti Prace 2523, 760 01 Zlin, CZ |
| B | Model identifier | GOGACHPD365B. GOGACHPD365W |
| C | Input voltage | 110-240 V (AC) |
| D | Input frequency | 50/60 Hz |
| E | Output QC voltage | 5.0/9.0/12.0 V (DC) |
| Output PD 1 voltage | 5.0/9.0/12.0 V (DC) | |
| Output PD 2 voltage | 5.0/9.0/12.0/15.0/20.0 V (DC) | |
| Output PD1&PD2&QC voltage | 0C+PD1:5V:PD2:5.0/9.0/12.0/15.0/20.0 V(DC) | |
| F | Output QC current | 1.5/2.0/3.0 A |
| Output PD 1 current | 2.25/3.0 A | |
| Output PD 2 current | 3.0/3.25 A | |
| Output PD1 &PD2&QC current | QC+PD1:3.0 A;PD2:1.5/2.0/2.5/3.0 A | |
| G | Output QC power | 18.0 W |
| Output PD1 power | 27.0 W | |
| Output PD2 power | 65.0 W | |
| Output PD1&PD2&QC power | QC+PD1:15.0 W;PD2:15.0/27.0/30.0 W | |
| H | Average efficiency in active mode | 81.7 0/0 |
| I | Low load efficiency (10%) | 78.% |
| Power consumption without load | 0.3 W |
ATTENTION! Read the instructions completely and carefully. They contain important notes for usage and it is part of the product. Keep this document for later look-up!
SAFETY INSTRUCTIONS
ATTENTION! Only skilled and trained electricians may disassemble and assemble the product’s housing.
DANGER! Risk of life by electric shock! Avoid contacting mains voltages by all means!
ATTENTION! Risk of burning by overloading! Attend to the maximum output currents of the product before use!
DANGER! Do not use the product in case of damage, do not touch electrically live parts.
ATTENTION! Risk of short-circuit! Contacts must never be bridged! Do not put things into ventilation slots or ports! Never cover ventilation slots!
NOTICE! Indoor dry environment use, please do not use in wet or humid or get wet in the rain. Please don‘t use near heat source environment. Please try with dry cloth to wipe clean. Do not leave it unattended This product is not suited for children.
In the product nameplate marking under the maximum load of work, don‘t long time overload.
DESCRIPTION AND FUNCTION
Your charging adaptor is made for charging compatible devices. Compare the specifications of your device with those of this product for being compatible.
WARRANTY AND RESPONSIBILITY
As the manufacturer has no influence on installation, warranty only applies to the product itself.The manufacturer is not liable for damages to persons or property caused by improper installation, maintenance or operation, that are not described in this manual. Do not modify or alter the product or its accessories. Do not modify or alter the product or its accessories.
Any use other than described in this user’s manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.
TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
Disposal of old Electrical & Electronic Equipment
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
