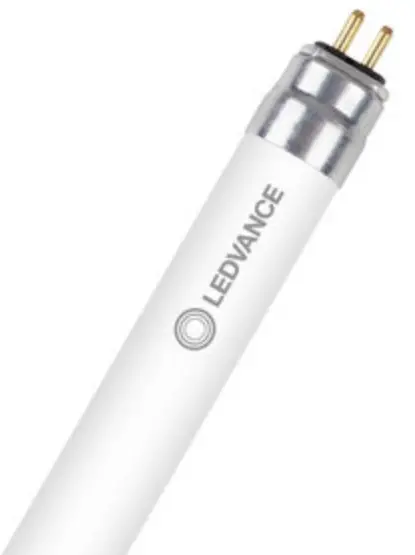

LEDVANCE DALI P-1×15-37W LED Tube External Instruction Manual
www.ledvance.com/ext-system
Installation Guide
The LEDVANCE LED TUBE EXTERNAL hereafter referred to as LED TUBE EXT is designed to be powered by below stated LEDVANCE DRIVER.1)
DRIVER LED TUBE EXTERNAL DALI P-1×15-37W: EAN10: 4058075730632
DRIVER LED TUBE EXTERNAL DALI P-2×15-26W: EAN10: 4058075730656
Please visit our website for the latest product information and EXTERNAL tube and driver portfolio.
LEDVANCE cannot guarantee the performance of LED TUBE EXT, when powered with different drivers not designed for the LED TUBE EXT.
LEDVANCE does not accept any responsibility, warranty or liability when using other LED drivers.
The instruction contains important information and notes regarding the installation and operation. LED TUBE EXT is suitable as replacement for T8/
T5 fluorescent lamps with G13/G5 bi-pin bases. LED TUBE EXT can only be fitted as a replacement into luminaires operating with DRIVER EXT.
This lamp is designed for general lighting service. It is not allowed to connect LED TUBE EXT on direct mains (220-240V), electromagnetic control gear (CCG), or electric control gear (ECG).2)

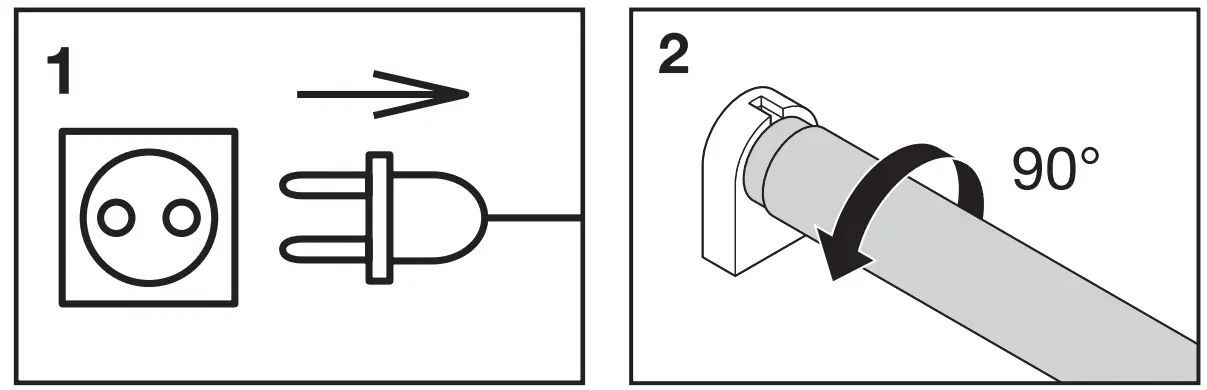

INSTALLATION

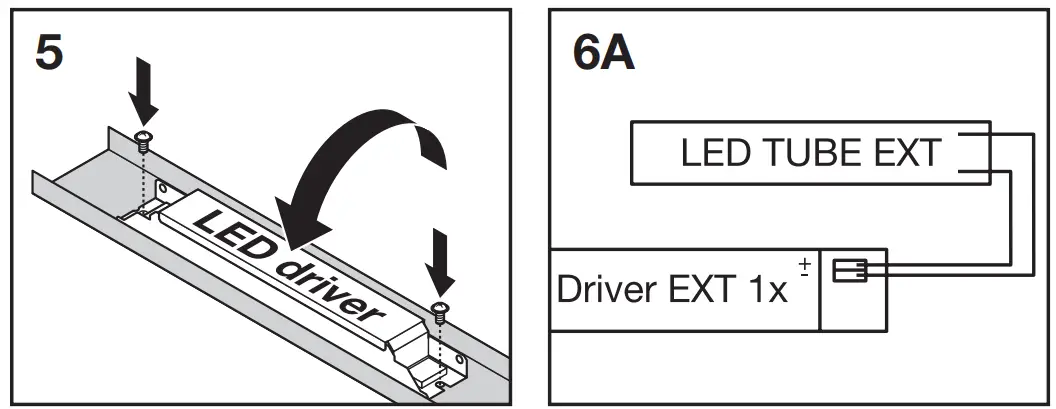

Installation must be executed by a qualified electrician. All wires need to be approved for the existing voltages and protection classes.3)

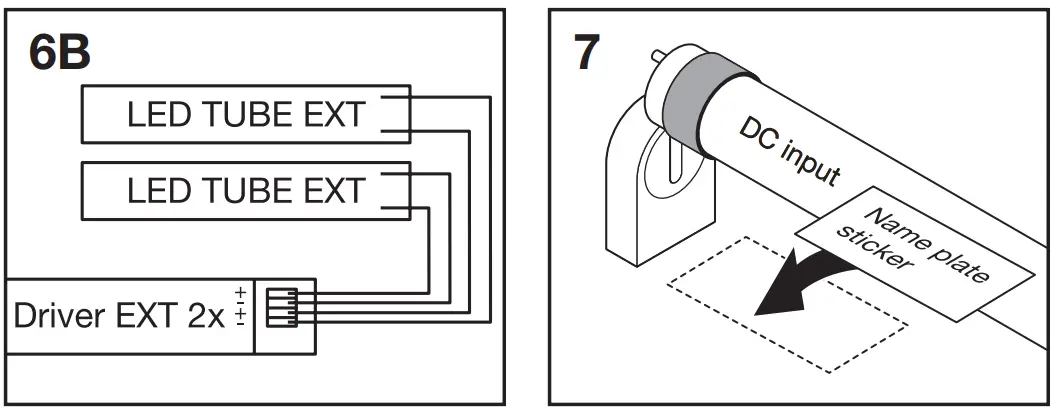

LED TUBE EXT is a single sided LED TUBE and must be connected (wired) only one side. “DC input” note is mentioned on the LED

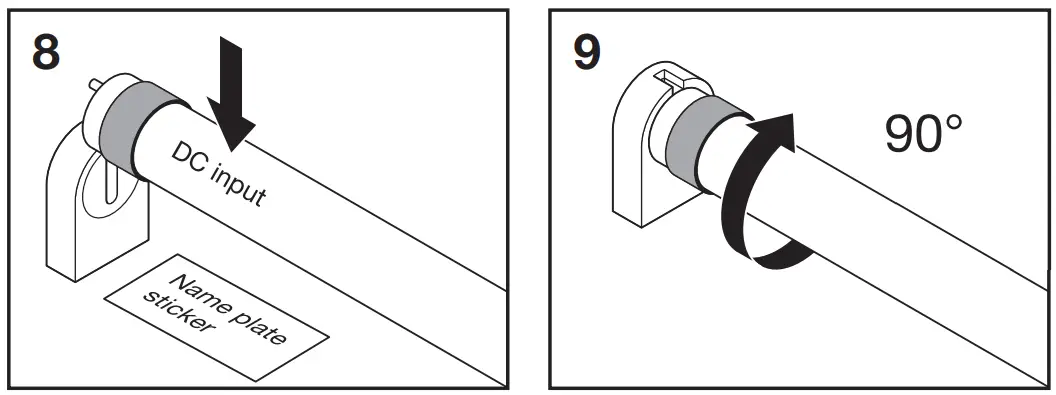

TUBE product label. Once installation is completed, please fill out new plate sticker (included in Driver EXT packaging) and stick the name plate close to tube “DC input” side on the luminaire.
After rewiring, only LED TUBE EXT can be used in this luminaire. The use of traditional fluorescent tubes or other LEDTUBEs is not permitted anymore. LEDVANCE does not accept any responsibility, warranty or liability when using other types of light sources.4)
CURRENT SETTING
DRIVER LED TUBE EXTERNAL is a multi-watt Driver, therefore the correct output current must be set before operation by the dip switch on the DRIVER. It is not allowed to operate the LED TUBE EXTERNAL outside the specified operation current.5)
CURRENT SETTING AT DR EXT DALI-P-1X15-37W 220-240 – EAN10: 4058075730632
| 1x LED TUBE EXT P | PIN1 | PIN2 | PIN3 | Iout(mA) |
| T8 1500 23W | OFF | ON | ON | 550 |
| T8 1200 15W | OFF | OFF | OFF | 350 |
| T5 HO80 1449 37W | ON | ON | OFF | 860 |
| T5 HO49 1449 26W | ON | OFF | OFF | 600 |
| T5 HO54 1149 26W | ON | OFF | OFF | 600 |
| T5 HE35 1449 18W | OFF | OF | ON | 450 |
CURRENT SETTING AT DR EXT DALI P-2X15-26W 220-240- EAN10: 4058075730656
| 2x LED TUBE EXT P | PIN1 | PIN2 | PIN3 | Iout(mA) |
| T8 1500 23W | OFF | ON | ON | 550 |
| T8 1200 15W | OFF | OFF | OFF | 350 |
| T5 HO49 1449 26W | ON | OFF | OFF | 600 |
| T5 HO54 1149 26W | ON | OFF | OFF | 600 |
| T5 HE35 1449 18W | OFF | OF | ON | 450 |
Please visit our website for the latest product information and EXTERNAL tube and driver portfolio: www.ledvance.com/ext-system
The operating temperature range of LED TUBE EXT is restricted. In case of doubt regarding suitability of the application the manufacturer of this lamp should be consulted. Please find and measure Tc points and max Tc temperatures marked on the product. In case of multi-lamp luminaire application measure Tc max temperature of all installed lamps. Please use a flexible thermo sensor (e.g. „Type K“).
Please find additional temperature relevant information at product datasheet. Lamp to be used in dry conditions or in a luminaire that provides protection.6)
| Replacement of FL length (excl. pins) 7) | Storage temperature (Ts)8) | Ambient temperature (Ta) free air 9) | |
| LEDTUBE T5 EXTERNAL HE35 P 18W 8x | 35W:1449mm | -20°C … 80°C | -20°C … 50°C |
| LEDTUBE T5 EXTERNAL HO49 P 26W 8xx | 49W:1449mm | -20°C … 80°C | 20°C … 50°C |
| LEDTUBE T5 EXTERNAL HO54 P 26W 8xx | 54W:1149mm | -20°C … 80°C | -20°C … 50°C |
| LEDTUBE T5 EXTERNAL HO80 P 37W 8xx | 80W: 1449mm | -20°C … 80°C | -20°C … 50°C |
| LEDTUBE T8 EXTERNAL P 15W 8xx | 36W: 1200mm | -20°C … 80°C | -20°C … 50°C |
| LEDTUBE T8 EXTERNAL P 23W 8xx | 15W: 1500mm | -20°C … 80°C | -20°C … 50°C |
LED TUBE EXTERNAL T5 / T8 P
- The LEDVANCE LED TUBE EXTERNAL hereafter referred to as LED TUBE EXT is designed to be powered by below stated LEDVANCE DRIVER.
- Please visit our website for the latest product information and EXTERNAL tube and driver portfolio. LEDVANCE cannot guarantee the performance of LED TUBE EXT, when powered with different drivers not designed for the LED TUBE EXT. LEDVANCE does not accept any responsibility, warranty or liability when using other LED drivers. The instruction contains important information and notes regarding the installation and operation. LED TUBE EXT is suitable as replacement for T8/ T5 fluorescent lamps with G13/G5 bi-pin bases. LED TUBE EXT can only be fitted as a replacement into luminaires operating with DRIVER EXT. This lamp is designed for general lighting service. It is not allowed to connect LED TUBE EXT on direct mains (220- 240V), electromagnetic control gear (CCG), or electric control gear (ECG).
- INSTALLATION: Installation must be executed by a qualified electrician. All wires need to be approved for the existing voltages and protection classes.
- LED TUBE EXT is a single sided LED TUBE and must be connected (wired) only one side. “DC input” note is mentioned on the LED TUBE product label. Once installation is completed, please fill out new plate sticker (included in Driver EXT packaging) and stick the name plate close to tube “DC input” side on the luminaire. After rewiring, only LED TUBE EXT can be used in this luminaire. The use of traditional fluorescent tubes or other LEDTUBEs is not permitted anymore. LEDVANCE does not accept any responsibility, warranty or liability when using other types of light sources.
- CURRENT SETTING:
DRIVER LED TUBE EXTERNAL is a multi-watt Driver, therefore the correct output current must be set before operation by the dip switch on the DRIVER.
It is not allowed to operate the LED TUBE EXTERNAL outside the specified operation current. - Please visit our website for the latest product information and EXTERNAL tube and driver portfolio: www.ledvance.com/ext-system. The operating temperature range of LED TUBE EXT is restricted. In case of doubt regarding suitability of the application the manufacturer of this lamp should be consulted. Please find and measure Tc points and max Tc temperatures marked on the product. In case of multi-lamp luminaire application measure Tc max temperature of all installed lamps. Please use a flexible thermo sensor (e.g. „Type K“). Please find additional temperature relevant information at product datasheet. Lamp to be used in dry conditions or in a luminaire that provides protection.
- Replacement of FL length (excl. pins)
- Storage temperature (Ts)
- Ambient temperature (Ta) free air
