504469 Trailer Tongue Extension for Kit
Instruction Manual
Tongue Removal
a) Remove the 1/2”-13 x 3 1/2” bolts and nuts from the tongue support plate.
b) Remove the tongue from the tongue connection bracket.
c) Unbolt the ground wire which is mounted on a 3/8”-16 X 2 1/2” bolt.
d) Remove the tongue and place it on a flat surface upside down.
e) Remove the 3/8”-16 X 3” bolts and nuts to disassemble the coupler from the tongue channel.
f) Disassemble coupler, chain, and tongue support foot to reuse it on the new tongue.

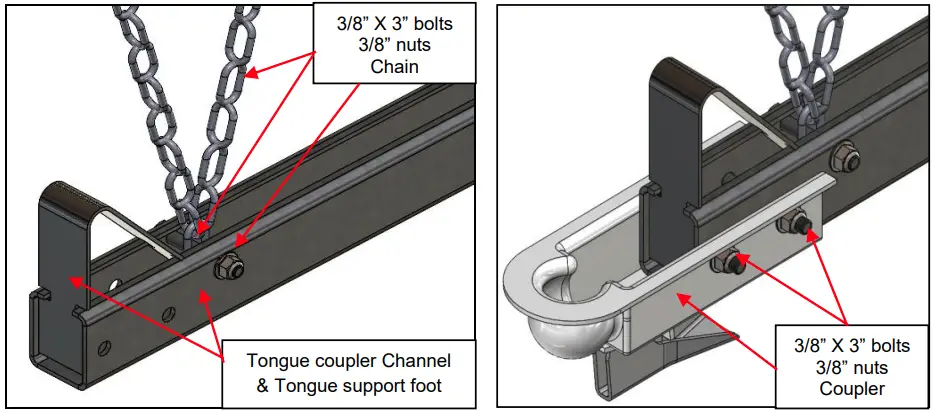

Tongue Extension Installation
a) Slide tongue support foot into tongue coupler channel first.
b) Insert the 3/8”-16 X 3” bolt and nut into the tongue coupler channel to hold the chain in place.
c) Assemble the coupler on the tongue coupler channel with the help of 3/8”-16 X 3” bolts and 3/8” nuts.
d) Slide the tongue extension into the tongue connection bracket and align both holes.
e) Insert the 1/2”-13 x 3 1/2” bolts to hold tongue extension in place and tighten up with same size nuts.
f) Put ground wire ring terminal on the 3/8”-16 X 3” bolt and tighten up with nut.
*** Make sure not to damage ring terminal while tightening up nut***

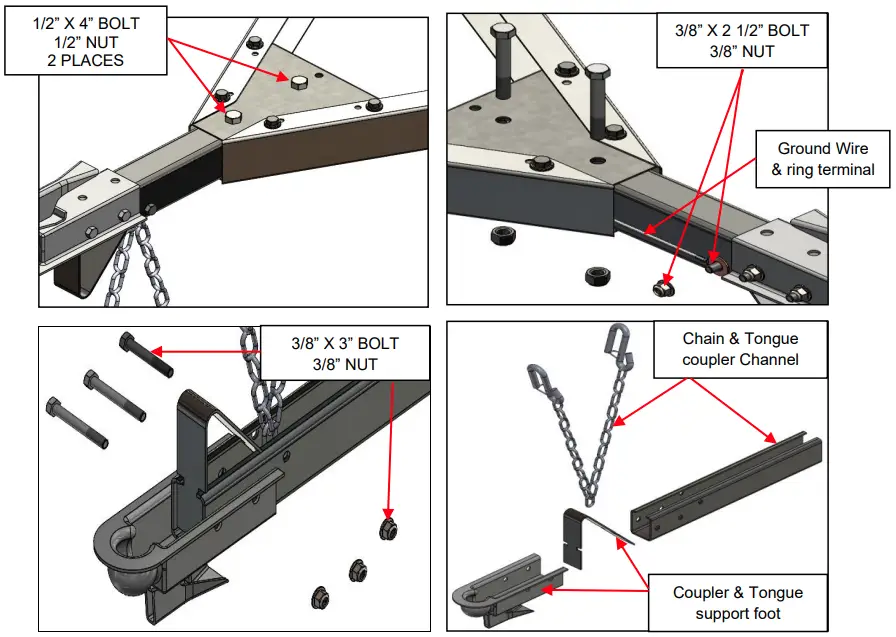

Final Assembly View
