504468 Galvalume 36 Inch
Ramps for Kit Trailers
Instruction Manual
Ramp Instructions

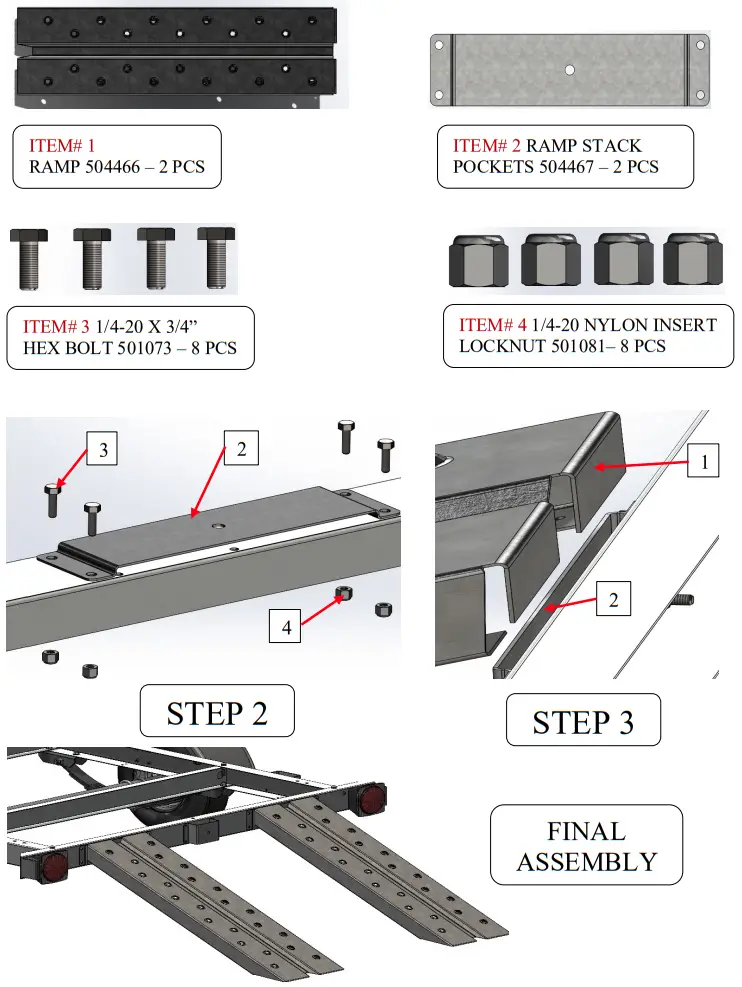

Step 1: Ramp stack pockets (504467), ramps (504466), and hardware are required for installation.
Step 2: Mount ramp stack pockets (504467) on the backchannel with the help of (501073) 1/4-20 X 3/4” hex bolt and (501081) 1/4-20 Nylon insert lock nut AND tighten up all 4 bolts.
Step 3: Slide ramps (504466) into ramp stack pockets (504467).
Step 4: Repeat steps 1 to 3 for another ramp.
