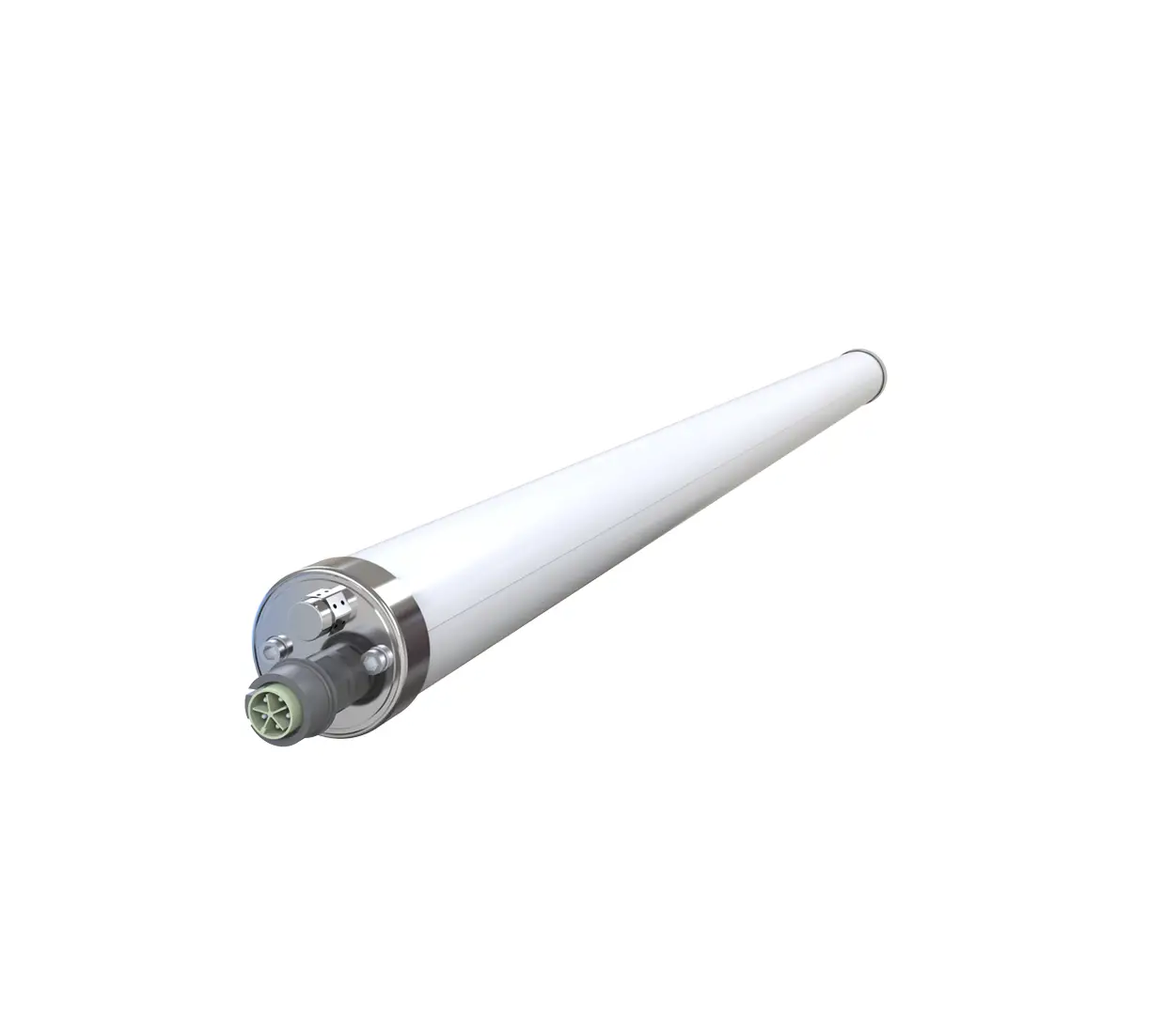

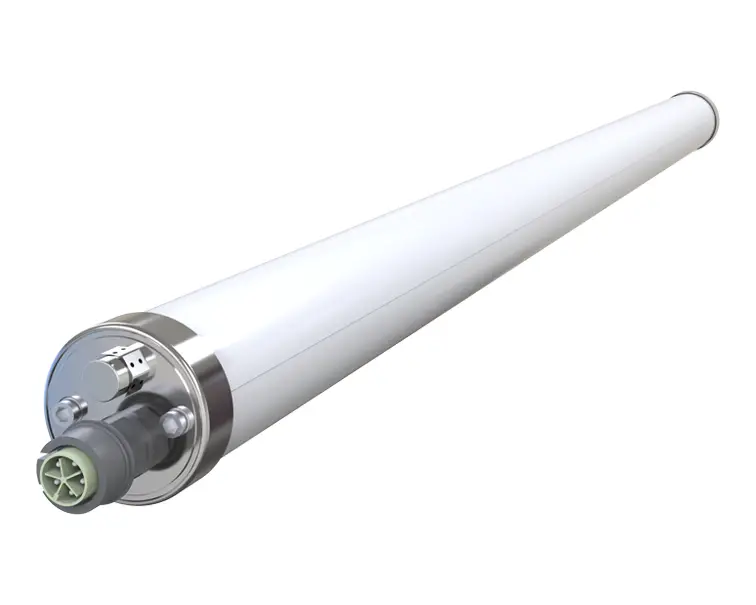

AURA LIGHT PipeLED High-quality Pipe Luminaire
Installation Instructions
- Used for cable e, 0,75-1,5 mm2 (AWG 18#)
- Solid cable end

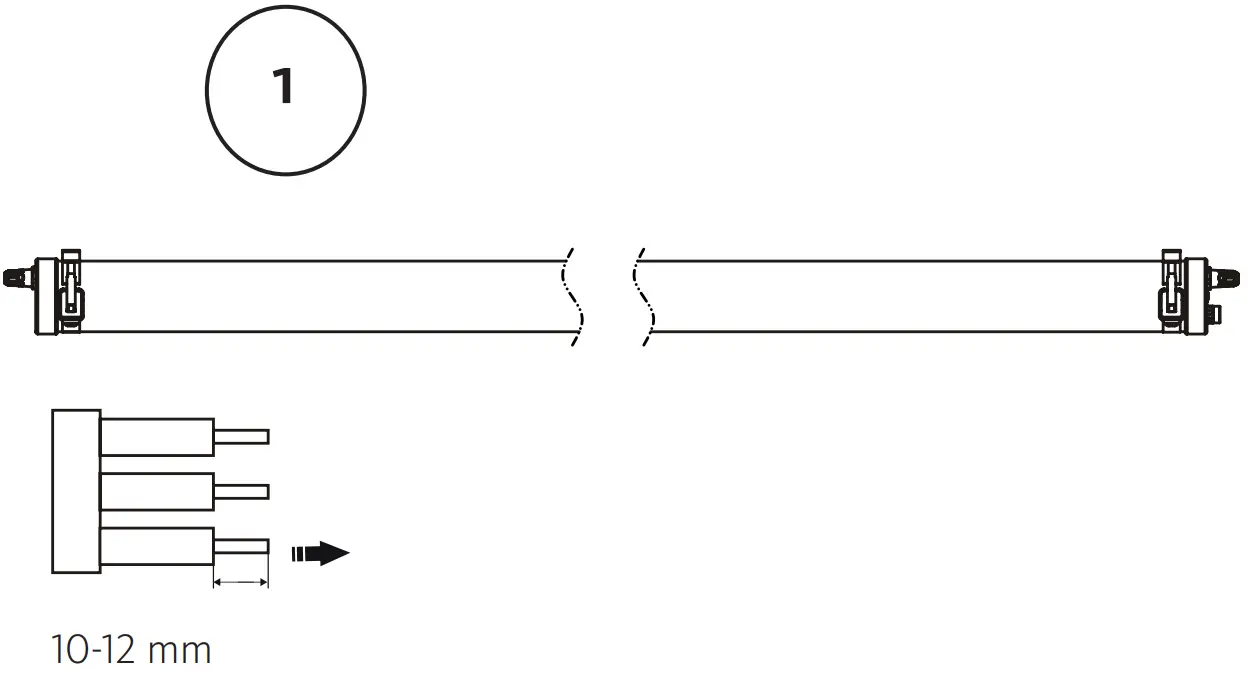

- Wire stripping 10-12 mm

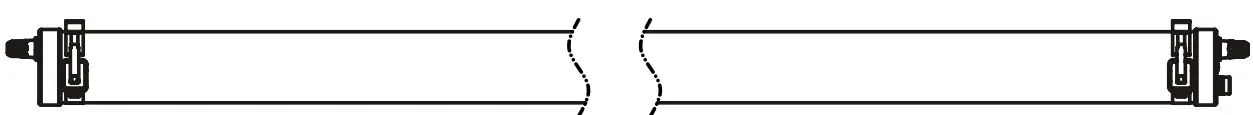

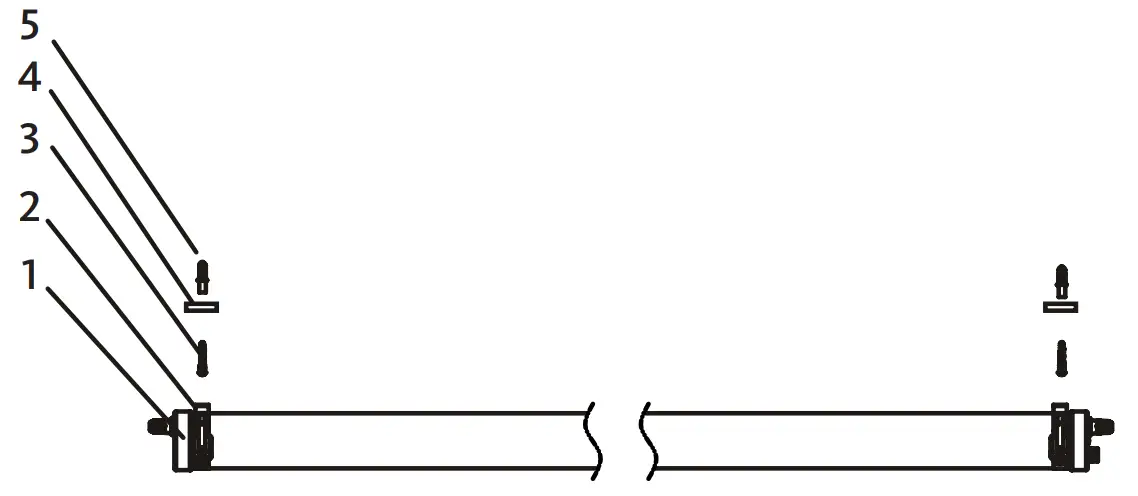

Ceiling installation
Step 1
| SPARE PARTS | QUANTITY | |
| PipeLED | 1 | 1 |
| Clips | 2 | 2 |
| Self-tapping screws | 2 | 3 |
| Rubber washers | 2 | 4 |
| Expansion plastic screws | 2 | 5 |
Step 2

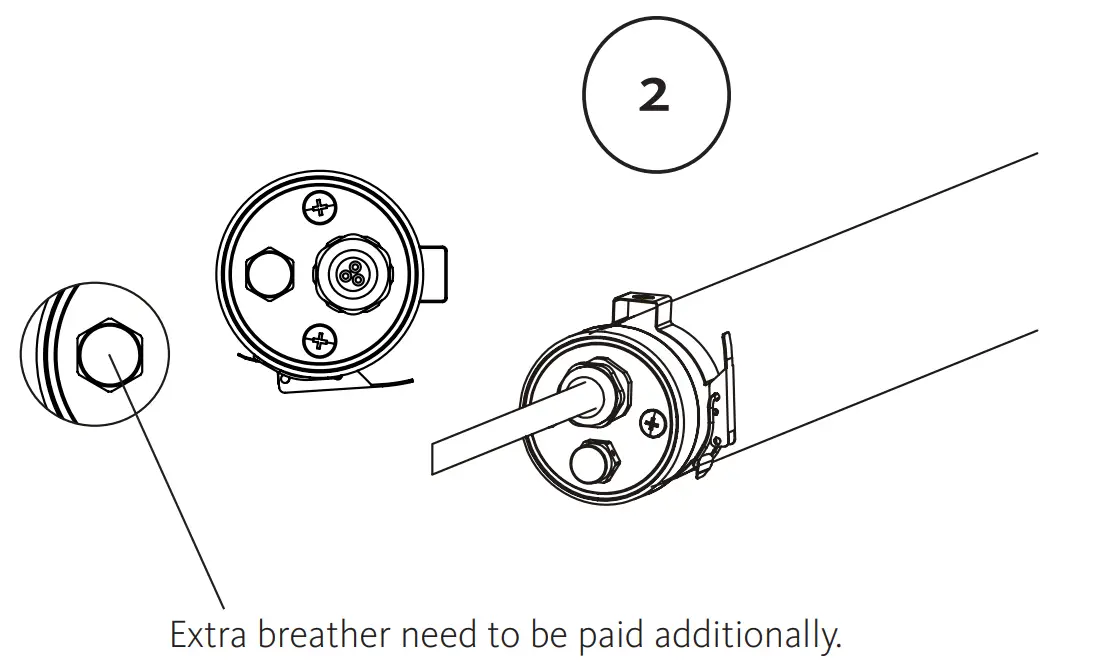

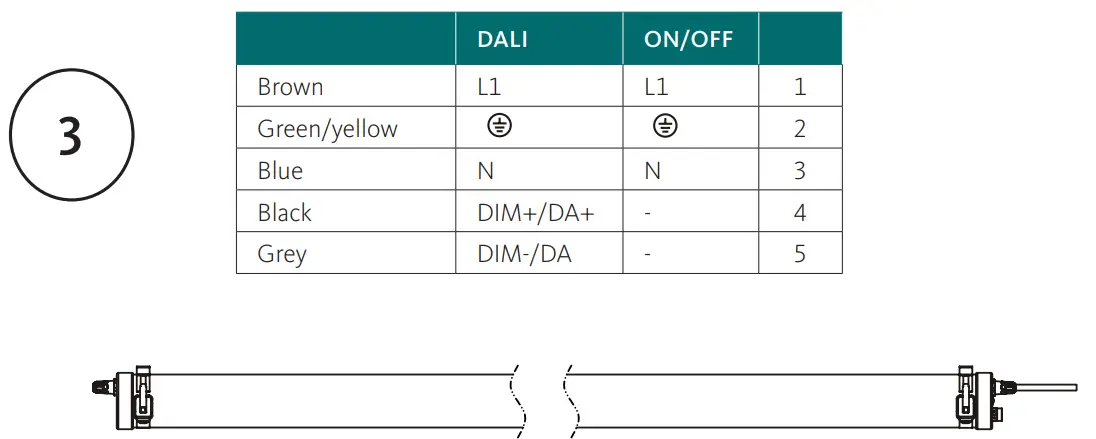

Disconnect the power, then connect wires on the end caps.
Step 3

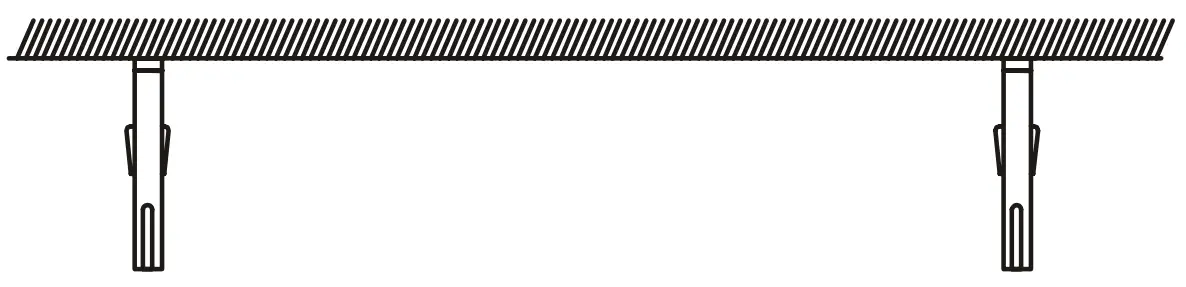

Install the suspension fixed bushings.
Step 4

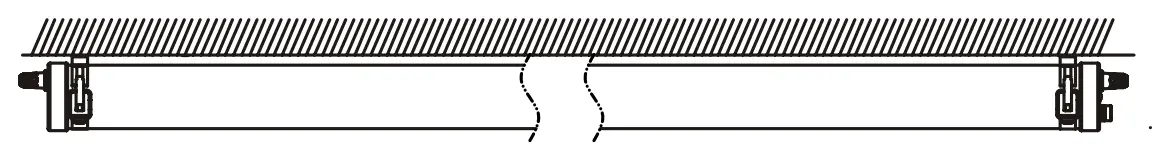

Install PipeLED light and adjust beam angle.
Maintaince hints
|
|

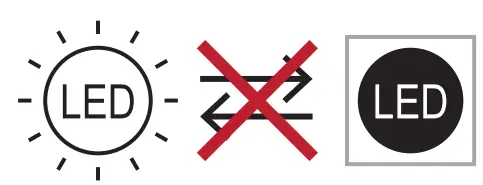

Non-replaceable light source.

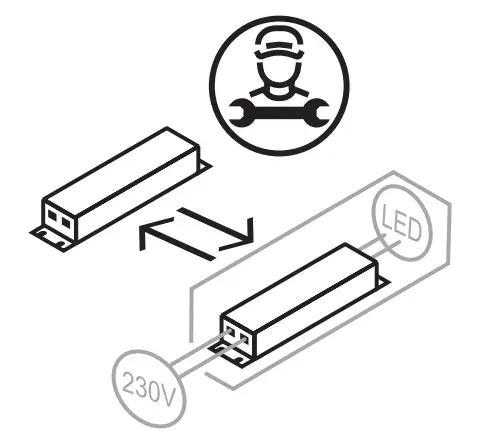

Replaceable control gear by a professional.Aura Light AB, Sweden
Phone customer service +46 (0)20 32 30 30
[email protected], www.auralight.com
