Pmu-line L1 Pmupower Pen Precision User Manual

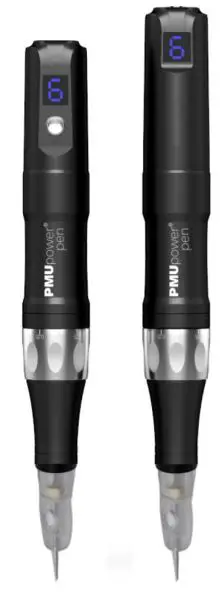

PMU-line L1 PMUpower Pen Precision

OVERVIEW

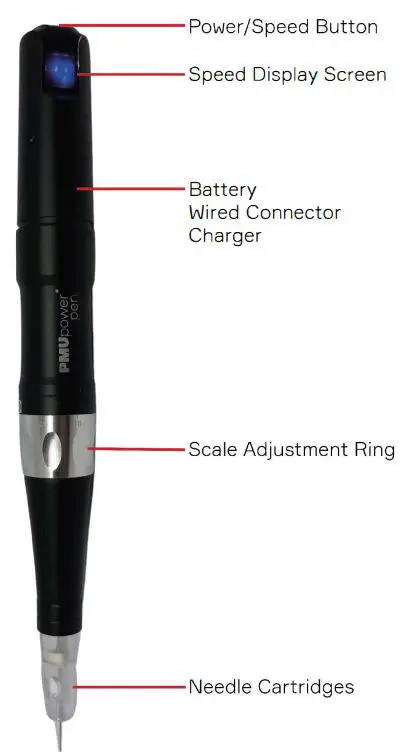

Parts

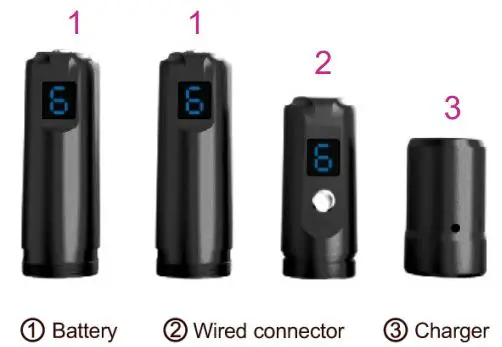

Wireless Mode

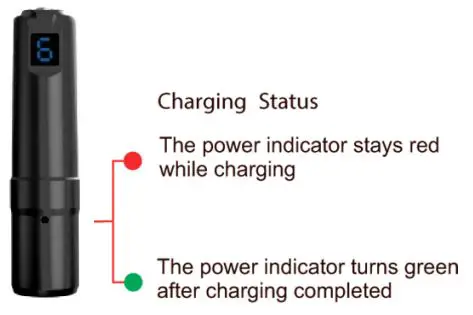

The instrument working with rechargeable battery
Wired Mode
The instrument working with alternating current

How to operate

Preparation

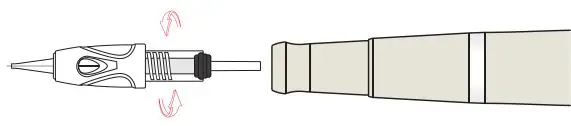

1. Take out needle cartridge in the sterilized packaging
2. Fitting round slot 1 into 2 of machine, push needle cartridge horizontally up to the end.
3. Lock the needle cartridge by turning it to the counterclockwise
4. Turn the needle cartridge clockwise and then push out horizontally if you want to remove it.
5. Start the PMUpower pen precision
   Press the power button for 2-3 seconds to start or shut down the device.

Attention

In order to protect the instrumentwell,do not invert the instrument to prevent the liquid backflow

Adjustment of needle length
Adjust the depth of needle by turning the scale adjustment ring
Turn it clockwise,needle depth will be shorter Turn it counterclockwise,needle depth will be longer

Speed Display

Speed Adjustment
The speed after start the device is the same as the speed before shutdown
The speed changes once each time you press the button

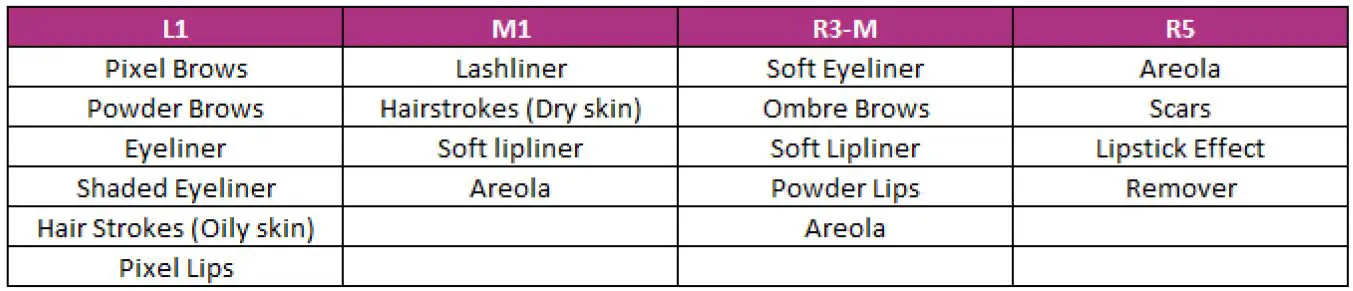

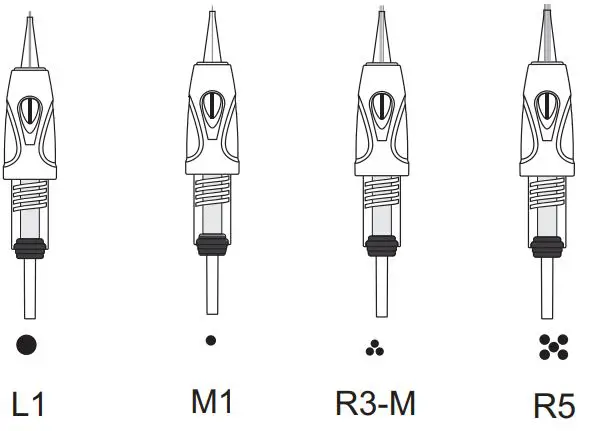

Needle cartridge introduction

• L1: 1-PIXEL LINER HYGIENE MODULE, Number: PMU-L1-S
• M1: 1-NANO LINER HYGIENE MODULE, Number: PMU-M1-S
• R3-M: 3-NANO LINER HYGIENE MODULE, Number: PMU-R3-M-S
• R5: 5-NANO LINER HYGIENE MODULE, Number: PMU R5-S

Specification

Model name: PMUpower pen precision
Adapter: 5V-1000mA Package Weight: 425g
Package Size: 169*123*56 mm

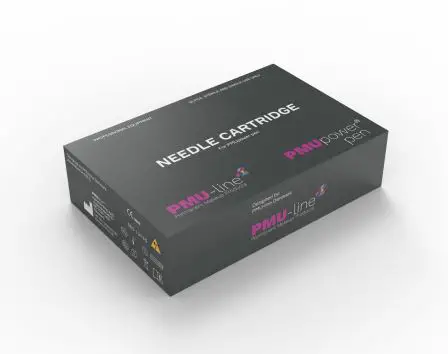

Packing List

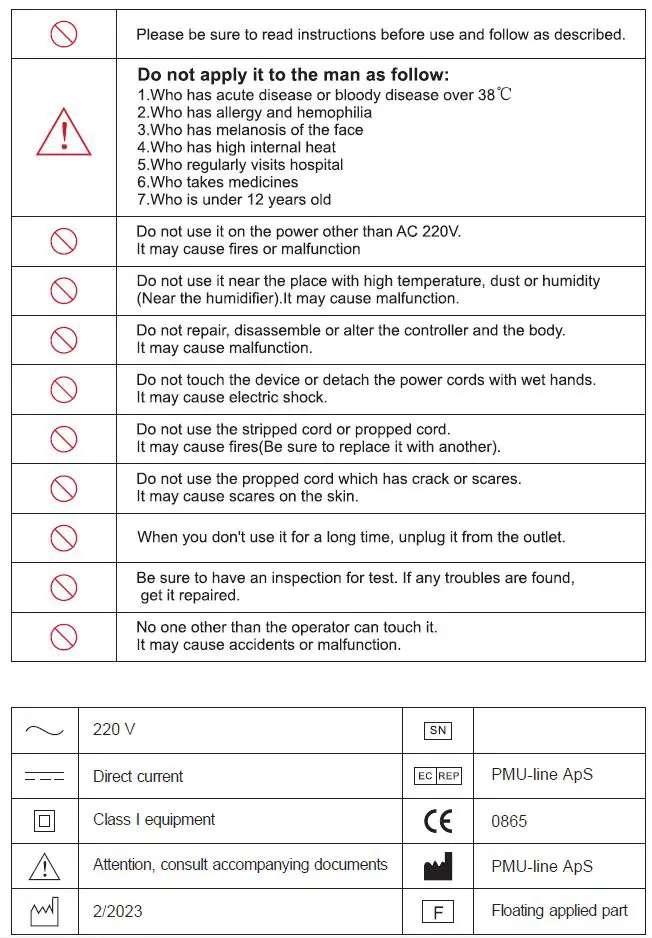

Precaution

Warranty

The warranty period of PMUpower pen precision is 12 months.
We offer repair to our products from the day they are purchased. If any of our products has damages or natural trouble. We offer repair or replacements,

General maintenance

• Make sure to inspect the device and adapter before use
• Keep it with its power off.Wipe its surface out with a dry cloth
• Keep it away from direct sunlight or high temperature and humidity
• Do not leave the measurement, repair or alter of the device to non-professional staff
• When you use the device which has not been used for a long time, make sure to check if it works properly with safety

Juelsmindevej 57, DK-7120 Vejle, Denmark- www.pmu-line.com
